Humminbird HELIX Series Operation Manual page 216

Change the Bottom Hardness Colors
Use the following instructions to change the color palette used to display Bottom Hardness.
hardness
color
NOTE: Use the AutoChart Color Bar icon see the selected palette and, from left to right, the AutoChart Live depth range (low to
high), Bottom Hardness range (soft to hard), or Vegetation range (soft to hard).
Change the Hardness Colors
The Hardness Color menu changes the colors used to display bottom hardness on the view. The color range is shown in the
AutoChart Color bar and is affected by the Min Hardness and Max Hardness settings. See Adjust the Hardness Range for more
information.
1. From the AutoChart menu, select Hardness Options.
Press the RIGHT Cursor key.
2. Select Hardness Color.
3. Select a palette.

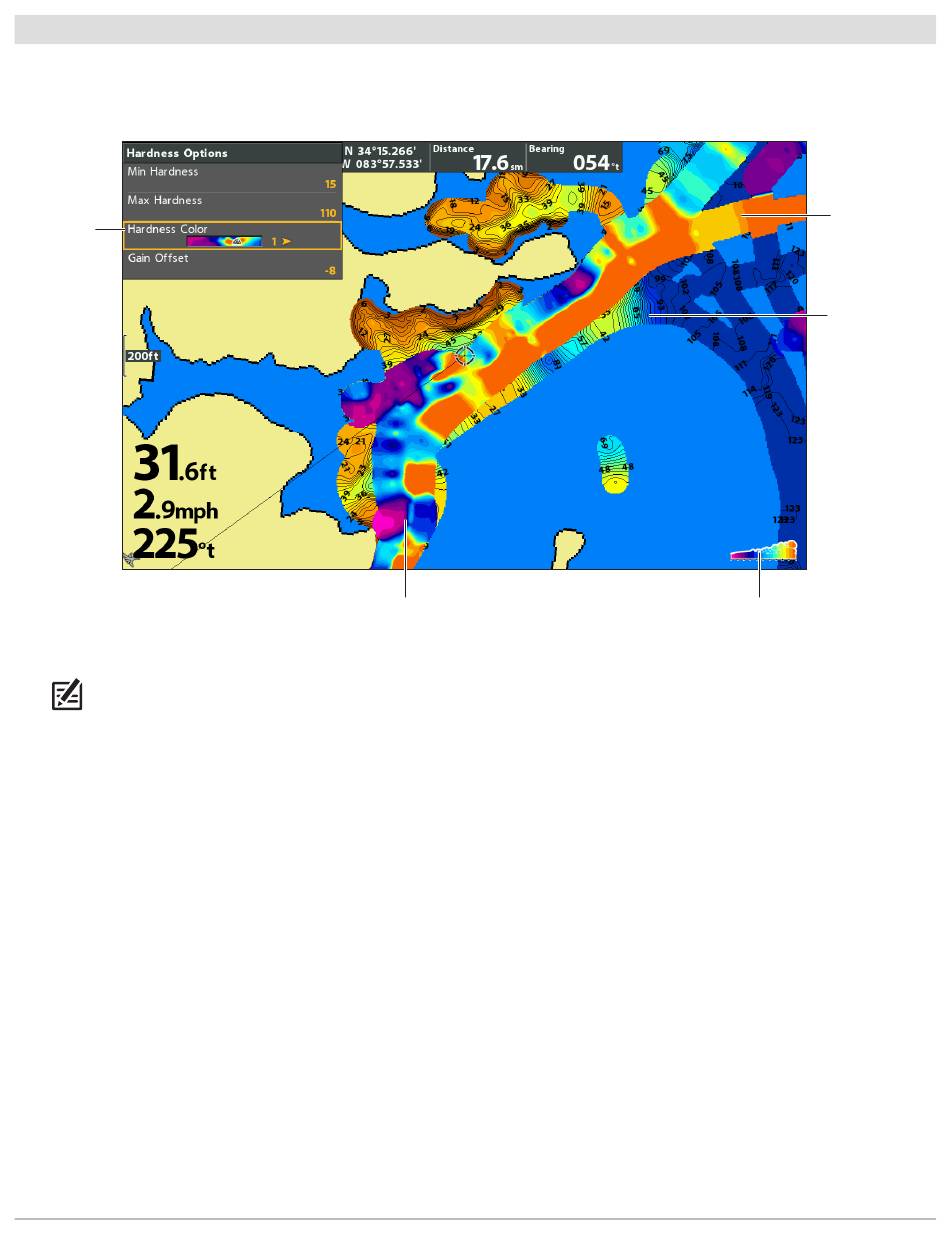

AutoChart Live
Changing the Bottom Hardness Colors (Map Source: Humminbird LakeMaster)
bottom
hardness layer
216
bottom
hardness
layer
AutoChart
Live Map
layer
hardness scale
(AutoChart Color Bar)
