Turn on/off Side Imaging CHIRP
1. Main Menu (Custom User Mode): Press the MENU key twice. Select the Setup tab.
2. Select CHIRP Configuration. Press the RIGHT Cursor key.
3. Select SI CHIRP Mode or Imaging CHIRP Mode.
4. Select On or Off. (Default = On)
Select Frequencies for the 2D Sonar View
Use the instructions in this section to select the frequencies that will be used for the 2D Sonar views. The menu options are
determined by the installed transducer and control head model.
NOTE: You can also change the frequency in the 2D Sonar View while you fish by pressing the CHECK key (see the 2D Sonar View
section: Adjust Settings While you Fish).

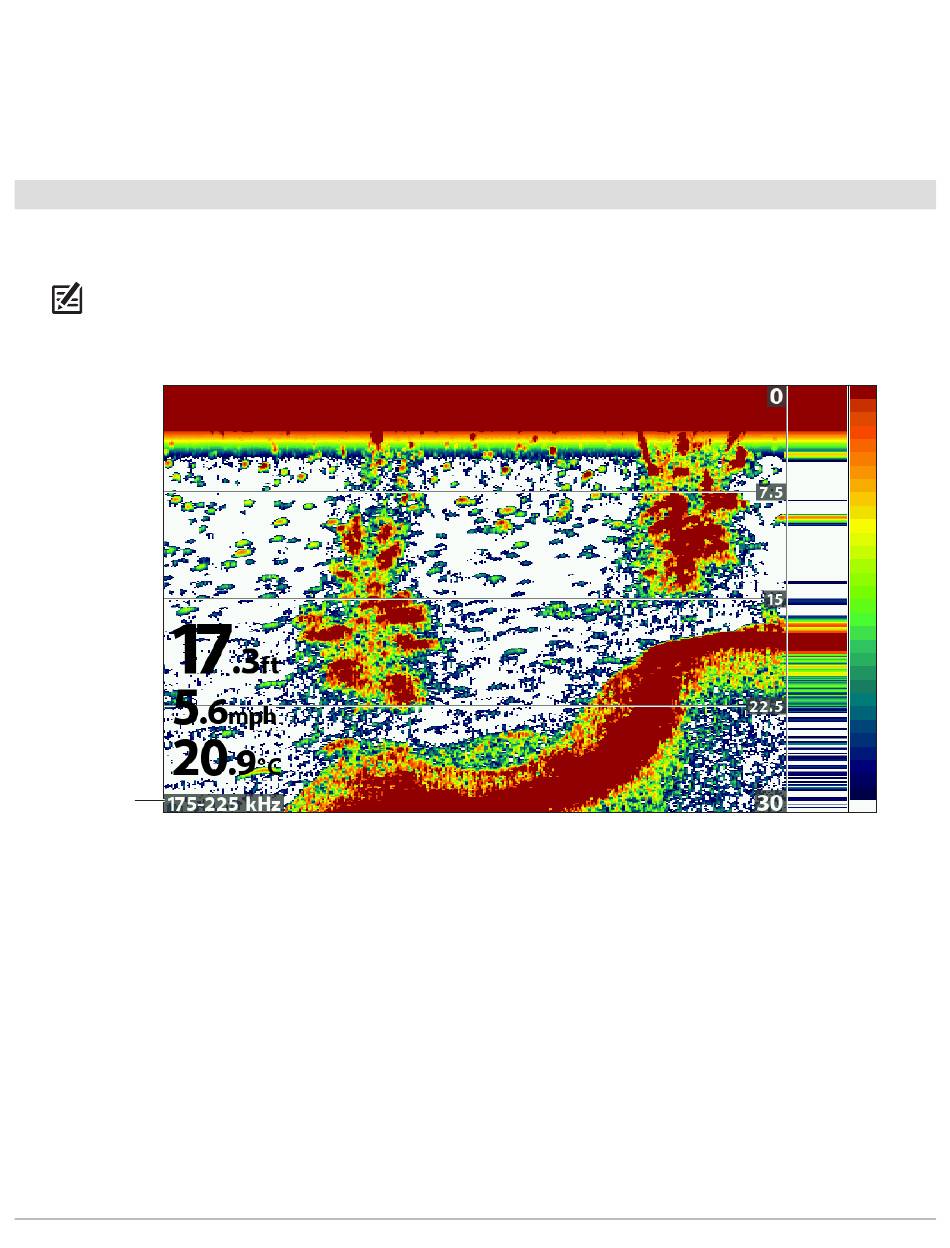

frequency
label
Select Frequencies for the (2D) Sonar View
1. Main Menu: Press the MENU key twice. Select the Sonar tab.
2. Select 2D Display Frequency.
Dual Beam CHIRP Models: Select 2D CHIRP Display Frequency.
Dual Spectrum CHIRP Models: Select Display Spectrum.
3. Select a frequency.
For details, see the tables in Understand Transducer Frequencies and refer to your transducer model.
Set up Sonar
(optional)
Display Frequency for the 2D Sonar View (HELIX 7 CHIRP GPS G2)
