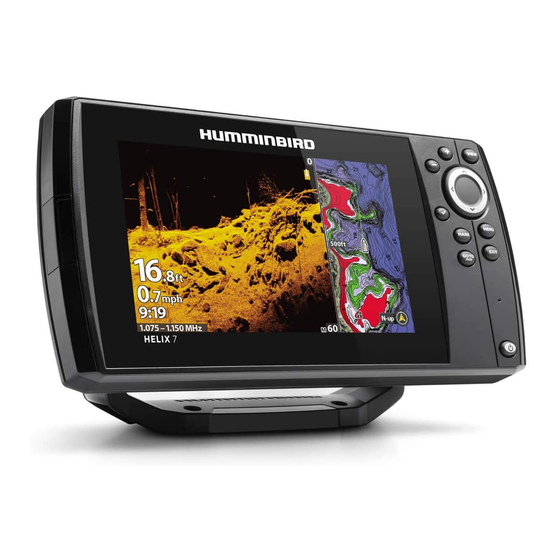

Humminbird HELIX Series Installation Diagrams

BOW UNIT
Networking
Graph
1
2
CONSOLE UNIT
3
Networking
Graph
1
4
5
Cranking
Transducer supplied with
Battery
MEGA Side Imaging unit at

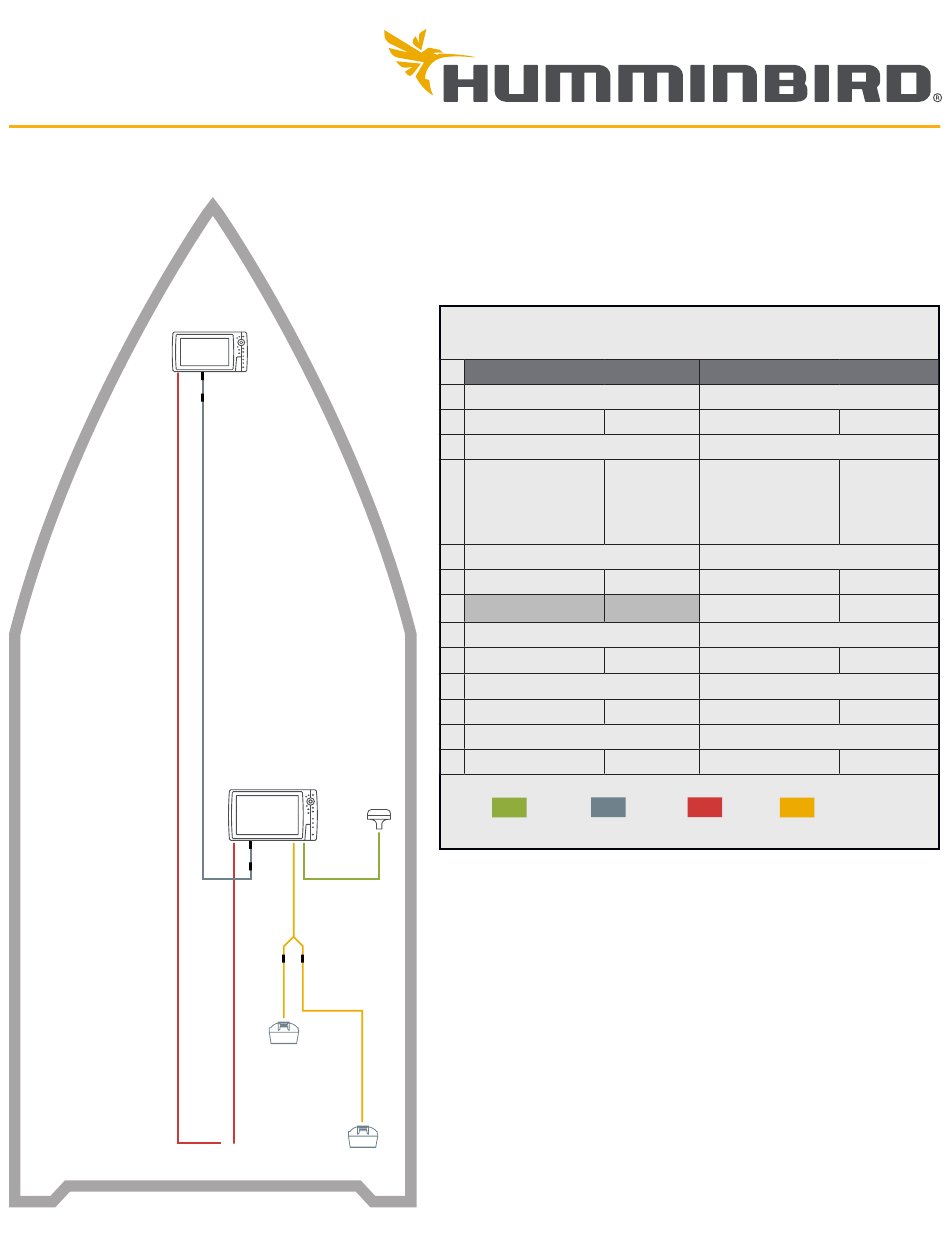

INSTALLATION DIAGRAMS
(1) Humminbird bow unit and (1) console unit
networked together, with heading sensor GPS
puck and high-speed transducer with y-cable
HELIX Series
1
Ethernet Adapter Cable (need 2)
720074-1
2 Ethernet Cable (need 1)
720073-6
720073-2
720073-5
720073-3
720073-4
3
GPS + Heading Sensor
408400-1
4 Transducer Splitter Cable
720101-1
5 High Speed Transducer (fiberglass hull)
710276-1
High Speed Transducer (aluminum hull)
710274-1
NMEA 0183
The accessories and part numbers listed are valid as of April 2020. Installations shown are for
HELIX G3N and SOLIX G2 networking models and Minn Kota trolling motors with i-Pilot Link.
console
Compatible Accessories
Ethernet Adapter Cable
AS EC QDE NA
Ethernet Cable (need 1)
AS EC 5E (5') 720073-6
AS EC 10E (10') 720073-2
AS EC 15E (15') 720073-5
AS EC 20E (20') 720073-3
AS EC 30E (30') 720073-4
GPS + Heading Sensor
AS GPS HS 408400-1
720080-1
Transducer Splitter Cable
9 M SIDB Y 720103-1
High Speed Transducer (fiberglass hull)
XP 9 HW T 710287-1
High Speed Transducer (aluminum hull)
XNT 9 HW T 710285-1
Ethernet 12V DC Power
SOLIX Series
AS EC 5E (5')
AS EC 10E (10')
AS EC 15E (15')
AS EC 20E (20')
AS EC 30E (30')
AS GPS HS
AS GPS NMEA
14 M SIDB Y
XP 14 HW T
XNT 14 HW T
Transducer Cable
