Customize the Chart View

The settings in this section are optional. You can use the default settings for the chart appearance and map source, or you can
customize the Chart View.
digital
readouts set
to boxes
NOTE: Digital readouts can be displayed as an overlay, or they can be displayed in data boxes (see Views: Display Digital
Readouts).
Change the Background Color
The Background menu changes the color of the background on the view. This menu also changes the background color for the
Bird's Eye View.
1. Press the POWER key.
2. Select Background.
3. Select a color.
Show/Hide the North Up Indicator Icon
The North Up Indicator displays the direction of True North. The icon also displays the chart orientation, and it will change as the
orientation and the data source change. To set the Chart Orientation, see Change the Chart Orientation and Motion Mode.
1. Main Menu: Press the MENU key twice. Select the Chart tab.
2. Select North Up Indicator.
3. Select Off (hidden) or On (visible).
Customize the Chart View

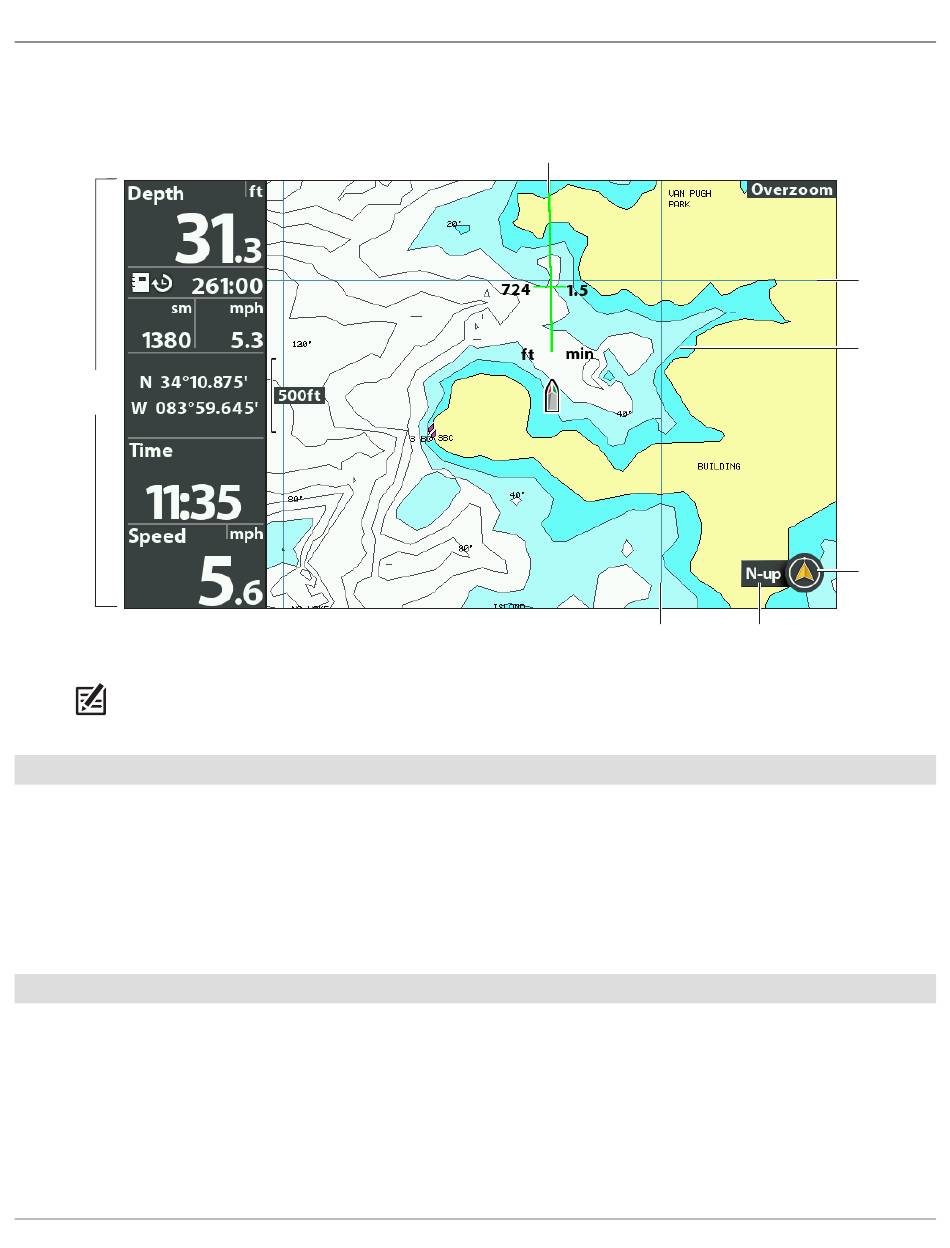

Customizing the Chart View (Map Source: Contour XD)
course projection line set to COG/SOG
140
longitude line chart
orientation
latitude
line
shaded
depth
north up
indicator
