A / D C o n v e r s i o n
R e s u l t
A/D Programming Example
The following two programming examples illustrate how to setup and implement an A/D conversion.
In the first example, the method of polling the EOCB bit in the ADCR0 register is used to detect
when the conversion cycle is complete, whereas in the second example, the A/D interrupt is used to
determine when the conversion is complete.
Example: using an EOCB polling method to detect the end of conversion
clr ADE
mov a,03H
mov ADCR1,a
clr ADOFF
mov a,0Fh
mov ACERL,a
mov a,00h
mov ADCR0,a
:
start_conversion:
clr START
set START
clr START
polling_EOC:
sz EOCB
jmp polling_EOC
mov a,ADRL
mov ADRL_buffer,a
mov a,ADRH
mov ADRH_buffer,a
:
:
jmp start_conversion
Rev. 1.40
F F F H
F F E H
F F D H
0 . 5 L S B
0 3 H
0 2 H
0 1 H
0 1 2 3
A n a l o g I n p u t V o l t a g e

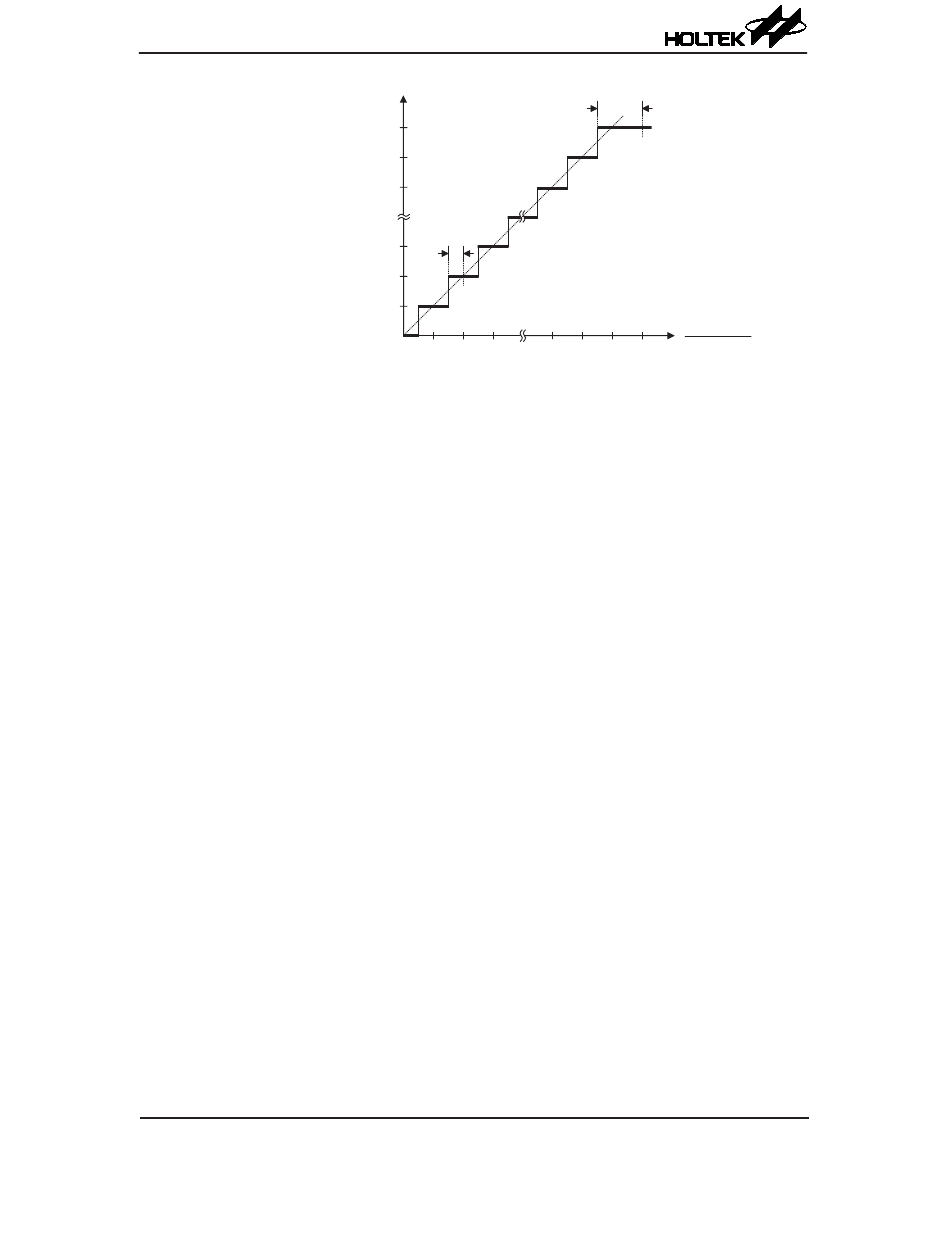

Ideal A/D Transfer Function
