Note:
Note:
Create a correlation
1.
2.
TX3 Nano Configuration Manual
34
Copyright 2019
All inputs, outputs and schedules must be defined before applying
correlations.

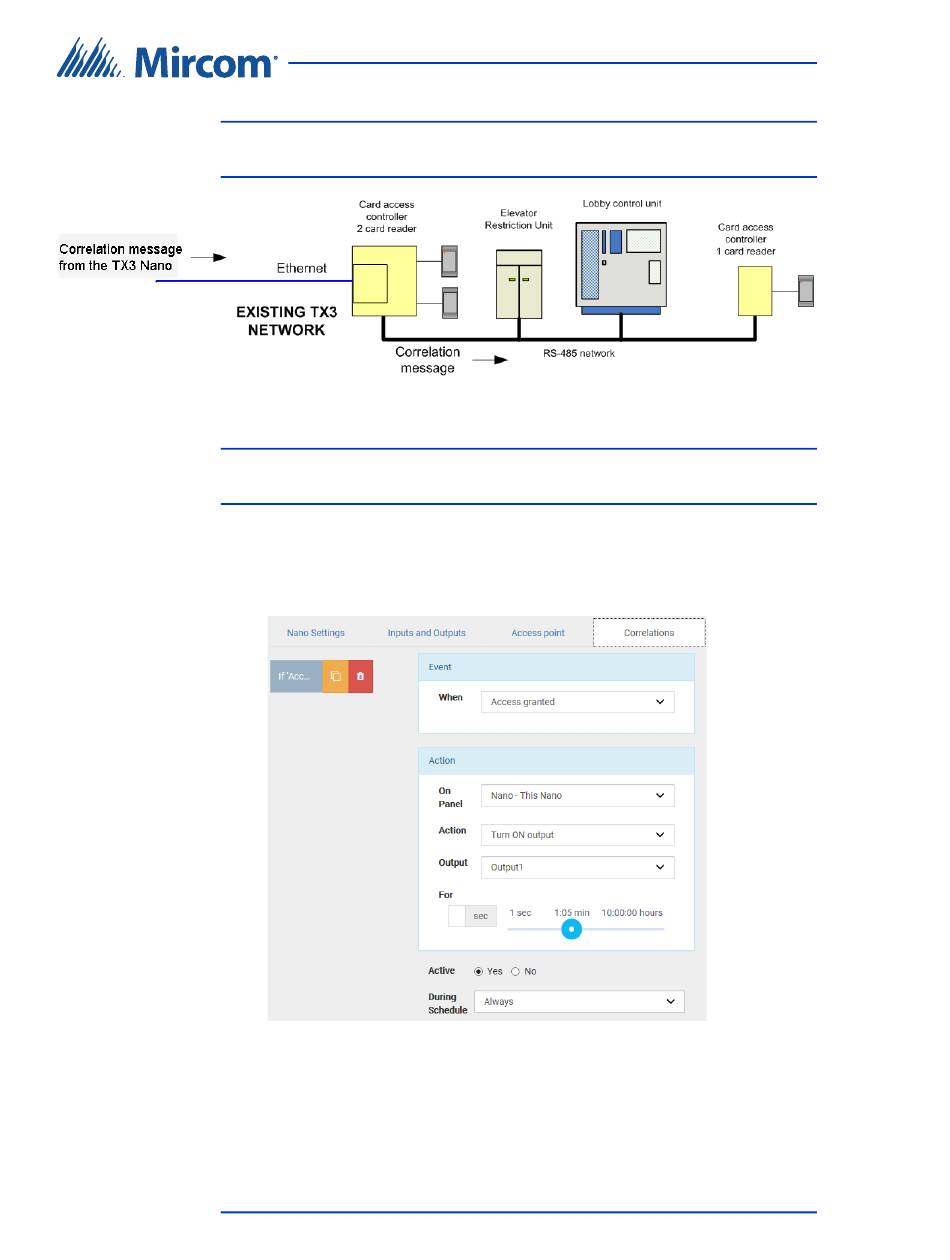

Figure 16. Correlations diagram
Refer to section 3.7 on page 24 for important information on
firmware versions and enhanced correlation messages.
Select the Correlations tab.
Figure 17. Correlations
Click Add Correlation at the top of the window.
TX3 Nano Settings
