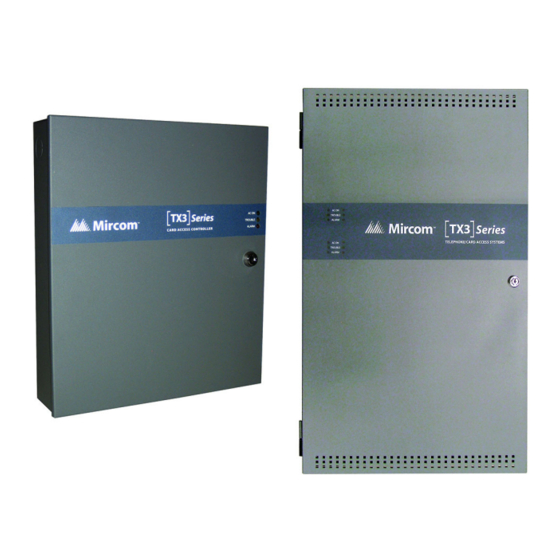

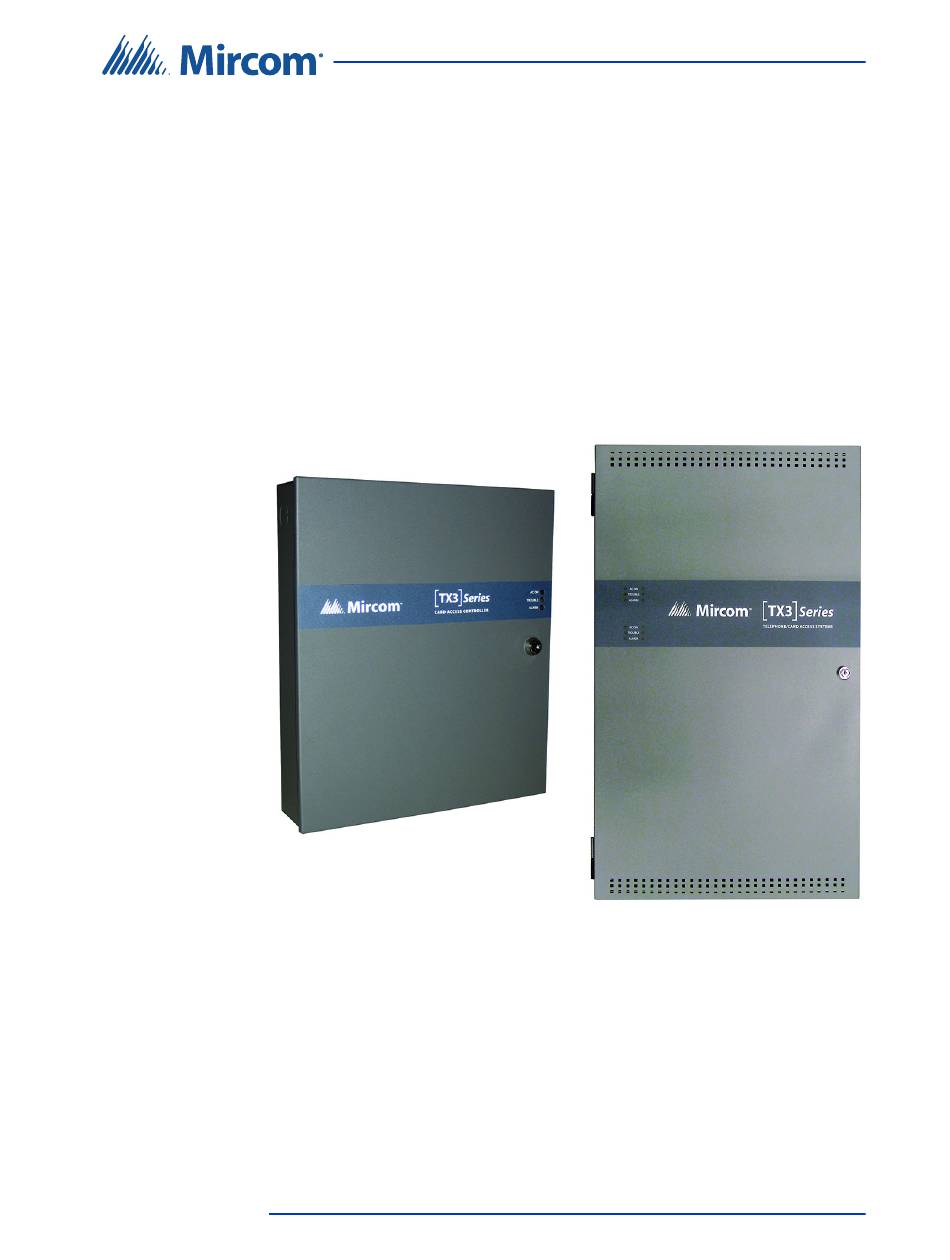

- Page 1 TX3 Series UL LISTED TX3-CX CARD ACCESS SYSTEMS Installation Manual UL Listed TX3-CX Card Access System Installation Manual Version 2 LT-6906 Copyright August 2019...
- Page 2 Copyright August 2019 Mircom Inc. All rights reserved. Mircom UL Listed TX3-CX Card Access System Installation and Operation Manual v.2 Microsoft, MS-DOS, Windows, and Windows 2000/NT/XP/Vista/7/8/10 are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
-
Page 3: Table Of Contents
Contents Welcome Introducing the TX3-CX Card Access System Applications Installer Responsibilities Network Setup About this Manual Contact Us Configurable Features Inputs Correlations Access Criteria Timers Schedules Holidays System Status Mechanical Installation Grounding the Card Access System The TX3-CX-2-A Enclosure The TX3-CX-4-A, TX3-CX-6-A, TX3-CX-8-A Enclosure Mounting all Enclosures Installing the TX3-PS24-5A Power Supply Enclosure for TX3-CX-4-A, TX3-CX-6-A, TX3-CX-8-A (not permitted in UL 294 applications) - Page 4 Contents Battery Selection Specifications Warranty & Warning Information Special Notices UL Listed TX3-CX Card Access System Installation Manual Version 2 LT-6906 Copyright 2019...
- Page 5 List of Figures Figure 1 Basic Card Access System Figure 2 Card Access System using an RS-485 network Figure 3 Card Access System using an Ethernet TCP/IP network Figure 4 Card Access System using both Ethernet and RS-485 networks Figure 5 Enclosure dimensions for TX3-CX-2-A Figure 6 Enclosure dimensions for TX3-CX-4-A, TX3-CX-6-A,...
-
Page 6: Welcome
Contact Us Introducing the TX3-CX Card Access System The TX3-CX Card Access System is part of the Mircom suite of products that provide building ready monitoring, control and integrated security solutions for use in the high end multi-tenant residential market. -
Page 7: Applications
Welcome Applications Mircom's Card Access System consists of a controller, two card readers and configuration software. The controller can accept at the same time, a combination of card readers with different formats to control two access points or doors. The Card Access System can set elevator usage if elevator controls are used. -
Page 8: Installer Responsibilities
Welcome The Mircom Card Access System supports a proprietary 37-bit encoding technology and a 26-bit SIA standard format, and consists of a maximum of 63 card access controllers networked together. Each card access controller can have two card readers. The Card Access System provides an optional battery backup and a real time clock. -
Page 9: Figure 1 Basic Card Access System
Welcome Figure 1 shows a basic Card Access System with one card access controller and two card readers. The maximum distance between the card access controller and the card readers is 500 feet. Card Reader A Card Reader B Card Access Controller Figure 1. - Page 10 Welcome on the Ethernet TCP/IP network. If you connect directly to one of the Master Nodes using USB, a modem, or a COM port, you will be able to configure that device but not any other device. Card Access Controller Card Access Controller (Master Node) (Master Node)
-
Page 11: Figure 4 Card Access System Using Both Ethernet And Rs-485 Networks
Welcome Figure 4 shows a Card Access System using an Ethernet network with RS-485 subnetworks. The card access controllers connecting to a Master Node’s RS-485 subnetwork are Slave Nodes to the Master Node. Each RS-485 subnetwork can have up to 63 controllers connected to it; you can still have more than 63 Master Nodes connected to the Ethernet network. -
Page 12: About This Manual
TX3-USB-AD Kit (converts RS-485 signals to USB) • TX3-MDM Modem Module (not permitted in UL 294 applications) Contact Us 1.6.1 Canada and USA Toll Free: 1-888-660-4655 Local: 905-660-4655 Fax: 905-660-4113 1.6.2 Website http://www.mircom.com UL Listed TX3-CX Card Access System Installation Manual Version 2 LT-6906 Copyright 2019... -
Page 13: Configurable Features
Configurable Features This chapter describes all the configurable features and their modes of operation, and provides you with detailed information to let you configure the system using the Configurator software. For details on using the Configurator, see LT-995 TX3 Configuration and Administration Manual. -
Page 14: Correlations
Configurable Features 2.1.2 Door sense for reader A or B When the door is open this input is active and when the door is closed the input is inactive. This input: • senses if the door ever opened after it was unlocked as a result of access being granted. - Page 15 Configurable Features 2.2.2 Events Events are defined by the following inputs and reader states: • Access is granted (from Reader A or B) • Access is denied (from Reader A or B) • Forced entry alarm (from Reader A or B) •...
-
Page 16: Access Criteria
Configurable Features 2.2.6 Duration The duration of the action is specified in minutes and seconds, or indefinitely. 2.2.7 Schedule The schedule lets you specify when correlated events take effect. Access Criteria If connected to a PC, the Configurator software monitors the functional state of inputs from all panels and devices, and senses the status of connected components. - Page 17 Configurable Features 2.3.1 Lock / Unlock An access point has one of the following lock status modes: Lock Mode. When in lock mode the door is normally locked. Any valid access card unlocks the door for the duration of a specified time interval according to: •...
- Page 18 Configurable Features • the Configurator software can change the mode from high security on to high security off or from high security off to high security on • an event correlated with a response to turn on or off the high security mode The high security mode locks all doors in the unlocked mode.
- Page 19 Configurable Features 2.3.7 Temporary card This type of card can be created by placing a usage counter on the card. Each time the card is used, the usage counter is reduced by one. When the usage number reaches zero, access is denied. A usage counter of 255 indicates there is no restriction on use.
- Page 20 36-bit Keyscan C15001 • 37-bit Cansec • 37-bit HID 10304 • 37-bit Mircom • 39-bit Kantech XSF • 50-bit RBH Send real time logs. If enabled, only the real time logs are sent to the PC. Interlock feature. If enabled, door B cannot be unlocked until door A is locked and closed.
- Page 21 Configurable Features Disable forced entry alarm. If this option is enabled, the forced entry alarm does not activate even if the door is opened without permission. Instead, access is granted. This is usually used on access points where there is no request to exit (RTE) device.
- Page 22 Configurable Features Timed Anti-passback. When enabled access is not permitted at the same access point for a specific amount of time specified by the anti-passback timer. 2.3.12 Card options Access cards are configured for the following features: Usage counter. The usage counter is used for temporary cards. The usage counter can be given any value from 1 to 255.
-
Page 23: Timers
Configurable Features Timers The following types of timers are associated with the Card Access System operation: • Unlock time • Extended unlock time • Anti-passback • Door held open warning • Door held open alarm 2.4.1 Timer schedule Events are scheduled as Always, Never, or administrator defined. Timed access adheres to a schedule as follows: Auto-unlock schedule. -
Page 24: Schedules
Configurable Features 2.4.5 Door held open warning The door held open warning timer starts when access is granted. When the door unlock timer expires and the door does not close during this interval a ‘door held open’ warning is issued to the PC and the common trouble status becomes active. If the door closes during this interval, the timer resets and no warning report is sent to the PC. -
Page 25: Holidays
Configurable Features • PIN required schedule • Access levels Holidays Up to 128 holidays can be entered in the system. Each holiday consists of the following: • start time/date • end time/date If a holiday falls on the same date each year it can also be programmed as an annual event. -
Page 26: Mechanical Installation
Mechanical Installation This chapter describes the installation and setup of the controller and card reader. This chapter explains • Grounding the Card Access System • The TX3-CX-2-A Enclosure • The TX3-CX-4-A, TX3-CX-6-A, TX3-CX-8-A Enclosure • Mounting all Enclosures • Installing the TX3-PS24-5A Power Supply Enclosure for TX3-CX-4-A, TX3-CX-6-A, TX3-CX-8-A (not permitted in UL 294 applications) Grounding the Card Access System Grounding reduces the risk of electrical shock by providing an alternate escape... -
Page 27: The Tx3-Cx-2-A Enclosure
Mechanical Installation The TX3-CX-2-A Enclosure The TX3-CX-2-A enclosure mounts with four screws as shown in figure 5. The back cover is 12 inches wide by 14 inches long. The top two mounting holes are 10 inches apart. Tamper Switch 12” 10”... -
Page 28: The Tx3-Cx-4-A, Tx3-Cx-6-A, Tx3-Cx-8-A Enclosure
Mechanical Installation The TX3-CX-4-A, TX3-CX-6-A, TX3-CX-8-A Enclosure The TX3-CX-4-A, TX3-CX-6-A, and TX3-CX-8-A enclosures mount with four screws as shown in Figure 6. 36.83cm 14.50in 27.94cm 11.00in 17.78cm 7.00in 4.45cm 1.75in DOUBLE KNOCKOUT 1.125 AND 0.875 (x10) 30.48cm 12.00in TAMPER SWITCH GROUND TERMINAL 5.08cm 2.00in (X2) -
Page 29: Mounting All Enclosures
Mechanical Installation 3.3.1 Mounting of Card Access Controller Boards Figure 7 shows how the card access controller boards are mounted in the TX3- CX-4-A, TX3-CX-6-A, TX3-CX-8-A enclosure. Up to 4 card access controller boards can be mounted in the enclosure. The card access controller boards are mounted in two layers using standoffs. -
Page 30: Installing The Tx3-Ps24-5A Power Supply Enclosure For Tx3-Cx-4-A, Tx3-Cx-6-A, Tx3-Cx-8-A (Not Permitted In Ul 294 Applications)
Mechanical Installation Place the screws halfway into the wall in the position shown using a suitable screw. Hang the box onto the two screws. Screw the other two screws at the bottom of the enclosure. Tighten all four screws into place. Installing the TX3-PS24-5A Power Supply Enclosure for TX3-CX-4-A, TX3-CX-6-A, TX3-CX-8-A (not permitted in UL 294 applications) -
Page 31: Figure 9 Tx3-Ps24-5A Voltage Selection Switch
Mechanical Installation Switch the voltage selection switch to the required voltage level. Place a flathead screwdriver in between one of the holes in the chassis to access the switch. By default it is set to 115 Volts. Figure 9. TX3-PS24-5A voltage selection switch Place the switching power supply back into the box using the metal guides to position it and then replace the screws on both sides of the terminal block to secure it into the box. -
Page 32: Figure 10 Tx3-Ps24-5A Enclosure Dimensions
Mechanical Installation Back View SideView Figure 10. TX3-PS24-5A enclosure dimensions To surface mount TX3-PS24-5A You need: • 4 fasteners appropriate for the wall that you are mounting the enclosure Find a suitable location for the power supply enclosure, such as over a wall stud. -
Page 33: Setup Of The Card Access Controller
Setup of the Card Access Controller This chapter describes the installation and setup of the controller and card reader. This chapter explains • Controller Board Description • Optional Components • Power Supply Connection • TX3-PS24-5A Power Supply (not permitted in UL 294 applications) •... - Page 34 Setup of the Card Access Controller 4.1.1 Controller Panel LEDs There are three status LEDs on the front of the Card Reader Panel: AC ON LED. AC ON LED illuminates steady green when AC power is present. Trouble LED. Trouble LED flashes amber at a slow rate when there is a common trouble condition in the system.
-
Page 35: Optional Components
Setup of the Card Access Controller 2 voltage output relays 8 input terminals 6 dry relay contact output terminals Input 1 Input 8 Output7 Output 8 Output 1 Output 6 Connection for TX3-IP module Connection for modem Factory use only module (non-UL 294 Connection for applications only) and... -
Page 36: Figure 12 Ip Module Board Location
Setup of the Card Access Controller 4.2.1 Tamper switch The tamper switch is located as shown in figures 5 and 6. Connect the tamper switch wire to the general purpose input and correlate the opening of the cover to a specific output (action). For a complete description of correlations see section 2 on page 13. -
Page 37: Figure 13 Tx3-Usb-Ad Board Location
Setup of the Card Access Controller 4.2.3 TX3-USB-AD Kit The TX3-USB-AD Kit converts RS-485 signals to USB. To install the TX3-USB-AD Module Connect the ribbon cable to the P3 connector on the card access controller. Place the module over the connector position with the four spacers. Align and fasten into place with the four screws. -
Page 38: Figure 14 Controller Board Battery Wring
Setup of the Card Access Controller Table 1: RS-485 Add-On Module Jumper Settings Mode No termination Open Open AC termination 120R + 1nF Short Open No termination Open Short DC termination 120R (Factory Default) Short Short Note: For the main application of TX3-USB-AD, short JW1 and JW2. For more information see the TX3-USB-AD Kit Installation Instructions LT- 6027. -
Page 39: Figure 15 Modem Board Location
Setup of the Card Access Controller 4.2.5 TX3-MDM Modem Module (not permitted in UL 294 applications) Note: The TX3-MDM Modem Module is not evaluated to UL 294. The TX3-MDM Modem Module is designed to work only with POTS (plain old telephone system) lines. The modem module has two telephone connectors, an RJ-11 connector and a terminal block as shown in figure 16. -
Page 40: Power Supply Options
Setup of the Card Access Controller TX3 Modem Module RJ-11 Connector Tip Ring Figure 16. Modem module telephone connectors Power Supply Options Use one or more of the following power supplies that will cover your power needs depending on how many card access controllers you have: •... -
Page 41: Tx3-Ps24-5A Power Supply (Not Permitted In Ul 294 Applications)
Setup of the Card Access Controller 4.3.1 Power Supply Connection The power supply connection on the bottom right of the controller board and receives 16 VAC, 40 VA. Use 18 AWG wiring. ON/OFF Switch 16 Vac IN • Direct plug-in Class 2 transformer (Manufactured by Yeo Heung Electronics Co. -
Page 42: Figure 18 Tx3-Ps24-5A Terminal Block Wiring
Setup of the Card Access Controller 4.4.1 Wiring the TX3-PS24-5A Power Supply The power supply terminals are located at the bottom of the TX3-PS24-5A external power supply as shown in Figure 18. To building To card access power controller Figure 18. TX3-PS24-5A terminal block wiring To wire TX3-PS24-5A Turn off the card access controllers. - Page 43 Setup of the Card Access Controller RS-485 An RS-485 terminal lets you easily connect multiple Telephone and Card Access Controllers across a network. The RS-485 connection is situated at the bottom middle of the main controller board and consists of two separate terminals, each for an input and output.
-
Page 44: Figure 19 Rs-485 Wiring For Tx3-Cx-2-A
Setup of the Card Access Controller Panel 1 Panel 3 Panel 2 First panel on network Last panel on network 120 Ω 120 Ω Optional common Connect shield to chassis Connect shield to chassis reference connection ground on one panel only ground on one panel only if available Figure 19. -
Page 45: Usb Port
Setup of the Card Access Controller Panel 1 Panel 3 Panel 2 First panel on network Last panel Controller 1 Controller 2 Controller 3 on network 3” wires 22” wires 120 Ω 120 Ω Optional common Optional common Connect shield to chassis Connect shield to chassis reference connection reference connection... -
Page 46: Figure 23 Controller Board Input Terminals
Setup of the Card Access Controller After the installation and setup is complete, the functional state of all inputs and circuit supervision types must be configured using the Configurator software. During configuration you will also establish correlations between inputs and outputs. - Page 47 Setup of the Card Access Controller 4.7.3 Door sense When the door is open this input is active and when the door is closed the input is inactive. 4.7.4 General purpose input The general purpose input is mainly used for establishing a correlation with a specific output.
-
Page 48: Figure 25 Input - Supervised For Open
Setup of the Card Access Controller 4.7.6.2 Supervised for open When configured as supervised for open, the active state is ‘closed’ (short). Open supervision uses a single 47K ohm resistor. Active when short 47 K ohms Figure 25. Input - supervised for open Note: The active state cannot be an open state. -
Page 49: Outputs
Setup of the Card Access Controller Two 22K ohm resistors are required for supervision. Active when short 22 K ohms 22 K ohms Figure 27. Input - supervised for open and short Note: The active state cannot be an open state. 4.7.7 Alarm Delay Alarm delay is a Configurator defined parameter that specifies the amount of... - Page 50 Setup of the Card Access Controller Handicap lock for reader A or B. This output controls the handicap access door. Access is granted to cards with handicap privileges. General purpose output. The general purpose output is for all other types of outputs, such as turning on a light.
-
Page 51: Figure 28 Controller Output Terminal Sample Connections
Setup of the Card Access Controller Door Strike 1 External power supply Common Normally Open Maglock 1 External power supply Normally Common Closed 18 AWG 18 AWG NC C NO NC C NO NC C NO NC C NO NC C NO NC C NO OUTPUT 1 OUTPUT 2 OUTPUT 3... -
Page 52: Card Readers
Figure 29. Outputs 7 and 8 sample connections Figure 29 shows a door strike activated and powered by output 8. Card Readers The card readers are part of the Mircom Card Access package. The cards are produced by Mircom.The controller supports two card readers. 4.9.1 Card Reader Requirements Mircom provides several multi protocol proximity card readers. -
Page 53: Figure 30 Controller Board Card Reader Connectors
DATA1 Black COM(−) Card readers supplied by Mircom require a foil shielded multiple conductor stranded cable, at least 22 AWG. For example, use Belden 9535 or a similar cable. The black wire can be connected to either COM (−) connector on the terminal block. -
Page 54: Setting Dip Switches Sw2
Setup of the Card Access Controller For other brands of card readers, follow the instructions in the manual for the card reader. Note: Some card readers treat the green and red LED connections differently. You might need to switch the green and red LED connections for the LED to work properly. -
Page 55: Figure 31 Location Of Jumpers Jw1 To Jw8 And Switches Sw1
Setup of the Card Access Controller See section 5 on page 59 for the DIP switch settings for RS-485 network addressing. Note: DIP Switch 7 is not used and should remain at the default setting (OFF). Note: DIP Switch 8 determines how the IP address is assigned to the IP Module for IP enabled card access controllers. -
Page 56: Setting Jumpers
Setup of the Card Access Controller 4.11 Setting Jumpers There are seven pre-set jumpers on the controller board as follows (refer to figure 31): JW1. JW1 is used for updating firmware and is always open by default. JW2. JW2 is used for updating firmware and is open by default. See section 4.13 on page 56. -
Page 57: Beginning Configuration
Refer to LT-995, TX3 Configuration and Administrator Manual, for instructions on how to perform both of these firmware upgrade methods. LT-995 can be found on the TX3 Configurator Software installation CD, the USB flash drive, or on the Mircom website. 4.13.1 Firmware Version Control The firmware version number is accessible from the Configurator software and changes whenever there is a major, minor or revision update. - Page 58 Setup of the Card Access Controller Verify the following: • Ensure that the controller and all connected devices and components are fully operational. • Ensure the controller DIP Switches (SW2) are set with a unique network address. • Ensure the Configurator software is set with the correct controller network address.
-
Page 59: Rs-485 Addresses
RS-485 Addresses Table 3: SW2 DIP Switch Settings for RS-485 Network Addressing ADDRESS SWITCH 1 SWITCH 2 SWITCH 3 SWITCH 4 SWITCH 5 SWITCH 6 UL Listed TX3-CX Card Access System Installation Manual Version 2 LT-6906 Copyright 2019... - Page 60 RS-485 Addresses Table 3: SW2 DIP Switch Settings for RS-485 Network Addressing (Continued) ADDRESS SWITCH 1 SWITCH 2 SWITCH 3 SWITCH 4 SWITCH 5 SWITCH 6 UL Listed TX3-CX Card Access System Installation Manual Version 2 LT-6906 Copyright 2019...
- Page 61 RS-485 Addresses Table 3: SW2 DIP Switch Settings for RS-485 Network Addressing (Continued) ADDRESS SWITCH 1 SWITCH 2 SWITCH 3 SWITCH 4 SWITCH 5 SWITCH 6 UL Listed TX3-CX Card Access System Installation Manual Version 2 LT-6906 Copyright 2019...
-
Page 62: Tx3-Cx-2-A Power Supply And Battery Calculations
TX3-CX-2-A Power Supply and Battery Calculations Use the forms below to determine the required secondary power supply (batteries). Enter values in the shaded areas. Table 4: Standby Current Total Standby Model Number Standby (amperes) TX3-CX-2 = 0.5 (A) ** Output 7 (B) ** Output 8 Total standby current (add above currents) -
Page 63: Total Current For Door Lock
TX3-CX-2-A Power Supply and Battery Calculations Total Current for Door Lock Enter values in the shaded areas. Table 6: Total Current for Door Lock Total door open time Number of hours Standby for Total current for per hour the panel must run outputs 7 and 8 door lock (Ah) (from Table 5) - Page 64 Specifications Standards UL 294 7th Edition UL 294, 7th Ed. Access Control Performance Levels TX3-CX-2 TX3-CX-4 TX3-CX-6 TX3-CX-8 TX3-USB-AD TX3-IP Access Control Line Security Destructive Attack Endurance Standby Power Primary Operating Supply • Manufactured by Yeo Heung Electronics Co. Ltd., Model No. SEP/P-1640U (includes outlet card access controller mounting tab - one required for each board, if used for primary operating...
- Page 65 Specifications Electrical Ratings TX3-CX-2 • 16.5 VAC, 0.5 A (no load), 2.2 A (full load) TX3-CX-4 • 16.5 VAC, 1 A (no load), 4.4 A (full load) TX3-CX-6 • 16.5 VAC, 1.5 A (no load), 6.6 A (full load) TX3-CX-8 •...
- Page 66 Companies are not to be used as a fire, alarm, or life-safety system. NOTE TO INSTALLERS: All Mircom Systems have been carefully designed to be as effective as possible. However, there are circumstances where they may not provide protection. Some reasons for system failure include the following.
- Page 67 Best practices and local authority having jurisdiction determine the frequency and type of testing that is required at a minimum. Mircom System may not function properly, and the occurrence of other system failures identified below may not be minimized, if the periodic testing and maintenance of Mircom Systems is not completed with diligence and as required.
- Page 68 Battery Failure. If the Mircom System or any device connected to the system operates from batteries it is possible for the batteries to fail. Even if the batteries have not failed, they must be fully charged, in good condition, and installed correctly.
- Page 69 Integrated Products. Mircom System might not function as intended if it is connected to a non-Mircom product or to a Mircom product that is deemed non-compatible with a particular Mircom System. A list of compatible products can be requested and obtained.
- Page 70 Warranty & Warning Information Warranty Purchase of all Mircom products is governed by: https://www.mircom.com/product-warranty https://www.mircom.com/purchase-terms-and-conditions https://www.mircom.com/software-license-terms-and-conditions UL Listed TX3-CX Card Access System Installation Manual Version 2 LT-6906 Copyright 2019...
- Page 71 Special Notices Product Model Number: TX3 Complies With Federal Communications Commission (FCC): • CFR 47, Part 15, Subpart B, Class B • Unintentional Radiators Industry Canada (IC): • ICES-003, ISSUE 4, CLASS B • Verification Authorization - Digital Apparatus Registration Numbers FCC (U.S.): 1M8TE00BTX3 IC (Canada): 1156A-TX3 UL Listed TX3-CX Card Access System Installation Manual...
