See section 3.14 on page 32 for information on configuring timers.
3.13.2 Input 2
By default, Input 2 is configured as General purpose.
3.13.3 Configure the Inputs
Configure inputs
1.
2.
3.
TX3 Nano Configuration Manual
30
Copyright 2019
If the door closes while the door held open warning timer or the door held
open alarm timer are active, the warning or alarm is cancelled, and the
Door open trouble restored or Door open alarm restored event is
reported to the Configurator.
Click Nano Setting in the left pane.
Click the Inputs & Outputs tab at the top of the window.

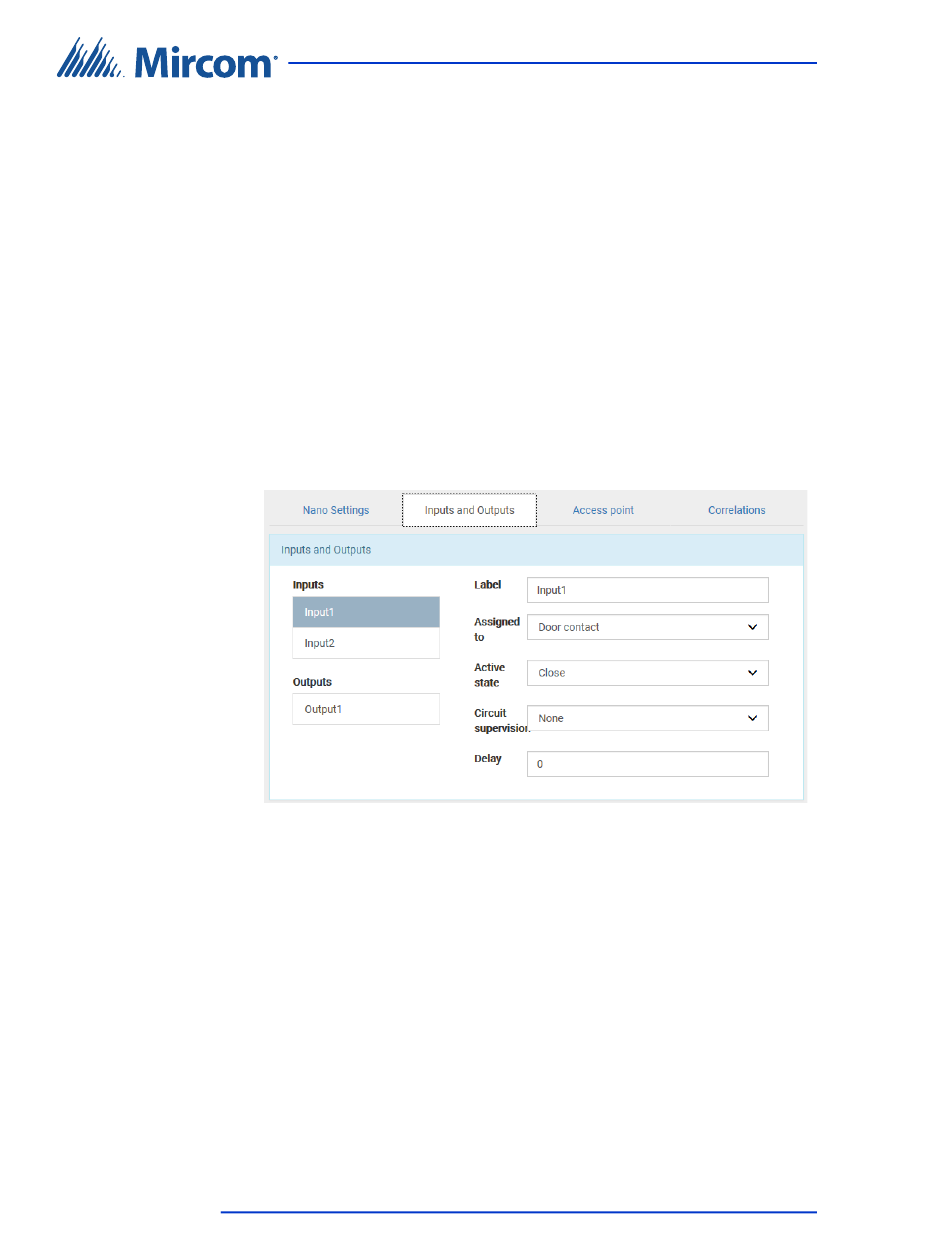

Figure 14. Input & Outputs
Select an input and provide information for the following parameters:
Label. Type a name for this input.
Assigned to. Select a function for this input:
Door contact
General purpose
See section 3.13.1 on page 29 for information about the door contact.
