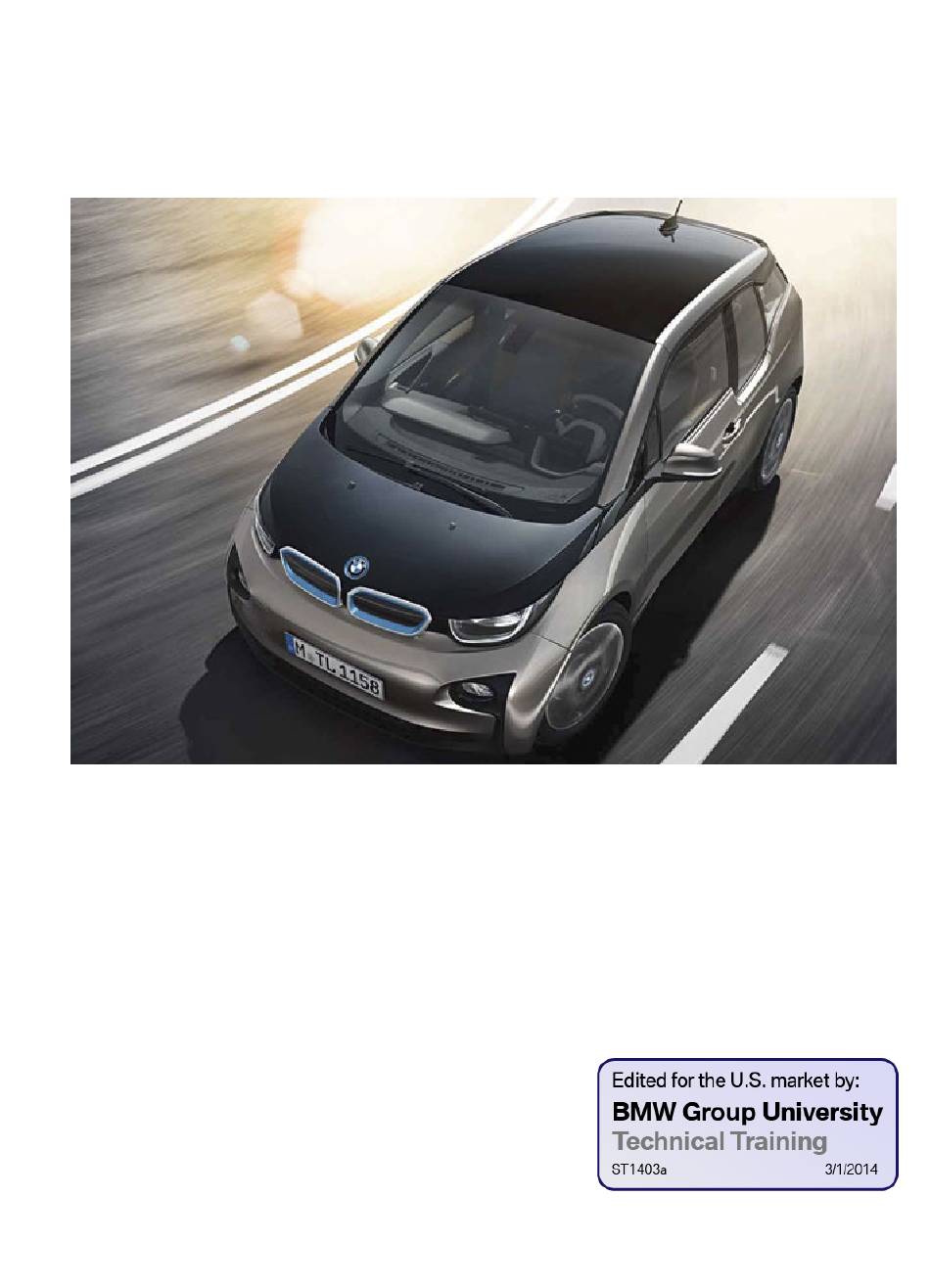

Technical￿training.
Product￿information.
I01￿High-voltage￿Components
BMW￿Service

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BMW I01

Summary of Contents for BMW I01

  • Page 1 Technical￿training. Product￿information. I01￿High-voltage￿Components BMW￿Service...
  • Page 2 General￿information Symbols￿used The￿following￿symbol￿is￿used￿in￿this￿document￿to￿facilitate￿better￿comprehension￿or￿to￿draw￿attention to￿very￿important￿information: Contains￿important￿safety￿information￿and￿information￿that￿needs￿to￿be￿observed￿strictly￿in￿order￿to guarantee￿the￿smooth￿operation￿of￿the￿system. Information￿status￿and￿national-market￿versions BMW￿Group￿vehicles￿meet￿the￿requirements￿of￿the￿highest￿safety￿and￿quality￿standards.￿Changes in￿requirements￿for￿environmental￿protection,￿customer￿benefits￿and￿design￿render￿necessary continuous￿development￿of￿systems￿and￿components.￿Consequently,￿there￿may￿be￿discrepancies between￿the￿contents￿of￿this￿document￿and￿the￿vehicles￿available￿in￿the￿training￿course. This￿document￿basically￿relates￿to￿the￿European￿version￿of￿left￿hand￿drive￿vehicles.￿Some￿operating elements￿or￿components￿are￿arranged￿differently￿in￿right-hand￿drive￿vehicles￿than￿shown￿in￿the graphics￿in￿this￿document.￿Further￿differences￿may￿arise￿as￿the￿result￿of￿the￿equipment￿specification￿in specific￿markets￿or￿countries. Additional￿sources￿of￿information Further￿information￿on￿the￿individual￿topics￿can￿be￿found￿in￿the￿following: • Owner's￿Handbook • Integrated￿Service￿Technical￿Application. Contact:￿conceptinfo@bmw.de ©2013￿BMW￿AG,￿Munich Reprints￿of￿this￿publication￿or￿its￿parts￿require￿the￿written￿approval￿of￿BMW￿AG,￿Munich The￿information￿contained￿in￿this￿document￿forms￿an￿integral￿part￿of￿the￿technical￿training￿of￿the BMW￿Group￿and￿is￿intended￿for￿the￿trainer￿and￿participants￿in￿the￿seminar.￿Refer￿to￿the￿latest￿relevant information￿systems￿of￿the￿BMW￿Group￿for￿any￿changes/additions￿to￿the￿technical￿data. Information￿status:￿July￿2013 BV-72/Technical￿Training...

  • Page 3: Table Of Contents

    I01￿High-voltage￿Components Contents Introduction ................................................Important￿Notes .............................................. 2.1. Identification￿of￿the￿high-voltage￿components ....................... 2.2. Safe￿working￿practices￿for￿working￿on￿a￿high-voltage￿system ............2.2.1. Preparations ....................................2.2.2. Disconnect￿the￿high-voltage￿system￿from￿the￿supply ..........2.2.3. Provide￿the￿high-voltage￿system￿with￿a￿safeguard￿against unintentional￿restarting ............................... 2.2.4. Verifying￿safe￿isolation￿from￿the￿supply .................... 2.3. Removing￿and￿connecting￿the￿high-voltage￿connector ................2.3.1. Removing￿the￿flat￿high-voltage￿connector ................... 2.3.2. Removing￿the￿round￿high-voltage￿connector ..............2.4. Connections￿for￿potential￿compensation￿lines ....................Electric￿Motor ..............................................3.1.
  • Page 4 I01￿High-voltage￿Components Contents 5.1.1. Technical￿data ..................................5.1.2. Installation￿location ............................... 5.1.3. System￿wiring￿diagram ............................5.2. External￿features ......................................... 5.2.1. Mechanical￿interfaces ............................... 5.2.2. Electrical￿interfaces ..............................5.2.3. Vent￿hole ......................................5.2.4. Interface￿for￿the￿refrigerant￿circuit ......................5.3. Heating￿and￿cooling￿system ................................5.3.1. Overview ......................................5.4. Internal￿structure￿of￿the￿high-voltage￿battery￿unit ..................Charging￿the￿High-voltage￿Battery ................................ 6.1. General￿information￿on￿charging ..............................
  • Page 5 I01￿High-voltage￿Components Contents 7.2.2. Three-phase￿current￿synchronous￿motor ................7.2.3. AC￿inverter ....................................7.2.4. Air￿conditioning￿compressor ........................7.3. High-voltage￿safety ....................................Electric￿Heating ............................................8.1. Location￿and￿connections ................................8.2. Operating￿principle ..................................... 8.3. Control￿system ........................................Range￿Extender￿Electrical￿Machine ..............................9.1. Introduction ..........................................9.2. Technical￿data ........................................9.3. Design ............................................. 9.3.1. Cooling ......................................9.3.2.
  • Page 6 I01￿High-voltage￿Components Contents 12.2.3. Charging￿the￿high-voltage￿battery ....................12.3. Pinpointing￿isolation￿faults ................................12.4. Start-up￿of￿the￿high-voltage￿system ..........................13. Operating￿Strategy ........................................... 13.1. Operating￿strategy￿with￿pure￿electric￿drive ......................13.2. Operating￿strategy￿for￿vehicles￿with￿range￿extender ................

  • Page 7: Introduction

    I01￿High-voltage￿Components 1.￿Introduction A￿huge￿number￿of￿the￿high-voltage￿components￿in￿the￿I01￿is￿used,￿on￿the￿one￿hand,￿for￿the￿electric motor,￿and,￿on￿the￿other￿hand,￿for￿some￿convenience￿functions. High-voltage￿components￿in￿the￿I01 Index Explanation Electric￿heating High-voltage￿battery Range￿extender￿electrical￿machine Range￿Extender￿Electrical￿Machine￿Electronics Electrical￿machine￿electronics Convenience￿charging￿electronics Electrical￿machine These￿components￿have￿one￿thing￿in￿common: They￿all￿work￿with￿high￿voltage￿ This￿is￿why￿particular￿care￿is￿needed￿in￿the￿case￿of￿a￿repair.
  • Page 8 I01￿High-voltage￿Components 1.￿Introduction Only￿Service￿employees￿who￿satisfy￿all￿the￿prerequisites￿are￿permitted￿to￿work￿on￿the￿designated high-voltage￿components:￿qualification,￿compliance￿with￿the￿safety￿rules,￿proceed￿exactly￿as￿per￿repair instructions￿(see￿also￿chapter￿"Prerequisites"). The￿diagnosis￿and￿repair￿of￿the￿high-voltage￿components￿is￿only￿allowed￿in￿a￿retail￿service center￿that￿has￿qualified￿and￿certified￿service￿technicians.￿These￿technicians￿must￿have completed￿the￿ST1403b￿I01￿High￿Voltage￿Battery￿and￿Maintenance￿instructor￿led￿course￿and successfully￿passed￿the￿hands￿on￿certification.
  • Page 9 I01￿High-voltage￿Components 2.￿Important￿Notes The￿high-voltage￿components￿of￿the￿I01￿have￿an￿intrinsically￿safe￿design.￿This￿means￿that￿faults￿which could￿lead￿to￿harming￿the￿vehicle￿user￿are￿reliably￿identified. 2.1.￿Identification￿of￿the￿high-voltage￿components Each￿high-voltage￿component￿has￿on￿its￿housing￿or￿casing￿an￿identifying￿label￿that￿enables￿Service employees￿and￿vehicle￿users￿to￿identify￿intuitively￿the￿possible￿hazards￿that￿can￿result￿from￿the￿high electric￿voltages￿used. High-voltage￿component￿warning￿sticker The￿high-voltage￿cables￿are￿a￿special￿case￿for￿identification.￿As￿they￿may￿be￿a￿few￿meterslong, identification￿with￿a￿warning￿sticker￿at￿one￿or￿two￿places￿would￿not￿make￿sense.￿The￿Service￿employee could￿easily￿oversee￿these￿stickers.￿Instead￿all￿high-voltage￿cables￿are￿marked￿in￿the￿orange￿warning color.￿Also￿the￿connectors￿at￿high-voltage￿cables,￿as￿well￿as￿the￿high-voltage￿safety￿connector,￿are marked￿in￿orange. Orange￿color￿for￿the￿high-voltage￿cables. Index Explanation High-voltage￿cables￿at￿EME...

  • Page 10: Preparations

    I01￿High-voltage￿Components 2.￿Important￿Notes 2.2.￿Safe￿working￿practices￿for￿working￿on￿a￿high-voltage￿system Before￿working￿on￿high-voltage￿components￿of￿the￿I01,￿it￿is￿essential￿to￿observe￿and￿implement￿the electrical￿safety￿rules: The￿high-voltage￿system￿must￿be￿disconnected￿from￿the￿supply The￿high-voltage￿system￿must￿be￿provided￿with￿a￿safeguard￿to￿prevent￿unintentional￿restarting The￿safe￿isolation￿of￿the￿high-voltage￿system￿must￿be￿verified The￿following￿chapters￿provide￿brief￿descriptions￿on￿how￿to￿implement￿the￿electrical￿safety￿rules￿in￿the I01. 2.2.1.￿Preparations Prior￿to￿beginning￿any￿work,￿the￿vehicle￿must￿be￿secured￿against￿rolling￿away￿(engage￿the￿parking￿lock of￿the￿transmission￿and￿activate￿the￿parking￿brake).￿Terminal￿15￿and￿terminal￿R￿must￿be￿switched￿off. Disconnect￿any￿connected￿charging￿cables.￿The￿vehicle￿should￿be￿in￿"rest￿state". 2.2.2.￿Disconnect￿the￿high-voltage￿system￿from￿the￿supply The￿high-voltage￿system￿in￿the￿I01￿is￿disconnected￿from￿the￿supply￿with￿the￿high-voltage￿safety connector.￿To￿disconnect￿from￿the￿supply,￿the￿connector￿must￿be￿pulled￿from￿the￿relevant￿socket.￿This interrupts￿the￿circuit￿of￿the￿high-voltage￿interlock￿loop. This￿image￿shows￿the￿high-voltage￿safety connector￿in￿a￿connected￿state.￿The￿circuit of￿the￿high-voltage￿interlock￿loop￿is￿not interrupted. The￿message￿"ON"￿at￿the￿high-voltage￿safety connector￿indicates￿an￿active￿high-voltage system.
  • Page 11 I01￿High-voltage￿Components 2.￿Important￿Notes In￿order￿to￿be￿able￿to￿separate￿the￿connector, the￿mechanical￿lock￿(1)￿has￿to￿be￿pressed. As￿soon￿as￿the￿mechanical￿lock￿has￿been removed,￿the￿connector￿can￿be￿pulled￿from￿the socket￿a￿few￿millimeters. Do￿not￿pull￿any￿further￿or￿harder￿if￿resistance can￿be￿felt.￿The￿high-voltage￿safety￿connector cannot￿be￿disconnected￿from￿each￿other completely. When￿the￿high-voltage￿safety￿connector￿is pulled￿out￿far￿enough￿the￿message￿"OFF"￿is visible.￿The￿high-voltage￿system￿is￿thus￿in￿a￿de- energized￿state. 2.2.3.￿Provide￿the￿high-voltage￿system￿with￿a￿safeguard￿against￿unintentional restarting Securing￿against￿restart￿is￿also￿effected￿at￿the￿high-voltage￿safety￿connector.￿A￿commercially￿available U-lock￿(for￿example,￿ABUS 45/40)￿is￿required￿for￿this￿purpose.
  • Page 12 I01￿High-voltage￿Components 2.￿Important￿Notes By￿separating￿the￿high-voltage￿safety connector,￿a￿bore￿hole￿becomes￿free￿through both￿parts.￿The￿loop￿of￿a￿typical￿U-lock￿must￿be inserted￿in￿this￿bore￿hole. The￿U-lock￿can￿now￿be￿closed.￿The￿key￿must be￿stored￿in￿a￿safe￿place￿during￿work￿on￿the high-voltage￿system￿so￿that￿an￿unauthorized person￿cannot￿unlock￿the￿lock. The￿connector￿can￿no￿longer￿be￿used￿by inserting￿and￿closing￿the￿U-lock￿at￿the￿high- voltage￿safety￿connector.￿This￿is￿an￿effective way￿of￿ensuring￿that￿the￿high-voltage￿system￿is not￿switched￿on￿again￿without￿the￿knowledge and￿consent￿of￿the￿Service￿employee. 2.2.4.￿Verifying￿safe￿isolation￿from￿the￿supply In￿BMW￿Service￿the￿de-energized￿state￿is￿not￿verified￿using￿a￿measuring￿device￿or￿via￿the￿diagnosis system.￿Instead,￿the￿high-voltage￿components￿measure￿the￿voltage￿themselves￿and￿transmit￿the measuring￿result￿via￿bus￿signal￿to￿the￿instrument￿cluster. The￿instrument￿cluster￿does￿not￿generate￿the￿Check￿Control￿message￿to￿display￿the￿de-energized state￿unless￿all￿involved￿high-voltage￿components￿consistently￿signal￿the￿de-energized￿state.￿This Check￿Control￿symbol￿in￿red￿shows￿a￿crossed-out￿flash￿symbol.￿The￿text￿message￿"High-voltage system￿switched￿off"￿also￿appears￿in￿the￿instrument￿cluster.
  • Page 13 I01￿High-voltage￿Components 2.￿Important￿Notes Check￿Control￿symbol￿"High-voltage￿system￿de-energized" Index Explanation Check￿Control￿symbol￿for￿the￿display￿of￿the￿de-energized￿state￿and￿text message￿"High-voltage￿system￿switched￿off" In￿order￿to￿verify￿the￿de-energized￿state,￿the￿Service￿employee￿must￿switch￿on￿terminal￿15￿and￿wait until￿he￿sees￿the￿Check￿Control￿message￿with￿the￿symbol￿and￿text￿shown￿above￿on￿the￿instrument cluster.￿Then,￿and￿only￿then,￿have￿you￿ensured￿that￿the￿high-voltage￿system￿is￿de-energized.￿After￿the de-energized￿state￿has￿been￿verified,￿terminal￿15￿and￿terminal￿R￿must￿be￿switched￿off￿again￿before you￿can￿start￿the￿actual￿work. If￿the￿Check￿Control￿message￿is￿not￿displayed,￿you￿must￿not￿carry￿out￿any￿work￿on￿high-voltage components￿ Refueling￿the￿vehicle￿while￿the￿high-voltage￿battery￿is￿charging￿is￿not￿permitted￿ When￿the￿charging￿cable￿is￿inserted￿do￿not￿initiate￿a￿refueling￿procedure￿and￿keep￿a￿safe￿distance￿from highly￿flammable￿materials.￿Otherwise,￿in￿the￿event￿of￿incorrect￿connection￿or￿removal￿of￿the￿charging cable￿there￿is￿a￿risk￿of￿personal￿injury￿or￿material￿damage￿by￿burning￿fuel￿for￿example. While￿the￿I01￿is￿connected￿to￿the￿AC￿voltage￿network￿for￿charging,￿no￿work￿may￿be￿performed￿at￿the high-voltage￿system. 2.3.￿Removing￿and￿connecting￿the￿high-voltage￿connector A￿certain￿sequence￿must￿be￿observed￿when￿breaking￿or￿establishing￿the￿contact￿connection￿both for￿flat￿and￿round￿high-voltage￿connectors.￿The￿individual￿steps￿are￿described￿below￿in￿the￿form￿of graphics￿and￿texts.
  • Page 14 I01￿High-voltage￿Components 2.￿Important￿Notes 2.3.1.￿Removing￿the￿flat￿high-voltage￿connector Bridge￿for￿high-voltage￿interlock￿loop Before￿the￿high-voltage￿connector￿can￿be disconnected,￿the￿bridge￿for￿the￿high-voltage interlock￿loop￿must￿first￿be￿removed.￿The￿bridge closes￿the￿circuit￿of￿the￿high-voltage￿interlock loop￿in￿a￿connected￿state.￿The￿high-voltage control￿units￿continuously￿monitor￿the￿circuit￿of the￿high-voltage￿interlock￿loop￿and￿only￿when the￿circuit￿is￿closed￿is￿the￿high-voltage￿system active. If￿the￿circuit￿of￿the￿high-voltage￿interlock￿loop is￿interrupted￿by￿removing￿the￿bridge,￿the￿high- voltage￿system￿shuts￿down￿automatically.￿This is￿an￿additional￿safety￿precaution￿as￿the￿Service employee￿has￿already￿switched￿off￿the￿high- voltage￿system￿before￿beginning￿work. Removing￿the￿mechanical￿locking Only￿after￿the￿bridge￿of￿the￿high-voltage interlock￿loop￿has￿been￿removed,￿can￿the mechanical￿locking￿be￿moved￿in￿the￿direction￿of the￿arrow.￿The￿mechanical￿locking￿is￿an￿element of￿the￿high-voltage￿connector￿on￿the￿high- voltage￿components￿(e.g.￿electrical￿machine electronics). By￿moving￿the￿lock￿in￿the￿direction￿of￿the arrow￿the￿mechanical￿guide￿of￿the￿high-voltage connector￿on￿the￿high-voltage￿cable￿is￿released which￿permits￿the￿subsequent￿disconnection.
  • Page 15 I01￿High-voltage￿Components 2.￿Important￿Notes Removing￿the￿connector￿of￿the￿high-voltage cable The￿connector￿of￿the￿high-voltage￿cable￿must now￿be￿removed￿in￿the￿direction￿of￿the￿arrow. After￿the￿connector￿has￿been￿pulled￿out￿a few￿millimeters￿(A),￿one￿encounters￿a￿higher counterforce.￿The￿connector￿must￿then￿be pulled￿out￿further￿in￿the￿same￿direction (B). Under￿no￿circumstances￿must￿the￿connector be￿pressed￿back￿into￿the￿socket￿on￿the￿high- voltage￿component￿after￿reaching￿position￿(A). This￿may￿damage￿the￿connector￿on￿the￿high- voltage￿components. The￿high-voltage￿connector￿of￿the￿high-voltage cables￿must￿be￿pulled￿out￿at￿a￿right￿angle￿in￿two steps￿and￿in￿the￿same￿direction.￿Changing￿the direction￿of￿movement￿during￿removal￿is￿not permitted. Proceed￿in￿the￿reverse￿order￿when￿reattaching￿the￿high-voltage￿cable.￿The￿following￿graphic￿shows the￿complex￿design￿of￿the￿high-voltage￿connector￿on￿the￿high-voltage￿components￿and￿explains￿why one￿must￿proceed￿with￿care￿when￿removing￿and￿inserting￿high-voltage￿cables. High-voltage￿connector￿on￿the￿high-voltage￿component...
  • Page 16 I01￿High-voltage￿Components 2.￿Important￿Notes Index Explanation Electrical￿contact￿for￿shielding Electrical￿contact￿for￿high-voltage￿cable Contact￿protection Mechanical￿locking High-voltage￿interlock￿loop￿connector/bridge 2.3.2.￿Removing￿the￿round￿high-voltage￿connector The￿procedure￿described￿here￿applies￿for￿removing￿the￿round￿high-voltage￿connector￿in￿the￿I01. The￿following￿graphics￿show￿the￿procedure￿using￿the￿example￿of￿the￿high-voltage￿connection￿at￿the electrical￿machine￿electronics,￿at￿which￿the￿high-voltage￿cable￿is￿connected￿for￿the￿electric￿heating.
  • Page 17 I01￿High-voltage￿Components 2.￿Important￿Notes The￿connector￿of￿the￿high-voltage￿cable￿(1)￿is located￿at￿the￿high-voltage￿connection￿of￿the component￿(2)￿and￿is￿locked. The￿two￿locking￿elements￿(2)￿must￿be￿pressed together￿in￿the￿direction￿of￿arrow￿(1).￿The mechanical￿lock￿of￿the￿connector￿at￿the connection￿of￿the￿high-voltage￿component￿is thus￿removed. While￿the￿locking￿elements￿are￿further￿pushed together,￿the￿connector￿must￿be￿removed lengthways￿in￿the￿direction￿of￿arrow￿(1). When￿reconnecting￿the￿high-voltage￿cable￿the￿locking￿elements￿must￿not￿be￿pushed￿together.￿It￿is sufficient￿to￿slide￿the￿connector￿lengthways￿onto￿the￿high-voltage￿connection￿of￿the￿component. Ensure￿that￿the￿locking￿elements￿engage￿("clicking"￿noise).￿In￿addition,￿the￿engaging￿of￿the￿locking elements￿should￿be￿checked￿by￿subsequent￿pulling￿on￿the￿connector.
  • Page 18 I01￿High-voltage￿Components 2.￿Important￿Notes The￿following￿graphic￿shows￿the￿design￿of￿the￿round￿high-voltage￿connector￿on￿the￿high-voltage cable. Design￿of￿the￿round￿high-voltage￿connector Index Explanation High-voltage￿cable Actuation￿points￿on￿locking￿elements Housing Locking￿element Connection￿1￿for￿bridge￿in￿the￿connector Connection￿for￿shielding High-voltage￿connection,￿pin 2￿(DC,￿minus) Mechanical￿encoding Connection￿2￿for￿bridge￿in￿the￿connector High-voltage￿connection,￿pin 1￿(DC,￿plus) The￿bridge￿in￿the￿high-voltage￿connector￿serves￿for￿electrical￿safety.￿The￿signal￿of￿the￿high-voltage interlock￿loop￿runs￿over￿this￿bridge￿when￿the￿high-voltage￿cable￿is￿connected￿to￿the￿high-voltage component.￿For￿the￿connection￿of￿the￿high-voltage￿cable￿to￿the￿EKK￿and￿to￿the￿electric￿heating￿the voltage￿supply￿of￿the￿EKK￿or￿transmission￿control￿unit￿runs￿via￿the￿bridge.￿If￿one￿of￿the￿circuits￿is interrupted,￿this￿also￿results￿in￿an￿automatic￿interruption￿to￿the￿current￿flow￿(returns￿to￿zero)￿in￿the respective￿high-voltage￿cable.￿As￿the￿two￿contacts￿of￿the￿bridge￿opposite￿the￿high-voltage￿contacts advance,￿this￿measure￿constitutes￿protection￿against￿the￿formation￿of￿an￿electric￿arc￿when￿removing the￿high-voltage￿connector. 2.4.￿Connections￿for￿potential￿compensation￿lines The￿safety￿concept￿of￿the￿high-voltage￿system￿includes￿the￿measurement￿and￿monitoring￿of￿the isolation￿resistance￿of￿the￿high-voltage￿cables￿to￿each￿other￿and￿against￿ground.￿This￿safety￿function is￿performed￿in￿the￿I01￿of￿the￿SME￿control￿unit,￿but￿should￿identify￿isolation￿faults￿in￿the￿entire￿high- voltage￿circuit.￿For￿this￿purpose,￿the￿housing￿of￿all￿high-voltage￿components￿must￿be￿connected galvanically￿to￿ground.
  • Page 19 I01￿High-voltage￿Components 2.￿Important￿Notes Electrical￿connections￿at￿the￿electric￿heating Index Explanation Potential￿compensation￿line Housing￿of￿the￿electric￿heating High-voltage￿connector The￿high-voltage￿system￿must￿not￿be￿operated￿if￿the￿potential￿compensation￿cables￿are￿not￿properly connected￿to￿the￿high-voltage￿components. If￿in￿the￿event￿of￿a￿repair￿the￿high-voltage￿components￿or￿the￿potential￿compensation￿lines￿are replaced,￿the￿following￿must￿be￿observed￿during￿assembly:￿The￿galvanic￿connection￿between￿the housing￿of￿the￿high-voltage￿components￿and￿ground￿must￿be￿properly￿re-established.￿The￿repair instructions￿must￿be￿strictly￿observed￿(tightening￿torque,￿self-cutting￿screws).￿In￿addition,￿a￿second Service￿employee￿has￿to￿check￿the￿repair￿work￿(correct￿tightening￿torque￿and￿correct￿location￿of￿bare metal)￿and￿record￿this￿in￿writing￿in￿the￿repair￿order.
  • Page 20 I01￿High-voltage￿Components 3.￿Electric￿Motor 3.1.￿Electrical￿machine The￿electrical￿machine￿in￿the￿I01￿receives￿an￿electric￿motor￿identification,￿as￿known￿from￿combustion engines.￿This￿electrical￿machine￿identification￿is￿IB1P25B. 3.1.1.￿Designation￿and￿identification￿of￿electrical￿machines Designation￿of￿electrical￿machines The￿electrical￿machine￿designations￿are￿used￿in￿the￿technical￿documentation￿for￿clear￿identification￿of the￿electrical￿machines. According￿to￿GS￿90023,￿the￿designation￿of￿the￿electrical￿machine￿used￿in￿the￿I01￿is: EMP242.130.01.250(300)-A3-X1 In￿frequent￿cases,￿however,￿only￿a￿short￿designation￿is￿used.￿This￿short￿designation￿is￿used￿to￿assign an￿electrical￿machine￿to￿an￿electrical￿machine￿family.￿For￿instance,￿the￿short￿designation￿EMP242￿is also￿used. Position Meaning Index Explanation Abbreviation Electrical￿machine Machine￿type Asynchronous￿machine Direct￿current￿machine Axial￿flow￿machine Permanently￿excited￿synchronous￿machine Switched￿reluctance￿machine Electrically￿excited￿synchronous￿machine Transverse￿flow￿machine Outer￿diameter￿of 0￿to￿... in￿millimeter￿[mm] stacks￿of￿sheet￿of￿the (242) electrical￿machine Length￿of￿stacks￿of 0￿to￿... in￿millimeter￿[mm] sheet￿of￿the￿electrical (130) machine Version Every￿change￿to￿the￿original￿version,￿e.g.
  • Page 21 I01￿High-voltage￿Components 3.￿Electric￿Motor Model Axially￿parallel￿layout Electrical￿machine￿integrated￿in￿the transmission Rear￿axle Front￿axle Crankshaft￿mounted Coaxial￿with￿separation￿clutch Wheel￿hub Assigned￿to￿the￿belt￿drive Number￿of￿phases 1￿to￿... Number￿of￿phases￿of￿the￿machine Supplier Is￿defined￿by￿the￿project Serial￿number￿of￿the -Optional machine Identification￿of￿the￿electrical￿machine￿i.a.w.￿GS￿90023 Type￿plate￿for￿electrical￿machine Index Explanation Serial￿number Designation￿i.a.w.￿GS￿90023 Country￿of￿manufacture Revision￿index Part￿number Adjustment￿value￿(angle)￿for￿rotor￿position￿sensor Production￿date Unified￿Parts￿Group The￿electrical￿machines￿have￿an￿identification￿to￿ensure￿clear￿identification￿and￿classification.￿This identification￿is￿also￿necessary￿for￿approval￿by￿government￿authorities.￿The￿identification￿of￿the electrical￿machines￿is￿equivalent￿to￿the￿identification￿of￿the￿combustion￿engines.￿The￿number￿of￿the electrical￿machine￿can￿be￿found￿under￿the￿electrical￿machine￿identification￿on￿the￿electrical￿machine. This￿consecutive￿number,￿in￿conjunction￿with￿the￿identification,￿permits￿unambiguous￿identification￿of each￿individual￿electrical￿machine.
  • Page 22 I01￿High-voltage￿Components 3.￿Electric￿Motor Position Meaning Index Explanation Engine￿developer Electrical￿machine￿in/at￿the transmission Electrical￿machine,￿BMW Electrical￿machine,￿external Engine￿type￿(outer <￿200 mm diameter￿of￿stack￿of >￿200 mm￿<￿250 mm sheets) >￿250 mm￿<￿300 mm >￿300 mm Outer￿rotor￿with￿small￿diameter Change￿to￿the￿basic 0￿or￿1 Basic￿engine engine￿concept 2￿to￿9 Changes,￿e.g.￿variation￿of￿sheet cut￿(even￿numbers￿reserved￿for motorbikes,￿odd￿numbers￿for passenger￿cars) Machine￿type￿(engine Asynchronous￿machine procedure) Direct￿current￿machine Axial￿flow￿machine Permanently￿excited￿synchronous machine Switched￿reluctance￿machine Electrically￿excited￿synchronous machine Transverse￿flow￿machine 5￿+￿6 Torque 0￿to￿...
  • Page 23 I01￿High-voltage￿Components 3.￿Electric￿Motor Principal￿structure￿of￿the￿synchronous￿machine Index Explanation Conventional￿synchronous￿machine Synchronous￿machine￿in￿the￿I01 Stator Stack￿of￿sheets,￿rotor South￿pole￿of￿a￿permanent￿magnet North￿pole￿of￿a￿permanent￿magnet To￿improve￿the￿technical￿data￿the￿structure,￿primarily￿of￿the￿rotor,￿was￿modified￿and￿optimized.￿The rotor￿has￿a￿new￿arrangement￿of￿the￿permanent￿magnets￿and￿a￿stack￿of￿sheets￿which￿has￿a￿positive influence￿on￿the￿characteristic￿of￿the￿magnetic￿field￿lines.￿On￿the￿one￿hand,￿this￿improves￿the￿torque. On￿the￿other￿hand,￿there￿are￿lower￿current￿levels￿in￿the￿stator￿coils,￿whereby￿the￿efficiency￿is￿increased in￿comparison￿to￿a￿conventional￿synchronous￿machine. The￿impressive￿performance￿data￿are￿summarized￿in￿the￿following￿table. Nominal￿voltage 360 V Nominal￿current 400 A Actual￿value Maximum￿peak￿output 125 kW/170 bhp for￿a￿maximum￿duration￿of￿30 s Maximum￿continuous￿output about￿75 kW continuous Maximum￿torque 250 Nm/184￿lb-ft in￿the￿engine￿speed￿range 0 – 5,000 rpm. Maximum￿engine￿speed about￿11,400 1￿min. Weight about￿49 kg The￿maximum￿power￿of￿125 kW￿can￿only￿be￿made￿available￿for￿a￿maximum￿duration￿of￿30￿s. Otherwise,￿the￿components￿of￿the￿drive￿train￿would￿be￿damaged￿through￿overheating￿–￿this￿affects￿not only￿the￿electrical￿machine,￿but￿also￿the￿high-voltage￿battery￿and￿the￿electrical￿machine￿electronics. The￿maximum￿power￿applies￿for￿the￿motor￿operation￿–￿in￿theory￿it￿could￿also￿be￿used￿in￿the￿alternator...
  • Page 24 I01￿High-voltage￿Components 3.￿Electric￿Motor operation￿during￿brake￿energy￿regeneration.￿However,￿in￿practice￿only￿a￿fractional￿part￿of￿this￿maximum value￿is￿used￿in￿alternator￿operation.￿As￿a￿result,￿the￿braking￿torque￿at￿the￿rear￿axle￿is￿restricted￿so￿as not￿to￿affect￿the￿driving￿stability￿by￿the￿brake￿energy￿regeneration. Power￿and￿torque￿diagram￿for￿IB1P25B￿machine￿compared￿to￿the￿N52B30U1￿engine The￿power￿and￿torque￿diagram￿shown￿here￿is￿not￿the￿full￿load￿diagram.￿Instead,￿the￿data￿was￿recorded at￿a￿lower￿supply￿voltage,￿as￿it￿occurs,￿for￿example,￿during￿a￿partially￿charged￿high-voltage￿battery. Nevertheless,￿the￿data￿of￿the￿electrical￿machine￿are￿impressive￿and￿do￿not￿need￿to￿fear￿comparison with￿the￿N52B30U1￿engine.￿The￿following￿properties￿are￿characteristic￿of￿the￿electrical￿machine IB1P25B￿in￿the￿I01:...
  • Page 25 I01￿High-voltage￿Components 3.￿Electric￿Motor • The￿maximum￿torque￿of￿250 Nm￿is￿already￿available￿from￿when￿the￿machine￿is￿at￿a￿standstill and￿is￿available￿up￿to￿average￿engine￿speeds.￿This￿is￿why￿the￿drive￿train￿of￿the￿I01￿does￿not need￿a￿clutch.￿Besides￿this￿technical￿feature,￿there￿is￿also￿another￿advantage￿for￿the￿customer: The￿I01￿has￿an￿impressive￿accelerating￿ability￿from￿standstill,￿which￿results￿in￿The￿Ultimate Driving￿Machine￿typical￿of￿BMW,￿particularly￿in￿urban￿traffic. • The￿maximum￿torque￿only￿decreases￿again￿at￿higher￿engine￿speeds.￿However,￿it￿is￿sufficient to￿be￿able￿to￿dynamically￿overtake￿in￿the￿speed￿range￿on￿national￿roads. • The￿characteristic￿of￿the￿maximum￿power￿can￿be￿deduced￿from￿the￿characteristic￿of￿the maximum￿torque:￿In￿the￿engine￿speed￿range￿in￿which￿the￿maximum￿torque￿is￿applied constantly￿the￿maximum￿power￿increases￿linear￿to￿its￿maximum.￿Despite￿the￿falling￿torque￿at higher￿engine￿speeds,￿the￿maximum￿power￿only￿decreases￿slightly￿to￿the￿maximum￿engine speed. • The￿usable￿engine￿speed￿range￿of￿the￿electrical￿machine￿is￿sufficient￿from￿0￿to￿almost 11,400 rpm.￿Owing￿to￿this￿almost￿double￿the￿engine￿speed￿range￿of￿a￿combustion￿engine,￿the I01￿manages￿without￿a￿manual￿gearbox￿and￿still￿achieves￿a￿remarkable￿maximum￿speed￿of 150 km/h.

  • Page 26: Design

    I01￿High-voltage￿Components 3.￿Electric￿Motor 3.1.3.￿Design Electrical￿machine Design￿of￿electric￿motor Index Explanation Coolant￿ducts Grooved￿ball￿bearing Drive￿shaft Inner￿housing Stack￿of￿sheets￿in￿the￿rotor Permanent￿magnets￿in￿the￿rotor Stator￿stack￿of￿sheets...
  • Page 27 I01￿High-voltage￿Components 3.￿Electric￿Motor In￿the￿graphic￿only￿the￿part￿of￿the￿stator￿without￿coil￿is￿shown.￿The￿rotor￿consists￿of￿a￿weight-optimized support￿in￿the￿inside,￿a￿stack￿of￿sheets￿and￿permanent￿magnets,￿which￿are￿arranged￿in￿two￿layers.￿The torque￿that￿can￿be￿generated￿by￿the￿machine￿is￿therefore￿increased.￿The￿rotor￿is￿shrink-fitted￿on￿the drive￿shaft. The￿number￿of￿pole￿pairs￿of￿6￿is￿a￿good￿ratio￿between￿the￿justifiable￿complexity￿of￿the￿design￿and represents￿a￿constant￿torque￿curve￿for￿each￿revolution￿where￿possible. The￿electrical￿machine￿of￿the￿I01￿does￿not￿have￿an￿oil￿filling.￿Only￿the￿two￿grooved￿ball￿bearings￿which include￿a￿grease￿filling￿are￿lubricated.￿The￿cooling￿of￿the￿electrical￿machine￿is￿effected￿using￿coolant, which￿is￿conveyed￿from￿the￿output￿of￿the￿electrical￿machine￿electronics￿to￿the￿electrical￿machine.￿In the￿electrical￿machine￿the￿coolant￿flows￿through￿a￿spiral-shaped￿coolant￿duct,￿which￿runs￿at￿the￿outer side.￿Two￿O-rings￿at￿the￿housing￿ends￿seal￿the￿coolant￿duct.￿The￿inside￿of￿the￿electrical￿machine￿is therefore￿completely￿"dry". Cooling￿of￿the￿electrical￿machine Index Explanation Connection￿for￿coolant￿line￿(input￿of￿electrical￿machine,￿coming￿from￿the electrical￿machine￿electronics) Outer￿housing Connection￿for￿coolant￿line￿(output￿of￿electrical￿machine,￿to￿the￿radiator) O-ring Cooling￿duct...
  • Page 28 I01￿High-voltage￿Components 3.￿Electric￿Motor The￿electrical￿machine￿is￿designed￿for￿a￿large￿temperature￿range.￿The￿coolant￿can￿reach￿a￿temperature of￿up￿to￿70 °C￿at￿the￿input￿(supply).￿And￿although￿the￿electrical￿machine￿demonstrates￿less￿losses during￿energy￿conversion￿than￿a￿combustion￿engine,￿its￿housing￿can￿absorb￿a￿temperature￿of￿up￿to 100 °C. Danger￿of￿injury:￿The￿housing￿of￿the￿electrical￿machine￿can￿absorb￿temperatures￿of￿up￿to￿100 °C during￿operation.￿A￿sufficiently￿long￿time￿must￿be￿waited￿for￿cooling￿if￿work￿is￿to￿be￿performed,￿for example￿the￿removal￿of￿the￿drive￿unit. Sensors In￿order￿to￿avoid￿damage￿to￿the￿components￿due￿to￿the￿high￿temperature,￿there￿are￿two￿temperature sensors￿in￿the￿electrical￿machine￿of￿the￿I01.￿Both￿temperature￿sensors￿are￿located￿in￿the￿coils of￿the￿stator.￿The￿temperature￿of￿the￿rotor￿is￿not￿measured￿directly,￿but￿can￿be￿determined￿from the￿measured￿values￿of￿the￿temperature￿sensors￿in￿the￿stator.￿The￿two￿temperature￿sensors￿are temperature-dependent￿resistors￿of￿type￿NTC.￿Their￿signals￿are￿read￿in￿and￿evaluated￿analogically￿by the￿electrical￿machine￿electronics. So￿that￿the￿voltages￿for￿the￿coils￿in￿the￿stator￿can￿be￿correctly￿calculated￿and￿generated￿by￿the electrical￿machine￿electronics￿in￿terms￿of￿amplitude￿and￿phase￿layer,￿the￿precise￿angle￿setting￿of￿the rotor￿must￿be￿known.￿This￿is￿why￿there￿is￿a￿rotor￿position￿sensor￿at￿the￿end￿of￿the￿drive￿shaft,￿which￿is turned￿away￿from￿the￿transmission. Electrical￿connections￿of￿the￿electrical￿machine...
  • Page 29 I01￿High-voltage￿Components 3.￿Electric￿Motor Index Explanation Outer￿housing Housing￿cover Connection￿for￿rotor￿position￿sensor Temperature￿sensor￿in￿the￿stator High-voltage￿connection￿U High-voltage￿connection￿V High-voltage￿connection￿W Rotor￿position￿sensor The￿housing￿cover￿must￿be￿replaced￿after￿disassembly￿ The￿screws￿of￿the￿high-voltage￿connections￿(U,￿V,￿W)￿must￿be￿replaced￿after￿each￿disassembly. The￿rotor￿position￿sensor￿is￿secured￿at￿the￿stator￿of￿the￿electrical￿machine￿and￿works￿according￿to the￿tilt￿sensor￿principle.￿There￿are￿three￿coils￿in￿the￿rotor￿position￿sensor.￿A￿defined￿AC￿voltage￿is fed￿to￿one￿of￿the￿coils.￿The￿other￿two￿coils￿are￿each￿moved￿90°.￿The￿voltages￿induced￿in￿these￿coils provide￿information￿about￿the￿angle￿setting￿of￿the￿rotor.￿The￿rotor￿position￿sensor￿is￿mounted￿by￿the manufacturer￿of￿the￿electrical￿machine￿at￿the￿corresponding￿alignment￿so￿that￿it￿is￿already￿correctly adjusted.￿A￿precise￿adjustment￿of￿the￿rotor￿position￿sensor￿is￿effected￿during￿production,￿after￿which the￿electrical￿machine￿and￿electrical￿machine￿electronics￿are￿joined.￿The￿adjustment￿values￿are￿stored in￿the￿control￿unit￿of￿the￿electrical￿machine￿electronics. Neither￿an￿adjustment￿nor￿a￿replacement￿of￿the￿rotor￿position￿sensor￿can￿be￿performed￿in￿BMW Service. If￿the￿electrical￿machine￿or￿the￿electrical￿machine￿electronics￿are￿replaced,￿the￿code￿for￿the￿angle￿must be￿noted￿via￿diagnosis￿in￿the￿electrical￿machine￿electronics.￿The￿code￿for￿the￿angle￿can￿be￿found￿on the￿type￿plate￿of￿the￿electrical￿machine. The￿electrical￿connection￿for￿the￿sensors￿of￿the￿electrical￿machine￿and￿the￿electrical￿machine electronics￿is￿shown￿in￿a￿wiring￿diagram￿in￿the￿chapter￿"Electrical￿interfaces".
  • Page 30 I01￿High-voltage￿Components 3.￿Electric￿Motor 3.1.4.￿External￿features￿and￿mechanical￿interfaces External￿features￿and￿mechanical￿interfaces￿of￿the￿electrical￿machine Index Explanation Carrier￿support￿for￿electrical￿machine￿electronics Connection￿for￿coolant￿line￿(output￿of￿electrical￿machine￿to￿the￿radiator) Shaft￿for￿electrical￿connections￿for￿the￿electrical￿machine￿electronics Outer￿housing Connection￿for￿coolant￿line￿(input￿of￿electrical￿machine,￿coming￿from￿the electrical￿machine￿electronics) Bore￿holes/thread￿for￿the￿mechanical￿connection￿with￿the￿transmission Drive￿shaft Anti-roll￿bar￿link￿connection The￿electrical￿machine￿electronics￿is￿located￿above￿the￿electrical￿machine.￿In￿order￿to￿obtain￿ample support,￿the￿housing￿of￿the￿electrical￿machine￿was￿"extended"￿with￿a￿carrier￿support￿at￿the￿front￿in￿the direction￿of￿travel. The￿torque￿is￿transmitted￿via￿a￿positive￿connection￿from￿the￿drive￿shaft￿of￿the￿electrical￿machine￿to￿the transmission￿input￿shaft.￿For￿this￿purpose,￿both￿shafts￿have￿gearing.￿However,￿there￿is￿no￿intended centring￿for￿the￿two￿shafts.
  • Page 31 I01￿High-voltage￿Components 3.￿Electric￿Motor When￿joining￿the￿transmission￿and￿the￿electrical￿machine￿the￿procedure￿described￿in￿the￿repair instructions￿must￿be￿followed.￿Ensure￿axial￿alignment￿of￿the￿transmission￿input￿shaft￿and￿output￿shaft to￿avoid￿distortion￿during￿assembly.￿In￿addition,￿the￿two￿gearings￿must￿be￿greased￿before￿joining.￿Do not￿exceed￿the￿specified￿quantity￿of￿grease￿ Mechanical￿interfaces￿of￿the￿transmission Index Explanation Rear￿axle￿module Output￿shaft,￿right Transmission￿housing X-sealing￿ring Output￿shaft,￿left Transmission￿input￿shaft￿with￿gearing O-sealing￿ring Bore￿holes￿for￿the￿mechanical￿connection￿with￿the￿electrical￿machine There￿is￿a￿sealing￿ring￿at￿the￿joining￿connection￿between￿housings￿of￿the￿electrical￿machines￿and￿the transmission,￿whose￿cross-section￿is￿shaped￿like￿the￿letter￿"X".￿This￿X-sealing￿ring￿must￿be￿replaced before￿joining￿and￿is￿included￿in￿the￿delivery￿specification￿of￿the￿transmission. The￿two￿connections￿for￿the￿coolant￿lines￿integrate￿the￿electrical￿machine￿in￿the￿cooling￿circuit￿of￿the electric￿motor.￿This￿is￿described￿in￿the￿chapter￿"Cooling￿of￿electric￿motor￿components".
  • Page 32 I01￿High-voltage￿Components 3.￿Electric￿Motor The￿graphics￿in￿this￿document￿show￿the￿electrical￿machine￿and￿the￿transmission￿without￿coating.￿In the￿production￿vehicle￿sometimes￿these￿components￿are￿still￿covered￿by￿a￿foam￿part.￿This￿serves￿for the￿acoustic￿encapsulation￿of￿the￿electric￿motor￿and￿absorbs￿noises￿which￿the￿customer￿may￿find irritating. The￿housing￿of￿the￿electrical￿machine￿is￿airtight￿and￿waterproof,￿as￿the￿low￿installation￿location demands￿this￿and￿to￿avoid￿damage￿by￿water￿passing￿through.￿However,￿due￿to￿the￿big￿temperature differences￿which￿may￿occur￿during￿operation￿there￿is￿a￿need￿for￿pressure￿compensation.￿This￿is effected￿via￿the￿shaft￿used￿for￿the￿electrical￿connection￿for￿the￿electrical￿machine￿electronics. The￿mounting￿and￿storage￿is￿not￿only￿related￿to￿the￿electrical￿machine￿itself,￿but￿also￿the￿entire￿drive unit￿comprising￿the￿electrical￿machine,￿transmission￿and￿electrical￿machine￿electronics. Mounting￿and￿storage￿of￿the￿drive￿unit￿(without￿range￿extender) Index Explanation Transmission Electrical￿machine￿electronics Bearing￿for￿engine￿support￿arm Engine￿support￿arm...
  • Page 33 I01￿High-voltage￿Components 3.￿Electric￿Motor Index Explanation Rear￿axle￿module Electrical￿machine Anti-roll￿bar￿link Output￿shaft In￿the￿direction￿of￿travel￿on￿the￿left￿an￿engine￿support￿arm￿connects￿the￿housing￿of￿the￿electrical machine￿to￿the￿rear￿axle￿module.￿This￿engine￿support￿arm￿serves￿not￿only￿to￿absorb￿the￿weight force￿of￿the￿drive￿unit.￿Via￿this￿engine￿support￿arm￿the￿drive￿torque￿is￿also￿transmitted￿to￿the￿rear axle￿module￿and￿ultimately￿supported￿at￿the￿body.￿The￿entire￿drive￿unit￿(electrical￿machine,￿electrical machine￿electronics￿and￿transmission)￿is￿also￿connected￿to￿the￿rear￿axle￿module￿via￿the￿anti-roll￿bar link. If￿the￿electrical￿machine￿has￿to￿be￿removed,￿the￿entire￿rear￿axle￿must￿be￿removed￿beforehand.￿This￿also applies￿to￿the￿removal￿of￿the￿transmission￿and￿the￿electrical￿machine￿electronics.￿Only￿then￿can￿the additional￿supports￿be￿removed￿from￿the￿housings￿and￿the￿individual￿components￿also￿removed. The￿EKK￿is￿secured￿to￿the￿electrical￿machine￿using￿three￿screws. Mounting￿of￿the￿EKK...
  • Page 34 I01￿High-voltage￿Components 3.￿Electric￿Motor Index Explanation Mounting￿bolts￿(3x) Electrical￿machine The￿housing￿of￿the￿electrical￿machine￿serves￿as￿a￿mounting￿and￿support￿for￿the￿EKK.￿There￿are￿bore holes￿with￿threaded￿inserts￿at￿corresponding￿points￿on￿the￿housing￿of￿the￿electrical￿machine. The￿threaded￿inserts￿for￿mounting￿the￿EKK￿cannot￿be￿replaced￿ 3.1.5.￿Electrical￿interfaces The￿electrical￿machine￿has￿electrical￿interfaces￿for￿the￿electrical￿machine￿electronics.￿The￿following graphic￿shows￿again￿the￿electrical￿interfaces￿of￿the￿electrical￿machine￿for￿the￿electrical￿machine electronics. Electrical￿interfaces￿between￿electrical￿machine￿and￿electrical￿machine￿electronics...

  • Page 35: Transmission

    I01￿High-voltage￿Components 3.￿Electric￿Motor Index Explanation Electrical￿machine￿electronics￿(entirety) EME￿control￿unit High-voltage￿battery Bidirectional￿DC/AC￿converter Actual￿electrical￿machine Temperature￿sensor￿in￿the￿stator Temperature￿sensor￿in￿the￿stator Rotor￿position￿sensor Electrical￿machine￿(entirety) There￿is￿a￿high-voltage￿interface￿and￿a￿low-voltage￿interface.￿The￿high-voltage￿interface￿is￿made￿up￿of three￿phases.￿A￿bidirectional￿DC/AC￿converter￿in￿the￿electrical￿machine￿electronics￿generates￿three- phase￿AC￿voltage,￿which￿is￿transmitted￿to￿the￿coils￿in￿the￿stator￿of￿the￿electrical￿machine.￿With￿this￿the electrical￿machine￿is￿controlled￿and￿its￿operating￿mode￿–￿as￿an￿engine￿or￿alternator￿–￿is￿specified.￿The electrical￿lines￿or￿connections￿are￿screwed￿and￿concealed￿under￿a￿lid. The￿low-voltage￿interface￿consists￿solely￿of￿the￿signal￿lines￿of￿the￿following￿sensors: • Temperature￿sensors￿of￿stator￿coil￿(2x) • Temperature￿sensor￿of￿rotor￿(at￿a￿bearing) • Rotor￿position￿sensor. The￿electrical￿machine￿electronics￿measures￿the￿electrical￿resistance￿of￿the￿two￿temperature￿sensors, which￿are￿designed￿as￿negative￿temperature￿coefficients,￿and￿thus￿determines￿the￿temperatures￿at the￿two￿locations￿in￿the￿electrical￿machine.￿In￿addition,￿the￿electrical￿machine￿electronics￿generates AC￿voltage￿for￿the￿rotor￿position￿sensor￿and￿evaluates￿the￿signals￿of￿this￿sensor￿(two￿induced￿AC voltages).￿The￿electrical￿connection￿consists￿of￿a￿plug￿connection,￿which￿is￿concealed￿under￿the￿same lid￿as￿the￿high-voltage￿connection. 3.2.￿Transmission 3.2.1.￿Introduction The￿transmission￿of￿the￿I01￿must￿fulfil￿the￿following￿tasks: • Transmission￿of￿engine￿speed￿and￿torque￿from￿the￿electrical￿machine￿to￿the￿output￿shafts • Engine￿speed￿adjustment￿between￿the￿two￿output￿shafts￿or￿sprockets • Securing￿the￿vehicle￿against￿rolling￿away.
  • Page 36 I01￿High-voltage￿Components 3.￿Electric￿Motor • Transmission￿gearing￿with￿two￿spur￿gear￿units￿(central￿transmission) • Differential￿integrated￿in￿the￿transmission￿housing • Electromechanically￿operated￿parking￿lock. As￿the￿electrical￿machine￿offers￿a￿large￿usable￿engine￿speed￿range,￿the￿transmission￿of￿the￿I01￿also only￿has￿to￿provide￿one￿gear,￿i.e.￿a￿fixed￿gear￿ratio.￿A￿combustion￿engine￿cannot￿deliver￿torque￿when the￿engine￿speed￿is￿zero.￿Unlike￿the￿electrical￿machine￿of￿the￿I01:￿Its￿high￿torque￿is￿already￿available when￿the￿engine￿speed￿is￿zero￿meaning￿a￿clutch￿in￿the￿transmission￿of￿the￿I01￿is￿not￿required￿–￿not￿for driving￿off￿or￿for￿shifting￿gears. Gear￿selector￿switch￿I01 The￿transmission￿in￿the￿I01￿is￿operated￿using￿a￿mono-stable￿rotary￿gear￿selector￿switch.￿The￿gear selector￿switch￿offers￿the￿option￿of￿selecting￿the￿familiar￿drive￿positions￿"P",￿"N",￿"R",￿"D".￿The￿drive positions￿are￿shown￿as￿a￿shift￿pattern￿with￿auxiliary￿lines.￿The￿current￿drive￿position￿is￿highlighted. The￿following￿table￿shows￿how￿the￿individual￿drive￿positions￿are￿realized. Drive Status￿of￿parking￿lock Activation￿of￿the￿electrical￿machine position Parking￿P Engaged De-energized Neutral￿N Disengaged De-energized Reverse￿R Disengaged Engine/Alternator￿with￿direction￿of￿rotation￿for reversing Drive￿D Disengaged Engine/Alternator￿with￿direction￿of￿rotation￿for forwards￿travel Two￿control￿units￿are￿responsible￿for￿engaging￿and￿disengaging￿the￿parking￿lock.
  • Page 37 I01￿High-voltage￿Components 3.￿Electric￿Motor Electrical￿Digital￿Motor￿Electronics￿EDME The￿EDME￿control￿unit￿contains￿the￿logics,￿i.e.￿the￿preconditions￿when￿the￿parking￿lock￿is￿to￿be engaged￿or￿disengaged.￿Via￿the￿PT-CAN￿the￿EDME￿control￿unit￿sends￿the￿corresponding￿commands to￿the￿electrical￿machine￿electronics. Electrical￿machine￿electronics￿(EME) The￿EME￿control￿unit￿activates￿the￿parking￿lock￿actuator￿directly.￿It￿behaves￿similarly￿with￿the￿function of￿the￿other￿drive￿positions￿"R"￿and￿"D".￿Also￿here￿the￿EDME￿control￿unit￿calculates￿the￿logic￿part. The￿electrical￿machine￿electronics￿is￿responsible￿for￿the￿implementation,￿for￿example￿to￿activate￿the electrical￿machine￿for￿reversing￿or￿forwards￿travel.￿Finally,￿the￿transmission￿of￿the￿I01￿also￿offers￿the functions￿shift￿lever￿interlock￿and￿interlock,￿whose￿logic￿part￿is￿also￿calculated￿in￿the￿EDME￿control￿unit (see￿section￿"Shift-by-Wire￿function").

  • Page 38: Transmission

    I01￿High-voltage￿Components 3.￿Electric￿Motor 3.2.2.￿Transmission The￿transmission￿of￿the￿I01￿was￿developed￿by￿the￿BMW Group￿and￿its￿being￿produced￿in￿the￿BMW plant￿in￿Dingolfing. The￿transmission￿has￿an￿overall￿ratio￿of￿9.7:1.￿The￿engine￿speed￿at￿the￿transmission￿input￿is￿9.7 times￿greater￿than￿at￿the￿transmission￿output.￿This￿ratio￿is￿realized￿using￿two￿spur￿gear￿units.￿In addition￿to￿the￿input￿shaft,￿there￿is￿also￿an￿intermediate￿shaft￿in￿the￿transmission.￿The￿spur￿gear￿unit at￿the￿transmission￿output￿is￿fixed￿to￿the￿differential￿cage￿and￿drives￿the￿differential.￿The￿differential distributes￿the￿torque￿to￿two￿outputs￿and￿enables￿the￿engine￿speed￿adjustment￿between￿the￿two outputs.￿The￿differential￿has￿an￿almost￿identical￿design￿to￿that￿of￿a￿front￿axle￿differential,￿as￿used in￿BMW￿vehicles￿with￿a￿four-wheel￿drive￿(front￿axle￿differential 156).￿For￿use￿in￿the￿I01￿only￿surface hardening￿measures￿and￿a￿high-strength￿material￿are￿used. Structure￿of￿the￿transmission Index Explanation View￿from￿rear￿left View￿from￿rear￿right Geared￿shaft￿as￿connection￿for￿the￿drive￿shaft￿of￿the￿electrical￿machine Transmission￿input￿shaft Spur￿gear￿unit￿1￿at￿input￿shaft Spur￿gear￿unit￿2￿at￿intermediate￿shaft Spur￿gear￿unit￿4￿at￿transmission￿output Differential...
  • Page 39 I01￿High-voltage￿Components 3.￿Electric￿Motor Index Explanation Connection￿for￿output￿shaft,￿left Intermediate￿shaft Spur￿gear￿unit￿3￿at￿intermediate￿shaft Connection￿for￿output￿shaft,￿right The￿following￿skeleton￿graphic￿is￿a￿simplified￿diagram￿and￿shows￿the￿torque￿transmission￿in￿the transmission. Skeletal￿graphic￿for￿transmission Index Explanation Torque￿of￿the￿electrical￿machine￿=￿Transmission￿input￿torque Transmission￿output￿torque Drive￿torque￿at￿an￿output￿shaft Drive￿shaft￿of￿the￿electrical￿machine Positive￿connection￿between￿electrical￿machine￿and￿transmission Transmission￿input￿shaft Combination￿of￿spur￿gear￿unit￿1￿and￿2 Combination￿of￿spur￿gear￿unit￿3￿and￿4 Output￿shaft,￿right Differential Output￿shaft,￿left Intermediate￿shaft...
  • Page 40 I01￿High-voltage￿Components 3.￿Electric￿Motor An￿axle￿transmission￿oil￿known￿from￿conventionally￿driven￿BMW￿vehicles￿is￿used￿as￿transmission oil￿(manufacturer￿designation,￿e.g.￿Castrol￿BOT-448).￿The￿transmission￿housing￿is￿also￿used￿as￿an oil￿sump￿and￿holds￿the￿full￿capacity￿of￿0.5 l￿transmission￿oil.￿The￿spur￿gear￿units￿and￿the￿differential run￿in￿the￿transmission￿oil￿and￿ensure￿the￿entire￿transmission￿is￿lubricated￿(oil￿sump￿lubrication).￿The transmission￿oil￿is￿designed￿for￿the￿operating￿life￿of￿the￿I01￿meaning￿there￿is￿no￿need￿for￿a￿replacement of￿the￿transmission￿oil.￿Nevertheless,￿there￿is￿an￿oil￿drain￿plug,￿as￿well￿as￿an￿oil￿filler￿plug,￿with￿which the￿oil￿level￿can￿also￿be￿checked.￿These￿are￿shown￿in￿a￿graphic￿in￿the￿chapter￿"Mechanical￿interfaces". The￿transmission￿is￿not￿integrated￿in￿the￿cooling￿system￿of￿the￿electric￿motor￿and￿therefore￿has￿no connections￿for￿coolant￿lines.￿The￿heat￿in￿the￿transmission￿which￿arises￿during￿operation￿is￿low. Sufficient￿heat￿is￿discharged￿via￿the￿air￿flowing￿by￿at￿the￿transmission￿housing￿and￿the￿connection for￿the￿electrical￿machine.￿The￿temperature￿in￿the￿transmission￿remains￿in￿a￿range￿up￿to￿a￿maximum 120 °C,￿for￿which￿the￿components￿and￿the￿transmission￿oil￿are￿designed.￿The￿transmission￿can, however,￿also￿absorb￿significantly￿lower￿temperatures:￿When￿driving￿off￿after￿a￿long￿immobilization period￿the￿components￿have￿the￿ambient￿temperature.￿As￿a￿result￿of￿the￿large￿temperature￿range excess￿pressure￿or￿a￿vacuum￿would￿occur￿in￿a￿completely￿tight￿housing.￿To￿avoid￿this￿there￿is￿a bleeding￿hole￿above￿at￿the￿transmission￿housing.￿It￿has￿a￿cap￿to￿protect￿against￿dirt￿contamination. The￿bleeding￿hole￿is￿also￿shown￿in￿a￿graphic￿in￿the￿chapter￿"Mechanical￿interfaces". 3.2.3.￿Mechanical￿interfaces Mounting￿and￿torque￿support The￿mounting￿and￿support￿of￿the￿drive￿torque￿is￿not￿only￿related￿to￿the￿transmission,￿but￿also￿the entire￿drive￿unit￿comprising￿the￿electrical￿machine,￿transmission￿and￿electrical￿machine￿electronics. The￿weight￿force￿and￿drive￿torque￿are￿transmitted￿to￿the￿rear￿axle￿module￿via￿engine￿support￿arm￿and anti-roll￿bar￿link￿and￿from￿there￿to￿the￿body. Components￿of￿the￿transmission￿visible￿from￿the￿outside...
  • Page 41 I01￿High-voltage￿Components 3.￿Electric￿Motor Index Explanation Parking￿lock￿module Ventilation￿opening Transmission￿housing Oil￿drain￿plug Fluid￿filler￿plug Interface￿for￿the￿electrical￿machine The￿torque￿is￿transmitted￿via￿a￿positive￿connection￿from￿the￿drive￿shaft￿of￿the￿electrical￿machine￿to￿the transmission￿input￿shaft.￿For￿this￿purpose,￿both￿shafts￿have￿gearing.￿However,￿there￿is￿no￿intended centring￿for￿the￿two￿shafts. When￿joining￿the￿transmission￿and￿the￿electrical￿machine￿the￿procedure￿described￿in￿the￿repair instructions￿must￿be￿followed.￿Ensure￿axial￿alignment￿of￿the￿transmission￿input￿shaft￿and￿output￿shaft to￿avoid￿distortion￿during￿assembly.￿In￿addition,￿the￿two￿gearings￿must￿be￿greased￿before￿joining.￿Do not￿exceed￿the￿specified￿quantity￿of￿grease￿ Mechanical￿interfaces￿of￿the￿transmission Index Explanation Rear￿axle￿module Output￿shaft,￿right Transmission￿housing X-sealing￿ring...
  • Page 42 I01￿High-voltage￿Components 3.￿Electric￿Motor Index Explanation Output￿shaft,￿left Transmission￿input￿shaft￿with￿gearing O-ring￿seal Bore￿holes￿for￿the￿mechanical￿connection￿with￿the￿electrical￿machine The￿O-ring￿seal￿and￿the￿X-sealing￿ring￿must￿be￿replaced￿after￿a￿disconnection￿of￿the￿transmission￿from the￿electrical￿machine￿ Water￿and￿dirt￿may￿penetrate￿the￿cavity￿within￿the￿transmission￿housing￿which￿can￿be￿seen￿in￿the graphic.￿This￿is￿not￿a￿problem￿for￿the￿transmission￿–￿however,￿water￿and￿dirt￿must￿be￿prevented￿from entering￿the￿electrical￿machine￿from￿there.￿For￿this￿purpose,￿the￿sealing￿ring￿marked￿in￿the￿graphic, which￿has￿the￿letter￿"X"￿in￿the￿cross-section,￿is￿used. There￿is￿another￿sealing￿ring￿on￿the￿transmission￿input￿shaft.￿It￿seals￿the￿hub￿space￿of￿the￿electrical machine,￿which￿is￿filled￿with￿grease.￿With￿the￿sealing￿ring￿the￿grease￿filled￿during￿installation￿remains￿in the￿hub￿space￿and￿ensures￿the￿lubrication￿during￿the￿entire￿service￿life￿of￿the￿vehicle. Ring-shaped￿through-holes￿arranged￿on￿the￿transmission￿housing￿hold￿the￿aluminium￿screws￿for connecting￿the￿housing￿of￿the￿transmission￿and￿the￿electrical￿machine. The￿aluminium￿screws￿must￿be￿replaced￿after￿disassembly￿ Interface￿for￿the￿output￿shafts The￿output￿shafts￿are￿connected￿in￿the￿outputs￿of￿the￿differential.￿The￿torque￿is￿transmitted￿by￿the positive￿connection￿(gearing)￿between￿the￿output￿shafts￿and￿the￿differential.￿A￿radial￿shaft￿seal,￿as known￿from￿conventional￿BMW￿vehicles,￿seals￿the￿oil￿chamber￿of￿the￿transmission. Covers The￿graphics￿in￿this￿document￿show￿the￿electrical￿machine￿and￿the￿transmission￿without￿its￿covers.￿In the￿vehicle￿sometimes￿these￿components￿are￿still￿covered￿by￿a￿foam￿part.￿This￿serves￿for￿the￿acoustic encapsulation￿of￿the￿electric￿motor￿and￿absorbs￿noises. 3.2.4.￿Parking￿lock Introduction The￿parking￿lock￿is￿responsible￿for￿securing￿the￿vehicle￿against￿rolling￿away,￿just￿like￿in￿a￿conventional vehicle￿with￿automatic￿transmission.￿Even￿on￿steep￿inclines/downhill￿gradients￿up￿to￿32%￿the￿parking lock￿is￿able￿to￿safely￿hold￿the￿I01￿at￿a￿standstill.￿Nevertheless,￿just￿like￿for￿conventional￿vehicles￿it￿is recommended￿to￿also￿secure￿the￿vehicle￿against￿rolling￿away￿using￿the￿parking￿brake.
  • Page 43 I01￿High-voltage￿Components 3.￿Electric￿Motor The￿driver￿can￿engage￿the￿parking￿lock￿in￿the￿I01￿using￿the￿P￿button￿at￿the￿gear￿selector￿switch.￿It is,￿however,￿automatically￿engaged￿and￿under￿the￿same￿conditions￿known￿from￿BMW￿vehicles￿with an￿electronic￿gear￿selector￿switch.￿For￿example,￿the￿parking￿lock￿is￿automatically￿engaged￿when￿it is￿detected￿that￿the￿driver￿has￿left￿the￿vehicle￿(driver's￿door￿open,￿seat￿belt￿open￿and￿the￿pedals￿not operated).￿In￿contrast￿to￿conventional￿vehicles,￿there￿is￿a￿further￿precondition,￿where￿disengaging￿the parking￿lock￿in￿the￿I01￿is￿not￿possible.￿This￿precondition￿prevents￿the￿driver￿taking￿off￿unintentionally as￿long￿as￿a￿charging￿cable￿is￿connected. The￿parking￿lock￿of￿the￿I01￿cannot￿be￿disengaged￿if￿a￿connected￿charging￿cable￿is￿identified. Structure￿and￿operating￿principle The￿parking￿lock￿comprises￿an￿electromechanical￿part￿(parking￿lock￿actuator)￿and￿a￿mechanical￿part (parking￿lock￿pawl￿and￿parking￿lock￿gear)￿in￿the￿transmission￿housing.￿The￿mechanical￿part￿functions at￿the￿transmission￿input￿shaft,￿as￿highlighted￿from￿the￿following￿transmission￿skeleton￿and￿sectioning. Position￿of￿the￿parking￿lock￿in￿transmission￿skeleton Index Explanation Drive￿shaft￿of￿the￿electrical￿machine Positive￿connection￿between￿electrical￿machine￿and￿transmission Transmission￿input￿shaft Parking￿lock￿pawl Parking￿lock￿gear Combination￿of￿spur￿gear￿unit￿1￿and￿2 Combination￿of￿spur￿gear￿unit￿3￿and￿4...
  • Page 44 I01￿High-voltage￿Components 3.￿Electric￿Motor Index Explanation Output￿shaft,￿right Differential Output￿shaft,￿left Intermediate￿shaft Structure￿of￿the￿mechanical￿part￿of￿the￿parking￿lock Index Explanation Return￿spring Fixing￿element Cam￿disc￿with￿two￿locking￿positions Relay￿shaft Parking￿lock￿module Transmission￿input￿shaft Parking￿lock￿pawl￿with￿return￿spring Parking￿lock￿gear...
  • Page 45 I01￿High-voltage￿Components 3.￿Electric￿Motor The￿parking￿lock￿module￿functions￿at￿a￿driving￿shaft.￿At￿the￿end￿of￿the￿driving￿shaft￿there￿is￿a￿bar￿which is￿turned￿about￿70￿degrees￿by￿the￿revolution￿of￿the￿driving￿shaft.￿As￿a￿result,￿the￿parking￿lock￿pawl￿is inserted￿into￿the￿parking￿lock￿gear￿and￿the￿transmission￿input￿shaft￿is￿blocked.￿By￿resetting￿the￿bar the￿parking￿lock￿pawl￿is￿released￿again,￿pulled￿from￿the￿parking￿lock￿gear￿by￿the￿return￿spring￿and￿the transmission￿input￿shaft￿is￿unlocked.￿The￿driving￿shaft￿is￿held￿in￿the￿two￿positions,￿"engaged"￿and "disengaged",￿by￿a￿fixing￿element.￿The￿fixing￿element￿locks￿into￿the￿respective￿recesses￿at￿the￿cam disc.￿The￿rod￿cannot￿be￿moved￿from￿these￿positions￿by￿movements￿or￿forces￿from￿the￿transmission. Both￿positions￿are￿stable￿without￿the￿supply￿of￿auxiliary￿power.￿It￿is￿also￿said: The￿parking￿lock￿of￿the￿I01￿is￿bi-stable.￿This￿means￿it￿requires￿external￿energy￿in￿order￿to￿change￿the condition￿of￿the￿parking￿lock. Energy￿is￿required￿for￿both￿disengaging￿and￿engaging￿the￿parking￿lock.￿In￿BMW￿vehicles￿with￿a conventional￿engine￿and￿automatic￿transmission￿energy￿is￿only￿required￿for￿disengaging￿the￿parking lock. The￿actuator￿of￿the￿parking￿lock￿is￿a￿direct￿current￿electric￿motor￿with￿gear/worm￿wheel￿transmission and￿two￿position￿sensors.￿All￿these￿parts￿are￿located￿in￿the￿housing￿and￿form￿one￿unit.￿The￿parking lock￿module￿is￿secured￿using￿three￿raised￿head￿Torx￿screws￿on￿the￿transmission￿housing￿and￿for￿now is￿not￿replaced￿in￿BMW￿Service. The￿parking￿lock￿module￿is￿connected￿to￿the￿parking￿lock￿via￿a￿multi-tooth￿connection￿of￿the￿actuator/ driving￿shaft￿at￿the￿transmission￿interface.￿Attention:￿The￿vehicle￿must￿be￿secured￿against￿rolling away￿by￿other￿measures￿(e.g.￿by￿operating￿the￿parking￿brake￿or￿positioning￿a￿wedge). The￿electric￿motor￿in￿the￿parking￿lock￿module￿is￿activated￿directly￿by￿an￿output￿stage￿in￿the￿electrical machine￿electronics.￿The￿output￿stage￿is￿current-limited￿to￿protect￿against￿damage￿by￿a￿short￿circuit. In￿order￿not￿to￿overload￿the￿electric￿motor,￿the￿power￿consumption￿is￿also￿measured￿and￿a￿current limitation￿performed￿in￿the￿software￿of￿the￿electrical￿machine￿electronics. The￿electric￿motor￿is￿supplied￿with￿current￿until￿the￿position￿sensors￿display￿that￿the￿parking￿lock￿has adopted￿the￿desired￿condition.￿The￿position￿sensors￿work￿according￿to￿the￿hall-effect￿principle￿and record￿the￿movement￿in￿the￿transmission￿of￿the￿parking￿lock￿module.￿As￿the￿function￿of￿the￿parking lock￿is￿relevant￿for￿safety,￿two￿redundant￿position￿sensors￿are￿used￿to￿achieve￿the￿requested￿reliability. If￿a￿sensor￿signal￿fails￿due￿to￿a￿fault,￿an￿active￿engaging￿or￿disengaging￿procedure￿can￿be￿completed￿as a￿result￿of￿the￿redundancy.￿The￿position￿sensors￿generate￿signals￿which￿are￿evaluated￿by￿the￿electrical machine￿electronics. As￿the￿position￿sensors￿record￿the￿movement￿of￿the￿electric￿motor￿in￿the￿parking￿lock￿module￿and￿not the￿movement￿of￿the￿actual￿parking￿lock￿mechanics,￿an￿initialization￿has￿to￿be￿performed￿as￿a￿one-off so￿that￿a￿conclusion￿can￿be￿drawn￿about￿the￿condition￿of￿the￿parking￿lock￿from￿the￿sensor￿signals. The￿following￿graphic￿shows￿the￿electrical￿structure￿of￿the￿parking￿lock￿module￿and￿the￿electrical connection￿for￿the￿electrical￿machine￿electronics.
  • Page 46 I01￿High-voltage￿Components 3.￿Electric￿Motor Electrical￿interfaces￿between￿parking￿lock￿module￿and￿electrical￿machine￿electronics Index Explanation Electrical￿machine￿electronics￿EME￿(entirety) PT-CAN￿connection Voltage￿supply EME￿control￿unit Output￿stage￿for￿parking￿lock￿module Electric￿motor Transmission￿of￿the￿parking￿lock￿actuator First￿position￿sensor￿according￿to￿the￿hall-effect￿principle Second￿position￿sensor￿working￿in￿the￿opposite￿direction,￿also￿according￿to the￿hall-effect￿principle Parking￿lock￿module￿(entirety)
  • Page 47 I01￿High-voltage￿Components 3.￿Electric￿Motor Service￿information The￿EME￿control￿unit￿performs￿several￿self-diagnosis￿functions￿in￿order￿to￿ensure￿the￿proper￿function of￿the￿parking￿lock￿module￿and￿to￿protect￿the￿components￿against￿damage.￿These￿self-diagnosis functions￿are: • Monitoring￿of￿lines￿for￿the￿electric￿motor,￿the￿position￿sensors￿and￿the￿solenoids￿for￿short circuit￿against￿ground￿and￿supply￿voltage,￿as￿well￿as￿for￿open￿circuit • Monitoring￿of￿the￿current￿level￿for￿the￿electric￿motor￿with￿regards￿to￿the￿maximum￿value￿and plausibility￿for￿the￿signals￿of￿the￿position￿sensors • Monitoring￿of￿the￿signals￿of￿the￿position￿sensors￿(pulse-width￿modulated￿signal￿in￿the specified￿range￿and￿plausibility￿of￿both￿signals￿to￿each￿other). If￿one￿of￿the￿self-diagnosis￿functions￿identifies￿a￿fault,￿in￿the￿EME￿control￿unit￿an￿entry￿is￿made￿in￿the fault￿memory￿which￿can￿indicate￿the￿fault￿cause.￿Depending￿on￿the￿severity￿of￿the￿identified￿fault￿the parking￿lock￿will￿either￿work￿again￿or￿remain￿in￿the￿current￿position.￿In￿each￿case,￿however,￿a￿fault￿code entry￿is￿generated￿and￿the￿customer￿is￿requested￿by￿a￿Check￿Control￿message￿to￿have￿the￿vehicle checked￿by￿BMW￿Service. If￿the￿cause￿for￿a￿malfunction￿cannot￿be￿determined￿using￿the￿fault￿code￿entry,￿the￿Service￿employee can￿perform￿the￿following￿checks￿and￿thus￿pinpoint￿the￿cause: • Check￿the￿voltage￿supply￿of￿the￿electric￿motor￿at￿the￿output￿of￿the￿electrical￿machine electronics￿with￿a￿measurement • Check￿the￿wiring￿harness￿section￿for￿open￿circuit/short￿circuit. The￿diagnosis￿system￿not￿only￿supports￿the￿Service￿employee￿during￿troubleshooting￿for￿the￿parking lock.￿The￿diagnosis￿system￿also￿offers￿Service￿functions.￿The￿most￿important￿Service￿function￿is￿used for￿the￿initialization￿of￿the￿parking￿lock.￿During￿the￿initialization￿the￿electric￿motor￿in￿the￿parking￿lock module￿approaches￿its￿end￿positions￿several￿times.￿The￿signals￿of￿the￿position￿sensors￿and￿also￿the characteristic￿of￿the￿current￿level,￿which￿the￿electric￿motor￿uses,￿are￿observed.￿The￿force￿which￿the electric￿motor￿must￿apply￿and￿also￿the￿current￿characteristic￿change￿through￿the￿locking￿positions￿at the￿cam￿disc￿and￿the￿force￿which￿the￿fixing￿element￿exerts.￿The￿EME￿control￿unit￿uses￿these￿values￿to calculate￿the￿positions￿at￿which￿the￿parking￿lock￿is￿correctly￿engaged￿or￿disengaged.￿The￿respective signal￿values￿of￿the￿position￿sensors￿are￿stored￿permanently￿in￿the￿EME￿control￿unit￿and￿are￿available from￿this￿time￿for￿the￿control￿of￿the￿operation￿of￿the￿parking￿lock. The￿initialization￿of￿the￿parking￿lock￿in￿the￿I01￿using￿the￿diagnosis￿system￿is￿necessary￿if • the￿transmission￿was￿replaced, •...
  • Page 48 I01￿High-voltage￿Components 3.￿Electric￿Motor Move￿the￿driving￿shaft￿of￿the￿parking￿lock￿into￿the￿locking￿position￿for￿"Parking￿lock￿disengaged", if￿necessary.￿by￿moving￿70°￿anti-clockwise. Install￿the￿new￿parking￿lock￿module. An￿emergency￿operation￿of￿the￿parking￿lock￿module￿is￿not￿intended￿￿The￿I01￿cannot￿be￿towed￿away.￿It can￿only￿be￿transported￿on￿a￿loading￿platform. 3.3.￿Drive￿control The￿electric￿motor￿of￿the￿I01￿is￿a￿distributed￿system￿with￿a￿variety￿of￿components.￿This￿is￿also discernible￿in￿the￿electronic￿part,￿the￿drive￿control,￿because￿several￿components￿(control￿units)￿are￿also involved￿here.￿The￿master￿role￿for￿the￿control￿of￿the￿electric￿motor￿in￿the￿I01￿is￿assumed￿by￿the￿engine control.￿It￿is￿modelled￿after￿vehicles￿with￿a￿gasoline￿engine￿with￿"Electrical￿Digital￿Motor￿Electronics" EDME. Installation￿location￿of￿the￿EDME As￿the￿most￿important￿partner￿control￿unit￿of￿the￿EDME,￿the￿electrical￿machine￿electronics￿assumes the￿activation￿of￿the￿electrical￿machine￿and￿the￿supply￿of￿energy￿to￿the￿low-voltage￿vehicle￿electrical system.￿Other￿partner￿control￿units￿of￿the￿EDME￿include￿the￿battery￿management￿electronics￿SME and￿the￿convenience￿charging￿electronics￿KLE. 3.3.1.￿System￿overview The￿following￿graphics￿shows￿the￿electrical￿connection￿of￿the￿key￿components￿of￿the￿drive￿control.
  • Page 49 I01￿High-voltage￿Components 3.￿Electric￿Motor System￿wiring￿diagram￿for￿the￿drive￿control...

  • Page 50: Functions

    I01￿High-voltage￿Components 3.￿Electric￿Motor Index Explanation Electric￿heating￿(EH) Electric￿fan Power￿distribution￿box￿at￿front￿in￿BDC Brake￿vacuum￿pressure￿sensor Relay￿for￿switching￿on￿the￿electric￿fan Fuel￿pump￿relay Intelligent￿battery￿sensor￿(IBS) 12 V￿battery Safety￿battery￿terminal￿(SBK) Power￿distribution￿box￿at￿front￿in￿BDC Body￿Domain￿Controller￿(BDC) Driving￿experience￿switch Combined￿expansion￿and￿shutoff￿valve￿(without￿heat￿pump) Integrated￿supply￿module Charging￿interface￿module￿(LIM) Range￿Extender￿Digital￿Engine￿Electronics￿(RDME) Range￿Extender￿Electrical￿Machine￿Electronics￿(REME) Electrical￿machine￿electronics￿(EME) Secondary￿air￿pump High-voltage￿safety￿connector￿(Service￿Disconnect) Electric￿coolant￿pump Battery￿management￿electronics￿(SME) Crash￿Safety￿Module￿(ACSM) Accelerator￿pedal￿module Electronic￿gear￿selector￿switch￿(GWS) Electrical￿Digital￿Motor￿Electronics￿(EDME) Electrical￿vacuum￿pump 3.3.2.￿Functions The￿drive￿control￿includes￿the￿following￿primary￿functions: • Evaluation￿of￿the￿driver's￿choice￿(accelerator￿pedal) • Coordination￿of￿torque￿demands • Operating￿strategy￿including￿behavior￿in￿emergency￿operation...
  • Page 51 I01￿High-voltage￿Components 3.￿Electric￿Motor • Activation￿of￿the￿electrical￿machine • Heat￿management • Evaluation￿of￿the￿electronic￿gear￿selector￿switch￿(Shift-by-Wire￿function) • Power￿management￿for￿the￿low-voltage￿vehicle￿electrical￿system.
  • Page 52 I01￿High-voltage￿Components 3.￿Electric￿Motor Activation￿of￿the￿electrical￿machine Input/Output￿for￿the￿drive￿control...
  • Page 53 I01￿High-voltage￿Components 3.￿Electric￿Motor Index Explanation Accelerator￿pedal￿module Signal,￿accelerator￿pedal￿angle Electronic￿gear￿selector￿switch￿(GWS) Operating￿signals￿of￿the￿electronic￿gear￿selector￿switch Battery￿management￿electronics￿(SME) Signals￿about￿the￿state￿of￿charge￿and￿the￿available￿electric￿power￿of￿the￿high- voltage￿battery Dynamic￿Stability￿Control￿(DSC) Signals￿about￿the￿dynamic￿handling￿characteristics,￿e.g.￿the￿driving￿speed Electrical￿Digital￿Motor￿Electronics￿(EDME) Electrical￿machine Phase￿voltages￿for￿the￿coils￿of￿the￿electrical￿machine Electrical￿machine￿electronics￿(EME) Requested￿drive￿torque￿(engine/alternator) Electric￿coolant￿pump Power￿requirement￿at￿electric￿coolant￿pump Electric￿fan Power￿requirement￿at￿electric￿coolant￿pump Instrument￿cluster Display￿information￿on￿the￿condition￿of￿the￿electric￿motor￿and￿Check￿Control messages￿in￿the￿event￿of￿a￿fault The￿upper￿graphic￿shows￿that￿the￿EDME￿control￿unit￿acts￿as￿a￿master￿and￿coordinator￿for￿the￿primary functions￿of￿the￿drive￿control. Before￿a￿drive￿torque￿is￿applied,￿the￿EDME￿must￿check￿whether￿the￿driving￿readiness￿is￿established. The￿EDME￿also￿queries￿whether￿all￿subsystems￿of￿the￿electrical￿drive￿train￿are￿functioning￿trouble- free,￿which￿is￿also￿a￿prerequisite￿for￿the￿provision￿of￿a￿drive￿torque.￿Finally,￿the￿EDME￿still￿has￿to consider￿the￿available￿electrical￿power￿for￿the￿electric￿motor￿which￿is￿primarily￿determined￿by￿the condition￿of￿the￿high-voltage￿battery.￿The￿SME￿control￿unit￿communicates￿this￿condition￿to￿the￿EDME control￿unit￿via￿corresponding￿bus￿signals.￿As￿a￿result￿of￿these￿checks￿the￿EDME￿identifies￿whether and￿in￿what￿scope￿the￿drive￿torque￿can￿be￿provided.￿In￿the￿case￿of￿fault￿statuses￿or￿in￿the￿event￿of limited￿availability,￿the￿EDME￿issues￿an￿appropriate￿Check￿Control￿message￿via￿the￿instrument￿cluster. The￿functions￿described￿here￿can￿be￿summarized￿under￿the￿term￿"Operating￿strategy". An￿important￿input￿signal￿for￿the￿determination￿of￿the￿drive￿torque￿is￿the￿accelerator￿pedal￿angle,￿which is￿transmitted￿via￿direct￿wiring￿from￿the￿accelerator￿pedal￿module￿to￿the￿EDME.￿Using￿this￿signal￿the EDME￿determines￿the￿torque￿request￿of￿the￿driver.￿The￿EDME￿must￿compare￿and￿coordinate￿this torque￿request￿and￿any￿other￿torque￿requests￿made￿at￿the￿same￿time,￿for￿example￿from￿the￿cruise control￿or￿the￿DSC.￿Using￿this￿input￿information￿the￿EDME￿can￿calculate￿the￿actual￿drive￿torque...
  • Page 54 I01￿High-voltage￿Components 3.￿Electric￿Motor In￿order￿to￿generate￿the￿drive￿torque￿using￿the￿electrical￿machine,￿the￿phase￿voltages￿(size,￿frequency and￿phase)￿have￿to￿be￿generated￿at￿the￿coils￿of￿the￿electrical￿machine.￿This￿task￿is￿not￿completed￿by the￿EDME￿itself,￿but￿by￿the￿electrical￿machine￿electronics￿EME.￿Via￿bus￿signals￿on￿the￿PT-CAN2￿the EDME￿sends￿the￿requested￿drive￿torque￿to￿the￿EME.￿The￿EME￿control￿unit￿then￿calculates￿the￿phase voltages￿and￿the￿power￿electronics￿of￿the￿EME,￿which￿is￿located￿in￿its￿own￿housing,￿generates￿the phase￿voltages. Shift-by-Wire￿function Another￿important￿function￿of￿the￿drive￿control￿is￿the￿shift-by-wire￿function,￿which￿evaluates￿the electronic￿gear￿selector￿switch￿and￿other￿signals,￿in￿order￿to￿simulate￿the￿drive￿positions￿of￿a conventional￿automatic￿transmission￿(P ,￿R,￿N,￿D). The￿change￿between￿the￿drive￿positions￿is￿achieved￿in￿the￿I01￿the￿same￿way￿as￿in￿conventional vehicles￿with￿automatic￿transmission￿and￿electronic￿gear￿selector￿switch.￿Some￿important preconditions￿and￿functions￿are￿listed￿below: • Interlock:￿Change￿from￿P￿to￿another￿drive￿position￿only￿when￿driving￿readiness￿is￿switched￿on • Shift￿lever￿interlock:￿Change￿from￿P￿or￿N￿to￿D￿or￿R￿only￿when￿brake￿pedal￿is￿operated￿at￿the same￿time • Change￿from￿P￿or￿R￿to￿N￿or￿D￿only￿when￿selector￿lever￿is￿operated￿at￿the￿same￿time • Automatic￿engaging￿of￿P:￿P￿is￿automatically￿engaged￿from￿the￿other￿drive￿positions￿(at￿vehicle standstill)￿if￿neither￿the￿brake￿pedal￿or￿accelerator￿pedal￿are￿operated,￿the￿driver's￿door￿is open￿and￿the￿driver's￿seat￿belt￿is￿not￿inserted￿in￿the￿seat￿belt￿buckle.￿P￿is￿also￿automatically engaged￿if￿the￿driving￿readiness￿is￿switched￿off • Car￿wash￿function:￿When￿the￿driving￿readiness￿is￿switched￿on￿engage￿drive￿position￿N,￿switch off￿driving￿readiness.￿N￿remains￿engaged. As￿the￿transmission￿of￿the￿I01￿only￿has￿a￿fixed￿ratio,￿there￿are￿no￿gears￿and￿thus￿also￿no￿adaptive￿EGS, no￿Sport￿program￿and￿also￿no￿manual￿program.￿The￿transmission￿also￿has￿no￿clutch￿to￿interrupt￿or establish￿the￿power￿transmission.￿There￿is￿also￿no￿reverse￿gear￿in￿the￿transmission￿of￿the￿I01.￿The following￿table￿shows￿how￿the￿drive￿control￿in￿the￿EDME￿realizes￿the￿individual￿drive￿positions: Drive￿position Activation￿of￿the￿electrical￿machine Actuator￿for￿parking lock Drive￿D Direction￿of￿rotation￿forwards,￿engine￿or...
  • Page 55 I01￿High-voltage￿Components 3.￿Electric￿Motor The￿selector￿level￿position￿N￿is￿thus￿not￿achieved￿by￿opening￿a￿clutch￿in￿the￿transmission.￿Instead,￿the electrical￿machine￿is￿activated￿so￿that￿it￿neither￿generates￿an￿engine￿nor￿alternator￿torque.￿One￿can therefore￿imagine￿as￿if￿the￿coils￿of￿the￿stator￿were￿open￿and￿no￿voltage￿is￿applied￿from￿outside.￿There is￿in￿fact￿voltage,￿generated￿by￿the￿electrical￿machine￿electronics￿–￿however,￿this￿is￿adjusted￿in￿the amplitude,￿frequency￿and￿phase￿so￿that￿the￿rotor￿can￿rotate￿without￿a￿load￿(torque￿0 Nm). The￿difference￿between￿the￿drive￿positions￿N￿and￿P￿is￿solely￿in￿the￿condition￿of￿the￿parking￿lock module.￿In￿N￿it￿is￿disengaged,￿in￿P￿it￿is￿engaged. Power￿management￿function For￿historical￿reasons￿and￿due￿to￿an￿indirect￿relation￿to￿the￿drive￿functions,￿other￿functions￿are integrated￿in￿the￿drive￿control￿units,￿especially￿in￿the￿EDME￿control￿unit. For￿many￿years￿the￿electrical￿power￿management￿of￿conventional￿vehicles￿has￿been￿integrated￿as a￿function￿in￿the￿engine￿control.￿The￿evaluation￿of￿the￿12 V￿battery￿state￿of￿charge￿via￿the￿IBS￿and the￿consumer￿shutdown￿are￿examples￿for￿this￿power￿management￿function.￿This￿tradition￿is￿also continued￿in￿the￿I01:￿The￿EDME￿control￿unit￿performs￿the￿power￿management￿function￿for￿the￿low- voltage￿vehicle￿electrical￿system.￿The￿power￿management￿in￿the￿low-voltage￿vehicle￿electrical￿system includes￿the￿following￿subfunctions: • Determination￿of￿the￿current￿energy￿requirement￿of￿the￿electrical￿consumers￿(signals￿in￿the form￿of￿bus￿signals,￿e.g.￿switch-on￿status￿of￿exterior￿lights￿by￿the￿Body￿Domain￿Controller BDC) • Determination￿of￿state￿of￿health,￿state￿of￿charge￿and￿charge￿current/discharge￿current￿of￿the 12 V￿battery￿(signals￿from￿the￿IBS) • Controling￿the￿power￿of￿the￿DC/DC￿converter • Monitoring￿of￿the￿standby￿current • Switch-off￿of￿terminals￿or￿consumers￿in￿order￿to￿protect￿the￿12 V￿battery￿against￿heavy discharge. The￿task￿of￿the￿conventional￿12 V￿alternator￿is￿assumed￿in￿the￿I01￿by￿the￿DC/DC￿converter￿in￿the electrical￿machine￿electronics.￿Depending￿on￿the￿power￿required,￿the￿power￿management￿in￿the EDME￿requests￿corresponding￿power￿from￿the￿electrical￿machine￿electronics￿via￿bus￿signals. 3.3.3.￿Electrical￿Digital￿Motor￿Electronics￿(EDME) The￿designation￿"Electrical￿Digital￿Motor￿Electronics￿(EDME)"￿reflects￿the￿electric￿motor￿in￿the￿I01 (in￿comparison￿to￿the￿conventional￿drive￿with￿a￿combustion￿engine).￿The￿manufacturer￿of￿the￿EDME control￿unit￿is￿"Delphi￿Electronics￿Group".￿The￿manufacturer's￿internal￿designation￿is￿"DCM 3.8"￿–￿this Delphi￿engine￿control￿unit￿is￿already￿used￿by￿other￿vehicle￿manufacturers￿and￿was￿adapted￿for￿the￿I01 in￿terms￿of￿the￿electrical￿interfaces.
  • Page 56 I01￿High-voltage￿Components 3.￿Electric￿Motor Installation￿location￿of￿the￿EDME Active￿cooling￿of￿the￿EDME￿is￿not￿intended￿as￿at￿the￿installation￿location￿there￿is￿a￿significantly￿lower temperature￿level￿as￿a￿result￿of￿no￿combustion￿engine￿in￿the￿I01.￿The￿EDME￿control￿unit￿also￿has considerably￿fewer￿output￿stages￿in￿comparison￿to￿an￿engine￿control￿for￿combustion￿engines￿and therefore￿less￿heat￿loss￿occurs￿in￿the￿control￿unit￿itself. The￿electrical￿interfaces￿of￿the￿EDME￿control￿unit￿are￿described￿in￿the￿list￿below: • 12 V￿voltage￿supply￿of￿the￿EDME￿control￿unit￿(terminal￿30B,￿ground￿connection) • Accelerator￿pedal￿module￿with￿two￿hall-effect￿sensors:￿Supply￿voltage,￿ground￿and￿sensor output￿signals￿with￿output￿voltage￿range￿of￿0 V￿to 2.5 V￿and￿0 V to 5.0 V • Brake￿light￿switch￿and￿brake￿light￿test￿switch:￿inverse,￿redundant￿signals￿(actuated/not actuated),￿supply￿via￿terminal￿R • Local￿interconnect￿network￿bus:￿Reading￿of￿the￿signals￿from￿the￿IBS￿and￿control￿of￿the￿electric coolant￿pump￿(cooling￿circuit￿between￿electrical￿machine/electrical￿machine￿electronics￿and charging￿electronics) • Control￿of￿the￿electric￿fan:￿The￿power￿of￿the￿electric￿fan￿for￿cooling￿the￿cooling￿package￿at the￿front￿can￿be￿controlled￿via￿a￿pulse-width￿modulated￿signal￿by￿the￿EDME.￿For￿emergency operation￿there￿is￿a￿relay￿with￿which￿the￿electric￿fan￿can￿be￿switched￿on￿at￿full￿power￿by￿the EDME. • Body￿Domain￿Controller￿BDC￿(start￿enable) • PT-CAN￿(no￿terminating￿resistor￿in￿the￿EDME) • PT-CAN2￿(no￿terminating￿resistor￿in￿the￿EDME) • FlexRay￿(terminating￿resistor￿in￿the￿EDME). The￿functions￿of￿the￿drive￿control￿are￿already￿described￿in￿detail￿in￿the￿chapter￿"Functions".￿The following￿list￿summarizes￿again￿the￿functions￿which￿the￿EDME￿control￿unit￿calculates￿and￿performs:...
  • Page 57 I01￿High-voltage￿Components 3.￿Electric￿Motor • Torque￿coordination￿(driver's￿choice,￿assist￿systems) • Operating￿strategy • Shift-by-Wire • Low-voltage￿power￿management • Heat￿management • Activating￿the￿electrical￿vacuum￿pump • Fault￿management￿and￿emergency￿operation.

  • Page 58: Introduction

    I01￿High-voltage￿Components 4.￿Electrical￿Machine￿Electronics 4.1.￿Electrical￿machine￿electronics￿(EME) 4.1.1.￿Introduction The￿electrical￿machine￿electronics￿EME￿serves￿mainly￿as￿control￿electronics￿for￿the￿electrical￿machine, which￿drives￿the￿I01.￿It￿assumes￿the￿task￿of￿converting￿the￿DC￿voltage￿(up￿to￿about￿400 V￿DC)￿from the￿high-voltage￿battery￿into￿a￿three-phase￿AC￿voltage￿(up￿to￿about￿360 V￿AC)￿for￿activating￿the electrical￿machine￿as￿a￿motor.￿Vice￿versa,￿when￿the￿electrical￿machine￿works￿as￿an￿alternator,￿the electrical￿machine￿electronics￿converts￿the￿three-phase￿AC￿voltage￿of￿the￿electrical￿machine￿to￿a direct￿current￿voltage￿and￿can￿thus￿charge￿the￿high-voltage￿battery.￿This￿takes￿place￿during￿brake energy￿regeneration.￿For￿these￿two￿operating￿modes￿a￿bidirectional￿DC/AC￿converter￿is￿necessary which￿can￿work￿as￿both￿an￿inverter￿and￿a￿rectifier. The￿DC/DC￿converter￿which￿is￿also￿integrated￿in￿the￿electrical￿machine￿electronics￿ensures￿the￿voltage supply￿to￿the￿12 V￿vehicle￿electrical￿system.￿The￿electrical￿machine￿electronics￿has￿another￿control unit￿which￿bears￿the￿same￿name,￿"EME"￿for￿short. The￿entire￿electrical￿machine￿electronics￿of￿the￿I01￿is￿located￿in￿an￿aluminium￿housing.￿The￿control unit￿of￿the￿bidirectional￿AC/DC￿converter￿for￿the￿conversion￿of￿the￿AC￿voltage￿to￿direct￿current￿voltage for￿charging￿the￿high-voltage￿battery,￿as￿well￿as￿conversion￿of￿the￿direct￿current￿voltage￿from￿the￿high- voltage￿battery￿to￿3-phase￿AC￿voltage￿and￿the￿DC/DC￿converter￿for￿the￿voltage￿supply￿of￿the￿12 V vehicle￿electrical￿system￿are￿located￿in￿this￿housing. The￿housing￿of￿the￿electrical￿machine￿electronics￿cannot￿be￿opened￿in￿Service. The￿electrical￿machine￿electronics￿of￿the￿I01￿is￿developed￿and￿supplied￿by￿the￿relevant￿departments￿of BMW￿AG.￿The￿production￿is￿carried￿out￿in￿a￿division￿of￿the￿plant￿in￿Dingolfing. Only￿Service￿employees￿who￿satisfy￿all￿the￿prerequisites￿are￿permitted￿to￿work￿on￿the￿designated high-voltage￿components:￿suitable￿qualifications,￿compliance￿with￿the￿safety￿rules,￿procedure following￿the￿exact￿repair￿instructions. The￿diagnosis￿and￿repair￿of￿the￿high-voltage￿components￿is￿only￿allowed￿in￿a￿retail￿service center￿that￿has￿qualified￿and￿certified￿service￿technicians.￿These￿technicians￿must￿have completed￿the￿ST1403b￿I01￿High￿Voltage￿Battery￿and￿Maintenance￿instructor￿led￿course￿and successfully￿passed￿the￿hands￿on￿certification. 4.1.2.￿Installation￿location The￿electrical￿machine￿electronics￿is￿installed￿in￿the￿rear￿of￿the￿I01,￿in￿an￿area￿separated￿from￿the luggage￿compartment.
  • Page 59 I01￿High-voltage￿Components 4.￿Electrical￿Machine￿Electronics Access￿to￿the￿electrical￿machine￿electronics￿from￿the￿luggage￿compartment Index Explanation Luggage￿compartment￿trim￿panel Cover Mounting￿bolts￿of￿lid Electrical￿machine￿electronics Gasket In￿order￿to￿access￿the￿connections￿of￿the￿electrical￿machine￿electronics,￿the￿part￿of￿the￿luggage compartment￿panel￿shown￿in￿the￿graphic￿must￿first￿be￿removed.￿A￿then￿visible￿lid￿must￿also￿be removed,￿thereby￿creating￿an￿opening￿for￿Service.￿The￿lid￿is￿secured￿to￿the￿body￿using￿a￿screw connection￿and￿also￿sealed￿by￿a￿gasket. The￿accesses￿described￿are￿not￿sufficient￿for￿the￿removal￿and￿installation￿of￿the￿electrical￿machine electronics.￿Instead,￿the￿entire￿drive￿unit￿(comprising￿transmission,￿electrical￿machine￿and￿electrical machine￿electronics)￿must￿be￿removed.

  • Page 60: Connections

    I01￿High-voltage￿Components 4.￿Electrical￿Machine￿Electronics 4.1.3.￿Connections The￿connections￿at￿the￿electrical￿machine￿electronics￿can￿be￿divided￿into￿four￿categories: • Low-voltage￿connections • High-voltage￿connections • Connections￿for￿potential￿compensation￿lines • Connections￿for￿coolant￿lines. The￿following￿graphic￿shows￿all￿connections￿of￿the￿electrical￿machine￿electronics.￿Details￿of￿the individual￿categories￿are￿provided￿in￿the￿following￿chapters. Connections￿of￿the￿electrical￿machine￿electronics￿with￿lines...
  • Page 61 I01￿High-voltage￿Components 4.￿Electrical￿Machine￿Electronics Index Explanation Voltage￿supply￿of￿the￿electric￿motor￿in￿the￿parking￿lock￿module￿and￿signal￿lines from/to￿the￿parking￿lock￿module Coolant￿line￿(supply,￿electrical￿machine￿electronics) Output,￿DC/DC￿converter￿-￿12 V Low-voltage￿connector Low-voltage￿connector Output,￿DC/DC￿converter￿+12 V High-voltage￿cable￿(DC)￿for￿the￿high-voltage￿battery High-voltage￿cable￿(DC)￿for￿the￿range￿extender￿EME Housing￿of￿the￿electrical￿machine￿electronics Connection￿for￿potential￿compensation￿line Connection￿for￿potential￿compensation￿line Coolant￿line￿(return,￿electrical￿machine￿electronics,￿to￿electrical￿machine) Low-voltage￿connector￿EME￿(signal￿connector) Low-voltage￿connector￿EKK High-voltage￿cable￿for￿the￿EKK High-voltage￿cable￿for￿electric￿heating High-voltage￿cable￿for￿AC￿charging Ground￿connection Low-voltage￿connections In￿the￿multipolar￿low-voltage￿connector￿at￿the￿electrical￿machine￿electronics,￿which￿is￿visible￿from￿the outside,￿the￿following￿lines￿and￿signals￿are￿combined: • Voltage￿supply￿for￿the￿EME￿control￿unit￿(terminal￿30B￿from￿the￿power￿distribution￿box￿at￿the front￿and￿ground) • Terminal 30C￿from￿the￿safety￿battery￿terminal￿(is￿evaluated￿by￿the￿EME￿control￿unit￿in￿order￿to identify￿an￿accident) • Bus￿system￿PT-CAN2￿(In￿the￿EME￿control￿unit￿there￿is￿a￿terminating￿resistor￿with￿120 Ω￿for the￿PT-CAN2) • Wake-up￿line • Control￿line￿for￿the￿convenience￿charging￿electronics￿to￿enable￿the￿charging￿procedure •...
  • Page 62 I01￿High-voltage￿Components 4.￿Electrical￿Machine￿Electronics • Electromechanical￿parking￿lock:￿Voltage￿supply￿and￿signal￿of￿the￿position￿sensors,￿voltage supply￿of￿the￿solenoid￿and￿the￿electric￿motor • Brake￿vacuum￿sensor￿(supply￿and￿evaluation￿of￿a￿pressure-dependent￿resistance) • Voltage￿supply￿of￿the￿electrical￿vacuum￿pump. These￿lines￿and￿signals￿have￿relatively￿low￿current￿levels.￿The￿electrical￿machine￿electronics￿is connected￿to￿the￿12 V￿vehicle￿electrical￿system￿(terminals￿30￿and￿31)￿via￿two￿separate￿low-voltage connections￿and￿lines￿with￿large￿cross-section.￿Via￿this￿connection￿the￿DC/DC￿converter￿in￿the electrical￿machine￿electronics￿provides￿the￿entire￿12 V￿vehicle￿electrical￿system￿with￿energy.￿These two￿lines￿are￿not￿connected￿to￿the￿electrical￿machine￿electronics￿via￿a￿plug￿connection,￿but￿a￿screw connection. The￿connections￿of￿the￿electrical￿machine￿electronics￿to￿the￿electrical￿machine￿are￿not￿visible￿from￿the outside.￿They￿are￿located￿under￿a￿lid￿on￿the￿right￿side￿of￿the￿electrical￿machine. Electrical￿connection￿of￿the￿electrical￿machine￿electronics￿to￿the￿electrical￿machine Index Explanation Electrical￿machine￿electronics Screw￿connection￿for￿high-voltage￿connection,￿stator￿coil 1 Screw￿connection￿for￿high-voltage￿connection,￿stator￿coil 2 Screw￿connection￿for￿high-voltage￿connection,￿stator￿coil 3 Low-voltage￿connector The￿screw￿connections￿for￿the￿supply￿of￿the￿stator￿coils￿(high-voltage￿connections)￿and￿a￿plug connection,￿via￿which￿the￿following￿signals￿are￿transmitted,￿are￿located￿under￿the￿lid:...
  • Page 63 I01￿High-voltage￿Components 4.￿Electrical￿Machine￿Electronics • Rotor￿position￿sensor￿of￿the￿electrical￿machine￿(supply￿and￿sensor￿signals) • Signals￿of￿the￿two￿temperature￿sensors￿in￿the￿electrical￿machine. The￿following￿graphic￿summarizes￿again￿the￿low-voltage￿connections￿of￿the￿electrical￿machine electronics￿in￿the￿form￿of￿a￿simplified￿wiring￿diagram. Low-voltage￿connections￿of￿the￿electrical￿machine￿electronics...
  • Page 64 I01￿High-voltage￿Components 4.￿Electrical￿Machine￿Electronics Index Explanation Electrical￿vacuum￿pump Electric￿motor￿for￿parking￿lock Position￿sensors￿(hall-effect￿sensors) Parking￿lock￿module Temperature￿sensors￿2￿x￿(negative￿temperature￿coefficient) Electrical￿machine￿(entirety) Rotor￿position￿sensor 12 V￿battery Signal￿lines￿of￿the￿high-voltage￿interlock￿loop Crash￿Safety￿Module Brake￿vacuum￿pressure￿sensor Body￿Domain￿Controller Output￿stage￿for￿the￿activation￿of￿the￿parking￿lock￿module Output￿stage￿for￿the￿activation￿of￿the￿electrical￿vacuum￿pump Terminating￿resistor￿for￿PT-CAN Terminating￿resistor￿for￿PT-CAN￿2 EME￿control￿unit Electrical￿machine￿electronics￿EME￿(entirety) DC/DC￿converter Temperature￿sensor￿(negative￿temperature￿coefficient)￿at￿the￿DC/DC￿converter Bidirectional￿DC/AC￿converter Temperature￿sensor￿(negative￿temperature￿coefficient)￿at￿the￿DC/AC￿converter High-voltage￿connections At￿the￿electrical￿machine￿electronics￿there￿is￿a￿total￿of￿five￿high-voltage￿connections￿to￿establish contact￿between￿the￿lines￿and￿other￿high-voltage￿components:...
  • Page 65 I01￿High-voltage￿Components 4.￿Electrical￿Machine￿Electronics Connection￿to Number￿of￿contacts, Type￿of Contact￿protection components... voltage￿type, connection shielding Electrical￿machine -￿3-phase Busbars￿screwed￿to Mechanical￿through￿lid -￿AC￿voltage lines￿of￿the￿electrical at￿electrical￿machine -￿1￿shielding￿for￿all￿3 machine lines High-voltage￿battery -￿Two-pin Flat￿high-voltage -￿Cover￿over￿the -￿Direct￿current connector￿with contact￿blades voltage mechanical￿lock -￿High￿voltage￿interlock -￿1￿shielding￿per￿line loop Convenience -￿Two-pin Flat￿high-voltage -￿Cover￿over￿the charging￿electronics -￿Direct￿current connector￿with contact￿blades voltage mechanical￿lock...
  • Page 66 I01￿High-voltage￿Components 4.￿Electrical￿Machine￿Electronics High-voltage￿connections￿of￿the￿electrical￿machine￿electronics Index Explanation Convenience￿charging￿electronics Electrical￿machine High-voltage￿battery Range￿Extender￿Electrical￿Machine￿Electronics￿(REME) Range￿extender￿electrical￿machine 12 V￿battery Electric￿heating Electrical￿machine￿electronics￿(entirety)
  • Page 67 I01￿High-voltage￿Components 4.￿Electrical￿Machine￿Electronics Index Explanation Bidirectional￿DC/AC￿converter￿in￿the￿electrical￿machine￿electronics Overcurrent￿fuse￿in￿the￿supply￿line￿for￿the￿convenience￿charging￿electronics Overcurrent￿fuse￿in￿the￿supply￿line￿for￿the￿electric￿heating Overcurrent￿fuse￿in￿the￿supply￿line￿for￿the￿EKK DC/DC￿converter￿in￿the￿EME 4.1.4.￿Structure￿and￿functions The￿electrical￿machine￿electronics￿is￿made￿up￿internally￿of￿four￿subcomponents:￿the￿bidirectional￿DC/ AC￿converter,￿the￿unidirectional￿AC/DC￿converter,￿the￿DC/DC￿converter￿and￿the￿EME￿control￿unit.￿The link￿capacitors￿are￿also￿an￿element￿of￿the￿power￿electronics￿switching￿in￿order￿to￿smooth￿the￿voltage and￿filter￿high-frequency￿parts. It￿performs￿the￿following￿functions￿with￿help￿of￿the￿subcomponents￿mentioned: • Control￿of￿the￿internal￿subcomponents￿by￿the￿EME￿control￿unit • Supply￿of￿the￿12 V￿electrical￿system￿via￿the￿DC/DC￿converter • Control￿of￿the￿electrical￿machine￿(engine￿speed,￿torque)￿using￿DC/AC￿converter • High-voltage￿power￿management • Contacting￿of￿the￿electric￿motor￿via￿busbars • Contact￿of￿the￿high-voltage￿battery • Charging￿the￿high-voltage￿battery￿when￿stationary • Contact￿of￿the￿convenience￿charging￿electronics • Contact￿of￿the￿EKK • Contact￿of￿the￿electric￿heating • Contact￿of￿the￿Range￿Extender￿Electrical￿Machine￿Electronics • Communication￿with￿other￿control￿units,￿in￿particular￿the￿EDME •...
  • Page 68 I01￿High-voltage￿Components 4.￿Electrical￿Machine￿Electronics • Standby￿(also￿in￿the￿event￿of￿a￿component￿fault￿or￿short￿circuit,￿power￿electronics￿off) • Buck￿mode￿(Energy￿flow￿to￿the￿low-voltage￿side.￿Converter￿controls￿voltage￿on￿low-voltage side) • Discharging￿the￿high-voltage￿link￿capacitor￿(interlock￿fault,￿accident,￿request￿from￿master). The￿DC/DC￿converter￿is￿in￿"Standby"￿mode￿when￿the￿electrical￿machine￿electronics￿is￿not￿in operation.￿This￿is￿the￿case￿when￿the￿EME￿control￿unit￿is￿not￿supplied￿with￿voltage￿due,￿for￿example, to￿a￿terminal￿status.￿But￿also￿if￿there￿is￿a￿fault￿the￿EME￿control￿unit￿prompts￿the￿DC/DC￿converter￿to assume￿"Standby"￿mode.￿In￿this￿operating￿mode￿there￿is￿no￿energy￿transfer￿between￿the￿two￿vehicle electrical￿systems￿and￿they￿remain￿galvanically￿separated. Buck￿mode￿is￿the￿normal￿operating￿mode￿when￿the￿high-voltage￿system￿is￿active.￿The￿DC/DC converter￿transfers￿electrical￿energy￿from￿the￿high-voltage￿electrical￿system￿to￿the￿12 V￿vehicle electrical￿system￿and￿assumes￿the￿function￿of￿the￿alternator￿in￿a￿conventional￿vehicle.￿The￿DC/DC converter￿must￿reduce￿the￿varying￿voltage￿from￿the￿high-voltage￿electrical￿system￿to￿the￿voltage￿in￿the low-voltage￿vehicle￿electrical￿system.￿The￿voltage￿in￿the￿high-voltage￿electrical￿system￿is￿dependent, for￿example,￿on￿the￿state￿of￿charge￿of￿the￿high-voltage￿battery￿(about￿260 V￿to￿about￿390 V).￿The voltage￿in￿the￿low-voltage￿vehicle￿electrical￿system￿controls￿the￿DC/DC￿converter￿so￿that￿the￿12 V battery￿is￿optimally￿charged￿and￿sets￿a￿voltage￿of￿about￿14 V￿depending￿on￿the￿state￿of￿charge￿and￿the temperature￿of￿the￿battery.￿The￿EME￿control￿unit￿communicates￿with￿the￿EDME￿control￿unit,￿in￿which the￿12 V￿power￿management￿functions￿are￿performed.￿The￿result￿is￿the￿setpoint￿value￿specification￿for the￿voltage,￿which￿the￿DC/DC￿converter￿should￿adjust￿in￿the￿low-voltage￿vehicle￿electrical￿system.￿The continuous￿output￿power￿of￿the￿DC/DC￿converter￿is￿2500 W.
  • Page 69 I01￿High-voltage￿Components 4.￿Electrical￿Machine￿Electronics Operating￿principle￿of￿the￿DC/DC￿converter Index Explanation Voltage￿of￿the￿high-voltage￿electrical￿system,￿about￿250 V￿to￿about￿410 V Down￿conversion DC/DC￿converter￿in￿the￿EME Voltage￿of￿the￿low-voltage￿vehicle￿electrical￿system,￿about￿14 V The￿technology￿of￿the￿DC/DC￿converter￿in￿the￿I01￿would￿also￿enable￿the￿operating￿mode￿"Boost mode",￿such￿as￿the￿DC/DC￿converter￿in￿the￿F04.￿However,￿this￿operating￿mode￿is￿not￿used￿in￿the￿I01. Charging￿of￿the￿high-voltage￿battery￿of￿the￿I01￿is￿not￿possible￿using￿energy￿from￿the￿12 V￿vehicle electrical￿system. The￿last￿operating￿mode￿of￿the￿DC/DC￿converter￿is￿assumed￿during￿(regular￿or￿quick)￿shutdown￿of￿the high-voltage￿system.￿For￿the￿shutdown￿of￿the￿high-voltage￿system￿the￿system￿must￿be￿discharged to￿a￿safe￿voltage￿less￿than￿60 V￿within￿a￿specified￿time.￿The￿DC/DC￿converter￿has￿a￿discharge￿circuit for￿the￿link￿capacitors.￿First￿of￿all,￿these￿try￿to￿transmit￿the￿energy￿stored￿in￿the￿link￿capacitors￿to the￿low-voltage￿vehicle￿electrical￿system.￿If￿this￿does￿not￿lead￿to￿a￿sufficiently￿quick￿reduction￿of￿the voltage,￿the￿discharging￿is￿effected￿via￿an￿active￿resistor.￿This￿way￿the￿high-voltage￿electrical￿system is￿discharged￿in￿less￿than￿5￿seconds.￿For￿safety￿reasons￿there￿is￿also￿a￿so-called￿passive￿discharge...
  • Page 70 I01￿High-voltage￿Components 4.￿Electrical￿Machine￿Electronics resistor￿(switched￿in￿parallel).￿This￿enables￿a￿reliable￿discharge￿of￿the￿high-voltage￿electrical￿system￿if the￿first￿two￿measures￿do￿not￿work￿for￿discharging￿due￿to￿a￿fault.￿The￿period￿up￿until￿the￿discharge￿to￿a voltage￿below￿60 V￿is￿longer￿and￿is￿maximum￿120 s. Discharge￿of￿the￿high-voltage￿link￿capacitor Index Explanation Electrical￿machine Connection￿to￿the￿12 V￿vehicle￿electrical￿system DC/DC￿converter￿in￿the￿EME Electrical￿machine￿electronics￿(entirety) High-voltage￿battery￿unit EME￿control￿unit Relay￿for￿short-circuit￿of￿the￿coils￿of￿the￿electrical￿machine Relay￿for￿active￿discharging￿of￿the￿capacitors Bidirectional￿DC/AC￿converter￿in￿the￿electrical￿machine￿electronics SME￿control￿unit Electromechanical￿switch￿contactor￿in￿the￿high-voltage￿battery￿units High-voltage￿battery Link￿capacitors Passive￿discharge￿resistor pass Active￿discharge￿resistor...
  • Page 71 I01￿High-voltage￿Components 4.￿Electrical￿Machine￿Electronics The￿temperature￿of￿the￿DC/DC￿converter￿is￿measured￿using￿a￿temperature￿sensor￿and￿monitored by￿the￿EME￿control￿unit.￿If￿the￿temperature￿exceeds￿the￿permissible￿range￿despite￿cooling￿using￿the coolant,￿the￿EME￿control￿unit￿reduces￿the￿power￿of￿the￿DC/DC￿converter￿to￿protect￿the￿components. Power￿electronics￿for￿activation￿of￿the￿electrical￿machine The￿power￿electronics￿for￿the￿activation￿of￿the￿electrical￿machine￿are￿mainly￿made￿up￿of￿the bidirectional￿DC/AC￿converter.￿It￿is￿a￿pulse￿converter￿with￿a￿two-pin￿DC￿voltage￿connection￿and￿a￿3- phase￿AC￿voltage￿connection.￿This￿DC/AC￿converter￿can￿work￿as￿an￿inverter￿and￿conduct￿electrical energy￿from￿the￿high-voltage￿battery￿to￿the￿electrical￿machine￿when￿it￿should￿work￿as￿an￿engine. However,￿it￿can￿also￿work￿as￿a￿rectifier￿and￿transfers￿electrical￿energy￿from￿the￿electrical￿machine￿to the￿high-voltage￿battery.￿This￿operating￿mode￿occurs￿during￿brake￿energy￿regeneration￿in￿which￿the electrical￿machine￿works￿as￿an￿alternator￿and￿"generates"￿electrical￿energy. Operating￿modes￿of￿the￿bidirectional￿DC/AC￿converter...
  • Page 72 I01￿High-voltage￿Components 4.￿Electrical￿Machine￿Electronics Index Explanation Schematic￿illustration Schematic￿diagram￿with￿components High-voltage￿battery Operating￿mode￿as￿inverter,￿electrical￿machine￿works￿as￿an￿engine Operating￿mode￿as￿rectifier,￿electrical￿machine￿works￿as￿an￿alternator DC/AC￿converter Current￿sensors Electrical￿machine The￿operating￿mode￿of￿the￿DC/AC￿converter￿is￿defined￿by￿the￿EME￿control￿unit.￿The￿EME￿control unit￿also￿receives￿the￿setpoint￿values￿(essential￿input￿variables)￿from￿the￿EDME￿control￿unit￿for￿which torque￿(amount￿and￿sign)￿the￿electrical￿machine￿should￿supply.￿From￿this￿setpoint￿value￿and￿the current￿operating￿condition￿of￿the￿electrical￿machine￿(engine￿speed￿and￿torque)￿the￿EME￿control unit￿determines￿the￿operating￿mode￿of￿the￿DC/AC￿converter,￿as￿well￿as￿the￿amplitude￿and￿frequency of￿the￿phase￿voltages￿for￿the￿electrical￿machine.￿According￿to￿these￿specifications,￿the￿power semiconductors￿of￿the￿DC/AC￿converter￿are￿activated￿in￿sync. In￿addition￿to￿the￿DC/AC￿converter,￿the￿power￿electronics￿also￿contains￿current￿sensors￿in￿all￿three phases￿on￿the￿AC￿voltage￿side￿of￿the￿DC/AC￿converter.￿Using￿the￿signals￿from￿the￿current￿sensor,￿the EME￿control￿unit￿monitors￿the￿electrical￿power￿which￿is￿used￿in￿the￿power￿electronics￿and￿electrical machine￿and￿what￿torque￿the￿electrical￿machine￿generates.￿The￿control￿loop￿of￿the￿electrical￿machine electronics￿is￿closed￿by￿the￿signals￿of￿the￿current￿sensors￿and￿the￿rotor￿position￿sensor￿in￿the￿electrical machine. The￿performance￿data￿of￿the￿electrical￿machine￿electronics￿and￿the￿electrical￿machine￿are￿coordinated in￿development.￿The￿electrical￿machine￿electronics￿must￿be￿able￿to￿provide￿continuous￿electrical power￿of￿75 kW￿and￿supply￿a￿maximum￿power￿of￿125 kW￿for￿a￿short￿time.￿In￿order￿to￿avoid￿overloading the￿power￿electronics,￿there￿is￿also￿another￿temperature￿sensor￿at￿the￿DC/AC￿converter.￿If￿an￿excessive temperature￿of￿the￿power￿semiconductor￿is￿identified￿using￿this￿signal,￿the￿EME￿control￿unit￿reduces the￿power￿delivered￿to￿the￿electrical￿machine￿in￿order￿to￿protect￿the￿power￿electronics.￿The￿customer is￿informed￿via￿a￿Check￿Control￿message￿in￿the￿case￿of￿a￿noticeable￿power￿reduction.￿The￿customer receives￿the￿same￿error￿response￿(power￿reduction)￿and￿the￿same￿Check￿Control￿message￿if￿the temperature￿of￿the￿electrical￿machine￿exceeds￿the￿permissible￿range. Check￿Control￿symbol￿for￿power￿reduction￿due￿to￿high￿temperature￿of￿electric￿motor￿components...
  • Page 73 I01￿High-voltage￿Components 4.￿Electrical￿Machine￿Electronics High-voltage￿power￿management The￿power￿management￿for￿the￿high-voltage￿electrical￿system￿includes￿two￿subfunctions:￿one￿for driving￿and￿one￿for￿charging￿mode.￿In￿driving￿mode￿the￿energy￿flows￿from￿the￿high-voltage￿battery to￿the￿high-voltage￿consumers￿are￿coordinated.￿The￿following￿steps￿are￿performed￿by￿the￿EME￿and repeated￿constantly: Query￿of￿the￿power￿available￿from￿the￿high-voltage￿battery￿(signal￿source:￿SME) Query￿of￿the￿requested￿power￿from￿the￿electric￿motor￿(signal￿source:￿EDME) Query￿of￿the￿requested￿power￿for￿climate￿control￿(electric￿heating,￿EKK,￿IHKA) Decision￿on￿the￿distribution￿of￿the￿electrical￿power￿and￿communication￿to￿the￿control￿units￿of￿the consumers. For￿charging￿mode￿the￿task￿of￿the￿high-voltage￿power￿management￿is￿different:￿It￿controls￿the￿energy flow￿from￿outside￿the￿vehicle￿via￿the￿EME￿and/or￿the￿convenience￿charging￿electronics￿KLE￿to￿the high-voltage￿battery￿and￿if￿required￿to￿the￿electric￿heating￿or￿to￿the￿EKK.￿The￿procedure￿constantly repeated￿in￿the￿EME￿consists￿of￿the￿following￿individual￿steps: Query￿of￿the￿available￿power￿from￿outside￿(signal￿source:￿LIM) Query￿of￿the￿power￿which￿the￿high-voltage￿battery￿can￿use￿(SME) Query￿of￿the￿power￿which￿is￿required￿for￿the￿climate￿control￿(IHKA) Requesting￿the￿necessary￿power￿from￿the￿(EME/KLE) Communication￿of￿the￿available￿partial￿powers￿to￿the￿receiver￿of￿the￿high-voltage￿battery￿(SME control￿unit)￿and￿heating￿and￿air-conditioning￿system￿(IHKA￿control￿unit). The￿externally￿available￿power￿cannot￿be￿at￿a￿high￿level;￿it￿is￿restricted￿by￿the￿power￿network￿and￿the EME/KLE.￿Therefore,￿the￿available￿power￿must￿be￿queried￿first￿before￿it￿can￿be￿distributed.￿The￿high- voltage￿battery￿cannot￿absorb￿much￿power,￿for￿example￿due￿to￿its￿state￿of￿charge,￿which￿is￿why￿this value￿is￿also￿queried￿first.￿Depending￿on￿the￿temperature￿of￿the￿high-voltage￿battery￿or￿on￿a￿heating￿or an￿air-conditioning￿request￿by￿the￿driver,￿the￿heating￿and￿air-conditioning￿system￿also￿needs￿electrical power,￿whose￿amount￿is￿the￿third￿important￿input￿signal￿for￿the￿high-voltage￿power￿management￿in￿the charging￿mode.￿Using￿this￿information￿the￿externally￿requested￿power￿is￿controlled￿and￿distributed￿to the￿consumers. Voltage￿supply￿for￿other￿high-voltage￿consumers The￿electrical￿machine￿electronics￿supplies￿voltage￿not￿only￿to￿the￿electrical￿machine.￿The￿high- voltage￿consumers￿"EKK"￿and￿"electric￿heating"￿also￿receive￿their￿high-voltage￿supply￿from￿the electrical￿machine￿electronics. However,￿there￿is￿no￿complex￿control￿function￿in￿the￿electrical￿machine￿electronics.￿Instead,￿the electrical￿machine￿electronics￿serves￿as￿a￿simple￿distributor￿of￿the￿high-voltage￿direct￿current￿voltage, which￿is￿provided￿by￿the￿high-voltage￿battery.￿In￿order￿to￿protect￿the￿high-voltage￿cable￿for￿the￿two high-voltage￿consumers￿against￿overloading￿in￿the￿event￿of￿a￿short￿circuit,￿the￿electrical￿machine electronics￿contains￿a￿high-voltage￿fuse￿for￿the￿EKK￿and￿a￿high-voltage￿fuse￿for￿the￿electric￿heating. Both￿high-voltage￿fuses￿have￿a￿nominal￿current￿level￿of￿40 A.
  • Page 74 I01￿High-voltage￿Components 4.￿Electrical￿Machine￿Electronics Activation￿of￿the￿parking￿lock The￿electromechanical￿parking￿lock￿of￿the￿I01￿including￿its￿operating￿principle￿and￿activation￿is described￿in￿detail￿in￿the￿section￿"Electric￿motor".￿Therefore,￿only￿the￿key￿aspects￿of￿the￿activation￿are mentioned￿here.￿The￿electrical￿machine￿electronics￿contains￿the￿following￿components￿required￿for the￿parking￿lock: • Output￿stage￿for￿the￿activation￿of￿the￿electric￿motor￿in￿the￿parking￿lock￿module • Current￿sensor￿for￿the￿monitoring￿of￿the￿electric￿motor • Evaluation￿electronics￿for￿sensor￿signals. The￿output￿stage￿for￿the￿activation￿of￿the￿electric￿motor￿only￿comprises￿one￿bridge￿circuit￿of￿power transistors.￿It￿is￿able￿to￿supply￿the￿electric￿motor￿with￿the￿necessary￿current￿of￿about￿3 A￿to￿4 A￿during the￿operation,￿as￿well￿as￿supply￿the￿high￿starting￿current￿for￿the￿electric￿motor￿of￿up￿to￿10 A.￿The bridge￿circuit￿is￿designed￿so￿that￿it￿will￿not￿suffer￿damage￿in￿the￿event￿of￿a￿short￿circuit￿at￿the￿output (current￿limitation).￿In￿order￿to￿protect￿the￿electric￿motor￿and￿the￿line￿against￿overloading,￿the￿EME control￿unit￿monitors￿the￿current￿level￿of￿the￿output￿stage￿and￿also￿restricts￿it￿if￿required.￿For￿this purpose,￿the￿output￿stage￿contains￿a￿current￿sensor,￿whose￿signal￿is￿evaluated￿by￿the￿EME￿control unit. The￿two￿redundant￿position￿sensors￿in￿the￿parking￿lock￿module￿are￿hall-effect￿sensors.￿The￿EME control￿unit￿provides￿the￿voltage￿supply￿for￿the￿sensors.￿It￿also￿reads￿in￿the￿signals￿from￿the￿position sensors,￿validates￿their￿plausibility￿and￿evaluates￿them.￿Using￿the￿signals￿of￿the￿position￿sensors the￿EME￿control￿unit￿determines￿the￿status￿of￿the￿parking￿lock￿(engaged/disengaged)￿and￿makes the￿status￿available￿as￿a￿bus￿signal.￿This￿is￿read￿in￿for￿example￿by￿the￿EDME￿control￿unit￿where￿the transmission￿functions,￿e.g.￿engaging￿the￿drive￿positions,￿are￿calculated. The￿familiar￿graphic￿from￿the￿chapter￿"Electric￿motor￿>￿Transmission >￿Parking￿lock"￿shows￿the electrical￿interface￿between￿the￿parking￿lock￿module￿and￿the￿electrical￿machine￿electronics.
  • Page 75 I01￿High-voltage￿Components 4.￿Electrical￿Machine￿Electronics Electrical￿interfaces￿between￿parking￿lock￿module￿and￿electrical￿machine￿electronics Index Explanation Electrical￿machine￿electronics￿(EME) PT-CAN2￿connection Voltage￿supply EME￿control￿unit Output￿stage￿for￿parking￿lock￿module Electric￿motor Worm￿gear First￿position￿sensor￿according￿to￿the￿hall-effect￿principle Second￿position￿sensor￿working￿in￿the￿opposite￿direction￿to￿the￿first,￿also according￿to￿the￿hall-effect￿principle Parking￿lock￿module...
  • Page 76 I01￿High-voltage￿Components 4.￿Electrical￿Machine￿Electronics Activation￿of￿the￿electrical￿vacuum￿pump The￿electrical￿machine￿electronics￿provides￿the￿hardware￿for￿the￿evaluation￿of￿the￿signals￿of￿the brake￿vacuum￿sensor￿and￿for￿the￿activation￿of￿the￿electrical￿vacuum￿pump.￿The￿function￿logic￿for the￿activation￿of￿the￿electrical￿vacuum￿pump￿is￿located￿not￿in￿the￿EME￿control￿unit,￿but￿in￿the￿DSC control￿unit.￿The￿EME￿and￿DSC￿control￿unit￿exchange￿sensor￿signals￿and￿the￿switch-on￿request￿for￿the electrical￿vacuum￿pump￿via￿bus￿signals￿at￿the￿PT-CAN￿and￿PT-CAN2. The￿brake￿vacuum￿sensor￿is￿mainly￿known￿from￿conventionally￿driven￿vehicles￿with￿automatic￿engine start-stop￿function.￿Similar￿to￿those￿vehicles,￿it￿is￿also￿installed￿in￿the￿I01￿at￿the￿housing￿of￿the￿brake servo. The￿sensor￿is￿supplied￿with￿voltage￿from￿the￿electrical￿machine￿electronics￿and￿returns￿a￿voltage signal￿depending￿on￿the￿vacuum￿in￿the￿brake￿servo.￿This￿analog￿sensor￿signal￿is￿converted￿by￿the￿EME control￿unit￿to￿the￿actual￿brake￿vacuum￿and￿sent￿as￿a￿bus￿signal￿to￿the￿DSC￿control￿unit. The￿DSC￿control￿unit￿evaluates￿the￿brake￿vacuum￿signal,￿includes￿dynamic￿handling￿characteristics (e.g.￿the￿driving￿speed)￿and￿the￿accelerator￿pedal￿actuation￿and￿determines￿whether￿the￿electrical vacuum￿pump￿should￿be￿switched￿on.￿The￿function￿logic￿in￿the￿DSC￿control￿unit￿also￿takes￿into consideration￿a￿hysteresis￿so￿that￿the￿electrical￿vacuum￿pump￿is￿not￿constantly￿switched￿on￿and￿off. Instead,￿it￿remains￿switched￿on￿until￿a￿requested￿minimum￿level￿of￿the￿brake￿vacuum￿is￿reached.￿The DSC￿control￿unit￿sends￿back￿the￿switch-on￿request￿from￿the￿electrical￿vacuum￿pump￿as￿a￿bus￿signal￿to the￿EME￿control￿unit. The￿electrical￿machine￿electronics￿contains￿an￿output￿stage￿(semiconductor￿relay),￿with￿whose￿help the￿voltage￿supply￿of￿the￿electrical￿vacuum￿pump￿can￿be￿switched￿on￿and￿off.￿Upon￿request￿the output￿voltage￿of￿the￿DC/DC￿converter￿can￿be￿shifted￿through￿directly￿to￿the￿electrical￿vacuum￿pump. Switch-on￿currents￿of￿up￿to￿30 A￿can￿occur￿in￿the￿process.￿The￿current￿level￿is￿restricted￿electronically to￿protect￿the￿output￿stage￿and￿the￿line.￿There￿is￿no￿control￿of￿the￿power￿or￿engine￿speed￿for￿the electrical￿vacuum￿pump￿–￿it￿is￿simply￿switched￿on￿and￿off. A￿malfunction￿of￿the￿electrical￿vacuum￿pump￿is￿identified￿using￿a￿brake￿vacuum￿sensor￿by￿means￿of the￿no￿longer￿available￿vacuum.￿At￿least￿the￿legally￿prescribed￿deceleration￿(increased￿brake￿pedal force)￿is￿available.￿The￿DSC￿will￿realize￿a￿type￿of￿hydraulic￿brake-servo￿assistance,￿i.e.￿depending￿on the￿driver￿pressure￿a￿hydraulically￿reinforced￿circuit￿pressure￿is￿generated. Advantage:￿Lower￿brake￿pedal￿force￿also￿in￿this￿fault￿scenario Disadvantage:￿Modified￿brake￿pedal￿response.

  • Page 77: Overview

    I01￿High-voltage￿Components 5.￿High-voltage￿Battery￿Unit The￿high-voltage￿battery￿unit￿is￿the￿energy￿storage￿device￿for￿the￿electric￿motor￿of￿the￿I01.￿It￿is￿the equivalent￿to￿the￿fuel￿tank￿of￿a￿conventional￿vehicle￿with￿a￿combustion￿engine.￿Also￿in￿BMW￿active hybrid￿vehicles￿there￿is￿already￿a￿high-voltage￿battery￿unit,￿which￿supplies￿the￿electric￿motor￿with energy.￿In￿the￿BMW￿active￿hybrid￿the￿high-voltage￿battery￿is￿charged￿when￿the￿electrical￿machine￿is operated￿as￿an￿alternator.￿This￿happens￿during￿brake￿energy￿regeneration￿or￿by￿a￿load￿point￿increase of￿the￿combustion￿engine.￿In￿the￿I01￿the￿high-voltage￿battery￿can￿also￿be￿partially￿charged￿during brake￿energy￿regeneration.￿However,￿it￿is￿mainly￿charged￿using￿energy￿from￿an￿external￿power network.￿An￿optional￿range￿extender￿can￿also￿provide￿electrical￿energy￿using￿a￿gasoline￿engine￿and another￿electrical￿machine.￿However,￿this￿is￿primarily￿used￿for￿maintaining￿the￿state￿of￿charge￿when￿the high-voltage￿battery￿is￿already￿heavily￿discharged.￿The￿range￿of￿the￿I01￿can￿be￿increased. 5.1.￿Overview The￿high-voltage￿battery￿of￿a￿vehicle￿with￿an￿electric￿motor￿is￿the￿equivalent￿to￿the￿fuel￿tank￿in￿a￿vehicle with￿a￿combustion￿engine:￿It￿is￿the￿energy￿storage￿device￿for￿the￿electric￿motor.￿In￿order￿to￿achieve the￿desired￿range￿of￿the￿I01,￿the￿amount￿of￿energy￿to￿be￿stored￿is￿correspondingly￿high,￿which￿is why￿the￿volume￿and￿weight￿of￿the￿energy￿storage￿device￿are￿also￿high.￿Nevertheless,￿some￿vehicle characteristics￿were￿positively￿influenced￿by￿the￿installation￿of￿the￿high-voltage￿battery￿unit￿in￿the￿Drive module￿of￿the￿I01: • Thanks￿to￿the￿low￿installation￿location￿the￿center￿of￿gravity￿of￿the￿vehicle￿is￿lowered,￿which reduces￿the￿roll￿tendency￿in￿bends,￿in￿particular. • The￿passenger￿compartment￿is￿not￿restricted￿by￿the￿high-voltage￿battery￿unit. • The￿high-voltage￿battery￿unit￿is￿well￿accessible￿in￿Service,￿which￿reduces￿the￿repair￿costs. 5.1.1.￿Technical￿data The￿high-voltage￿battery￿unit￿of￿the￿I01￿is￿made￿up￿of￿the￿following￿fundamental￿components: • Cell￿modules￿with￿the￿actual￿battery￿cells • Cell￿supervision￿circuits • Heat￿exchanger￿with￿coolant￿ducts￿and￿heating • Control￿unit,￿battery￿management￿electronics￿(SME) • Wiring￿harnesses • Safety￿box •...
  • Page 78 I01￿High-voltage￿Components 5.￿High-voltage￿Battery￿Unit the￿anode￿material￿(high￿energy￿density,￿high￿cycle￿number).￿Graphite￿is￿normally￿used￿for￿the￿cathode. The￿lithium￿ions￿are￿deposited￿in￿the￿cathode￿during￿discharging.￿As￿a￿result￿of￿the￿materials￿used the￿total￿nominal￿voltage￿of￿the￿battery￿cells￿is￿3.75 V.￿The￿following￿table￿lists￿the￿most￿essential technical￿data￿of￿the￿high-voltage￿battery￿in￿the￿I01. Voltage 360 V￿(nominal￿voltage) 259 V￿–￿396 V￿(voltage￿range) Battery￿cells 96￿battery￿cells￿in￿series,￿each￿3.75 V￿and￿60 Ah Storable￿amount￿of￿energy 21.8 kWh￿(gross) 18.8 kWh￿(net,￿practical￿use) Maximum￿power￿(discharge) 147 kW￿(short-term),￿at￿least￿40 kW￿(continuous) Maximum￿power￿(charge) 20 kW￿(rapid￿charge￿to￿80%￿SoC),￿about￿3.6 kW￿(full￿charge to￿100%￿SoC￿in￿8￿hours) Total￿weight 233 kg Dimensions 1584 mm￿x￿892 mm￿x￿171 mm￿(volume￿213 l,￿incl.￿housing) Cooling￿system by￿refrigerant￿R134a Heating Electric,￿maximum￿1000 W￿(optional￿equipment)
  • Page 79 I01￿High-voltage￿Components 5.￿High-voltage￿Battery￿Unit 5.1.2.￿Installation￿location Installation￿location￿of￿the￿high-voltage￿battery￿unit Index Explanation Vent￿hole High-voltage￿connection High-voltage￿battery￿unit Frame￿(Drive￿module) Refrigerant￿lines Label Low-voltage￿connection Combined￿expansion￿and￿shutoff￿valve...
  • Page 80 I01￿High-voltage￿Components 5.￿High-voltage￿Battery￿Unit The￿high-voltage￿battery￿unit￿also￿has￿a￿low-voltage￿connection,￿as￿well￿as￿the￿high-voltage connection.￿The￿integrated￿control￿units￿are￿supplied￿with￿voltage,￿data￿bus,￿sensor￿and￿monitoring signals￿via￿this￿interface.￿It￿is￿incorporated￿in￿the￿refrigerant￿circuit￿for￿cooling￿the￿high-voltage￿battery. The￿label￿on￿the￿high-voltage￿battery￿unit￿informs￿people￿working￿with￿these￿components￿about￿the technology￿used￿and￿possible￿electrical￿and￿chemical￿dangers. The￿electrical￿voltage￿of￿the￿high-voltage￿battery￿unit￿is￿well￿over￿60 V.￿This￿is￿why￿before￿any￿work￿at the￿high-voltage￿battery￿unit￿the￿electrical￿safety￿rules￿must￿be￿observed: Disconnect￿the￿system￿from￿the￿power￿supply Provide￿a￿safeguard￿to￿prevent￿unintentional￿restarting Establish￿that￿the￿system￿is￿isolated￿from￿the￿power￿supply. The￿electrical￿lines￿(high-voltage￿and￿low-voltage),￿as￿well￿as￿the￿refrigerant￿lines,￿can￿be￿disconnected without￿having￿to￿remove￿the￿high-voltage￿battery￿unit. The￿high-voltage￿battery￿unit￿is￿located￿outside￿the￿passenger￿compartment.￿If￿the￿battery￿cells generate￿excess￿pressure￿due￿to￿a￿massive￿fault,￿the￿arising￿gases￿cannot￿be￿transported￿outwards￿via a￿vent￿pipe.￿A￿vent￿hole￿at￿the￿housing￿of￿the￿high-voltage￿battery￿unit￿is￿sufficient￿to￿allow￿pressure compensation. The￿high-voltage￿safety￿connector￿(Service￿Disconnect)￿is￿not￿an￿element￿of￿the￿high-voltage￿battery unit,￿just￿like￿in￿current￿BMW￿active￿hybrid￿vehicles.￿It￿is￿located￿below￿the￿engine￿compartment￿lid.
  • Page 81 I01￿High-voltage￿Components 5.￿High-voltage￿Battery￿Unit 5.1.3.￿System￿wiring￿diagram System￿wiring￿diagram￿of￿high-voltage￿battery￿unit...
  • Page 82 I01￿High-voltage￿Components 5.￿High-voltage￿Battery￿Unit Index Explanation Electric￿heating￿(EH) High-voltage￿battery￿unit Battery￿management￿electronics￿(SME) Electrical￿machine Range￿Extender￿Electrical￿Machine￿Electronics￿(REME) Convenience￿charging￿electronics￿(KLE) Charging￿socket￿at￿the￿vehicle Electrical￿machine￿electronics￿(EME) 5.2.￿External￿features 5.2.1.￿Mechanical￿interfaces The￿housing￿of￿the￿high-voltage￿battery￿unit￿is￿connected￿mechanically￿to￿the￿Drive￿module￿of￿the I01￿using￿a￿total￿of￿26￿screws.￿This￿way￿the￿weight￿and￿the￿acceleration￿forces￿occurring￿during￿the journey￿are￿supported￿at￿the￿body.￿The￿mounting￿bolts￿are￿accessible￿directly￿from￿below,￿without having￿to￿first￿disassemble￿the￿underbody￿paneling￿.￿For￿the￿removal￿of￿the￿high-voltage￿battery unit￿firstly￿all￿preliminary￿work￿specified￿in￿the￿repair￿instructions￿(diagnosis,￿disconnecting￿from￿the power￿supply,￿etc.)￿has￿to￿be￿performed.￿Before￿the￿mounting￿bolts￿are￿slackened￿the￿special￿tool￿for lowering￿(mobile￿table￿lift￿MHT 1200)￿must￿be￿positioned￿below￿the￿high-voltage￿battery￿unit. The￿electrical￿connection￿is￿established￿between￿the￿housing￿and￿Drive￿module￿by￿another￿potential compensation￿screw. The￿low￿resistance￿connection￿between￿the￿housing￿of￿the￿high-voltage￿battery￿unit￿and￿ground￿(= Drive￿module)￿is￿a￿crucial￿prerequisite￿for￿the￿fault-free￿function￿of￿the￿automatic￿isolation￿monitoring. This￿is￿why￿it￿is￿important￿to￿ensure￿the￿correct￿tightening￿torque￿is￿applied￿for￿this￿potential compensation￿screw. It￿is￿also￿important￿to￿ensure￿that￿neither￿the￿housing￿of￿the￿high-voltage￿battery￿unit￿nor￿the￿Drive module￿at￿the￿respective￿bore￿holes￿is￿painted,￿corroded￿or￿dirty.￿The￿bare￿metal￿must￿be￿exposed￿if necessary￿before￿the￿potential￿compensation￿screw￿is￿mounted.
  • Page 83 I01￿High-voltage￿Components 5.￿High-voltage￿Battery￿Unit Mounting￿of￿the￿high-voltage￿battery￿unit￿at￿the￿Drive￿module Index Explanation Frame￿(Drive￿module) High-voltage￿battery￿unit Mounting￿bolts Potential￿compensation￿screw If￿the￿potential￿compensation￿screw￿can￿no￿longer￿be￿tightened￿to￿the￿required￿torque￿after￿a￿number of￿removal￿and￿installation￿procedures,￿a￿new￿bore￿hole￿for￿the￿potential￿compensation￿screw￿must￿be created.￿The￿rough￿position￿of￿the￿bore￿hole￿is￿shown￿in￿the￿following￿graphic￿-￿the￿exact￿position￿can be￿found￿in￿the￿repair￿instructions.
  • Page 84 I01￿High-voltage￿Components 5.￿High-voltage￿Battery￿Unit Bore￿hole￿for￿potential￿compensation￿screw Index Explanation Frame￿(Drive￿module) New￿bore￿hole￿for￿potential￿compensation￿screw￿in￿the￿event￿of￿a￿repair Housing￿of￿high-voltage￿battery￿unit Original￿bore￿hole￿for￿potential￿compensation￿screw￿ex￿works Similar￿to￿vehicles￿with￿a￿frame￿design,￿the￿Life-Drive￿concept￿is￿made￿up￿of￿two￿independent￿modules separated￿horizontally.￿The￿"Life"￿module￿consists￿mainly￿of￿a￿high-strength￿and￿very￿lightweight passenger￿cell￿made￿of￿carbon￿reinforced￿plastic.￿The￿"Drive"￿module,￿the￿chassis,￿forms￿the stable￿base,￿in￿which￿the￿high-voltage￿battery￿unit￿is￿integrated.￿Crash-active￿structures￿made￿from aluminium￿at￿the￿front￿end￿and￿rear￿end￿of￿the￿Drive￿module￿ensure￿additional￿safety￿in￿the￿event￿of a￿head-on￿and￿rear-end￿collision.￿The￿high-voltage￿battery￿unit￿is￿located￿in￿the￿vehicle￿underbody for￿the￿best￿possible￿protection￿as￿a￿vehicle￿suffers￿the￿least￿amount￿of￿deformation￿in￿this￿area￿in the￿event￿of￿a￿crash.￿In￿the￿event￿of￿a￿side￿collision￿the￿high-voltage￿battery￿unit￿also￿benefits￿from the￿crash￿properties￿of￿the￿Life￿module,￿as￿the￿entire￿energy￿is￿collected￿here￿and￿does￿not￿advance as￿far￿as￿the￿energy￿storage￿device.￿Overall,￿the￿high-strength￿carbon￿passenger￿compartment￿in conjunction￿with￿the￿intelligent￿force￿distribution￿in￿the￿LifeDrive￿module￿creates￿the￿prerequisite￿for optimal￿occupant￿safety. Three￿labels￿are￿attached￿at￿the￿high-voltage￿battery￿unit￿of￿the￿I01:￿one￿type￿plate￿and￿two￿warning stickers.￿The￿type￿plate￿provides￿logistical￿information￿(e.g.￿part￿number)￿and￿the￿key￿technical￿data (e.g.￿nominal￿voltage).￿The￿two￿warning￿stickers￿draw￿attention￿to￿the￿lithium-ion￿technology￿and￿the high￿electrical￿voltage￿used￿in￿the￿high-voltage￿battery￿unit￿and￿alert￿people￿to￿associated￿possible dangers.￿The￿following￿graphic￿shows￿where￿the￿three￿labels￿are￿located￿at￿the￿high-voltage￿battery unit.
  • Page 85 I01￿High-voltage￿Components 5.￿High-voltage￿Battery￿Unit Labels￿on￿the￿housing￿of￿the￿high-voltage￿battery￿unit Index Explanation Housing￿cover￿of￿high-voltage￿battery￿unit High-voltage￿component￿warning￿sticker Warning￿sticker Label￿with￿technical￿data 5.2.2.￿Electrical￿interfaces High-voltage￿connection There￿is￿a￿two-pin￿high-voltage￿connection￿at￿the￿high-voltage￿battery￿unit￿with￿which￿the￿high-voltage battery￿unit￿is￿connected￿to￿the￿high-voltage￿electrical￿system.
  • Page 86 I01￿High-voltage￿Components 5.￿High-voltage￿Battery￿Unit Connections￿of￿the￿high-voltage￿battery￿unit,￿left Index Explanation Vent￿hole High-voltage￿interlock￿loop￿connector/bridge Mechanical￿slide Separate￿contact￿for￿high-voltage￿cable Contact￿for￿shielding Contact￿protection A￿contact￿is￿available￿for￿shielding￿around￿each￿of￿the￿two￿electrical￿contacts￿for￿the￿high-voltage cables.￿The￿shielding￿of￿the￿high-voltage￿cable￿(shielding￿for￿each￿cable)￿is￿continued￿into￿the￿housing of￿the￿high-voltage￿battery￿unit￿and￿thus￿contributes￿to￿the￿electromagnetic￿compatibility￿(EMC). In￿addition,￿the￿high-voltage￿connection￿provides￿protection￿against￿contact￿with￿live￿parts.￿The actual￿contacts￿are￿coated￿in￿plastic￿so￿that￿nobody￿can￿touch￿them￿directly.￿Only￿when￿the￿cable￿is connected￿is￿the￿coating￿pushed￿away￿and￿the￿contact￿established.￿The￿plastic￿slide￿serves￿as￿the mechanical￿latch￿mechanism￿of￿the￿connector.￿In￿addition,￿it￿is￿also￿an￿element￿of￿a￿safety￿function:￿If the￿high-voltage￿cable￿is￿not￿connected,￿the￿slide￿conceals￿the￿connection￿for￿the￿bridge￿of￿the￿high- voltage￿interlock￿loop.￿Only￿when￿the￿high-voltage￿cable￿is￿properly￿connected￿and￿the￿connector is￿locked,￿is￿this￿connection￿accessible￿and￿the￿bridge￿can￿be￿inserted.￿This￿guarantees￿that￿only when￿a￿high-voltage￿cable￿is￿connected￿is￿the￿circuit￿of￿the￿high-voltage￿interlock￿loop￿also￿closed. This￿principle￿applies￿to￿all￿high-voltage￿connections￿in￿the￿I01,￿for￿instance￿connections￿at￿the￿high- voltage￿battery￿unit,￿at￿the￿electrical￿machine￿electronics,￿at￿the￿convenience￿charging￿electronics and￿at￿the￿range￿extender￿electrical￿machine￿electronics.￿The￿high-voltage￿system￿can￿only￿be￿active when￿all￿high-voltage￿cables￿are￿connected.￿This￿is￿additional￿protection￿against￿contact￿with￿contact surfaces,￿which￿otherwise￿may￿carry￿voltage.
  • Page 87 I01￿High-voltage￿Components 5.￿High-voltage￿Battery￿Unit High-voltage￿connection Index Explanation High-voltage￿connection￿with￿connected￿high-voltage￿cable High-voltage￿connection￿with￿disconnected￿high-voltage￿cable Bridge￿for￿high-voltage￿interlock￿loop￿(connected) Mechanical￿slide High-voltage￿connector￿of￿the￿high-voltage￿cable Bridge￿for￿high-voltage￿interlock￿loop￿(disconnected) High-voltage￿connection The￿high-voltage￿connection￿can￿be￿replaced￿as￿a￿separate￿component,￿just￿like￿all￿other￿components of￿the￿high-voltage￿battery￿unit. The￿diagnosis￿and￿repair￿of￿the￿high-voltage￿components￿is￿only￿allowed￿in￿a￿retail￿service center￿that￿has￿qualified￿and￿certified￿service￿technicians.￿These￿technicians￿must￿have completed￿the￿ST1403b￿I01￿High￿Voltage￿Battery￿and￿Maintenance￿instructor￿led￿course￿and successfully￿passed￿the￿hands￿on￿certification. Low-voltage￿connections There￿are￿two￿low-voltage￿connections￿at￿the￿high-voltage￿battery￿unit￿of￿the￿I01: Connection￿for￿lines￿to￿the￿SME￿control￿unit Connection￿for￿the￿activation￿of￿the￿combined￿expansion￿and￿shutoff￿valve The￿connection￿for￿the￿SME￿control￿unit￿has￿the￿following￿lines: • Voltage￿supply￿of￿the￿SME￿control￿unit￿with￿terminal￿30F￿and￿ground￿connection • Terminal￿30C￿for￿the￿voltage￿supply￿of￿the￿electromechanical￿switch￿contactors • Wake-up￿line￿from￿the￿BDC...
  • Page 88 I01￿High-voltage￿Components 5.￿High-voltage￿Battery￿Unit • Input￿and￿output￿of￿the￿line￿for￿the￿high-voltage￿interlock￿loop • Output￿(+12 V￿and￿ground)￿for￿the￿activation￿of￿the￿combined￿shutoff￿and￿expansion￿valve (without￿heat￿pump) • PT‐CAN2 • Two￿unused￿signals￿(only￿for￿development￿purposes). Connections￿of￿the￿high-voltage￿battery￿unit,￿right Index Explanation Connection￿for￿combined￿expansion￿and￿shutoff￿valve Connection￿for￿refrigerant￿intake￿pipe Combined￿expansion￿and￿shutoff￿valve Housing￿of￿high-voltage￿battery￿unit Low-voltage￿connection￿of￿the￿high-voltage￿battery￿unit Connection￿for￿refrigerant￿pressure￿line With￿the￿optional￿heat￿pump￿the￿actuating￿wires￿coming￿from￿the￿SME￿control￿unit￿for￿the￿combined expansion￿and￿shutoff￿valve￿initially￿lead￿into￿the￿wiring￿harness.￿From￿there￿they￿are￿guided￿directly to￿this￿valve.￿There￿are￿no￿other￿electrical￿vehicle￿components￿involved￿which￿may￿influence￿this activation￿signal.￿With￿the￿optional￿heat￿pump￿the￿activation￿of￿the￿combined￿expansion￿and￿shutoff valve￿is￿assumed￿by￿the￿heat￿pump￿control￿unit￿and￿not￿the￿SME￿control￿unit.￿The￿SME￿control￿unit only￿communicates￿the￿cooling￿requirement￿for￿the￿high-voltage￿battery￿which￿is￿performed￿via￿the IHKA￿and￿the￿heat￿pump￿control￿unit.
  • Page 89 I01￿High-voltage￿Components 5.￿High-voltage￿Battery￿Unit 5.2.3.￿Vent￿hole The￿vent￿hole￿has￿two￿tasks.￿The￿first￿task￿of￿the￿vent￿hole￿is￿to￿offset￿large￿pressure￿differences between￿the￿inside￿and￿outside￿of￿the￿high-voltage￿battery￿unit.￿Such￿pressure￿differences￿can￿only arise￿in￿the￿event￿of￿a￿damaged￿battery￿cell.￿For￿safety￿reasons￿the￿housing￿of￿the￿cell￿module￿with￿the damaged￿battery￿cell￿is￿opened￿to￿reduce￿the￿pressure.￿The￿gases￿are￿initially￿located￿in￿the￿housing of￿the￿high-voltage￿battery￿unit.￿From￿there￿they￿can￿be￿transported￿outwards￿via￿the￿vent￿hole. The￿second￿task￿of￿the￿vent￿hole￿is￿to￿transport￿outwards￿condensate￿arising￿in￿the￿inside￿of￿the￿high- voltage￿battery￿unit.￿Besides￿the￿technical￿components,￿there￿is￿also￿air￿inside￿the￿high-voltage￿battery unit.￿If￿the￿air￿or￿the￿housing￿is￿cooled￿by￿a￿lower￿ambient￿temperature￿or￿by￿a￿refrigerant￿through￿the activation￿of￿the￿air￿conditioning￿function,￿some￿of￿the￿water￿vapor￿from￿the￿air￿condenses.￿This￿means small￿amounts￿of￿liquid￿water￿can￿form￿in￿the￿inside￿of￿the￿high-voltage￿battery￿unit.￿This￿has￿no￿affect on￿the￿function.￿During￿the￿next￿heating￿of￿the￿air￿or￿the￿housing￿the￿water￿evaporates￿again￿and,￿at￿the same￿time,￿the￿pressure￿in￿the￿housing￿rises￿slightly.￿The￿vent￿hole￿permits￿pressure￿compensation￿by allowing￿the￿warm￿air￿to￿escape￿outwards.￿The￿water￿vapor￿in￿the￿air￿is￿also￿transported￿outwards￿and also￿the￿previously￿liquid￿condensate. To￿fulfil￿these￿tasks￿the￿vent￿hole￿has￿a￿permeable￿diaphragm￿for￿gases￿(and￿water￿vapor)￿and￿an impermeable￿diaphragm￿for￿fluids.￿There￿is￿a￿two-piece￿cover￿located￿above￿the￿diaphragm￿with￿which the￿diaphragm￿is￿protected￿against￿coarse￿dirt￿contamination. Vent￿hole Index Explanation Mounting￿bolts￿(x4) Vent￿hole The￿venting￿unit￿can￿be￿replaced￿in￿Service￿as￿an￿entire￿unit.￿A￿replacement￿makes￿sense￿if￿the venting￿unit￿is￿heavily￿contaminated￿or￿has￿suffered￿mechanical￿damage.

  • Page 90: Overview

    I01￿High-voltage￿Components 5.￿High-voltage￿Battery￿Unit If￿the￿housing￿of￿the￿high-voltage￿battery￿unit￿is￿also￿damaged,￿for￿example￿a￿crack,￿contact￿must￿be established￿with￿Technical￿Support￿to￿determine￿a￿suitable￿course￿of￿action. 5.2.4.￿Interface￿for￿the￿refrigerant￿circuit It￿is￿incorporated￿in￿the￿refrigerant￿circuit￿of￿the￿heating￿and￿air-conditioning￿system￿for￿cooling￿the high-voltage￿battery.￿In￿order￿to￿be￿able￿to￿perform￿condition-based￿cooling,￿there￿is￿an￿electrically activated￿combined￿expansion￿and￿shutoff￿valve￿at￿the￿high-voltage￿battery￿unit. There￿are￿two￿versions￿of￿this￿valve.￿Which￿version￿is￿installed￿in￿the￿I01￿depends￿on￿the￿equipment without/with￿heat￿pump￿(option 4T9).￿Without￿the￿optional￿heat￿pump￿the￿combined￿shutoff￿and expansion￿valve￿is￿hard-wired￿to￿the￿SME￿control￿unit￿and￿is￿activated￿directly￿by￿this￿control￿unit.￿The valve￿is￿closed￿currentless,￿i.e.￿no￿refrigerant￿flows￿into￿the￿high-voltage￿battery￿unit.￿The￿valve￿only knows￿two￿positions,￿"closed"￿and￿"open".￿The￿amount￿of￿flowing￿refrigerant￿is￿adjusted￿thermally. With￿the￿optional￿heat￿pump￿the￿combined￿expansion￿and￿shutoff￿valve￿is￿a￿constantly￿activated￿valve. The￿precise￿operating￿principle￿is￿described￿in￿the￿product￿information￿bulletin￿"I01￿Heating￿and￿Air- Conditioning￿System". The￿exact￿installation￿location￿of￿this￿valve￿is￿shown￿in￿a￿graphic￿in￿the￿chapter￿"Low-voltage connections".￿The￿operating￿principle￿of￿the￿cooling￿system￿is￿described￿in￿the￿next￿chapter. 5.3.￿Heating￿and￿cooling￿system 5.3.1.￿Overview To￿maximizethe￿service￿life￿of￿the￿high-voltage￿battery￿and￿obtain￿the￿greatest￿possible￿power,￿it￿is operated￿in￿a￿defined￿temperature￿range.￿The￿high-voltage￿battery￿unit￿is￿essentially￿operational￿in the￿range￿of￿-40 °C￿to￿+50 °C.￿These￿temperature￿limits,￿however,￿relate￿to￿the￿actual￿temperature of￿the￿cell,￿not￿the￿ambient￿temperature.￿In￿terms￿of￿temperature￿behavior￿the￿high-voltage￿battery unit￿is￿a￿slow-action￿system,￿i.e.￿it￿takes￿several￿hours￿until￿the￿cells￿assume￿the￿ambient￿temperature. Therefore￿having￿the￿battery￿spend￿a￿short￿period￿of￿time￿in￿an￿extremely￿hot￿or￿cold￿environment does￿not￿mean￿that￿the￿cells￿will￿already￿have￿assumed￿this￿temperature. The￿optimal￿range￿of￿the￿temperature￿of￿the￿cell￿with￿regard￿to￿service￿life￿and￿performance￿is￿more limited.￿It￿is￿between￿+25 °C￿and￿+40 °C.￿Mainly￿if￿the￿cell￿temperature￿is￿continuously￿significantly outside￿this￿range￿and,￿at￿the￿same￿time,￿high￿power￿is￿required,￿this￿would￿reduce￿the￿service￿life of￿the￿battery￿cells.￿To￿counteract￿this￿effect￿and￿ensure￿maximum￿performance￿at￿any￿ambient temperature,￿there￿is￿automatic￿heating￿and￿cooling￿for￿the￿high-voltage￿battery￿unit￿of￿the￿I01. The￿I01￿is￿equipped￿as￿standard￿with￿a￿cooling￿system￿for￿the￿high-voltage￿battery.￿For￿this￿purpose it￿is￿incorporated￿in￿the￿refrigerant￿circuit￿of￿the￿heating￿and￿air-conditioning￿system,￿similar￿to￿current BMW￿active￿hybrid￿vehicles.￿If￿the￿customer￿orders￿optional￿equipment￿494￿(Seat￿heating)￿for￿driver and￿front￿passenger,￿his￿I01￿also￿has￿heating￿for￿the￿high-voltage￿battery.￿The￿heat￿effect￿of￿the electrical￿current￿is￿used￿for￿heating￿up￿the￿high-voltage￿battery.￿This￿heating￿including￿the￿control￿is located￿inside￿the￿high-voltage￿battery￿unit.￿At￿a￿very￿low￿ambient￿temperature￿or￿cell￿temperature￿and with￿a￿connected￿charging￿cable,￿the￿heating￿is￿automatically￿activated￿if￿required￿in￿order￿to￿warm￿up the￿battery￿cells.￿This￿way￿the￿otherwise￿restricted￿performance￿is￿improved￿considerably￿at￿very￿low...
  • Page 91 I01￿High-voltage￿Components 5.￿High-voltage￿Battery￿Unit The￿following￿graphic￿provides￿an￿overview￿of￿the￿entire￿system￿for￿the￿heating￿and￿cooling￿of￿the high-voltage￿battery￿unit. Entire￿cooling￿system￿of￿the￿high-voltage￿battery￿unit Index Explanation Combined￿expansion￿and￿shutoff￿valve Refrigerant￿lines￿for￿cooling￿of￿the￿high-voltage￿battery￿unit High-voltage￿battery￿unit Expansion￿valve￿for￿passenger￿compartment￿cooling Capacitor￿in￿the￿refrigerant￿circuit Refrigerant￿lines The￿subsystems￿for￿heating￿and￿cooling￿are￿shown￿individually￿below.
  • Page 92 I01￿High-voltage￿Components 5.￿High-voltage￿Battery￿Unit Cooling￿system￿of￿the￿high-voltage￿battery The￿high-voltage￿battery￿unit￿in￿the￿I01￿is￿cooled￿directly￿by￿refrigerant.￿The￿refrigerant￿circuit￿of￿the air￿conditioning￿system￿is￿therefore￿made￿up￿of￿two￿parallel￿branches:￿One￿for￿cooling￿the￿passenger compartment￿and￿one￿for￿cooling￿the￿high-voltage￿battery￿unit.￿For￿each￿branch￿there￿is￿a￿combined expansion￿and￿shutoff￿valve￿in￿order￿to￿be￿able￿to￿control￿the￿cooling￿functions￿independent￿of each￿other.￿The￿battery￿management￿electronics￿can￿activate￿and￿open￿the￿combined￿expansion and￿shutoff￿valve￿by￿applying￿voltage.￿In￿this￿way￿refrigerant￿can￿flow￿to￿the￿high-voltage￿battery, expanding,￿evaporating￿and￿cooling￿in￿the￿process.￿The￿cooling￿of￿the￿passenger￿compartment￿is￿also effected￿in￿a￿condition-based￿manner.￿The￿combined￿expansion￿and￿shutoff￿valve￿upstream￿from￿the evaporator￿can￿also￿be￿activated￿electrically￿and￿by￿the￿EDME. Entire￿heating/cooling￿system￿of￿the￿high-voltage￿battery Index Explanation Capacitor￿in￿the￿refrigerant￿circuit Electric￿fan,￿refrigerant￿circuit￿for￿passenger￿compartment Dryer￿flask High-voltage￿battery￿unit Combined￿expansion￿and￿shut-off￿valve￿in￿the￿refrigerant￿circuit￿(for￿cooling high-voltage￿battery)
  • Page 93 I01￿High-voltage￿Components 5.￿High-voltage￿Battery￿Unit Index Explanation Heat￿exchanger Blower￿for￿passenger￿compartment Combined￿expansion￿and￿shutoff￿valve￿in￿the￿refrigerant￿circuit￿(for￿cooling￿the passenger￿compartment) Evaporator,￿passenger￿compartment During￿cooling￿the￿battery￿cells￿emit￿heat￿energy￿to￿the￿refrigerant.￿While￿the￿battery￿cells￿are￿cooled down,￿the￿refrigerant￿is￿heated.￿The￿EKK￿compresses￿the￿refrigerant￿again￿and￿in￿the￿capacitor￿it returns￿to￿a￿liquid￿state.￿As￿a￿result,￿the￿refrigerant￿is￿once￿again￿able￿to￿absorb￿heat￿energy.￿This￿way the￿maximum￿cooling￿power￿of￿about￿1000 W￿can￿be￿generated.￿In￿other￿words:￿A￿heat￿output￿of￿up￿to 1000 W￿can￿be￿discharged￿by￿the￿high-voltage￿battery.￿This￿maximum￿cooling￿power￿is￿only￿required at￿a￿very￿high￿ambient￿temperature￿and,￿at￿the￿same￿time,￿a￿high￿drive￿power. In￿order￿to￿cool￿battery￿cells￿using￿refrigerant,￿there￿is￿a￿heat￿exchanger￿located￿below￿the￿cell￿modules which￿is￿made￿from￿flat￿aluminium￿pipes.￿They￿are￿connected￿to￿the￿internal￿refrigerant￿lines￿and refrigerant￿flows￿through￿them￿during￿cooling. Heating Vice￿versa,￿if￿the￿I01￿was￿parked￿outside￿for￿example￿for￿several￿days￿at￿temperatures￿below￿0 °C,￿it makes￿sense￿to￿heat￿the￿battery￿cells￿before￿departure￿and/or￿to￿their￿optimal￿temperature￿level.￿They then￿deliver￿their￿full￿power￿before￿the￿journey￿commences.￿The￿customer￿can￿use￿this￿option￿if￿the vehicle￿is￿connected￿to￿the￿power￿network￿using￿the￿charging￿cable￿and￿the￿function￿for￿the￿interior air￿temperature￿control￿of￿the￿vehicle￿was￿selected.￿In￿order￿to￿warm￿up￿the￿batteries,￿the￿high-voltage system￿is￿activated￿and￿electrical￿current￿is￿sent￿through￿a￿network￿of￿heating￿wires.￿This￿network￿of heating￿wires￿is￿arranged￿along￿the￿coolant￿ducts.￿As￿the￿coolant￿ducts￿and￿the￿cell￿modules￿touch, the￿heat￿generated￿in￿the￿heater￿coils￿is￿transmitted￿to￿the￿cell￿modules￿and￿therefore￿the￿battery￿cells. 5.4.￿Internal￿structure￿of￿the￿high-voltage￿battery￿unit The￿information￿on￿the￿internal￿structure￿and￿other￿functions￿of￿the￿high-voltage￿battery￿unit￿can￿be found￿in￿the￿product￿information￿bulletin￿"I01￿High-voltage￿Battery￿Unit". A￿repair￿of￿the￿high-voltage￿battery￿unit￿is￿only￿intended￿in￿a￿dealership￿with￿the￿Service￿format￿"BMW￿i Extended￿Battery￿Service"￿or￿"BMW￿i￿Full￿Service".

  • Page 94: Introduction

    I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery 6.1.￿General￿information￿on￿charging 6.1.1.￿Introduction The￿"charging"￿procedure￿for￿an￿electric￿vehicle￿corresponds￿to￿"refueling￿"￿a￿conventionally￿driven vehicle.￿Accordingly,￿in￿this￿chapter￿"charging"￿means: • Charging￿the￿high-voltage￿battery￿in￿the￿vehicle • while￿at￿standstill￿(not￿through￿brake￿energy￿regeneration), • by￿supply￿of￿electrical￿energy, • which￿is￿provided￿by￿an￿AC￿voltage￿network￿outside￿the￿vehicle • and￿is￿fed￿to￿the￿vehicle￿via￿a￿charging￿cable. As￿a￿charging￿cable￿is￿used,￿one￿also￿refers￿to￿conductive￿(grid-bound)￿charging.￿The￿inductive charging￿is￿not￿possible￿at￿the￿I01.￿It￿is￿still￿undergoing￿research￿and￿development. Components￿inside￿and￿outside￿the￿vehicle￿are￿required￿for￿charging.￿In￿the￿vehicle￿a￿charging￿socket and￿power￿electronics￿are￿required￿for￿the￿voltage￿conversion.￿Outside￿the￿vehicle￿a￿device￿which performs￿the￿protection￿and￿control￿functions￿is￿needed,￿in￿addition￿to￿the￿AC￿voltage￿network￿and￿a charging￿cable.￿This￿device￿is￿called￿an￿"Electric￿Vehicle￿Supply￿Equipment￿(EVSE)"￿in￿the￿standards and￿in￿development.￿The￿following￿graphic￿shows￿the￿components￿for￿the￿charging￿of￿the￿high-voltage battery￿inside￿and￿outside￿the￿electric￿vehicle￿and￿compares￿them￿to￿the￿components￿needed￿for refueling￿in￿a￿conventional￿vehicle. Components￿for￿refueling￿the￿vehicle￿and￿charging￿the￿high-voltage￿battery Index Refueling￿the￿vehicle Charging￿the￿high-voltage￿battery Filling￿station AC￿voltage￿network Petrol￿pump Electric￿Vehicle￿Supply￿Equipment￿(e.g. wallbox) Fuel￿line￿between￿fuel￿pump￿nozzle Charging￿cable and￿gasoline￿pump Fuel￿pump￿nozzle Vehicle￿connector￿at￿charging￿cable...
  • Page 95 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery Fuel￿filler￿neck Charging￿socket Power￿electronics Fuel￿tank High-voltage￿battery The￿Electric￿Vehicle￿Supply￿Equipment￿can￿either￿be￿integrated￿in￿the￿charging￿cable￿or￿be￿an￿element of￿a￿fixed￿charging￿station￿(also￿called￿"wallbox").￿The￿EVSE￿establishes￿the￿connection￿to￿the￿AC voltage￿network￿and￿serves￿for￿the￿fulfilment￿of￿requirements￿for￿electrical￿safety￿when￿charging￿the vehicle.￿Communication￿to￿the￿vehicle￿can￿also￿be￿set￿up￿via￿the￿pilot￿line.￿As￿a￿result,￿it￿is￿possible to￿safely￿start￿the￿charging￿procedure￿and￿exchange￿the￿charging￿parameters￿(e.g.￿maximum￿current level)￿between￿vehicle￿and￿EVSE.￿Details￿on￿the￿possible￿versions,￿structure￿and￿functioning￿of￿the EVSE￿are￿described￿in￿one￿of￿the￿following￿chapters. The￿voltage￿of￿the￿AC￿voltage￿network￿can￿be￿in￿the￿range￿of￿110 V￿to￿240 V.￿It￿is￿fed￿to￿the￿vehicle via￿a￿single-phase￿supply.￿From￿the￿AC￿voltage￿network￿side,￿in￿theory￿a￿maximum￿charging￿power￿of  = U  x I  = 240 V x 32 A = 7.7 kW￿is￿possible. Many￿of￿the￿components￿mentioned￿for￿charging￿the￿I01￿are￿standardized￿in￿terms￿of￿their￿structure and￿functions.￿In￿European￿countries￿IEC 61851￿is￿the￿applicable￿standard.￿The￿components￿for charging￿the￿I01￿satisfy￿charging￿mode￿2￿(connection￿to￿standard￿household￿socket￿with￿additional pilot￿line)￿and￿charging￿mode￿3￿(connection￿to￿fixed￿wallbox￿with￿pilot￿line). The￿standard￿for￿America￿is￿SAE J1772.￿Charge￿Level 1￿and￿2￿are￿comparable￿to￿charging modes 2￿and￿3.￿Most￿components￿for￿charging￿the￿I01￿only￿satisfy￿both￿standards￿with￿one technical￿version.￿A￿national-market￿or￿standard-specific￿version￿is￿required￿for￿Europe￿and America￿only￿by￿the￿"Electric￿Vehicle￿Supply￿Equipment". For￿the￿employees￿in￿BMW￿Service￿the￿following￿important￿safety￿rules￿must￿be￿observed￿in￿relation￿to charging: Refueling￿the￿vehicle￿while￿the￿high-voltage￿battery￿is￿charging￿is￿not￿permitted￿ When￿the￿charging￿cable￿is￿inserted￿do￿not￿initiate￿a￿refueling￿procedure￿and￿keep￿a￿safe￿distance￿from highly￿flammable￿materials.￿Otherwise,￿in￿the￿event￿of￿incorrect￿connection￿or￿removal￿of￿the￿charging cable￿there￿is￿a￿risk￿of￿personal￿injury￿or￿material￿damage￿by￿burning￿fuel￿for￿example. While￿the￿I01￿is￿connected￿to￿the￿AC￿voltage￿network￿for￿charging,￿no￿work￿may￿be￿performed￿at￿the high-voltage￿system. During￿the￿charging￿procedure￿the￿electric￿coolant￿pump￿and￿the￿electric￿fan￿can￿be￿switched￿on automatically￿for￿cooling￿the￿power￿electronics.￿This￿is￿why￿no￿work￿can￿be￿performed￿at￿the￿cooling system￿of￿the￿electric￿motor￿and￿at￿the￿electric￿fan￿when￿a￿charging￿cable￿is￿connected￿to￿the￿I01.
  • Page 96 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery Work￿at￿the￿charging￿cable,￿at￿the￿Electric￿Vehicle￿Supply￿Equipment,￿at￿household￿sockets or￿charging￿stations￿can￿only￿be￿performed￿by￿qualified￿electricians,￿and￿not￿by￿BMW￿Service employees. 6.1.2.￿Overview￿of￿charging￿options In￿general,￿the￿high-voltage￿battery￿can￿either￿be￿charged￿using￿alternating￿current￿(AC￿charging)￿or direct￿current￿(DC￿charging).￿The￿charging￿options￿of￿the￿high-voltage￿battery￿in￿the￿I01￿are￿generally specified￿by￿the￿equipment￿for￿charging￿in￿the￿vehicle,￿as￿well￿as￿the￿national-market￿charging infrastructure.￿The￿following￿table￿provides￿an￿overview￿of￿the￿different￿charging￿options￿in￿various countries.￿The￿charging￿powers￿always￿relate￿to￿the￿mains￿power￿and￿not￿the￿charging￿power￿used￿to charge￿the￿high-voltage￿battery.￿The￿charging￿power￿is￿always￿less￿than￿the￿available￿mains￿power. Markets￿(LHD) Charging￿system Charging￿interface Equipment￿(basic version,￿option) US￿market￿(LHD) AC￿charging￿7.4 kW Type￿1 Standard￿Equipment Charging￿(SA4U8￿AC Fast￿Charging) Combo￿(AC￿charging Combo￿1 Optional￿Equipment 7.4 kW￿and￿DC Charging charging￿50 kW) (SA￿4U7￿DC￿Fast Charging 6.1.3.￿Charging￿modes The￿charging￿modes￿are￿defined￿in￿the￿international￿standard￿IEC61851-1￿(IEC￿=￿International Electrotechnical￿Commission).￿The￿key￿parameters￿of￿the￿individual￿charging￿modes￿are￿summarized in￿the￿following￿table: Maximum￿power Communication Locking￿the with￿the￿vehicle charging￿plug Charging￿mode￿1...
  • Page 97 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery IEC￿Charging￿mode￿1 Index Explanation Household￿power￿socket Connector￿for￿household￿socket Circuit￿breaker Charging￿cable Charging￿plug Charging￿socket￿at￿the￿vehicle Charging￿mode￿1￿i.a.w.￿IEC61851-1￿is￿NOT￿USED￿in￿the￿I01￿due￿to￿a￿lack￿of￿communication between￿the￿vehicle￿and￿voltage￿supply. IEC￿Charging￿mode￿2￿(Occasional￿use￿cable) Index Explanation Household￿power￿socket Connector￿for￿household￿socket In-cable￿box Charging￿cable Charging￿plug￿(Europe￿and￿US￿version) Charging￿socket￿at￿the￿vehicle...
  • Page 98 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery The￿communication￿between￿vehicle￿and￿voltage￿supply￿is￿possible￿via￿the￿In-Cable￿box. IEC￿Charging￿mode￿3￿(Wallbox) Index Explanation Wallbox￿or￿charging￿station Charging￿plug￿for￿connection￿at￿wallbox￿or￿charging￿station￿(only￿in￿Europe) Charging￿cable Charging￿plug￿(Europe￿and￿US￿version)￿for￿connection￿to￿vehicle Charging￿socket￿at￿the￿vehicle In￿the￿US￿market￿the￿plug￿connection￿between￿the￿charging￿cable￿and￿AC￿charging￿station￿is permanently￿attached￿to￿the￿charging￿station￿(wallbox).￿Therefore￿the￿charging￿cable￿cannot￿be separated￿from￿the￿AC￿charging￿station￿by￿the￿customer. 6.1.4.￿Charging￿plug The￿charging￿plugs￿used￿are￿also￿standardized￿(IEC￿62196-2).￿Depending￿on￿the￿vehicle￿equipment and￿national-market￿version￿different￿charging￿sockets￿are￿used.￿The￿following￿table￿provides￿an overview￿of￿the￿most￿frequently￿used￿connectors:...
  • Page 99 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery US￿market￿(Type￿1) AC￿charging SAE￿J1772￿/ IEC￿62196–2 Combo￿charging￿plug￿(DC charging) SAE￿J1772￿/ IEC￿62196–3 Combo￿1 6.1.5.￿Electric￿Vehicle￿Supply￿Equipment The￿EVSE￿establishes￿the￿connection￿to￿the￿AC￿voltage￿network￿and￿serves￿for￿the￿fulfilment￿of requirements￿for￿electrical￿safety￿when￿charging￿the￿vehicle.￿Communication￿to￿the￿vehicle￿can￿also￿be set￿up￿via￿the￿so-called￿pilot￿line.￿As￿a￿result,￿it￿is￿possible￿to￿safely￿start￿the￿charging￿procedure￿and exchange￿the￿charging￿parameters￿(e.g.￿maximum￿current￿level)￿between￿vehicle￿and￿EVSE.￿The￿EVSE can￿either￿be￿integrated￿in￿the￿charging￿cable￿(mobile￿solution)￿or￿be￿an￿element￿of￿a￿fixed￿charging station￿(also￿called￿"wallbox"). In￿both￿cases￿the￿EVSE￿contains￿the￿following￿subcomponents: • Earth￿leakage￿circuit￿breaker￿(FI) • Display￿whether￿the￿AC￿voltage￿network￿is￿connected￿and￿available • Electronic￿disconnect￿switch￿for￿phase￿(L1)￿and￿neutral￿conductor￿(N) • Electronic￿switching￿for￿generating￿the￿pilot￿signal • Continuous￿protective￿earth￿(PE). Mobile￿solution The￿version￿integrated￿in￿the￿charging￿cable￿is￿also￿called￿"In-Cable￿box"￿and￿is￿designed￿for mobile￿use.￿The￿volume￿and￿weight￿of￿this￿solution￿is￿low￿and￿the￿charging￿and￿EVSE￿can￿be￿easily transported￿in￿the￿vehicle.
  • Page 100 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery EVSE￿for￿mobile￿use Index Explanation BMW￿i￿mobile￿EVSE Display￿for￿the￿availability￿of￿the￿voltage￿supply Display￿for￿charging Display￿for￿fault￿in￿the￿voltage￿supply Display￿for￿fault￿during￿charging As￿a￿household￿power￿socket￿is￿used￿for￿the￿connection￿of￿this￿EVSE￿to￿the￿AV￿voltage￿network,￿the maximum￿current￿level￿is￿restricted￿for￿charging.￿A￿product￿of￿this￿kind￿offered￿for￿the￿AC￿voltage network￿in￿Germany￿can￿be￿used￿up￿to￿a￿current￿level￿of￿16 A￿or￿up￿to￿a￿charging￿power￿of￿3.7 kW.￿The duration￿until￿a￿fully￿discharged￿high-voltage￿battery￿of￿the￿I01￿is￿fully￿charged￿up￿again￿(18.8 kWh￿net) would￿be￿roughly￿7￿hours￿in￿optimal￿conditions. Please￿consult￿the￿operating￿instructions￿of￿the￿respective￿manufacturer￿for￿the￿operation￿and￿use￿of￿a charging￿cable￿with￿an￿integrated￿EVSE.
  • Page 101 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery Employees￿in￿BMW￿Service￿cannot￿perform￿any￿maintenance￿or￿repair￿work￿on￿the￿charging￿cable or￿the￿EVSE.￿In￿the￿event￿of￿a￿defect￿with￿or￿a￿malfunction￿of￿the￿charging￿cable￿or￿the￿EVSE,￿the manufacturer￿must￿be￿contacted. Fixed￿charging￿station This￿version￿of￿the￿Electric￿Vehicle￿Supply￿Equipment￿must￿be￿installed￿permanently￿owing￿to￿its￿size and￿electrical￿requirements,￿e.g.￿at￿the￿house￿or￿in￿the￿customer's￿garage.￿Such￿a￿charging￿station￿can also￿be￿built￿at￿public￿places,￿e.g.￿car￿parks. The￿installation,￿maintenance￿and￿repair￿of￿fixed￿charging￿stations￿can￿only￿be￿performed￿by￿suitably qualified￿electricians.￿Employees￿in￿BMW￿Service￿are￿not￿authorized￿to￿perform￿this￿work￿as￿they generally￿do￿not￿have￿this￿training. For￿the￿fixed￿charging￿stations￿(also￿called￿"wallbox")￿a￿distinction￿is￿made￿between￿AC￿charging stations￿and￿DC￿charging￿stations. AC￿charging￿stations The￿connection￿of￿the￿AC￿charging￿stations￿to￿the￿AC￿voltage￿network￿can￿be￿via￿a￿two-phase￿(US market)￿or￿three-phase￿(typical￿in￿Germany)￿supply￿–￿the￿connection￿to￿the￿I01￿is,￿however,￿always designed￿as￿a￿single-phase￿supply.￿In￿comparison￿to￿the￿mobile￿solution,￿a￿maximum￿current￿level￿of 32 A￿or￿a￿maximum￿charging￿power￿of￿7.4 kW￿is￿possible.￿These￿maximum￿values￿are,￿however,￿still dependent￿on￿the￿size￿of￿the￿line￿cross-section,￿which￿was￿used￿in￿the￿electrical￿installation￿at￿the charging￿site.￿The￿electrician￿configures￿the￿charging￿station￿during￿installation￿according￿to￿the￿line cross-section￿so￿that￿the￿applicable￿maximum￿current￿level￿is￿transmitted￿to￿the￿vehicle￿using￿the￿pilot signal. AC￿charging￿stations￿from￿other￿manufacturers￿or￿the￿versions￿for￿other￿countries￿may￿differ￿from￿the versions￿shown￿up￿to￿now. The￿following￿graphic￿shows￿an￿AC￿charging￿station￿for￿the￿US￿market.
  • Page 102 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery AC￿charging￿station￿for￿the￿US￿market,￿manufactured￿by￿AeroVironment Index Explanation Display￿of￿the￿operating￿condition Button￿for￿starting￿and￿stopping￿the￿charging￿procedure Charging￿cable￿with￿connector￿for￿the￿connection￿at￿the￿vehicle￿(stored￿in￿the AC￿charging￿station) For￿more￿information￿regarding￿the￿charging￿cable￿refer￿to￿chapter￿6.3.2￿“Charging￿Cable“￿of this￿training￿manual. In￿the￿US￿market￿a￿plug￿connection￿between￿the￿charging￿cable￿and￿AC￿charging￿station￿is permanently￿attached￿to￿the￿charging￿station￿(wallbox).￿Therefore￿the￿charging￿cable￿cannot￿be separated￿from￿the￿AC￿charging￿station￿by￿the￿customer.￿The￿connector￿visible￿in￿the￿graphic￿is￿not the￿connector￿for￿the￿connection￿to￿the￿AC￿charging￿station,￿but￿for￿the￿connection￿to￿the￿vehicle, which￿is￿only￿stored￿in￿the￿AC￿charging￿station. DC￿charging￿station...
  • Page 103 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery DC￿charging￿station The￿DC￿charging￿stations￿form￿the￿second￿group￿of￿the￿fixed￿charging￿stations.￿In￿comparison￿to￿the AC￿charging￿station,￿the￿AC￿voltage￿is￿already￿converted￿to￿direct￿current￿in￿the￿DC￿charging￿station. Therefore,￿power￿electronics￿for￿the￿conversion￿of￿the￿AC￿voltage￿to￿direct￿current￿voltage￿in￿the electric￿vehicle￿are￿not￿required. As￿the￿weight￿of￿the￿power￿electronics￿in￿the￿DC￿charging￿station￿plays￿a￿minor￿role,￿large transformers￿and￿a￿rectifier￿can￿be￿installed￿there￿to￿use￿the￿full￿network￿power.￿For￿this￿reason,￿DC charging￿stations￿generally￿deliver￿a￿much￿higher￿charging￿power￿than￿AC￿charging￿stations.￿Using￿a DC￿charging￿station￿the￿high-voltage￿battery￿can￿thus￿be￿charged￿much￿quicker. 6.2.￿AC￿charging￿with￿3.7 kW￿(Occasional￿Use￿Cable) Although￿the￿high-voltage￿battery￿of￿the￿I01￿can￿also￿be￿partially￿charged￿by￿brake￿energy regeneration,￿the￿"normal"￿charging￿procedure￿takes￿place￿when￿the￿I01￿is￿connected￿to￿the￿AC voltage￿network￿of￿the￿power￿supply￿company.￿Energy￿is￿taken￿from￿the￿AC￿voltage￿network￿and￿fed￿to the￿direct￿current￿voltage￿high-voltage￿electrical￿system￿of￿the￿I01.
  • Page 104 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery Although￿AC￿charging￿with￿3.7 kW￿is￿standard￿equipment￿in￿many￿countries￿in￿the￿US￿market,￿it￿only refers￿to￿the￿charging￿via￿the￿occasional￿use￿cable￿(inserted￿into￿a￿normal￿110V￿socket).￿The￿big advantage￿of￿this￿charging￿option￿is￿that￿for￿charging￿the￿high-voltage￿battery￿the￿charging￿cable￿can be￿connected￿at￿any￿household￿power￿socket￿with￿protective￿contact.￿However,￿the￿current￿level￿for charging￿is￿also￿restricted￿to￿a￿maximum￿16￿A.￿The￿maximum￿charging￿power￿is,￿for￿example￿for￿supply at￿AC￿voltage￿network￿in￿Germany,￿3680 W￿(P￿=￿U￿x￿I￿=￿230 V￿x￿16 A).￿The￿total￿time￿it￿takes￿to￿fully charge￿a￿discharged￿high-voltage￿battery￿of￿the￿I01￿(storable￿energy:￿18.8 kW￿net)￿would￿be￿about￿7 hours.￿In￿order￿to￿reduce￿the￿use￿of￿the￿maximum￿charging￿power￿for￿houses,￿a￿charging￿procedure￿is never￿performed￿at￿maximum￿charge￿current.￿Therefore,￿the￿actual￿charging￿time￿is￿longer. The￿EME￿is￿designed￿so￿it￿can￿provide￿a￿maximum￿electrical￿power￿of￿3.7 kW￿on￿the￿output side.￿This￿is￿charging￿configuration￿is￿used￿(in￿the￿US￿market)￿only￿when￿charging￿with￿the occasional￿use￿cable￿via￿a￿household￿120￿V￿socket.￿And￿it￿sufficient￿to￿fully￿charge￿the￿I01 high-voltage￿battery￿under￿optimal￿marginal￿conditions￿in￿about￿16￿hours.
  • Page 105 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery 6.2.1.￿Wiring￿diagram Wiring￿diagram￿for￿AC￿charging￿at￿3.7 kW￿(US￿market)
  • Page 106 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery Index Explanation Electrical￿Digital￿Motor￿Electronics￿(EDME) High-voltage￿battery￿unit Battery￿management￿electronics￿(SME) Charging￿interface￿module￿(LIM) Electric￿motor￿for￿the￿connector￿fastener Electric￿motor￿for￿the￿central￿locking￿system￿of￿the￿charging￿socket￿cover Locator￿and￿status￿lighting Range￿Extender￿Electrical￿Machine￿Electronics￿(REME) Range￿extender￿electrical￿machine Convenience￿charging￿electronics￿(KLE) Charging￿socket￿at￿the￿vehicle Electrical￿machine￿electronics￿(EME) 6.2.2.￿Charging￿cable Charging￿cable￿with￿integrated￿mobile￿version￿of￿the￿Electric￿Vehicle￿Supply￿Equipment￿(Charging￿mode￿2￿i.a.w.￿IEC￿61851) Index Explanation Electric￿Vehicle￿Supply￿Equipment￿(integrated,￿also￿called￿"In-Cable￿box") Connector￿for￿connection￿at￿a￿household￿power￿socket Connector￿for￿the￿connection￿at￿the￿vehicle...
  • Page 107 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery The￿charging￿cable￿is￿used￿to￿join￿the￿following￿components: • Specific￿national-market￿connection￿for￿household￿power￿socket￿with￿protective￿contact • Plug￿connection￿between￿specific￿national-market￿connector￿and￿"In-Cable￿box" • "In-Cable￿box"￿(EVSE) • Plug￿connection￿between￿"In-Cable￿box"￿and￿connector￿for￿vehicle￿connection • Connector￿for￿vehicle￿connection. The￿charging￿cable￿is￿the￿electrical￿connection￿between￿the￿AC￿voltage￿network￿and￿the￿direct￿current voltage￿high-voltage￿electrical￿system￿of￿the￿vehicle.￿The￿connection￿to￿the￿AC￿voltage￿network￿is effected￿at￿a￿typical￿household￿power￿socket￿with￿protective￿contact,￿which￿does￿not￿include￿Electric Vehicle￿Supply￿Equipment.￿In￿this￿case￿the￿switching￿and￿functions￿of￿the￿Electric￿Vehicle￿Supply Equipment￿are￿integrated￿in￿the￿charging￿cable.￿This￿is￿called￿an￿"In-Cable￿box".￿This￿charging￿cable for￿the￿I01￿is￿always￿designed￿for￿single-phase￿supply,￿in￿line￿with￿the￿charging￿socket￿at￿the￿vehicle (phase L1￿and￿neutral￿conductor N)￿and￿always￿includes￿the￿protective￿earth PE,￿as￿well￿as￿the￿pilot and￿proximity￿line.￿The￿connector￿is￿designed￿so￿that￿the￿connection￿is￿first￿made￿with￿the￿protective contact.￿The￿ground￿is￿grounded￿via￿the￿protective￿earth. The￿charging￿cable￿can￿be￿housed￿in￿the￿charging￿cable￿compartment￿under￿the￿engine￿compartment lid. Please￿consult￿the￿operating￿instructions￿of￿the￿respective￿manufacturer￿for￿the￿operation￿and￿use￿of￿a charging￿cable￿with￿an￿integrated￿EVSE. Employees￿in￿BMW￿Service￿cannot￿perform￿any￿maintenance￿or￿repair￿work￿on￿the￿charging￿cable or￿the￿EVSE.￿In￿the￿event￿of￿a￿defect￿with￿or￿a￿malfunction￿of￿the￿charging￿cable￿or￿the￿EVSE,￿the manufacturer￿must￿be￿contacted. Menu￿for￿the￿setting￿of￿the￿current￿level...
  • Page 108 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery Index Explanation "Current￿settings"￿submenu Note￿"Before￿increasing￿the￿current￿level:￿Check￿suitability￿of￿voltage￿supply. For￿maximum￿charge￿current￿see￿charging￿cable." Charge￿current￿"Maximum",￿100%￿of￿possible￿current￿level￿(information￿via proximity￿line) Charge￿current￿"Reduced",￿75%￿of￿possible￿current￿level￿(information￿via proximity￿line) Charge￿current￿"Low"￿about￿6￿A "Settings"￿menu The￿driver￿has￿the￿option￿to￿restrict￿the￿maximum￿current￿level￿at￿the￿power￿socket￿via￿the￿"Settings" submenu￿in￿the￿vehicle.￿If￿the￿current￿level￿at￿the￿power￿socket￿is￿insufficient￿or￿unknown,￿it￿is recommended￿to￿adjust￿the￿current￿level￿to￿"Reduced"￿or￿"Low". Charging￿with￿Level￿1￿(occasional￿use￿cable)￿should￿take￿about￿15￿hrs.￿in￿the￿US￿market￿but this￿time￿varies￿depending￿on￿the￿on￿voltage￿supply￿and￿on￿the￿vehicle￿charge￿settings. 6.2.3.￿What￿must￿be￿observed￿when￿charging￿the￿high-voltage￿battery￿unit? Filling￿the￿fuel￿tank￿while￿the￿high-voltage￿battery￿is￿charging￿is￿not￿permitted￿ When￿the￿charging￿cable￿is￿connected￿do￿not￿fill￿the￿fuel￿tank￿and￿keep￿a￿safe￿distance￿from￿highly flammable￿materials.￿Otherwise,￿in￿the￿event￿of￿an￿improper￿connection￿or￿if￿the￿charging￿cable￿is pulled￿out,￿there￿is￿a￿risk￿of￿personal￿injury￿or￿material￿damage￿by￿burning￿fuel￿for￿example. Charging￿the￿high-voltage￿battery￿using￿a￿typical￿household￿power￿socket￿results￿in￿a￿high￿continuous load￿on￿the￿power￿socket,￿which￿does￿not￿occur￿with￿other￿household￿appliances.￿Therefore,￿the following￿information￿must￿be￿observed: • Do￿not￿use￿an￿adapter￿or￿extension￿cable • After￿charging￿plug￿the￿charging￿plug￿into￿the￿vehicle￿first￿and￿then￿into￿the￿wall • Avoid￿tripping￿hazards￿and￿mechanical￿loads￿for￿charging￿cables￿and￿power￿sockets • Do￿not￿insert￿the￿charging￿plug￿in￿damaged￿power￿sockets • Do￿not￿use￿damaged￿charging￿cables • The￿charging￿plug￿and￿charging￿cable￿may￿be￿warm￿when￿charging￿the￿high-voltage￿battery. If￿they￿become￿too￿hot,￿the￿power￿socket￿is￿not￿suitable￿for￿charging￿or￿the￿charging￿cable￿is damaged.￿Stop￿charging￿immediately￿and￿have￿the￿power￿socket￿and￿charging￿cable￿checked by￿an￿electrician...
  • Page 109 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery • Only￿use￿power￿sockets￿protected￿against￿moisture￿and￿weathering • Do￿not￿touch￿contact￿areas￿of￿power￿sockets￿with￿fingers￿or￿objects • Never￿repair￿or￿modify￿a￿charging￿cable￿yourself • Remove￿cable￿on￿both￿sides￿before￿cleaning.￿Do￿not￿immerse￿in￿fluids. • Do￿not￿go￿through￿a￿car￿wash￿during￿charging • Only￿charge￿at￿power￿sockets￿checked￿by￿an￿electrician • Observe￿special￿information￿in￿the￿operating￿instructions￿for￿charging￿at￿unknown￿or￿unfamiliar infrastructure/power￿sockets.￿Set￿the￿charging￿current￿in￿the￿vehicle￿to￿"low". 6.2.4.￿Charging￿socket￿at￿the￿vehicle The￿charging￿socket￿at￿the￿I01￿is￿located￿precisely￿where￿the￿fuel￿filler￿neck￿is￿located￿in￿a conventional￿vehicle￿with￿a￿combustion￿engine.￿Just￿like￿the￿fuel￿filler￿flap￿has￿to￿be￿opened￿in￿a conventional￿vehicle,￿the￿charging￿socket￿cover￿also￿has￿to￿be￿opened￿in￿the￿I01.￿Press￿the￿charging socket￿cover￿to￿operate￿the￿release￿button￿and￿unlock￿the￿charging￿socket￿cover.￿The￿actual￿charging socket￿is￿then￿protected￿against￿moisture￿and￿dirt￿contamination￿by￿another￿lid.￿The￿charging￿socket satisfies￿the￿protection￿class￿IP5K5.￿The￿charging￿socket￿cover￿and￿the￿connector￿assignment￿are shown￿in￿the￿following￿graphic. Charging￿socket￿at￿the￿vehicle￿for￿combo￿charging,￿type￿1￿(US￿market)
  • Page 110 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery Index Explanation Connection￿for￿proximity￿line Connection￿for￿phase￿L1 Connection￿for￿protective￿earth￿(PE) Connection￿for￿neutral￿conductor￿(N) Connection￿for￿pilot￿line Protective￿cap￿for￿AC￿charging￿socket Protective￿cap￿for￿DC￿charging￿socket Connection￿for￿DC￿ground￿cable Connection￿for￿DC￿positive￿wire The￿high-voltage￿cables￿of￿the￿charging￿socket￿are￿connected￿to￿the￿electrical￿machine￿electronics (via￿the￿KLE￿in￿the￿US￿market).￿Phase L1￿and￿neutral￿conductor N￿are￿designed￿as￿shielded￿high- voltage￿cables￿and￿end￿with￿a￿flat￿high-voltage￿connector￿at￿the￿alternating￿current￿connection￿of￿the electrical￿machine￿electronics.￿The￿pilot￿line￿and￿the￿proximity￿line￿are￿simple￿signal￿lines.￿These￿signal lines￿are￿also￿shielded￿and￿end￿at￿a￿connector￿in￿the￿charging￿interface￿module￿(LIM).￿The￿protective earth￿is￿connected￿electrically￿to￿ground￿in￿close￿proximity￿to￿the￿charging￿socket.￿This￿ensures￿proper grounding. A￿C-shaped￿fiber-optic￿conductor￿runs￿around￿the￿charging￿socket￿at￿the￿vehicle.￿With￿this￿C-shaped fiber-optic￿conductor￿it￿is￿possible￿to￿show￿the￿status￿for￿charging.￿The￿lighting￿of￿the￿fiber-optic conductor￿is￿effected￿using￿two￿LEDs￿which￿are￿controlled￿by￿the￿LIM. The￿charging￿socket￿at￿the￿vehicle￿can￿only￿be￿replaced￿together￿with￿the￿high-voltage￿cable￿as￿one unit. 6.2.5.￿Charging￿interface￿module￿(LIM) The￿LIM￿enables￿communication￿between￿the￿vehicle￿and￿charging￿station.￿The￿voltage￿supply￿of￿the LIM￿control￿unit￿is￿effected￿by￿terminal￿30F.￿There￿is￿a￿terminating￿resistor￿for￿the￿PT-CAN￿in￿the￿LIM. The￿LIM￿can￿also￿wake￿up￿the￿control￿units￿in￿the￿vehicle￿electrical￿system￿when￿the￿charging￿cable￿is connected.￿There￿is￿also￿a￿line￿which￿runs￿directly￿from￿the￿LIM￿control￿unit￿to￿the￿electrical￿machine electronics.￿Only￿when￿the￿LIM￿control￿unit￿enables￿the￿charging￿procedure￿via￿a￿signal￿on￿this￿line, does￿the￿electrical￿machine￿electronics￿start￿the￿voltage￿conversion￿and￿thus￿the￿charging￿procedure.
  • Page 111 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery Installation￿location￿of￿LIM The￿main￿tasks￿of￿the￿LIM￿are: • Communication￿with￿EVSE￿via￿pilot￿and￿proximity￿line • Coordinating￿the￿charging￿procedure • Activation￿of￿the￿LEDs￿for￿displaying￿the￿charging￿status • Activation￿of￿the￿electric￿motor￿for￿locking￿the￿charging￿socket￿cover...
  • Page 112 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery Input/Output￿for￿charging￿interface￿module Index Explanation Electric￿Vehicle￿Supply￿Equipment Information￿whether￿the￿AC￿voltage￿network￿is￿available￿and￿the￿charging￿cable is￿correctly￿connected,￿as￿well￿as￿the￿maximum￿available￿current￿level Electrical￿machine￿electronics￿(EME) Requested￿charging￿power,￿charging￿voltage￿and￿charging￿current￿level￿(set- point￿values)
  • Page 113 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery Index Explanation Body￿Domain￿Controller￿(BDC) Terminal￿status,￿driving￿readiness￿switched￿off Dynamic￿Stability￿Control￿(DSC) Vehicle￿speed Electrical￿Digital￿Motor￿Electronics￿(EDME) Status￿of￿parking￿lock￿(engaged/disengaged),￿power￿requirement￿in￿the￿high- voltage￿vehicle￿electrical￿system Charging￿interface￿module￿(LIM) Charging￿socket￿at￿the￿vehicle Status￿of￿the￿charging￿socket￿cover￿and￿the￿charging￿plug Electrical￿machine￿electronics￿(EME) Actual￿value￿of￿the￿set￿charging￿power,￿charging￿voltage￿and￿charging￿current level,￿charging￿release Electrical￿Digital￿Motor￿Electronics￿(EDME) Information￿whether￿the￿charging￿cable￿is￿connected￿and￿the￿charging procedure￿is￿active Charging￿socket Activation￿of￿LEDs￿for￿locator￿lighting￿and￿charging￿status￿display,￿status￿of￿the charging￿socket￿cover. Instrument￿cluster Signals￿for￿the￿display￿of￿charging￿information Communication￿with￿EVSE￿via￿pilot￿and￿proximity￿line The￿pilot￿line￿and￿the￿proximity￿line￿are￿realized￿as￿simple￿signal￿lines.￿These￿signal￿lines￿are￿shielded and￿end￿at￿a￿connector￿in￿the￿charging￿interface￿module￿LIM. Via￿the￿proximity￿line￿the￿connection￿of￿the￿charging￿plug￿in￿the￿charging￿socket￿at￿the￿vehicle￿is identified,￿as￿well￿as￿the￿maximum￿current￿carrying￿capacity￿of￿the￿charging￿cable￿determined.￿In￿the connector￿of￿the￿charging￿cable￿there￿is￿an￿ohmic￿resistor￿between￿the￿proximity￿connection￿and￿the protective￿earth.￿The￿LIM￿applies￿a￿measured￿voltage￿and￿calculates￿which￿value￿the￿resistance￿in the￿proximity￿line￿has.￿The￿resistance￿value￿specifies￿which￿maximum￿current￿level￿is￿allowed￿for￿the charging￿cable￿used￿(dependent￿on￿the￿line￿cross-section).￿The￿assignment￿of￿resistance￿–￿current level￿is￿specified￿in￿the￿standard￿IEC 61851. The￿pilot￿line￿is￿required￿for￿the￿determination￿and￿transmission￿of￿the￿maximum￿available￿charging current￿level.￿The￿pilot￿signal￿is￿a￿bipolar￿rectangle￿signal￿(-12 V￿to￿+12 V).￿The￿voltage￿and￿the￿duty cycle￿are￿used￿for￿the￿communication￿of￿different￿statuses￿between￿EVSE￿and￿I01: • Electric￿vehicle￿is￿ready￿to￿charge￿(Yes/No) •...
  • Page 114 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery Coordinating￿the￿charging￿procedure The￿LIM￿control￿unit￿coordinates￿the￿start￿and￿finish￿of￿the￿charging￿procedure. There￿are￿two￿actions￿required￿by￿the￿customer￿at￿the￿start￿of￿the￿charging￿procedure: Set￿the￿start￿time￿for￿charging Connect￿the￿charging￿cable. Using￿the￿controller￿and￿the￿menu￿in￿the￿central￿information￿display￿CID￿the￿customer￿can￿set￿and adjust￿the￿start￿time￿for￿charging￿in￿the￿vehicle.￿The￿customer￿has￿a￿second￿range￿of￿adjustment￿with the￿"BMW￿i￿Remote￿app"￿for￿the￿iPhone™.￿The￿customer￿can￿select￿to￿start￿the￿charging￿procedure immediately￿after￿connecting￿the￿charging￿cable￿or￿specify￿a￿time￿at￿which￿the￿charging￿procedure should￿start. BMW￿i￿Remote￿app:￿Charging￿the￿high-voltage￿battery Index Explanation Settings￿for￿charging,￿e.g.￿departure￿time Switching￿climate￿control￿on/off￿at￿departure￿time Switching￿charging￿on/off￿at￿reasonable￿electricity￿rate If￿the￿customer￿connects￿the￿charging￿cable,￿the￿LIM￿control￿unit￿wakes￿up￿the￿control￿units￿in￿the vehicle￿electrical￿system￿(if￿they￿have￿not￿already￿been￿woken￿up￿by￿another￿event).￿The￿LIM￿control unit￿uses￿the￿wake-up￿line￿wired￿directly￿to￿the￿BDC￿control￿unit.￿Then￿the￿LIM￿control￿unit￿checks￿the functional￿prerequisites￿for￿charging￿and￿receives￿information￿about￿the￿conditions￿relevant￿for￿safety via￿the￿powertrain￿CAN.
  • Page 115 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery These￿checks￿are￿summarized￿in￿the￿following￿list: • Driving￿readiness￿off • Driving￿speed￿zero • Parking￿lock￿engaged • Charging￿cable￿connect￿(proximity) • Communication￿with￿Electric￿Vehicle￿Supply￿Equipment￿OK￿(pilot) • High-voltage￿system￿active￿and￿trouble-free. When￿all￿prerequisites￿for￿charging￿are￿satisfied,￿the￿high-voltage￿power￿management￿in￿the￿EME requests￿a￿charging￿power￿from￿the￿power￿electronics￿in￿the￿EME￿and￿starts￿the￿charging￿procedure. The￿EME￿control￿unit￿sends￿not￿only￿setpoint￿values￿for￿the￿charging￿power,￿but￿also￿specifies￿limit values￿for￿the￿maximum￿charging￿voltage￿and￿the￿maximum￿charge￿current.￿These￿values￿are￿based￿on the￿current￿condition￿(e.g.￿state￿of￿charge￿and￿temperature)￿of￿the￿high-voltage￿battery￿and￿according to￿the￿power￿requirement￿of￿the￿rest￿of￿the￿vehicle￿electrical￿system￿(e.g.￿for￿climate￿control).￿The EME￿control￿unit￿cleverly￿implements￿these￿setpoint￿values,￿i.e.￿it￿takes￿into￿consideration￿not￿only the￿setpoint￿values,￿but￿other￿marginal￿conditions.￿These￿include￿the￿actual￿status￿of￿the￿electrical machine￿electronics￿(fault,￿temperature),￿as￿well￿as￿the￿current￿level￿restricted￿by￿the￿AC￿voltage network￿and￿the￿charging￿cable. Only￿when￿the￿communication￿between￿the￿vehicle￿(LIM)￿and￿Electric￿Vehicle￿Supply￿Equipment has￿been￿started￿successfully￿via￿the￿pilot￿line,￿is￿the￿voltage￿applied￿to￿the￿phase L1.￿This￿also￿gives further￿protection￿for￿customers￿and￿Service￿employees￿against￿the￿dangers￿of￿electricity. Activation￿of￿the￿LEDs￿for￿displaying￿the￿charging￿status A￿C-shaped￿fiber-optic￿conductor￿runs￿around￿the￿charging￿socket￿at￿the￿vehicle.￿With￿this￿C-shaped fiber-optic￿conductor￿it￿is￿possible￿to￿show￿the￿status￿for￿charging.￿At￿the￿same￿time,￿this￿fiber-optic conductor￿is￿used￿as￿locator￿lighting￿for￿the￿charging￿socket.￿The￿lighting￿of￿the￿fiber-optic￿conductor is￿effected￿using￿two￿LEDs￿which￿are￿controlled￿by￿the￿LIM. Locator￿lighting: The￿locator￿lighting￿of￿the￿charging￿socket￿is￿used￿as￿an orientation￿aid￿by￿the￿driver￿for￿the￿connection￿and￿disconnection of￿the￿charging￿plug. The￿two￿LEDs￿light￿up￿in￿white￿as￿soon￿as￿the￿charging￿socket cover￿has￿been￿opened.￿The￿locator￿lighting￿remains￿switched￿on as￿long￿as￿the￿bus￿systems￿are￿active.￿As￿soon￿as￿a￿charging￿plug has￿been￿identified￿as￿correctly￿connected,￿the￿locator￿lighting￿is...
  • Page 116 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery Initialization: The￿initialization￿starts￿immediately￿after￿the￿correct￿connection of￿the￿charging￿plug.￿The￿initialization￿phase￿takes￿up￿to￿10 seconds. The￿LEDs￿flash￿in￿an￿orange￿color￿at￿a￿frequency￿of￿1￿Hz. After￿successful￿initialization￿the￿charging￿of￿the￿high-voltage battery￿can￿be￿started. Charging￿active: The￿currently￿active￿charging￿procedure￿of￿the￿high-voltage battery￿is￿displayed￿by￿flashing￿blue￿LEDs.￿The￿flashing frequency￿is￿about￿1.42￿Hz. Charging￿interval: Charging￿interval￿or￿charging￿readiness￿present￿when￿the initialization￿phase￿was￿completed￿successfully￿and￿the￿charging start￿is￿sometime￿in￿the￿future￿(e.g.:￿charging￿at￿a￿less￿expensive time). Charging￿complete: The￿state￿of￿charge￿of￿the￿high-voltage￿battery￿"fully￿charged"￿is indicated￿by￿permanently￿green￿LEDs.
  • Page 117 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery Fault￿during￿charging: If￿faults￿occur￿during￿the￿charging￿procedure,￿then￿this￿status￿is displayed￿by￿flashing￿red￿LEDs.￿The￿LEDs￿flash￿three￿times￿at￿a frequency￿of￿about￿2.0￿Hz￿and￿an￿interval￿of￿about￿0.8￿seconds between￿the￿three￿groups. The￿LEDs￿for￿these￿displays￿are￿activated￿after￿the￿charging￿plug￿is￿connected￿or￿after￿unlocking/ locking￿the￿vehicle￿for￿12￿seconds.￿If￿during￿this￿time￿the￿vehicle￿is￿unlocked/locked￿again,￿the￿display lasts￿for￿another￿12￿seconds. Locking￿the￿charging￿socket￿cover Locking￿the￿charging￿socket￿cover...
  • Page 118 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery Index Explanation Electric￿motor￿for￿locking￿the￿charging￿socket￿cover Locking￿hook Bowden￿cable￿for￿the￿emergency￿operation￿of￿the￿charging￿socket￿cover The￿charging￿socket￿cover￿is￿held￿closed￿by￿a￿spring-activated￿locking￿hook.￿The￿locking￿hook￿is￿a￿part of￿the￿central￿locking￿drive￿for￿the￿charging￿socket￿cover.￿The￿unlocking/locking￿of￿the￿charging￿socket cover￿is￿effected￿using￿an￿electric￿motor.￿This￿electric￿motor￿is￿activated￿by￿the￿LIM.￿The￿request￿for unlocking/locking￿the￿charging￿socket￿cover￿comes￿from￿the￿BDC. A￿microswitch￿is￿also￿installed￿in￿the￿central￿locking￿drive.￿The￿status￿of￿the￿microswitch￿(actuated/ not￿actuated)￿provides￿information￿on￿the￿status￿of￿the￿charging￿socket￿cover￿(open/closed).￿In rest￿position,￿i.e.￿when￿the￿charging￿socket￿cover￿is￿closed,￿the￿microswitch￿is￿not￿actuated.￿The microswitch￿is￿actuated￿when￿the￿charging￿socket￿cover￿is￿open.￿The￿microswitch￿is￿also￿actuated when￿the￿charging￿socket￿cover￿is￿pressed￿and￿held. In￿the￿event￿of￿an￿electrical￿fault,￿e.g.￿failure￿of￿both￿the￿charging￿socket￿cover￿and￿the￿DC￿charging plug￿can￿be￿unlocked￿manually. Emergency￿release￿buttons Index Explanation Button￿for￿the￿emergency￿release￿of￿the￿charging￿socket￿cover Button￿for￿the￿emergency￿release￿of￿the￿DC￿charging￿plug The￿rear￿door￿on￿the￿side￿on￿which￿the￿charging￿socket￿cover￿is￿located￿must￿be￿opened. When￿the￿rear￿door￿is￿open￿two￿blue￿buttons￿are￿visible￿in￿the￿lower￿area.￿To￿unlock￿the￿charging socket￿cover￿the￿upper￿blue￿button￿must￿be￿pulled. The￿DC￿charging￿plug￿is￿unlocked￿by￿pulling￿the￿lower￿blue￿button.
  • Page 119 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery 6.2.6.￿Power￿electronics￿in￿the￿(EME) The￿power￿electronics￿for￿the￿conversion￿of￿the￿AC￿voltage￿coming￿from￿the￿charging￿socket￿to￿direct current￿voltage￿required￿for￿charging￿the￿high-voltage￿battery￿is￿housed￿in￿the￿electrical￿machine electronics.￿The￿AC￿voltage￿is￿fed￿to￿the￿electrical￿machine￿electronics￿via￿a￿single-phase￿supply.￿The input￿voltage,￿which￿can￿be￿processed￿by￿the￿electrical￿machine￿electronics,￿may￿be￿in￿the￿following range:￿100 V￿to￿240 V,￿50 Hz￿or￿60 Hz. The￿power￿electronics￿module￿is￿a￿unidirectional￿AC/DC￿converter,￿i.e.￿a￿rectifier. At￿the￿output,￿which￿is￿separated￿galvanically￿from￿the￿input,￿the￿electrical￿machine￿electronics supplies￿an￿electronically￿adjustable￿direct￿current￿voltage￿or￿an￿electronically￿adjustable￿direct￿current flows.￿The￿specifications￿for￿the￿output￿voltage￿and￿the￿output￿current￿come￿from￿the￿function￿"High- voltage￿power￿management"￿in￿the￿EME￿control￿unit.￿The￿values￿are￿calculated￿and￿adjusted￿by￿the EME￿so￿that￿the￿high-voltage￿battery￿is￿optimally￿charged￿and￿the￿other￿consumers￿in￿the￿I01￿are supplied￿with￿sufficient￿electrical￿energy. The￿EME￿is￿designed￿so￿it￿can￿provide￿a￿maximum￿electrical￿power￿of￿3.7 kW￿on￿the￿output side.￿This￿is￿charging￿configuration￿is￿used￿(in￿the￿US￿market)￿only￿when￿charging￿with￿the occasional￿use￿cable￿via￿a￿household￿120V￿socket.￿And￿it￿sufficient￿to￿fully￿charge￿the￿I01 high-voltage￿battery￿under￿optimal￿marginal￿conditions￿in￿about￿16￿hours. 6.3.￿AC￿charging￿with￿7.4 kW AC￿charging￿with￿7.4 kW￿is￿standard￿equipment￿for￿the￿US￿market￿(SA￿4U8￿AC￿Fast￿Charging)￿and￿it is￿possible￿via￿a￿permanently￿installed￿AC￿charging￿station￿(wallbox).￿In￿order￿to￿deliver￿the￿charging power￿of￿7.4 kW,￿the￿AC￿charging￿station￿must￿provide￿32￿A￿at￿a￿phase￿connection.￿P￿=￿U￿x￿I￿=￿230 V￿x 32 A￿=￿7360 W￿=￿7.4 kW.
  • Page 120 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery BMW￿i￿charging￿station Index Explanation BMW￿i￿charging￿station ON/OFF￿button Charging￿plug AC￿charging￿with￿7.4 kW￿(SA￿4U8￿AC￿Fast￿Charging)￿is￿standard￿equipment￿for￿the￿US￿market. The￿EVSE￿is￿located￿inside￿the￿AC￿charging￿station.￿With￿this￿stationary￿version￿of￿the￿EVSE,￿the time￿to￿fully￿charge￿a￿discharged￿high-voltage￿battery￿in￿the￿I01￿is￿cut￿by￿half,￿when￿compared￿to￿AC charging￿with￿3.7 kW￿(standard￿equipment￿in￿European￿vehicles). The￿same￿components￿are￿required￿for￿both￿the￿AC￿charging￿at￿7.4 kW￿(in￿the￿US)￿and￿for￿AC￿charging at￿3.7 kW￿(in￿EU).￿In￿order￿to￿deliver￿the￿additional￿3.7 kW￿of￿charging￿power,￿the￿7.4￿kW￿system requires￿a￿different￿charging￿cable￿and￿the￿installation￿of￿a￿convenience￿charging￿electronics￿(KLE). These￿two￿components￿are￿described￿here￿in￿detail.
  • Page 121 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery 6.3.1.￿Wiring￿diagram Wiring￿diagram￿for￿AC￿charging￿at￿7.4 kW￿(US￿market)
  • Page 122 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery Index Explanation Electrical￿Digital￿Motor￿Electronics￿(EDME) High-voltage￿battery￿unit Battery￿management￿electronics￿(SME) Charging￿interface￿module￿(LIM) Electric￿motor￿for￿the￿connector￿fastener Electric￿motor￿for￿the￿central￿locking￿system￿of￿the￿charging￿socket￿cover Locator￿and￿status￿lighting Range￿Extender￿Electrical￿Machine￿Electronics￿(REME) Range￿extender￿electrical￿machine Convenience￿charging￿electronics￿(KLE) Charging￿socket￿at￿the￿vehicle Electrical￿machine￿electronics￿(EME) 6.3.2.￿Charging￿cable This￿charging￿cable￿for￿the￿I01￿is￿always￿designed￿for￿single-phase￿supply,￿in￿line￿with￿the￿charging socket￿at￿the￿vehicle￿(phase L1￿and￿neutral￿conductor N)￿and￿always￿includes￿the￿protective￿earth (PE), as￿well￿as￿the￿pilot￿line.￿The￿ground￿is￿grounded￿via￿the￿protective￿earth.￿Using￿the￿pilot￿line￿the correct￿connection￿to￿the￿AC￿voltage￿network￿and￿its￿maximum￿available￿charging￿current￿level￿can be￿identified￿or￿transmitted.￿In￿the￿connector￿an￿ohmic￿resistor￿is￿also￿installed￿between￿the￿proximity connection￿and￿the￿protective￿earth.￿The￿resistance￿value￿specifies￿which￿maximum￿current￿level is￿allowed￿for￿the￿charging￿cable￿used￿(dependent￿on￿the￿line￿cross-section).￿The￿assignment￿of resistance￿–￿current￿level￿is￿specified￿in￿the￿standard￿IEC 61851.￿Using￿the￿resistance￿in￿the￿proximity line￿the￿LIM￿in￿the￿vehicle￿can￿identify￿whether￿the￿charging￿cable￿is￿properly￿connected￿and￿which current￿level￿is￿allowed￿for￿this￿charging￿cable.￿The￿convenience￿charging￿electronics￿applies￿a measured￿voltage￿and￿calculates￿which￿value￿the￿resistance￿in￿the￿proximity￿line￿has. The￿connection￿with￿the￿AC￿voltage￿network￿is￿done￿via￿a￿fixed￿charging￿station,￿which￿includes￿the Electric￿Vehicle￿Supply￿Equipment.￿The￿appropriate￿charging￿cable￿for￿this￿purpose￿is￿solely￿the electrical￿connection￿between￿charging￿station￿and￿charging￿socket￿at￿the￿vehicle. The￿charging￿cable￿for￿AC￿Charging￿at￿7.4 kW￿(standard￿equipment￿in￿US)￿and￿AC￿charging at￿3.7 kW￿(Standard￿equipment￿in￿Europe)￿have￿the￿same￿connector￿for￿the￿connection￿at￿the vehicle.￿The￿connectors￿are￿only￿distinguished￿by￿their￿differing￿resistances￿in￿the￿proximity line,￿appropriate￿to￿the￿current￿carrying￿capacity￿of￿the￿charging￿cable.￿The￿following￿graphic shows￿the￿structure￿and￿the￿connections￿of￿this￿connector.
  • Page 123 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery Connector￿of￿the￿charging￿cable￿for￿the￿connection￿to￿the￿vehicle￿(standardized￿i.a.w.￿IEC￿62196-2:￿Type￿1) Index Explanation View￿from￿the￿side￿of￿the￿electrical￿connection View￿from￿the￿side￿of￿the￿handle Mechanical￿locking Connection￿for￿pilot￿line Connection￿for￿protective￿earth Connection￿for￿proximity￿line Connection￿for￿phase￿L1 Connection￿for￿neutral￿conductor￿(N) Mechanical￿guide/connector￿housing Button￿for￿the￿mechanical￿unlocking￿of￿the￿connector￿before￿removal The￿connector￿of￿the￿charging￿cable￿and￿the￿charging￿socket￿in￿the￿vehicle￿are￿protected￿against direct￿contact.￿In￿addition,￿the￿geometry￿of￿the￿contacts￿is￿designed￿so￿that￿the￿following￿sequence results￿for￿the￿connection￿of￿the￿connector￿with￿the￿charging￿socket: Proximity￿line Protection￿earth￿(PE) Neutral￿conductor (N),￿phase L1 Pilot￿line.
  • Page 124 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery Only￿when￿the￿communication￿between￿the￿vehicle￿(LIM)￿and￿Electric￿Vehicle￿Supply￿Equipment￿has been￿started￿successfully￿via￿the￿pilot￿line,￿is￿the￿charging￿voltage￿applied￿to￿the￿phase L1.￿This￿also gives￿further￿protection￿for￿customers￿and￿Service￿employees￿against￿the￿dangers￿of￿electricity. With￿this￿stationary￿version￿of￿the￿EVSE￿the￿lines￿can￿transmit￿up￿to￿7.4 kW.￿The￿AC/DC￿converter in￿the￿convenience￿charging￿electronics￿(3.7 kW)￿and￿in￿the￿electrical￿machine￿electronics￿(3.7 kW) ensure￿the￿conversion￿of￿the￿single-phase￿AC￿voltage￿to￿the￿direct￿current￿voltage￿required￿for charging￿the￿high-voltage￿battery.￿The￿duration￿of￿the￿full￿charge￿of￿an￿empty￿high-voltage￿battery￿of the￿I01￿can￿then￿be￿reduced￿to￿three￿to￿four￿hours. 6.3.3.￿Convenience￿charging￿electronics The￿convenience￿charging￿electronics￿(KLE)￿is￿installed￿in￿the￿rear￿of￿the￿I01,￿in￿an￿area￿separated￿from the￿luggage￿compartment. Installation￿location￿of￿the￿convenience￿charging￿electronics The￿main￿task￿of￿the￿convenience￿charging￿electronics￿(KLE)￿during￿AC￿charging￿at￿7.4 kW￿is￿the conversion￿of￿the￿AC￿voltage￿to￿direct￿current￿voltage.￿A￿rectifier￿switching￿in￿the￿KLE￿comprising￿two modules￿completes￿this￿task.￿These￿power￿electronics￿modules￿are￿controlled￿by￿a￿control￿unit,￿which also￿bears￿the￿same￿name:￿Convenience￿charging￿electronics￿(KLE). The￿convenience￿charging￿electronics￿is￿designed￿so￿it￿can￿provide￿a￿maximum￿electrical￿power￿of 3.7 kW￿on￿the￿output￿side.￿Together￿with￿the￿3.7 kW￿from￿the￿standard￿power￿electronics￿of￿the￿EME, this￿is￿sufficient￿in￿the￿I01￿to￿fully￿charge￿the￿high-voltage￿battery￿(at￿optimal￿marginal￿conditions)￿in three￿to￿six￿hours.￿This￿short￿charging￿time￿means￿enhanced￿comfort￿for￿the￿customer￿when￿using￿the I01.￿For￿this￿reason,￿this￿charging￿electronics￿was￿called￿"convenience￿charging￿electronics". The￿AC￿voltage￿is￿fed￿to￿the￿vehicle￿or￿the￿convenience￿charging￿electronics￿via￿a￿single-phase￿supply. The￿input￿voltage,￿which￿can￿be￿processed￿by￿the￿convenience￿charging￿electronics,￿may￿be￿in￿the following￿range:￿100 V￿–￿240 V,￿50 Hz￿or￿60 Hz.￿At￿the￿output,￿which￿is￿separated￿galvanically￿from the￿input,￿the￿convenience￿charging￿electronics￿supplies￿an￿electronically￿adjustable￿direct￿current voltage￿or￿an￿electronically￿adjustable￿direct￿current￿flows.￿The￿specifications￿for￿the￿output￿voltage and￿the￿output￿current￿come￿from￿the￿function￿"High-voltage￿power￿management"￿in￿the￿EME￿control unit.￿The￿values￿are￿calculated￿and￿adjusted￿by￿the￿KLE￿so￿that￿the￿high-voltage￿battery￿is￿optimally charged￿and￿the￿other￿consumers￿in￿the￿I01￿are￿supplied￿with￿sufficient￿electrical￿energy.
  • Page 125 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery Although￿the￿convenience￿charging￿electronics￿works￿at￿a￿high￿degree￿of￿efficiency￿of￿well￿over￿90%, active￿cooling￿is￿required￿at￿full￿performance.￿For￿this￿reason￿it￿is￿integrated￿in￿the￿cooling￿circuit￿of￿the electric￿motor. In￿addition￿to￿the￿voltage￿conversion￿and￿energy￿provision,￿the￿convenience￿charging￿electronics￿also assumes￿safety￿functions￿which￿protect￿the￿customer￿and￿Service￿employee￿from￿the￿dangers￿of electricity.￿Nevertheless,￿the￿following￿applies: The￿convenience￿charging￿electronics￿is￿a￿high-voltage￿component￿ Only￿qualified￿Service￿employees￿can￿work￿on￿the￿convenience￿charging￿electronics￿while￿observing the￿repair￿instructions. Before￿working￿on￿the￿convenience￿charging￿electronics,￿it￿is￿essential￿to￿observe￿the￿electrical￿safety rules. Similar￿to￿all￿high-voltage￿components,￿the￿convenience￿charging￿electronics￿can￿only￿be￿replaced￿in Service￿if￿required,￿it￿cannot￿be￿opened￿or￿repairs. The￿manufacturer￿of￿the￿convenience￿charging￿electronics￿is￿"Meta￿System". Connections The￿connections￿at￿the￿convenience￿charging￿electronics￿can￿be￿divided￿into￿four￿categories: • Low-voltage￿connections • High-voltage￿connections • Connection￿for￿potential￿compensation￿line • Connections￿for￿coolant￿lines. The￿following￿graphic￿shows￿all￿connections￿of￿the￿convenience￿charging￿electronics:...
  • Page 126 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery Connections￿of￿the￿convenience￿charging￿electronics￿in￿the￿version￿for￿AC￿charging￿at￿7.4 kW Index Explanation High-voltage￿cable￿(AC)￿from￿the￿charging￿socket High-voltage￿cable￿(DC)￿to￿the￿electrical￿machine￿electronics Coolant￿line￿(supply) Low-voltage￿cables High-voltage￿cable￿(AC)￿from￿KLE￿to￿EME KLE￿mounting￿(potential￿compensation￿contact) High-voltage￿cable￿(DC)￿from￿REME Coolant￿line￿(return) Convenience￿charging￿electronics￿(KLE) Low-voltage￿connections The￿multipolar￿low-voltage￿connector￿at￿the￿convenience￿charging￿electronics￿joins￿the￿following￿lines and￿signals: • Voltage￿supply￿for￿the￿KLE￿control￿unit￿(terminal￿30B,￿terminal￿30￿from￿the￿power￿distribution box￿at￿the￿front￿and￿ground) • Voltage￿supply￿via￿terminal￿30C￿(quick￿shutdown￿in￿the￿event￿of￿an￿accident) • Bus￿system￿PT-CAN2...
  • Page 127 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery • Wake-up￿lines￿to￿the￿BDC￿control￿unit￿and￿EDME￿control￿unit • Control￿line￿from￿the￿LIM,￿with￿which￿the￿charging￿procedure￿is￿released • Inputs￿and￿outputs￿of￿the￿circuit￿of￿the￿high-voltage￿interlock￿loop￿(KLE￿control￿unit￿evaluates the￿signal). The￿KLE￿control￿unit￿is￿supplied￿with￿voltage￿via￿terminal￿30￿and￿terminal￿30B￿and￿has￿two￿wake-up line￿outputs.￿The￿convenience￿charging￿electronics￿can￿also￿wake￿up￿the￿control￿units￿in￿the￿vehicle electrical￿system￿when￿the￿charging￿cable￿is￿connected. Via￿the￿bus￿system￿PT-CAN2￿the￿KLE￿control￿unit￿receives￿the￿request￿and￿the￿control￿signals for￿charging.￿There￿is￿also￿a￿line￿which￿is￿wired￿directly￿from￿the￿LIM￿to￿the￿convenience￿charging electronics.￿Only￿when￿the￿LIM￿enables￿the￿charging￿procedure￿via￿a￿signal￿on￿this￿line,￿does￿the convenience￿charging￿electronics￿start￿the￿voltage￿conversion￿and￿thus￿the￿charging￿procedure. The￿high-voltage￿connectors￿of￿the￿convenience￿charging￿electronics￿are￿also￿integrated￿in￿the￿circuit of￿the￿high-voltage￿interlock￿loop.￿Via￿the￿low-voltage￿connection￿the￿test￿signal￿is￿forwarded￿to￿the high-voltage￿interlock￿loop￿and￿to￿the￿other￿high-voltage￿components.￿The￿KLE￿control￿unit￿monitors the￿test￿signal￿and￿interrupts￿the￿charging￿procedure￿if￿it￿is￿not￿in￿the￿specified￿range. High-voltage￿connections There￿are￿three￿high-voltage￿connections￿at￿the￿convenience￿charging￿electronics￿to￿connect￿the high-voltage￿cables￿to￿the￿charging￿socket￿(1￿x)￿and￿to￿the￿electrical￿machine￿electronics￿(2￿x).￿If￿the I01￿vehicle￿is￿equipped￿with￿a￿range￿extender,￿the￿convenience￿charging￿electronics￿has￿another￿high- voltage￿connection￿in￿order￿to￿connect￿the￿range￿extender￿electrical￿machine￿electronics￿REME.
  • Page 128 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery Connection￿to Number￿of￿contacts, Type￿of￿connection Contact￿protection components... voltage￿type, shielding Charging￿socket Round￿connector -￿HV￿contacts￿cannot￿be • 1-phase￿(phase touched￿with￿fingers L1￿and￿neutral -￿High-voltage￿interlock conductor￿N) loop • voltage • 1￿shielding￿for both￿lines Electrical Line￿from￿the￿AC/DC Flat￿high-voltage -￿Cover￿over￿the￿contact machine converter￿of￿the￿KLE￿to connector￿with blades electronics the￿EME mechanical￿lock -￿High-voltage￿interlock Round￿connector loop -￿HV￿contacts￿cannot￿be •...
  • Page 129 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery The￿charging￿of￿the￿high-voltage￿battery￿in￿the￿I01￿can￿only￿be￿effected￿if￿the￿potential￿compensation line￿is￿properly￿connected￿to￿the￿convenience￿charging￿electronics. Connections￿for￿coolant￿lines The￿convenience￿charging￿electronics￿is￿integrated￿in￿the￿cooling￿circuit￿of￿the￿electric￿motor.￿This cooling￿circuit￿is￿described￿in￿detail￿in￿chapter￿11￿"Cooling￿the￿electric￿motor￿components". 6.4.￿Combined￿Charging￿System The￿"Combined￿Charging￿System",￿or￿combo￿charging￿for￿short,￿is￿a￿charging￿system￿for￿electric and￿plug-in￿hybrid￿cars￿i.a.w.￿IEC￿62196￿and￿supports￿both￿AC￿charging￿(alternating￿current)￿and DC￿charging￿(direct￿current).￿A￿Phoenix￿contact￿was￿developed￿in￿cooperation￿with￿the￿automobile manufacturers￿and￿is￿essentially￿made￿up￿of￿a￿charging￿socket￿on￿the￿vehicle￿side,￿the￿so-called￿inlet, and￿a￿charging￿plug,￿in￿which￿the￿two￿individual￿charging￿plugs￿are￿integrated￿for￿AC￿and￿DC￿charging. Thanks￿to￿this￿universal￿connector￿system￿only￿one￿charging￿socket￿is￿required￿at￿the￿vehicle￿in order￿to￿cover￿the￿various￿charging￿options￿of￿AC￿and￿DC￿charging.￿A￿distinction￿is￿made￿between connections￿of￿type￿1￿(for￿the￿US￿market)￿and￿type￿2￿(for￿the￿European￿market).￿The￿contacts￿for￿the DC￿connection￿are￿the￿same￿in￿both￿versions.￿Due￿to￿the￿larger￿DC￿contacts￿in￿comparison￿to￿AC charging,￿currents￿of￿up￿to￿200￿A￿are￿possible,￿whereby￿Fast￿charging,￿for￿example￿during￿transport, can￿be￿possible. In￿the￿I01￿two￿versions￿of￿the￿combo￿charging￿are￿offered,￿depending￿on￿the￿AC￿charging￿power: • Combo￿charging￿at￿3.7 kW￿AC￿charging￿power￿(standard￿equipment￿in￿Europe) • Combo￿charging￿at￿7.4 kW￿AC￿charging￿power￿(standard￿equipment￿in￿USA) In￿US￿market￿vehicles￿option￿4U7￿DC￿Fast￿Charging￿is￿offered￿as￿optional￿equipment;￿this option￿includes￿the￿necessary￿hardware￿for￿the￿Combo￿charging￿at￿7.4￿kW￿AC￿charging￿or￿DC charging.
  • Page 130 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery 6.4.1.￿Wiring￿diagrams Wiring￿diagram￿for￿combo￿charging￿at￿7.4 kW￿(US￿market)
  • Page 131 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery Index Explanation Electrical￿Digital￿Motor￿Electronics￿(EDME) Voltage￿supply￿for￿KLE￿(terminal￿30B) High-voltage￿battery￿unit Battery￿management￿electronics￿(SME) Charging￿interface￿module￿(LIM) Electric￿motor￿for￿the￿connector￿fastener Electric￿motor￿for￿the￿central￿locking￿system￿of￿the￿charging￿socket￿cover Locator￿and￿status￿lighting Charging￿socket￿at￿the￿vehicle Convenience￿charging￿electronics￿(KLE) Electrical￿machine￿electronics￿(EME) Range￿Extender￿Electrical￿Machine￿Electronics￿(REME) Range￿extender￿electrical￿machine 6.4.2.￿Charging￿socket￿at￿the￿vehicle Charging￿socket￿at￿the￿vehicle￿for￿combo￿charging,￿type￿1￿(US￿market)

  • Page 132: Lim

    I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery Index Explanation Connection￿for￿proximity￿line Connection￿for￿phase￿L1 Connection￿for￿protective￿earth￿(PE) Connection￿for￿neutral￿conductor￿(N) Connection￿for￿pilot￿line Protective￿cap￿for￿AC￿charging￿socket Protective￿cap￿for￿DC￿charging￿socket Connection￿for￿DC￿ground￿cable Connection￿for￿DC￿positive￿wire The￿charging￿socket￿in￿the￿vehicle￿for￿combo￿charging￿includes￿the￿sockets￿for￿AC￿charging￿and￿the socket￿for￿DC￿charging.￿The￿advantage￿of￿this￿charging￿socket￿configuration￿is￿that￿the￿customer￿can use￿both￿AC￿charging￿stations￿and￿DC￿charging￿stations￿for￿charging￿the￿high-voltage￿battery. During￿DC￿charging￿an￿electric￿arc￿may￿form￿by￿disconnecting￿the￿charging￿plug￿during￿the￿charging procedure.￿To￿prevent￿this￿the￿charging￿plug￿is￿locked￿electromechanically￿during￿the￿charging procedure.￿This￿way￿a￿possible￿dangerous￿situation￿for￿the￿user￿is￿avoided.￿An￿ergonomic￿handle￿at the￿charging￿plug￿and￿low￿connection￿and￿disconnection￿forces￿enable￿comfortable￿operation￿of￿the connector￿using￿only￿one￿hand. Simultaneous￿charging￿via￿AC￿and￿DC￿is￿not￿possible. 6.4.3.￿LIM The￿main￿tasks￿of￿the￿LIM￿are￿already￿described￿previously￿in￿this￿chapter.￿Only￿the￿additional functions￿and￿tasks￿of￿the￿LIM￿for￿combo￿charging￿are￿described￿here.￿A￿new￿tasks￿of￿the￿LIM￿is,￿for example,￿the￿activation￿of￿the￿switch￿contactors￿in￿the￿KLE￿for￿DC￿charging. Communication Also￿for￿combo￿charging￿the￿LIM￿assumes￿the￿communication￿between￿the￿vehicle￿and￿the￿charging station.￿The￿communication￿between￿the￿vehicle￿and￿the￿charging￿station￿is￿enabled￿and￿the￿charging procedure￿is￿controlled￿via￿the￿pilot￿and￿proximity￿line. Using￿the￿proximity￿line￿the￿correct￿connection￿of￿the￿charging￿cable￿at￿the￿vehicle￿is￿identified￿and￿the maximum￿current￿carrying￿capacity￿of￿the￿charging￿cable￿is￿measured￿by￿the￿LIM￿using￿the￿resistor￿in the￿charging￿cable. The￿high-voltage￿power￿management￿in￿the￿EME￿sends￿a￿request￿to￿charge￿the￿high-voltage￿battery to￿the￿LIM￿via￿the￿PT-CAN.￿The￿LIM￿then￿starts￿the￿communication￿with￿the￿charging￿station￿via￿the pilot￿line.￿The￿information￿about￿charging￿requirement,￿charging￿range￿and￿accuracy￿is￿exchanged. Only￿after￿successful￿communication￿start￿is￿the￿charging￿voltage￿applied￿to￿the￿phase￿L1￿or￿to￿the DC￿positive￿wire￿and￿ground￿cable.￿This￿also￿gives￿further￿protection￿for￿customers￿and￿Service employees￿against￿the￿dangers￿of￿electricity. The￿LIM￿sends￿a￿signal￿for￿"Enable￿charging"￿for￿AC￿charging￿via￿the￿separate￿line￿to￿EME￿and￿KLE.
  • Page 133 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery For￿DC￿charging￿the￿LIM￿closes￿the￿two￿switch￿contactors￿in￿the￿KLE,￿thus￿enabling￿the￿shift￿through from￿the￿direct￿current￿voltage￿from￿the￿DC￿charging￿station￿to￿the￿high-voltage￿battery.￿The￿LIM￿tests after￿every￿completed￿DC￿charging￿procedure￿the￿DC￿switch￿contactors￿so￿that￿a￿switch￿contactor label￿(switch￿contactor￿cannot￿open￿the￿contacts)￿is￿identified.￿A￿switch￿contactor￿label￿(single￿or double)￿is￿identified￿by￿the￿LIM￿and￿sent￿to￿the￿EME￿as￿a￿fault￿code.￿If￿during￿the￿charging￿procedure no￿valid￿pilot￿signal￿is￿identified￿by￿the￿LIM,￿the￿LIM￿must￿open￿the￿DC￿switch￿contactors￿within 200 ms. The￿direct￿current￿voltage￿applied￿at￿the￿charging￿socket￿is￿measured￿by￿the￿KLE.￿The￿measured￿value is￿then￿sent￿to￿the￿LIM￿as￿an￿analog￿signal.￿The￿LIM￿then￿sends￿the￿calculated￿value￿via￿PT-CAN￿to other￿control￿units. Emergency￿charging If￿both￿the￿high-voltage￿and￿the￿12 V￿battery￿are￿discharged,￿the￿emergency￿charging￿of￿the￿12 V battery￿is￿automatically￿started￿when￿the￿charging￿cable￿is￿connected.￿As￿the￿two￿batteries￿are discharged,￿there￿is￿also￿no￿voltage￿supply￿of￿the￿12 V￿vehicle￿electrical￿system￿and￿the￿LIM￿is￿in￿this case￿initially￿not￿working.￿So￿that￿the￿LIM￿can￿start￿communication￿with￿the￿charging￿station￿and￿thus also￿the￿charging￿procedures,￿a￿special￿voltage￿supply￿of￿the￿LIM￿is￿required.￿The￿voltage￿supply￿for the￿LIM￿is￿effected￿in￿this￿case￿by￿the￿pilot￿line.￿The￿energy￿used￿by￿the￿pilot￿line￿is￿so￿low￿that￿the voltage￿evaluation￿for￿the￿EVSE￿is￿not￿affected. In￿order￿to￿identify￿emergency￿charging￿the￿voltage￿value￿of￿terminal￿30F￿is￿evaluated.￿The￿evaluation circuit￿is￿located￿in￿the￿LIM.￿If￿the￿voltage￿value￿of￿terminal￿30F￿falls￿below￿6 V￿and￿the￿pilot￿line￿is correctly￿connected,￿the￿evaluation￿circuit￿drags￿the￿voltage￿value￿on￿the￿pilot￿line￿to￿a￿value￿of￿6 V. This￿voltage￿value￿corresponds￿to￿the￿message￿at￿the￿charging￿station￿that￿the￿vehicle￿is￿ready￿for charging.￿The￿charging￿station￿is￿thus￿prompted￿to￿apply￿the￿vehicle￿voltage. 6.4.4.￿Convenience￿charging￿electronics￿(KLE) Convenience￿charging￿electronics￿for￿combo￿charging￿at￿7.4 kW￿AC￿charging￿power The￿KLE￿version￿installed￿for￿combo￿charging￿at￿7.4 kW￿AC￿charging￿power￿is￿responsible￿for￿the contact￿of￿all￿HV￿connections￿and￿the￿housing￿of￿the￿two￿DC￿switch￿contactors. In￿this￿case￿the￿KLE￿has￿no￿rectifier￿switching￿for￿the￿conversion￿of￿AC￿voltage￿to￿direct￿current voltage.￿The￿conversion￿of￿the￿AC￿voltage￿to￿direct￿current￿voltage￿takes￿place￿in￿the￿charging￿station. The￿full￿power￿of￿the￿AC￿network￿is￿used￿(all￿three￿phases).￿If￿all￿prerequisites￿for￿charging￿the￿high- voltage￿battery￿are￿satisfied,￿the￿LIM￿switches￿on￿the￿two￿switch￿contactors￿in￿the￿KLE.￿The￿charging station￿then￿provides￿the￿direct￿current￿voltage￿at￿the￿output￿for￿charging￿the￿high-voltage￿battery.￿The direct￿current￿voltage￿reaches￿the￿KLE￿via￿the￿charging￿socket￿and￿the￿high-voltage￿cables.￿The￿direct current￿voltage￿is￿directed￿via￿the￿high-voltage￿cables￿to￿the￿EME￿and￿then￿finally￿to￿the￿high-voltage battery.￿The￿high-voltage￿cables￿and￿the￿switch￿contactors￿are￿designed￿for￿an￿electrical￿power￿of￿up to￿50 kW.
  • Page 134 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery Convenience￿charging￿electronics￿for￿combo￿charging￿at￿7.4 kW￿AC￿charging￿power Index Explanation High-voltage￿cable￿(AC)￿from￿the￿charging￿socket High-voltage￿cable￿(DC)￿to￿the￿electrical￿machine￿electronics Low-voltage￿lines￿(for￿switching￿the￿switch￿contactors) Coolant￿line￿(supply) Low-voltage￿lines￿(signal￿connector) High-voltage￿cable￿(AC)￿from￿KLE￿to￿EME KLE￿mounting￿(potential￿compensation￿contact) High-voltage￿cable￿(DC)￿from￿REME Coolant￿line￿(return) High-voltage￿cable￿(DC)￿from￿the￿charging￿socket￿to￿the￿KLE Convenience￿charging￿electronics￿(KLE) With￿the￿combo￿charging￿at￿7.4 kW￿AC￿charging￿power￿the￿convenience￿charging￿electronics￿can convert￿both￿the￿single-phase￿AC￿voltage￿of￿the￿AC￿charging￿station￿to￿direct￿current￿voltage,￿and￿shift through￿the￿direct￿current￿voltage￿of￿the￿DC￿charging￿station￿for￿the￿electrical￿machine￿electronics and￿high-voltage￿battery￿using￿the￿DC￿switch￿contactors.￿The￿conversion￿of￿the￿AC￿voltage￿to￿the direct￿current￿voltage￿required￿for￿charging￿the￿high-voltage￿battery￿is￿done￿by￿the￿AC/DC￿converter at￿a￿maximum￿power￿of￿3.7 kW.￿The￿properties￿and￿function￿of￿the￿AC/DC￿converter￿were￿already...
  • Page 135 I01￿High-voltage￿Components 6.￿Charging￿the￿High-voltage￿Battery described￿in￿the￿previous￿chapter.￿Together￿with￿the￿standard￿AC/DC￿converter￿in￿the￿EME,￿which￿also provides￿an￿output￿power￿of￿3.7 kW,￿charging￿the￿high-voltage￿battery￿in￿the￿I01￿via￿the￿single-phase alternating￿current￿at￿7.4 kW￿is￿also￿possible. In￿this￿version￿of￿the￿convenience￿charging￿electronics￿two￿further￿switch￿contactors￿are￿housed￿which can￿shift￿through￿the￿direct￿current￿voltage￿of￿a￿DC￿charging￿station￿via￿the￿EME￿to￿the￿high-voltage battery.￿The￿function￿and￿activation￿of￿the￿switch￿contactors￿are￿described￿in￿the￿previous￿subchapter. At￿full￿performance￿of￿the￿AC/DC￿converter￿active￿cooling￿is￿required.￿The￿convenience￿charging electronics￿is￿therefore￿integrated￿in￿the￿cooling￿circuit￿of￿the￿electric￿motor.

  • Page 136: Ekk

    I01￿High-voltage￿Components 7.￿EKK Very￿high￿requirements￿are￿made￿of￿the￿heating￿and￿air-conditioning￿functions￿in￿the￿I01.￿On￿the￿one hand,￿the￿passenger￿compartment￿must￿always￿be￿at￿a￿pleasant￿temperature￿for￿the￿customer.￿On the￿other￿hand,￿in￿order￿to￿prolong￿the￿service￿life￿of￿the￿high-voltage￿battery,￿the￿high-voltage￿battery must￿be￿cooled￿at￿high￿temperatures. An￿EKK￿is￿used￿in￿the￿I01. The￿EKK￿is￿a￿high-voltage￿component￿ Only￿Service￿employees￿who￿satisfy￿all￿the￿prerequisites￿are￿permitted￿to￿work￿on￿the￿designated high-voltage￿components:￿suitable￿qualifications,￿compliance￿with￿the￿safety￿rules,￿procedure following￿the￿repair￿instructions￿to￿the￿letter. The￿diagnosis￿and￿repair￿of￿the￿high-voltage￿components￿is￿only￿allowed￿in￿a￿retail￿service center￿that￿has￿qualified￿and￿certified￿service￿technicians.￿These￿technicians￿must￿have completed￿the￿ST1403b￿I01￿High￿Voltage￿Battery￿and￿Maintenance￿instructor￿led￿course￿and successfully￿passed￿the￿hands￿on￿certification. 7.1.￿Location￿and￿connections The￿EKK￿is￿installed￿at￿the￿housing￿of￿the￿electrical￿machine. Installation￿location￿of￿EKK￿in￿the￿I01 Index Explanation Electrical￿machine High-voltage￿battery...
  • Page 137 I01￿High-voltage￿Components 7.￿EKK Mounting￿of￿the￿EKK￿at￿the￿electrical￿machine Index Explanation Screws Housing￿of￿the￿electrical￿machine The￿EKK￿is￿secured￿to￿the￿housing￿of￿the￿electrical￿machine￿using￿three￿screws. The￿housing￿of￿the￿EKK￿is￿mechanically￿disconnected￿from￿the￿housing￿of￿the￿electrical￿machine,￿thus improving￿the￿acoustic￿behavior.￿As￿the￿two￿housings￿are￿not￿connected,￿there￿is￿a￿separate￿potential compensation￿line￿of￿the￿housing￿of￿the￿EKK￿for￿the￿rear￿axle￿module￿(not￿shown￿in￿the￿graphic￿below).
  • Page 138 I01￿High-voltage￿Components 7.￿EKK Connections￿of￿the￿EKK￿in￿the￿I01￿(view￿from￿above) Index Explanation Low-voltage￿connector High-voltage￿connector Connection￿for￿intake￿pipe Silencer Connection￿for￿pressure￿line In￿the￿eight-pin￿signal￿connector￿the￿connections￿for￿local￿interconnect￿network￿bus,￿ground￿and￿the 12 V￿voltage￿supply￿(terminal￿30)￿are￿integrated. Special￿silencing￿in￿the￿pressure￿line￿provides￿for￿further￿acoustic￿comfort.￿The￿heating￿and￿air- conditioning￿is￿barely￿audible￿even￿when￿the￿vehicle￿is￿at￿a￿standstill.￿The￿mechanical￿disconnection￿of the￿EKK￿from￿the￿electrical￿machine￿also￿improves￿the￿acoustic￿behavior. 7.2.￿Structure￿of￿the￿electric￿A/C￿compressor When￿one￿talks￿about￿the￿EKK,￿the￿entire￿component￿is￿meant.￿The￿EKK￿comprises￿the￿following components:...
  • Page 139 I01￿High-voltage￿Components 7.￿EKK • Housing • EKK￿control￿unit • Three-phase￿current￿synchronous￿motor • AC￿inverter • Air￿conditioning￿compressor. These￿individual￿components￿are￿never￿replaced￿separately￿￿The￿entire￿EKK￿is￿always￿replaced.￿At￿this stage￿the￿tasks￿of￿some￿components￿are￿explained￿in￿order￿to￿better￿explain￿the￿function￿of￿the￿EKK. 7.2.1.￿EKK￿control￿unit The￿EKK￿control￿unit￿controls￿the￿engine￿speed￿of￿the￿three-phase￿motor￿in￿the￿EKK￿based￿on￿the requests￿of￿the￿IHKA￿and￿reports￿the￿operating￿status￿back￿to￿the￿IHKA￿control￿unit.￿The￿EKK￿control unit￿communicates￿with￿the￿IHKA￿via￿the￿LIN￿bus.￿The￿IHKA￿is￿the￿master￿control￿unit￿for￿the￿EKK. 7.2.2.￿Three-phase￿current￿synchronous￿motor A￿three-phase￿synchronous￿motor￿is￿used￿as￿the￿drive￿for￿the￿EKK.￿The￿energy￿is￿taken￿from￿the high-voltage￿battery.￿The￿necessary￿three-phase￿current￿is￿converted￿in￿the￿EKK￿using￿an￿AC￿inverter (DC/AC￿converter).￿The￿three-phase￿synchronous￿motor￿is￿operated￿in￿the￿engine￿speed￿range between￿860￿and￿8600 rpm￿and￿is￿infinitely￿variable.￿It￿uses￿an￿electrical￿power￿of￿up￿to￿4.5 kW.￿The maximum￿power￿is￿required,￿for￿example,￿at￿high￿ambient￿temperatures,￿high￿interior￿temperatures, high￿temperatures￿of￿the￿high-voltage￿battery￿and￿low￿air￿flow￿of￿the￿cooling￿module. 7.2.3.￿AC￿inverter The￿DC/AC￿converter￿converts￿the￿direct￿current￿voltage￿into￿the￿three-phase￿alternating￿current that￿is￿required￿to￿operate￿the￿three-phase￿synchronous￿motor.￿The￿EKK￿control￿unit￿and￿the￿DC/ AC￿converter￿are￿integrated￿in￿the￿aluminium￿housing￿of￿the￿EKK￿and￿are￿cooled￿by￿the￿gaseous refrigerant￿flowing￿past.￿If￿the￿temperature￿of￿the￿DC/AC￿converter￿exceeds￿125 °C,￿the￿high-voltage supply￿is￿shut￿off￿by￿the￿EKK￿control￿unit.￿The￿attempt￿is￿made￿through￿different￿measures￿such￿as speed￿increase￿for￿cooling￿initially￿not￿to￿allow￿the￿temperature￿to￿rise￿so￿high.￿The￿temperature￿is monitored￿by￿the￿electric￿A/C￿compressor￿control￿unit.￿If￿the￿temperature￿drops￿below￿112 °C,￿the EKK￿continues￿to￿run. The￿supply￿voltage￿for￿EKK￿has￿a￿voltage￿range￿of￿about￿200 V￿to￿410 V.￿The￿power￿is￿reduced￿above and￿below￿this￿voltage￿range￿or￿the￿EKK￿is￿switched￿off. 7.2.4.￿Air￿conditioning￿compressor To￿compress￿the￿refrigerant,￿the￿spiral￿compressor￿(also￿known￿as￿the￿scroll￿compressor)￿is￿used. R134a￿refrigerant￿is￿used￿for￿the￿US￿market.
  • Page 140 I01￿High-voltage￿Components 7.￿EKK Discs￿with￿spiral￿profile Index Explanation Shaft Inner￿disc￿with￿spiral￿profile Outer￿disc￿with￿spiral￿profile The￿inner￿disc￿with￿spiral￿profile￿is￿driven￿via￿a￿shaft￿by￿the￿three-phase￿current￿synchronous￿motor and￿rotates￿eccentrically.￿The￿gaseous￿refrigerant￿at￿low￿temperature￿and￿low￿pressure￿is￿drawn￿in through￿two￿openings￿in￿the￿fixed￿outer￿disc￿with￿spiral￿profile￿and￿compressed￿and￿heated￿by￿the movement￿of￿the￿two￿discs￿with￿spiral￿profiles. Principle￿of￿refrigerant￿compression After￿three￿revolutions,￿the￿refrigerant￿drawn￿in￿is￿compressed￿and￿heated￿and￿can￿escape￿in￿a gaseous￿state￿through￿an￿opening￿in￿the￿center￿of￿the￿outer￿disc.￿From￿here,￿gaseous￿refrigerant with￿high￿temperature￿and￿high￿pressure￿escapes￿via￿an￿oil￿separator￿at￿the￿connection￿of￿the￿A/C compressor￿towards￿the￿condenser.￿The￿EKK￿is￿operated￿at￿maximum￿8600 rpm￿and￿generates￿a maximum￿operating￿pressure￿of￿about￿30 bar. 7.3.￿High-voltage￿safety...
  • Page 141 I01￿High-voltage￿Components 7.￿EKK Functional￿wiring￿diagram￿for￿the￿EKK Index Explanation Low-voltage￿connector EKK￿(EKK￿control￿unit) High-voltage￿battery Electrical￿machine￿electronics Bidirectional￿AC/DC￿converter￿in￿the￿EME Electrical￿machine High-voltage￿connector￿at￿EKK Unidirectional￿inverter￿DC/AC￿converter￿in￿the￿EKK Three-phase￿current￿synchronous￿motor Temperature￿sensor Pressure￿sensor The￿high-voltage￿contacts￿of￿the￿round￿high-voltage￿connector￿for￿the￿EKK￿are￿protected￿against contact. The￿high-voltage￿connector￿of￿the￿EKK￿is￿not￿part￿of￿the￿circuit￿of￿the￿high-voltage￿interlock￿loop. The￿electrical￿capacity￿in￿the￿EKK￿is￿less￿than￿100￿µF.￿This￿capacity￿is￿discharged￿via￿a￿passive￿resistor in￿the￿EKK.￿After￿the￿EKK￿is￿shut￿down￿the￿voltage￿falls￿to￿below￿60 V￿in￿less￿than￿5￿seconds.
  • Page 142 I01￿High-voltage￿Components 8.￿Electric￿Heating Due￿to￿the￿high￿efficiency￿considerably￿less￿heat￿is￿emitted￿from￿the￿electrical￿machine￿than￿from combustion￿engines.￿The￿heat￿from￿the￿electrical￿machine￿can￿therefore￿not￿be￿used￿for￿heating.￿In order￿to￿be￿able￿to￿control￿the￿interior￿temperature￿of￿the￿passenger￿compartment,￿electric￿heating￿is installed￿in￿the￿I01. The￿electric￿heating￿is￿a￿high-voltage￿component￿ Only￿Service￿employees￿who￿satisfy￿all￿the￿prerequisites￿are￿permitted￿to￿work￿on￿the￿designated high-voltage￿components:￿suitable￿qualifications,￿compliance￿with￿the￿safety￿rules,￿procedure following￿the￿repair￿instructions￿to￿the￿letter. The￿diagnosis￿and￿repair￿of￿the￿high-voltage￿components￿is￿only￿allowed￿in￿a￿retail￿service center￿that￿has￿qualified￿and￿certified￿service￿technicians.￿These￿technicians￿must￿have completed￿the￿ST1403b￿I01￿High￿Voltage￿Battery￿and￿Maintenance￿instructor￿led￿course￿and successfully￿passed￿the￿hands￿on￿certification. 8.1.￿Location￿and￿connections The￿installation￿location￿of￿the￿electric￿heating￿is￿in￿the￿space￿below￿the￿engine￿compartment￿lid. Installation￿location￿of￿the￿electric￿heating Index Explanation Electric￿heating Coolant￿expansion￿tank...
  • Page 143 I01￿High-voltage￿Components 8.￿Electric￿Heating Connections￿at￿the￿electric￿heating Index Explanation Connection￿for￿coolant￿return Sensor￿for￿temperature￿of￿the￿coolant￿at￿the￿output￿of￿the￿electric￿heating Connection￿for￿potential￿compensation￿line Signal￿connector￿(low-voltage￿connector) Connection￿for￿sensor Connection￿for￿high-voltage￿connector Housing￿of￿the￿electric￿heating Connection￿for￿coolant￿return...
  • Page 144 I01￿High-voltage￿Components 8.￿Electric￿Heating 8.2.￿Operating￿principle Heating￿for￿the￿passenger￿compartment￿in￿the￿standard￿equipment Index Explanation Heat￿exchanger￿in￿the￿passenger￿compartment Electric￿heating Electric￿coolant￿pump￿(12 V) Coolant￿expansion￿tank The￿coolant￿is￿heated￿up￿in￿the￿electric￿heating￿and￿circulated￿by￿an￿electric￿coolant￿pump￿(20 W). The￿warm￿coolant￿flows￿through￿the￿heat￿exchanger￿in￿the￿passenger￿compartment￿and￿emits￿the heat.￿The￿warm￿air￿finally￿reaches￿the￿passenger￿compartment￿by￿means￿of￿a￿blower.￿The￿refrigerant￿is conveyed￿from￿the￿heat￿exchanger￿to￿the￿coolant￿expansion￿tank. A￿mixture￿of￿water￿and￿a￿new￿coolant￿concentrate￿called￿"coolant￿concentrate￿i3"￿is￿used￿as￿a￿coolant. The￿water￿and￿coolant￿concentrate￿are￿mixed￿in￿the￿ratio￿50:50.
  • Page 145 I01￿High-voltage￿Components 8.￿Electric￿Heating Index Explanation Connection￿for￿coolant￿supply￿from￿the￿electrical￿12 V￿coolant￿pump￿or￿with corresponding￿optional￿equipment￿from￿the￿heat￿pump￿capacitor Connection￿for￿coolant￿return￿(to￿the￿heat￿exchanger￿for￿the￿passenger compartment) Sensor￿for￿temperature￿of￿the￿coolant￿at￿the￿output￿of￿the￿electric￿heating High-voltage￿connection Three￿heater￿coils The￿maximum￿electrical￿power￿of￿the￿electric￿heating￿is￿5.5 kW￿(280 V￿x￿20 A).￿The￿electric￿heating￿is done￿by￿three￿heater￿coils,￿each￿with￿a￿power￿of￿about￿0.75 kW,￿1.5 kW￿and￿2.25 kW.￿The￿switching of￿the￿heater￿coils￿(individually￿or￿together)￿is￿effected￿within￿the￿electric￿heating￿using￿an￿electronic switch￿(Power￿MOSFET).
  • Page 146 I01￿High-voltage￿Components 8.￿Electric￿Heating Functional￿wiring￿diagram￿for￿the￿electric￿heating Index Explanation Low-voltage￿connector Sensor￿for￿temperature￿of￿the￿printed￿circuit￿board￿of￿the￿control￿unit￿for electric￿heating Sensor￿for￿temperature￿of￿the￿return￿coolant Electric￿heating￿(control￿unit) High-voltage￿battery Electrical￿machine￿electronics Bidirectional￿AC/DC￿converter￿in￿the￿EME Electrical￿machine High-voltage￿connector￿at￿electric￿heating Hardware￿shutdown￿in￿the￿event￿of￿excessive￿current￿in￿heater￿coil￿3 Hardware￿shutdown￿in￿the￿event￿of￿excessive￿current￿in￿heater￿coil￿2 Hardware￿shutdown￿in￿the￿event￿of￿excessive￿current￿in￿heater￿coil￿1 Electronic￿switch￿(Power￿MOSFET)￿for￿heater￿coil￿1 Electronic￿switch￿(Power￿MOSFET)￿for￿heater￿coil￿2...
  • Page 147 I01￿High-voltage￿Components 8.￿Electric￿Heating Index Explanation Electronic￿switch￿(Power￿MOSFET)￿for￿heater￿coil￿3 Heater￿coil￿1 Heater￿coil￿2 Heater￿coil￿3 The￿current￿through￿the￿individual￿strands￿is￿measured￿and￿controlled￿by￿the￿electric￿heating￿control unit.￿A￿current￿of￿maximum￿20￿A￿flows￿in￿a￿voltage￿range￿of￿250 V￿to￿400 V.￿The￿power￿is￿reduced above￿and￿below￿this￿voltage￿range.￿At￿increased￿power￿consumption￿the￿energy￿supply￿by￿the hardware￿switching￿is￿interrupted.￿This￿switching￿is￿designed￿so￿that￿even￿in￿the￿event￿of￿a￿fault￿in￿the control￿unit￿a￿power￿cut￿is￿effected￿safely. The￿temperature￿of￿the￿coolant￿is￿measured￿using￿a￿sensor￿at￿the￿output￿of￿the￿electric￿heating. Inside￿the￿electric￿heating￿a￿galvanic￿separation￿was￿installed￿between￿the￿high-voltage￿circuit￿and￿the low-voltage￿circuit. The￿connections￿for￿local￿interconnect￿network￿bus￿and￿voltage￿supply￿(terminal￿30B)￿are￿located￿at the￿low-voltage￿connector. A￿bridge￿is￿integrated￿in￿the￿high-voltage￿connector￿beside￿the￿contacts￿for￿the￿high￿voltage.￿The contacts￿of￿the￿bridge￿in￿the￿high-voltage￿connector￿are￿designed￿as￿leading￿contacts.￿This￿means when￿removing￿the￿high-voltage￿connector￿the￿contacts￿of￿the￿high-voltage￿bridge￿are￿separated￿first. As￿a￿result,￿the￿voltage￿supply￿of￿the￿control￿unit￿(EH)￿is￿interrupted.￿This￿also￿means￿the￿high-voltage supply￿is￿interrupted￿before￿the￿high-voltage￿connector￿is￿pulled￿out￿fully.￿No￿electric￿arc￿thus￿arises on￿the￿high-voltage￿contacts.￿The￿high-voltage￿contacts￿are￿protected￿from￿contact.￿The￿high-voltage connector￿of￿the￿electric￿heating￿is￿not￿part￿of￿the￿circuit￿of￿the￿high-voltage￿interlock￿loop. 8.3.￿Control￿system Six￿heating￿stages￿can￿be￿set￿through￿separate￿or￿combined￿activation￿of￿the￿individual￿heater￿coils. The￿request￿for￿switching￿on￿the￿heating￿comes￿from￿the￿IHKA￿control￿unit￿via￿local￿interconnect network￿bus. Heater￿coil Heating￿stage 1￿+￿3 2￿+￿3 1￿+￿2￿+￿3 When￿the￿maximum￿temperature￿is￿reached￿or￿if￿the￿maximum￿permissible￿current￿level￿is￿exceeded, the￿heater￿output￿is￿automatically￿restricted￿by￿the￿electric￿heating￿control￿unit. The￿electric￿heating￿is￿switched￿off￿in￿the￿event￿of￿system￿faults. The￿electric￿heating￿is￿maintenance-free.

  • Page 148: Introduction

    I01￿High-voltage￿Components 9.￿Range￿Extender￿Electrical￿Machine 9.1.￿Introduction The￿high-voltage￿components￿examined￿up￿to￿now￿pave￿the￿way￿for￿a￿pure￿electric￿driving￿of￿the I01.￿The￿electrical￿machine￿receives￿the￿energy￿required￿for￿the￿electric￿motor￿from￿the￿high-voltage battery.￿The￿EME￿converts￿the￿direct￿current￿voltage￿from￿the￿high-voltage￿battery￿into￿3-phase￿AC voltage. The￿I01￿with￿a￿pure￿electric￿driving￿is￿designed￿so￿that￿a￿distance￿of￿about￿150 km￿/￿93￿mi￿(115￿mi using￿efficiency￿mode)￿can￿be￿covered￿before￿the￿high-voltage￿battery￿must￿be￿charged￿up￿again.￿The high-voltage￿battery￿can￿also￿be￿charged￿at￿an￿earlier￿stage. A￿I01￿which￿is￿equipped￿with￿a￿range￿extender￿can￿cover￿a￿distance￿of￿about￿300 km￿/￿186￿mi￿(200 mi￿using￿efficiency￿mode)￿before￿the￿high-voltage￿battery￿has￿to￿be￿charged￿or￿the￿tank￿has￿to￿be refuelled.￿This￿means￿a￿I01￿with￿range￿extender￿offers￿double￿the￿range￿in￿comparison￿to￿a￿I01￿with￿a purely￿electric￿motor. Also￿in￿the￿I01￿with￿range￿extender￿the￿electric￿motor￿with￿energy￿from￿the￿high-voltage￿battery￿is￿used as￿a￿primary￿drive￿type.￿The￿range￿extender￿system￿is￿only￿activated￿when￿the￿state￿of￿charge￿of￿the high-voltage￿battery￿falls￿below￿a￿certain￿value. The￿range￿extender￿system￿consists￿of￿the￿following￿components: • W20￿Combustion￿engine • Range￿extender￿electrical￿machine • Range￿Extender￿Electrical￿Machine￿Electronics • Range￿Extender￿Digital￿Engine￿Electronics. The￿W20￿combustion￿engine￿is￿a￿2-cylinder￿engine.￿It￿is￿a￿small,￿very￿smooth-running￿and￿quiet gasoline￿engine,￿which￿is￿connected￿mechanically￿to￿the￿range￿extender￿electrical￿machine￿via￿a geared￿shaft.￿At￿a￿low￿state￿of￿charge￿of￿the￿high-voltage￿battery￿the￿W20￿engine￿is￿started￿using￿the range￿extender￿electrical￿machine.￿In￿this￿case￿the￿range￿extender￿electrical￿machine￿works￿in￿engine mode.￿The￿electrical￿energy￿for￿starting￿the￿W20￿engine￿comes￿from￿the￿high-voltage￿battery.￿As￿soon as￿the￿W20￿has￿been￿started,￿the￿range￿extender￿electrical￿machine￿changes￿from￿engine￿to￿alternator mode￿and￿generates￿electrical￿energy￿which￿is￿used￿for￿the￿electric￿motor￿of￿the￿vehicle￿via￿the￿(main) electrical￿machine.￿The￿W20￿engine￿is￿not￿connected￿mechanically￿to￿the￿sprockets.￿The￿mechanical energy￿of￿the￿W20￿engine￿is￿converted￿by￿the￿range￿extender￿electrical￿machine￿solely￿into￿electrical energy.￿The￿(main)￿electrical￿machine￿uses￿this￿electrical￿energy￿and￿converts￿it￿to￿mechanical￿energy to￿drive￿the￿rear￿wheels.￿The￿layout￿of￿these￿components￿corresponds￿to￿a￿serial￿hybrid￿car. In￿this￿chapter￿the￿range￿extender￿electrical￿machine￿is￿described￿and￿in￿the￿next￿chapter￿details￿are provided￿on￿the￿range￿extender￿electrical￿machine￿electronics. The￿W20￿engine￿and￿the￿engine￿control￿of￿the￿range￿extender￿digital￿engine￿electronics￿are￿described in￿the￿product￿information￿bulletin￿"W20￿Engine".
  • Page 149 I01￿High-voltage￿Components 9.￿Range￿Extender￿Electrical￿Machine Size Value Nominal￿voltage 250 V Continuous￿power,￿electrical about￿23.3 kW￿electrical￿DC￿power￿at￿4300 rpm and￿330 V￿DC Efficiency about￿94% Outer￿diameter about￿300 mm Length about￿115 mm Weight about￿26 kg The￿range￿extender￿electrical￿machine￿is￿supplied￿by￿Valeo. Installation￿location￿of￿the￿range￿extender￿electrical￿machine Index Explanation Rear￿axle￿module Range￿extender￿electrical￿machine Range￿extender￿(W20￿engine)

  • Page 150: Design

    I01￿High-voltage￿Components 9.￿Range￿Extender￿Electrical￿Machine The￿range￿extender￿electrical￿machine￿is￿installed￿in￿the￿rear￿of￿the￿I01. 9.3.￿Design The￿range￿extender￿electrical￿machine￿in￿the￿I01￿is￿a￿synchronous￿machine.￿Its￿general￿structure￿and operating￿principle￿correspond￿to￿those￿of￿a￿permanently￿excited￿synchronous￿machine￿with￿internal rotor:￿The￿rotor￿is￿located￿inside￿and￿is￿equipped￿with￿permanent￿magnets.￿The￿stator￿is￿ring-shaped and￿located￿outside￿around￿the￿rotor.￿It￿is￿shaped￿with￿iron￿cores￿through￿the￿3-phase￿coils.￿If￿a￿3- phase￿AC￿voltage￿is￿applied￿to￿the￿stator￿coils,￿they￿generate￿a￿rotating￿magnetic￿field,￿which￿"pulls" the￿magnets￿in￿the￿rotor￿(in￿engine￿operation). 9.3.1.￿Cooling Connections￿for￿coolant￿lines Index Explanation Range￿extender￿electrical￿machine Connection￿for￿coolant￿line￿(supply) Connection￿for￿coolant￿line￿(return) Retaining￿springs￿for￿the￿coating Ventilation...

  • Page 151: Sensors

    I01￿High-voltage￿Components 9.￿Range￿Extender￿Electrical￿Machine The￿electrical￿machine￿is￿designed￿for￿a￿large￿temperature￿range.￿The￿coolant￿can￿reach￿a￿temperature of￿up￿to￿70 °C￿(158￿°F)￿at￿the￿input￿(supply)￿at￿a￿flow￿of￿six￿liters￿per￿minute.￿The￿temperature￿at the￿input￿is￿time-restricted￿and￿can￿rise￿up￿to￿85 °C￿(185￿°F).￿And￿although￿the￿electrical￿machine demonstrates￿less￿losses￿during￿energy￿conversion￿than￿a￿combustion￿engine,￿its￿housing￿can￿absorb a￿temperature￿of￿up￿to￿100 °C￿(212￿°F). The￿two￿connections￿for￿the￿coolant￿lines￿integrate￿the￿range￿extender￿electrical￿machine￿in￿the cooling￿circuit￿of￿the￿electric￿motor.￿This￿is￿described￿in￿the￿chapter￿"Cooling￿of￿electric￿motor components".￿The￿graphics￿in￿this￿chapter￿show￿the￿range￿extender￿electrical￿machine￿and￿the￿W20 engine￿without￿coating.￿In￿the￿production￿vehicle￿sometimes￿these￿components￿are￿still￿covered￿by￿a foam￿part.￿This￿serves￿for￿the￿acoustic￿encapsulation￿of￿the￿range￿extender￿components￿and￿absorbs noises￿which￿the￿customer￿may￿find￿irritating. The￿housing￿of￿the￿range￿extender￿electrical￿machine￿is￿airtight￿and￿waterproof.￿A￿vent￿line￿is￿required to￿prevent￿water￿(resulting￿from￿temperature￿changes￿and￿thus￿possible￿condensation￿of￿air￿humidity) collecting￿inside￿the￿range￿extender￿electrical￿machine. 9.3.2.￿Sensors Temperature￿sensor In￿order￿to￿avoid￿damage￿to￿the￿components￿due￿to￿the￿high￿temperature,￿there￿is￿a￿temperature sensor￿in￿the￿range￿extender￿electrical￿machine￿of￿the￿I01.￿The￿temperature￿sensor￿is￿a￿temperature- dependent￿resistor￿and￿is￿located￿in￿the￿coils￿of￿the￿stator.￿The￿temperature￿of￿the￿rotor￿is￿not measured￿directly,￿but￿can￿be￿determined￿from￿the￿measured￿values￿of￿the￿temperature￿sensors￿in the￿stator.￿The￿signal￿is￿read￿in￿and￿evaluated￿analogously￿by￿the￿range￿extender￿electrical￿machine electronics. Rotor￿position￿sensor The￿rotor￿position￿sensor￿cannot￿be￿replaced￿in￿Service￿...
  • Page 152 I01￿High-voltage￿Components 9.￿Range￿Extender￿Electrical￿Machine Rotor￿position￿sensor￿in￿range￿extender￿electrical￿machine Index Explanation Rotor￿position￿sensor￿in￿the￿range￿extender￿electrical￿machine Connection￿for￿rotor￿position￿sensor Connection￿for￿temperature￿sensor So￿that￿the￿voltages￿for￿the￿coils￿in￿the￿stator￿can￿be￿correctly￿calculated￿and￿generated￿by￿the￿range extender￿electrical￿machine￿electronics￿in￿terms￿of￿amplitude￿and￿phase￿layer,￿the￿precise￿angle setting￿of￿the￿rotor￿must￿be￿known.￿This￿is￿why￿there￿is￿also￿a￿rotor￿position￿sensor￿in￿the￿range extender￿electrical￿machine. The￿rotor￿position￿sensor￿is￿secured￿at￿the￿stator￿of￿the￿range￿extender￿electrical￿machine￿and￿works according￿to￿the￿tilt￿sensor￿principle.￿There￿are￿three￿coils￿in￿the￿rotor￿position￿sensor.￿A￿defined AC￿voltage￿is￿fed￿to￿one￿of￿the￿coils.￿The￿other￿two￿coils￿are￿each￿moved￿90°.￿The￿voltages￿induced in￿these￿coils￿provide￿information￿about￿the￿angle￿setting￿of￿the￿rotor.￿The￿rotor￿position￿sensor￿is mounted￿by￿the￿manufacturer￿of￿the￿range￿extender￿electrical￿machine￿at￿the￿corresponding￿alignment so￿that￿it￿is￿already￿correctly￿adjusted.
  • Page 153 I01￿High-voltage￿Components 9.￿Range￿Extender￿Electrical￿Machine 9.4.￿External￿characteristics￿and￿interfaces 9.4.1.￿Mechanical￿interfaces Mounting￿of￿the￿range￿extender￿electrical￿machine Index Explanation W20￿Combustion￿engine Mounting￿bolts￿for￿range￿extender￿electrical￿machine￿(x6) Range￿extender￿electrical￿machine Cover￿over￿the￿rotor￿position￿sensor The￿range￿extender￿electrical￿machine￿is￿secured￿at￿the￿crankcase￿of￿the￿W20￿engine￿using￿six screws. The￿power￿transmission￿between￿the￿crankshaft￿of￿the￿combustion￿engine￿and￿the￿range￿extender electrical￿machine￿is￿effected￿via￿a￿geared￿shaft.
  • Page 154 I01￿High-voltage￿Components 9.￿Range￿Extender￿Electrical￿Machine The￿cover￿over￿the￿rotor￿position￿sensor￿cannot￿be￿removed￿ Geared￿shaft￿for￿the￿power￿transmission Index Explanation Range￿extender￿electrical￿machine O-ring￿seal Grooved￿ball￿bearing Sealing￿ring Geared￿shaft The￿range￿extender￿electrical￿machine￿can￿be￿removed￿separately￿from￿the￿W20￿engine￿using￿a separate￿tool. Please￿refer￿to￿the￿repair￿instructions￿for￿the￿exact￿procedure.
  • Page 155 I01￿High-voltage￿Components 9.￿Range￿Extender￿Electrical￿Machine 9.4.2.￿Electrical￿interfaces There￿are￿both￿connections￿for￿the￿two￿sensors￿and￿also￿a￿high-voltage￿connection￿at￿the￿range extender￿electrical￿machine.￿The￿connections￿for￿the￿temperature￿sensor￿and￿the￿rotor￿position￿sensor were￿shown￿and￿described￿in￿the￿previous￿section. High-voltage￿connection￿at￿the￿range￿extender￿electrical￿machine Index Explanation Range￿extender￿electrical￿machine High-voltage￿connection￿at￿the￿range￿extender￿electrical￿machine Screws￿for￿mounting￿the￿high-voltage￿connection High-voltage￿connector￿and￿line￿to￿the￿REME 9.4.3.￿Coolant￿connections The￿two￿connections￿for￿the￿coolant￿lines￿integrate￿the￿range￿extender￿electrical￿machine￿in￿the cooling￿circuit￿of￿the￿electric￿motor.￿This￿is￿described￿in￿the￿chapter￿"Cooling￿of￿electric￿motor components".

  • Page 156: Reme

    I01￿High-voltage￿Components 10.￿REME 10.1.￿Introduction The￿main￿task￿of￿the￿range￿extender￿electrical￿machine￿electronics￿is￿to￿control￿the￿range￿extender electrical￿machine.￿It￿converts￿the￿direct￿current￿voltage￿from￿the￿high-voltage￿battery￿into￿a￿three- phase￿AC￿voltage￿(up￿to￿about￿420 V￿AC)￿for￿the￿activation￿of￿the￿range￿extender￿electrical￿machine￿as an￿engine.￿Currents￿of￿up￿to￿200￿A￿can￿flow.￿Vice￿versa,￿when￿the￿range￿extender￿electrical￿machine works￿as￿an￿alternator,￿the￿range￿extender￿electrical￿machine￿electronics￿converts￿the￿three-phase￿AC voltage￿of￿the￿range￿extender￿electrical￿machine￿to￿a￿direct￿current￿voltage￿and￿can￿thus￿supply￿the energy￿for￿the￿electric￿motor￿of￿the￿I01.￿The￿continuous￿phase￿currents￿of￿about￿130￿A￿flow.￿For￿these two￿operating￿modes￿a￿bidirectional￿DC/AC￿converter￿is￿necessary￿which￿can￿work￿as￿both￿an￿inverter and￿a￿rectifier. The￿entire￿range￿extender￿electrical￿machine￿electronics￿of￿the￿I01￿is￿located￿in￿an￿aluminium￿housing. This￿housing￿accommodates￿the￿control￿unit￿and￿the￿bidirectional￿DC/AC. The￿range￿extender￿electrical￿machine￿electronics￿is￿a￿high-voltage￿component￿ Only￿Service￿employees￿who￿satisfy￿all￿the￿prerequisites￿are￿permitted￿to￿work￿on￿the￿designated high-voltage￿components:￿suitable￿qualifications,￿compliance￿with￿the￿safety￿rules,￿procedure following￿the￿repair￿instructions￿to￿the￿letter. The￿diagnosis￿and￿repair￿of￿the￿high-voltage￿components￿is￿only￿allowed￿in￿a￿retail￿service center￿that￿has￿qualified￿and￿certified￿service￿technicians.￿These￿technicians￿must￿have completed￿the￿ST1403b￿I01￿High￿Voltage￿Battery￿and￿Maintenance￿instructor￿led￿course￿and successfully￿passed￿the￿hands￿on￿certification. The￿housing￿of￿the￿range￿extender￿electrical￿machine￿electronics￿cannot￿be￿opened￿in￿Service. The￿range￿extender￿electrical￿machine￿electronics￿of￿the￿I01￿was￿developed￿and￿supplied￿by￿Bosch. The￿efficiency￿of￿the￿REME￿is￿96%.￿The￿weight￿of￿the￿REME￿is￿about￿6 kg. 10.2.￿Installation￿location￿and￿mounting The￿range￿extender￿electrical￿machine￿electronics￿is￿installed￿in￿the￿rear￿of￿the￿I01,￿in￿an￿area separated￿from￿the￿luggage￿compartment.
  • Page 157 I01￿High-voltage￿Components 10.￿REME Installation￿location￿of￿the￿REME The￿REME￿is￿secured￿at￿the￿rear￿axle￿module￿on￿the￿right￿using￿three￿screws. REME￿at￿rear￿axle￿module...
  • Page 158 I01￿High-voltage￿Components 10.￿REME Index Explanation Rear￿axle￿module Screws￿for￿mounting￿the￿heat￿shield Screws￿for￿mounting￿the￿REME￿at￿the￿rear￿axle￿module REME Heat￿shield￿for￿REME The￿heating￿of￿the￿REME￿by￿the￿combustion￿engine￿is￿reduced￿by￿a￿heat￿shield.￿The￿heat￿shield￿is secured￿to￿the￿REME￿using￿three￿screws.￿In￿order￿to￿remove￿the￿flat￿high-voltage￿connector￿and￿the signal￿connector￿from￿the￿REME,￿this￿heat￿shield￿has￿to￿be￿removed. 10.3.￿Connections￿at￿REME The￿following￿graphics￿show￿all￿the￿connections￿of￿the￿range￿extender￿electrical￿machine￿electronics. Details￿of￿the￿individual￿categories￿are￿provided￿in￿the￿following￿chapters.
  • Page 159 I01￿High-voltage￿Components 10.￿REME Connections￿at￿REME￿with￿lines Index Explanation Coolant￿line￿(return) Coolant￿line￿(supply) Signal￿line￿from￿the￿vehicle￿electrical￿system Potential￿compensation￿line Screw￿connection￿of￿the￿potential￿compensation￿screw￿at￿the￿rear￿axle￿module Screw￿connection￿of￿the￿potential￿compensation￿screw￿at￿the￿REME Range￿Extender￿Electrical￿Machine￿Electronics Signal￿connector 3-phase￿high-voltage￿cable￿to￿the￿range￿extender￿electrical￿machine Signal￿line￿from￿the￿range￿extender￿electrical￿machine Two-phase￿high-voltage￿cable￿to￿the￿EME￿or￿KLE...
  • Page 160 I01￿High-voltage￿Components 10.￿REME For￿a￿better￿overview￿the￿connections￿at￿the￿REME￿are￿shown￿without￿lines. Connections￿at￿the￿REME￿without￿connected￿lines Index Explanation Coolant￿connection￿(return) Coolant￿connection￿(supply) Potential￿compensation￿line Screw￿connection￿of￿the￿potential￿compensation￿screw￿at￿the￿REME Range￿Extender￿Electrical￿Machine￿Electronics Connection￿for￿signal￿connector Connection￿for￿three-phase￿high-voltage￿cable￿from￿the￿range￿extender electrical￿machine Connection￿for￿the￿two-pin￿high-voltage￿cable￿from￿the￿EME￿or￿KLE The￿connections￿at￿the￿range￿extender￿electrical￿machine￿electronics￿can￿be￿divided￿into￿four categories:...
  • Page 161 I01￿High-voltage￿Components 10.￿REME • Low-voltage￿connections • High-voltage￿connections • Connection￿for￿potential￿compensation￿line • Connections￿for￿coolant￿lines. 10.3.1.￿Low-voltage￿connections In￿the￿multipolar￿low-voltage￿connector￿at￿the￿range￿extender￿electrical￿machine￿electronics￿two￿multi- core￿lines￿with￿the￿following￿signals￿are￿combined: • Voltage￿supply￿for￿the￿REME￿control￿unit￿(terminal￿30B￿and￿ground￿connection) • PT-CAN￿2 • Two￿lines￿from￿the￿ACSM￿for￿the￿signal￿for￿the￿quick￿shutdown￿of￿the￿high-voltage￿system￿in the￿event￿of￿an￿accident￿of￿corresponding￿severity • Wake-up￿line • Input￿and￿output￿of￿the￿circuit￿of￿the￿high-voltage￿interlock￿loop￿(REME￿control￿unit￿does￿not evaluate￿the￿signal) • Rotor￿position￿sensor￿of￿the￿electrical￿machine￿(supply￿and￿sensor￿signals) • Signal￿of￿the￿temperature￿sensor￿in￿the￿stator￿coils￿of￿the￿electrical￿machine. These￿lines￿and￿signals￿have￿relatively￿low￿current￿levels. 10.3.2.￿High-voltage￿connections Two￿high-voltage￿cables￿are￿connected￿at￿the￿REME: • 3-phase￿high-voltage￿cable￿from￿the￿range￿extender￿electrical￿machine • Two-pin￿high-voltage￿cable￿from￿the￿KLE.
  • Page 162 I01￿High-voltage￿Components 10.￿REME High-voltage￿cables￿at￿the￿REME Index Explanation Range￿Extender￿Electrical￿Machine￿Electronics Flat￿two-pin￿high-voltage￿connector Range￿extender￿electrical￿machine 3-phase￿high-voltage￿connector￿at￿range￿extender￿electrical￿machine 3-phase￿high-voltage￿connector￿at￿range￿extender￿electrical￿machine electronics The￿procedure￿for￿removing￿the￿flat￿high-voltage￿connector￿was￿already￿described￿in￿chapter￿2￿of￿this product￿information￿bulletin. Three￿screws￿must￿be￿slackened￿to￿remove￿the￿3-phase￿high-voltage￿connector￿at￿the￿REME.
  • Page 163 I01￿High-voltage￿Components 10.￿REME 3-phase￿high-voltage￿connector￿at￿the￿REME Index Explanation Range￿Extender￿Electrical￿Machine￿Electronics Bridge￿for￿high-voltage￿interlock￿loop Screw￿for￿securing￿the￿high-voltage￿connector￿at￿the￿REME￿(under￿the￿bridge) Three-phase￿high-voltage￿connector Screws￿for￿securing￿the￿high-voltage￿connector￿at￿the￿REME Two￿of￿the￿three￿screws￿are￿accessible￿and￿can￿be￿easily￿slackened.￿To￿slacken￿the￿third￿screw￿the bridge￿of￿the￿high-voltage￿interlock￿loop￿must￿be￿removed￿first.￿Only￿then￿is￿the￿third￿screw￿visible￿and it￿can￿be￿slackened.￿Separating￿the￿bridge￿of￿the￿high-voltage￿interlock￿loop￿causes￿the￿high-voltage system￿to￿shut￿down. The￿connection￿of￿the￿two-pin￿line￿from￿the￿REME￿is￿dependent￿on￿the￿vehicle￿equipment.
  • Page 164 I01￿High-voltage￿Components 10.￿REME High-voltage￿connections￿at￿the￿REME Index Explanation Range￿extender￿electrical￿machine 3-phase￿high-voltage￿cables￿between￿range￿extender￿electrical￿machine￿and REME Range￿Extender￿Electrical￿Machine￿Electronics￿(REME) Electrical￿machine￿electronics￿(EME) Two-pin￿high-voltage￿cable￿between￿KLE Convenience￿charging￿electronics￿KLE Two-pin￿high-voltage￿cable￿between￿KLE￿and￿EME Three-phase￿high-voltage￿cable￿between￿EME￿and￿electrical￿machine Electrical￿machine Two-pin￿high-voltage￿cable￿between￿EME￿and￿high-voltage￿battery High-voltage￿battery...
  • Page 165 I01￿High-voltage￿Components 10.￿REME If￿a￿convenience￿charging￿electronics￿is￿installed￿in￿the￿vehicle,￿the￿REME￿is￿connected￿via￿a￿two-pin HV￿cable￿and￿a￿flat￿HV￿connector￿to￿the￿KLE.￿The￿KLE￿is￿also￿connected￿to￿the￿EME￿via￿a￿two-pin high-voltage￿cable￿and￿a￿flat￿high-voltage￿connector.￿The￿3-phase￿AC￿voltage￿generated￿by￿the￿range extender￿electrical￿machine￿is￿converted￿by￿the￿REME￿to￿direct￿current￿voltage￿and￿fed￿from￿the￿REME via￿the￿KLE￿to￿the￿EME￿via￿the￿high-voltage￿cables.￿The￿energy￿required￿to￿start￿the￿range￿extender combustion￿engine￿is￿provided￿by￿the￿high-voltage￿battery.￿The￿direct￿current￿voltage￿is￿directed￿via the￿EME￿and￿KLE￿to￿the￿REME￿by￿two-pin￿high-voltage￿cables.￿The￿EME￿and￿the￿KLE￿do￿not￿convert this￿direct￿current￿voltage,￿it￿is￿used￿solely￿for￿the￿contact.￿With￿this￿type￿of￿contact￿(via￿KLE)￿only￿one version￿of￿the￿EME￿(irrespective￿of￿the￿equipment)￿has￿to￿be￿installed￿in￿the￿I01. 10.3.3.￿Connections￿for￿coolant￿lines The￿range￿extender￿electrical￿machine￿electronics￿is￿integrated￿in￿the￿cooling￿circuit￿of￿the electric￿motor.￿This￿cooling￿circuit￿is￿described￿in￿detail￿in￿chapter￿11￿"Cooling￿the￿electric￿motor components". 10.3.4.￿Connection￿for￿potential￿compensation￿line The￿housing￿of￿the￿REME￿is￿connected￿to￿the￿rear￿axle￿module￿and￿thus￿ground￿via￿a￿potential compensation￿line.￿The￿potential￿compensation￿line￿is￿secured￿using￿a￿screw￿connection. 10.4.￿Structure￿and￿functions The￿range￿extender￿electrical￿machine￿electronics￿is￿made￿up￿internally￿of￿two￿subcomponents: the￿bidirectional￿DC/AC￿converter￿and￿the￿REME￿control￿unit.￿The￿link￿capacitors￿for￿smoothing￿the voltage￿and￿filtering￿high-frequency￿parts￿are￿also￿an￿element￿of￿the￿power￿electronics￿switching.￿It performs￿the￿following￿functions￿with￿help￿of￿the￿subcomponents￿mentioned: • Control￿of￿the￿electrical￿machine￿(engine￿speed,￿torque)￿using￿DC/AC￿converter • Reading￿and￿evaluation￿of￿the￿temperature￿sensor￿of￿the￿range￿extender￿electrical￿machine • Reading￿and￿evaluation￿of￿the￿rotor￿position￿sensor • Contact￿of￿the￿range￿extender￿electrical￿machine • Contact￿of￿the￿electrical￿machine￿electronics￿or￿the￿convenience￿charging￿electronics • Communication￿with￿other￿control￿units • Active￿and￿passive￿discharging￿of￿the￿link￿capacitors￿to￿voltages￿less￿then￿60 V • Self-test￿and￿diagnostic￿function The￿power￿electronics￿for￿the￿activation￿of￿the￿electrical￿machine￿are￿mainly￿made￿up￿of￿the bidirectional￿DC/AC￿converter.￿It￿is￿a￿pulse￿converter￿(also￿called￿"inverter")￿with￿a￿two-pin￿DC￿voltage...
  • Page 166 I01￿High-voltage￿Components 10.￿REME Input/Output￿of￿REME Index Explanation Body￿Domain￿Controller￿(BDC) Terminal￿status Electrical￿machine￿electronics￿(EME) Setpoint￿value,￿engine￿speed Crash￿Safety￿Module￿(ACSM) Signal￿for￿quick￿shutdown￿of￿the￿high-voltage￿system￿in￿the￿event￿of￿an accident Battery￿management￿electronics￿(SME) Information￿about￿the￿state￿of￿charge￿of￿the￿high-voltage￿battery Rotor￿position￿sensor￿of￿the￿range￿extender￿electrical￿machine Signal￿from￿rotor￿position￿sensor Range￿Extender￿Electrical￿Machine￿Electronics￿(REME)
  • Page 167 I01￿High-voltage￿Components 10.￿REME Index Explanation Temperature￿sensor￿of￿the￿range￿extender￿electrical￿machine Signal￿from￿temperature￿sensor Range￿extender￿electrical￿machine Bidirectional￿energy￿flow￿between￿REME￿and￿range￿extender￿electrical machine High-voltage￿battery Bidirectional￿energy￿flow￿between￿REME￿and￿high-voltage￿battery The￿operating￿mode￿of￿the￿DC/AC￿converter￿is￿defined￿by￿the￿REME￿control￿unit.￿The￿REME￿control unit￿receives￿the￿setpoint￿value￿as￿an￿important￿input￿variable￿from￿the￿EME￿control￿unit.￿From￿this setpoint￿value￿and￿the￿current￿operating￿condition￿of￿the￿range￿extender￿electrical￿machine￿(engine speed￿and￿torque)￿the￿REME￿control￿unit￿determines￿the￿operating￿mode￿of￿the￿DC/AC￿converter,￿as well￿as￿the￿amplitude￿and￿frequency￿of￿the￿phase￿voltages￿for￿the￿range￿extender￿electrical￿machine. According￿to￿these￿specifications,￿the￿power￿semiconductors￿of￿the￿DC/AC￿converter￿are￿activated￿in sync. In￿addition￿to￿the￿DC/AC￿converter,￿the￿power￿electronics￿also￿contains￿current￿sensors￿in￿all￿three phases￿on￿the￿AC￿voltage￿side￿of￿the￿DC/AC￿converter.￿Using￿the￿signals￿from￿the￿current￿sensors,￿the REME￿control￿unit￿monitors￿the￿electrical￿power￿which￿is￿used￿in￿the￿power￿electronics￿and￿the￿range extender￿electrical￿machine￿and￿what￿torque￿the￿range￿extender￿electrical￿machine￿generates.￿The control￿loop￿of￿the￿range￿extender￿electrical￿machine￿electronics￿is￿closed￿by￿the￿signals￿of￿the￿current sensors￿and￿the￿rotor￿position￿sensor￿in￿the￿range￿extender￿electrical￿machine. The￿performance￿data￿of￿the￿range￿extender￿electrical￿machine￿electronics￿and￿the￿range￿extender electrical￿machine￿are￿coordinated￿in￿development.￿The￿range￿extender￿electrical￿machine￿electronics is￿thus￿able￿to￿permanently￿provide￿an￿electrical￿power￿of￿about￿23.3 kW￿(DC￿power￿at￿4300 rpm).￿In order￿to￿avoid￿overloading￿the￿power￿electronics,￿there￿is￿also￿another￿temperature￿sensor￿at￿the￿DC/ AC￿converter.￿If￿an￿excessive￿temperature￿of￿the￿power￿semiconductor￿is￿identified￿using￿this￿signal, the￿REME￿control￿unit￿reduces￿the￿power￿delivered￿to￿the￿range￿extender￿electrical￿machine￿or￿used by￿the￿range￿extender￿electrical￿machine￿in￿order￿to￿protect￿the￿power￿electronics.￿The￿customer￿is informed￿via￿a￿Check￿Control￿message￿in￿the￿case￿of￿a￿noticeable￿power￿reduction.￿The￿customer receives￿the￿same￿error￿response￿(power￿reduction)￿and￿the￿same￿Check￿Control￿message￿if￿the temperature￿of￿the￿range￿extender￿electrical￿machine￿exceeds￿the￿permissible￿range.
  • Page 168 I01￿High-voltage￿Components 11.￿Cooling￿the￿Electrical￿Machine Components Due￿to￿the￿high￿efficiency￿considerably￿less￿heat￿is￿emitted￿from￿the￿electrical￿machines￿and￿the power￿electronics￿than￿from￿combustion￿engines.￿Nevertheless,￿in￿order￿to￿ensure￿fault-free￿operation at￿all￿temperature￿conditions,￿a￿cooling￿system￿for￿cooling￿the￿electric￿motor￿components￿is￿necessary in￿the￿I01.￿To￿provide￿a￿complete￿overview￿the￿cooling￿system￿is￿shown￿below￿with￿the￿maximum equipment.￿For￿vehicles￿with￿less￿equipment,￿e.g.￿no￿range￿extender￿or￿no￿convenience￿charging electronics,￿the￿scope￿of￿the￿components￿of￿the￿cooling￿system￿is￿reduced. All￿circuits￿are￿colored￿for￿better￿representation.￿The￿blue￿colors￿should￿indicate￿a￿lower￿temperature. The￿red￿colors￿indicate￿a￿high￿temperature￿of￿the￿coolant.￿The￿different￿red￿colors￿highlight￿the different￿high￿temperatures.
  • Page 169 I01￿High-voltage￿Components 11.￿Cooling￿the￿Electrical￿Machine Components 11.1.￿System￿overview System￿overview￿for￿cooling￿the￿drive￿components￿in￿the￿I01￿(maximum￿equipment)
  • Page 170 I01￿High-voltage￿Components 11.￿Cooling￿the￿Electrical￿Machine Components Index Explanation Radiator Electric￿coolant￿pump￿(80 W) Electrical￿machine￿electronics￿(EME) Electrical￿machine Convenience￿charging￿electronics￿(KLE) Range￿Extender￿Electrical￿Machine￿Electronics￿(REME) Range￿extender￿electrical￿machine Mechanical￿coolant￿pump Additional￿electric￿fan￿for￿range￿extender￿cooling￿unit￿(coolant-refrigerant￿heat exchanger) Engine￿oil-to-coolant￿heat￿exchanger Range￿extender￿for￿W20￿engine Coolant￿temperature￿sensor Expansion￿tank￿in￿the￿cooling￿circuit￿of￿the￿combustion￿engine Thermostat Coolant-refrigerant￿heat￿exchanger￿for￿range￿extender Scope￿is￿only￿installed￿for￿equipment￿with￿range￿extender Expansion￿tank￿in￿the￿cooling￿circuit￿of￿the￿electric￿motor￿components Electric￿fan￿for￿the￿radiator The￿components￿to￿be￿cooled￿are￿switched￿in￿the￿cooling￿circuit￿so￿that￿the￿maximum￿temperature levels￿required￿are￿observed.￿A￿lower￿temperature￿is￿required￿for￿the￿electrical￿machine￿electronics than￿for￿the￿electrical￿machine,￿which￿is￿why￿the￿series￿connection￿in￿this￿sequence￿was￿chosen.￿As the￿electric￿motor￿and￿the￿convenience￿charging￿electronics￿are￿not￿operated￿at￿the￿same￿time,￿the parallel￿circuit￿was￿chosen.￿The￿range￿extender￿electrical￿machine￿and￿the￿range￿extender￿electrical machine￿electronics￿are￿switched￿initially￿in￿series.￿As￿these￿two￿components￿are￿operated￿at￿the same￿time￿as￿the￿convenience￿charging￿electronics￿and￿the￿electrical￿machine￿electronics,￿they￿were switched￿in￿parallel￿to￿these.￿In￿addition,￿the￿cooling￿system￿is￿therefore￿not￿designed￿for￿the￿sum￿of￿all heat￿outputs,￿because￿in￿reality￿heat￿only￿has￿to￿be￿discharged￿in￿one￿or￿two￿of￿the￿parallel￿branches. If￿the￿vehicle￿is￿equipped￿with￿a￿range￿extender,￿in￿the￿cooling￿circuit￿there￿is￿a￿coolant-coolant￿heat exchanger￿for￿cooling￿the￿W20￿engine.

  • Page 171: Components

    I01￿High-voltage￿Components 11.￿Cooling￿the￿Electrical￿Machine Components 11.2.￿Components Cooling￿of￿electric￿motor￿components￿—￿Installation￿locations Index Explanation Expansion￿tank￿in￿the￿cooling￿circuit￿of￿the￿electric￿motor￿components Radiator Electric￿fan￿for￿the￿radiator Electrical￿Digital￿Motor￿Electronics Feed￿line Electric￿coolant￿pump￿(80 W) Range￿extender￿electrical￿machine Expansion￿tank￿in￿the￿cooling￿circuit￿of￿the￿combustion￿engine Range￿Extender￿Electrical￿Machine￿Electronics￿(REME) Electrical￿machine￿electronics￿(EME) Convenience￿charging￿electronics￿(KLE) Electrical￿machine Return￿line The￿cooling￿module￿at￿the￿front￿of￿vehicle￿is￿made￿up￿of￿the￿coolant-air￿heat￿exchanger,￿the￿electric￿fan and￿optional￿active￿air￿cooling￿flaps.
  • Page 172 I01￿High-voltage￿Components 11.￿Cooling￿the￿Electrical￿Machine Components The￿electric￿coolant￿pump￿has￿a￿power￿of￿80 W￿(Manufacturer:￿Bosch).￿The￿coolant￿pump￿is￿activated by￿the￿EDME￿control￿unit.￿For￿this￿purpose,￿the￿coolant￿pump￿and￿the￿EDME￿control￿unit￿are connected￿via￿a￿direct￿line.￿The￿electric￿coolant￿pump￿can￿be￿activated￿at￿varying￿power￿by￿pulse- width￿modulated￿signals.￿The￿voltage￿supply￿of￿the￿coolant￿pump￿is￿effected￿via￿terminal￿30B.￿The installation￿location￿of￿the￿coolant￿pump￿is￿at￿the￿rear￿right. The￿expansion￿tank￿is￿located￿in￿the￿space￿below￿the￿engine￿compartment￿lid￿on￿the￿left.￿There￿is no￿electrical￿level￿sensor￿installed￿in￿the￿expansion￿tank.￿But￿there￿is￿the￿following￿special￿feature to￿be￿noted￿for￿Service:￿A￿loss￿of￿coolant,￿for￿example￿due￿to￿a￿leak,￿in￿the￿cooling￿system￿is￿not identified￿directly￿due￿to￿the￿lack￿of￿an￿electrical￿level￿sensor.￿Instead,￿in￿the￿event￿of￿coolant￿loss the￿temperature￿of￿the￿cooled￿components￿(electrical￿machine,￿electrical￿machine￿electronics, convenience￿charging￿electronics,￿range￿extender￿and￿the￿range￿extender￿electrical￿machine electronics)￿rises￿above￿the￿normal￿operating￿range.￿In￿this￿case￿the￿power￿of￿the￿electric￿motor￿is reduced￿and￿a￿corresponding￿Check￿Control￿message￿is￿issued.￿The￿Service￿employee￿must￿check the￿following￿fault￿causes￿during￿troubleshooting: • Loss￿of￿coolant,￿e.g.￿by￿a￿leak • Coolant-air￿heat￿exchanger￿blocked • Electric￿fan￿does￿not￿work￿or￿is￿restricted • Coolant￿pump￿does￿not￿work • Coolant￿lines￿or￿connections￿damaged • Components￿to￿be￿cooled￿faulty￿(electrical￿machine,￿electrical￿machine￿electronics, convenience￿charging￿electronics,￿range￿extender￿electrical￿machine,￿range￿extender￿electrical machine￿electronics). If￿excess￿temperature￿is￿displayed￿in￿the￿cooling￿system￿of￿the￿electric￿motor,￿then￿this￿may￿have several￿causes,￿including￿also￿the￿loss￿of￿coolant.￿Therefore,￿during￿troubleshooting￿all￿components￿of the￿cooling￿system￿must￿be￿checked￿systematically. The￿familiar￿mixture￿of￿water￿and￿antifreeze￿and￿corrosion￿inhibitors￿in￿BMW￿vehicles￿is￿used￿as￿a coolant. When￿filling￿the￿cooling￿circuit￿of￿the￿electric￿motor￿use￿the￿special￿tool￿for￿vacuum￿filling￿according￿to the￿repair￿instructions. Perform￿a￿bleeding￿after￿filling￿the￿cooling￿circuit,￿as￿well￿as￿after￿replacing￿components￿in￿the￿cooling circuit.

  • Page 173: Function

    I01￿High-voltage￿Components 11.￿Cooling￿the￿Electrical￿Machine Components Switch￿on￿light Actuate￿the￿parking￿brake Activate￿the￿parking￿lock Adjust￿heating￿control￿to￿maximum￿temperature Press￿and￿hold￿down￿brake￿pedal￿at￿the￿same￿time Press￿the￿accelerator￿pedal￿for￿less￿than￿10￿seconds￿(fully) The￿bleeding￿procedure￿is￿started.￿The￿bleeding￿procedure￿takes￿about￿12￿minutes. Before￿the￿high-voltage￿battery￿is￿charged￿or￿the￿I01￿is￿driven,￿the￿cooling￿system￿of￿the￿electric￿motor is￿filled￿with￿coolant￿and￿bled.￿Otherwise,￿damage￿may￿occur￿to￿the￿convenience￿charging￿electronics, the￿electrical￿machine,￿the￿electrical￿machine￿electronics,￿the￿range￿extender￿electrical￿machine￿or￿the range￿extender￿electrical￿machine￿electronics. 11.3.￿Function The￿coolant￿in￿the￿cooling￿circuit￿of￿the￿electric￿motor￿components￿is￿pumped￿by￿an￿electric￿coolant pump￿(80 W)￿through￿the￿five￿electric￿motor￿components￿and￿if￿necessary￿the￿coolant-coolant￿heat exchanger. If￿the￿air￿stream￿is￿insufficient￿for￿cooling￿the￿coolant￿in￿the￿radiator,￿the￿electric￿fan￿is￿also￿switched￿on by￿the￿EDME.￿The￿electric￿fan￿has￿a￿power￿rating￿of￿400 W. There￿is￿only￿one￿version￿of￿this￿cooling￿system,￿which￿is￿used￿in￿both￿the￿European￿and￿US￿version￿of the￿vehicle.￿A￿variant￿for￿cold￿and￿hot￿countries￿is￿not￿offered.
  • Page 174 I01￿High-voltage￿Components 11.￿Cooling￿the￿Electrical￿Machine Components Input/Output￿for￿cooling￿of￿electric￿motor￿components Index Explanation Body￿Domain￿Controller￿(BDC) Signal,￿terminal￿status Temperature￿sensor￿in￿the￿electrical￿machine￿electronics Signal,￿temperature￿of￿the￿power￿electronics￿in￿the￿electrical￿machine electronics Temperature￿sensor￿in￿the￿electrical￿machine...
  • Page 175 I01￿High-voltage￿Components 11.￿Cooling￿the￿Electrical￿Machine Components Index Explanation Signal,￿temperature￿in￿the￿electrical￿machine Temperature￿sensor￿in￿the￿convenience￿charging￿electronics Signal,￿temperature￿in￿the￿convenience￿charging￿electronics Dynamic￿Stability￿Control Vehicle￿speed Temperature￿sensor￿of￿the￿range￿extender￿electrical￿machine Signal,￿temperature￿in￿the￿range￿extender￿electrical￿machine Electrical￿Digital￿Motor￿Electronics Temperature￿sensor￿in￿the￿range￿extender￿electrical￿machine￿electronics Signal,￿temperature￿in￿the￿range￿extender￿electrical￿machine￿electronics Electric￿coolant￿pump Power￿requirement￿at￿electric￿coolant￿pump Electric￿fan Speed￿requirement,￿electric￿fan Similar￿to￿the￿cooling￿systems￿of￿current￿BMW￿vehicles￿with￿combustion￿engines,￿the￿control￿in￿the I01￿is￿also￿effected￿depending￿on￿the￿cooling￿power￿requirement.￿This￿control￿is￿integrated￿in￿the Electrical￿Digital￿Motor￿Electronics￿(EDME). The￿following￿input￿signals￿are￿used￿for￿the￿control: • Component￿temperature￿of￿electrical￿machine • Component￿temperature￿of￿electrical￿machine￿electronics • Component￿temperature￿of￿convenience￿charging￿electronics • Component￿temperature￿of￿range￿extender￿electrical￿machine￿electronics • Component￿temperature￿of￿range￿extender￿electrical￿machine • Current￿power￿used￿in￿the￿electric￿motor￿or￿convenience￿charging￿electronics • Driving￿speed. In￿comparison￿to￿the￿familiar￿cooling￿systems￿of￿conventional￿vehicles,￿the￿coolant￿temperature￿is￿not used￿as￿an￿input￿variable￿for￿the￿control.￿Accordingly,￿there￿is￿no￿coolant￿temperature￿sensor￿in￿the cooling￿system￿for￿the￿electric￿motor￿of￿the￿I01.￿Instead,￿the￿electric￿coolant￿pump￿and￿the￿electric fan￿are￿activated￿according￿to￿the￿listed￿input￿variables￿and￿also￿the￿current￿cooling￿requirement.￿The...
  • Page 176 I01￿High-voltage￿Components 11.￿Cooling￿the￿Electrical￿Machine Components • Terminal￿15￿switched￿on,￿driving￿readiness • Terminal￿15￿switched￿on,￿no￿driving￿readiness • High-voltage￿battery￿is￿charged. The￿power￿electronics￿switching￿of￿the￿electrical￿machine￿electronics￿are￿already￿working￿when terminal￿15￿is￿switched￿on.￿Both￿the￿high-voltage￿electrical￿system￿(EKK￿and￿electric￿heating)￿and￿the 12 V￿vehicle￿electrical￿system￿are￿supplied￿with￿energy￿by￿the￿DC/DC￿converter.￿If￿due￿to￿the￿arising heat￿a￿cooling￿requirement￿is￿identified,￿the￿coolant￿pump￿is￿switched￿on,￿and￿if￿required￿also￿the electric￿fan. When￿terminal￿15￿is￿switched￿the￿coolant￿pump￿and￿electric￿fan￿can￿be￿switched￿on￿automatically. For￿work￿with￿an￿open￿engine￿compartment￿lid￿or￿at￿the￿cooling￿module￿it￿is￿imperative￿terminal￿15￿is switched￿off. While￿the￿high-voltage￿battery￿is￿being￿charged,￿the￿power￿electronics￿in￿the￿electrical￿machine electronics￿and￿in￿the￿convenience￿charging￿electronics￿are￿working.￿Due￿to￿the￿high￿electrical power,￿which￿is￿generated￿in￿the￿electrical￿machine￿electronics￿and￿the￿convenience￿charging electronics,￿heat￿also￿develops.￿This￿must￿be￿dissipated￿using￿the￿cooling￿circuit￿described￿here. For￿this￿reason,￿the￿electric￿coolant￿pump￿and￿the￿electric￿fan￿are￿also￿switched￿on￿during￿charging with￿a￿correspondingly￿high￿temperature￿in￿the￿electrical￿machine￿electronics￿and￿in￿the￿convenience charging￿electronics. The￿coolant￿pump￿and￿the￿electric￿fan￿can￿be￿switched￿on￿automatically￿when￿charging￿the high-voltage￿battery.￿The￿high-voltage￿battery￿cannot￿be￿charged￿when￿working￿with￿the￿engine compartment￿lid￿open￿or￿at￿the￿cooling￿module.
  • Page 177 I01￿High-voltage￿Components 12.￿Technical￿Safety￿Precautions 12.1.￿High￿voltage￿interlock￿loop The￿high-voltage￿interlock￿loop￿is￿used￿to￿protect￿individuals￿when￿working￿on￿or￿at￿the￿high-voltage components.￿Via￿the￿high-voltage￿interlock￿loop￿it￿is￿identified￿whether￿one￿or￿several￿high-voltage plug￿connections￿have￿been￿disconnected.￿If￿a￿high-voltage￿plug￿connection￿has￿been￿disconnected, the￿entire￿high-voltage￿system￿is￿shut￿down￿automatically.￿A￿square￿wave￿signal￿with￿alternating current￿direction￿is￿sent￿through￿the￿line￿of￿the￿high-voltage￿interlock￿loop￿by￿the￿battery￿management electronics￿SME.￿The￿SME￿and￿the￿electrical￿machine￿electronics￿EME￿evaluate￿this￿signal. The￿line￿of￿the￿high-voltage￿interlock￿loop￿runs￿through￿each￿connector/plug￿of￿the￿high-voltage components,￿which￿are￿able￿to￿generate￿high￿voltage.
  • Page 178 I01￿High-voltage￿Components 12.￿Technical￿Safety￿Precautions Main￿wiring￿diagram￿for￿high￿voltage￿interlock￿loop...

  • Page 179: Starting

    I01￿High-voltage￿Components 12.￿Technical￿Safety￿Precautions Index Explanation High-voltage￿safety￿connector￿("Service-Disconnect") Fuse￿block,￿front Safety￿battery￿terminal￿(SBK) 12 V￿battery Intelligent￿battery￿sensor￿(IBS) Crash￿Safety￿Module￿(ACSM) High-voltage￿battery￿unit Battery￿management￿electronics￿(SME) Signal￿generator￿for￿test￿signal￿of￿the￿high-voltage￿interlock￿loop￿in￿the￿battery management￿electronics Evaluation￿circuit￿for￿test￿signal￿of￿the￿high-voltage￿interlock￿loop￿in￿the￿battery management￿electronics Cells￿of￿the￿high-voltage￿battery Switch￿contactor,￿fuse￿and￿series￿resistor￿in￿the￿high-voltage￿battery Convenience￿charging￿electronics￿(KLE) Range￿extender￿electrical￿machine Range￿Extender￿Electrical￿Machine￿Electronics￿(REME) Evaluation￿circuit￿for￿test￿signal￿of￿the￿high-voltage￿interlock￿loop￿in￿the electrical￿machine￿electronics Electrical￿machine￿electronics￿(EME) 12.2.￿Starting￿and￿shutting￿down￿the￿high-voltage￿system The￿master￿control￿unit￿for￿the￿control￿of￿the￿high-voltage￿system￿is￿the￿electrical￿machine￿electronics. 12.2.1.￿Starting The￿sequence￿for￿starting￿the￿high-voltage￿system￿is￿always￿the￿same￿irrespective￿of￿which￿of￿the following￿events￿was￿the￿trigger: • Terminal￿15￿is￿switched￿on￿or￿driving￿readiness￿is￿established • Charging￿the￿high-voltage￿battery￿should￿start • "Preparation"￿of￿the￿vehicle￿for￿the￿journey￿(climate￿control￿of￿the￿high-voltage￿battery￿or￿the passenger￿compartment). The￿individual￿steps￿for￿starting￿the￿high-voltage￿system￿are: EME￿control￿unit￿requests￿starting￿via￿bus￿signal￿at￿the￿PT-CAN￿and￿PT-CAN2 The￿high-voltage￿electrical￿system￿is￿checked￿using￿self-diagnosis￿functions...
  • Page 180 I01￿High-voltage￿Components 12.￿Technical￿Safety￿Precautions The￿voltage￿in￿the￿high-voltage￿circuit￿is￿increased￿continuously The￿contacts￿of￿the￿switch￿contactors￿are￿fully￿closed. The￿high-voltage￿electrical￿system￿is￿mainly￿checked￿by￿the￿EME￿control￿unit￿and￿the￿SME￿control unit.￿Criteria￿relevant￿for￿safety,￿for￿example￿the￿circuit￿of￿the￿high-voltage￿interlock￿loop￿or￿the￿isolation resistance,￿are￿checked.￿Functional￿preconditions￿such￿as￿the￿operating￿readiness￿of￿all￿subsystems must￿also￿be￿fulfilled￿for￿starting. As￿the￿high-voltage￿circuit￿capacitors￿have￿high￿capacity￿values￿(link￿capacitors￿in￿the￿power electronics),￿the￿contacts￿of￿the￿electromechanical￿switch￿contactors￿cannot￿be￿easily￿closed. Extremely￿high￿current￿pulses￿would￿damage￿both￿the￿high-voltage￿battery￿and￿the￿link￿capacitors and￿the￿contacts￿of￿the￿switch￿contactors.￿First￿of￿all,￿the￿switch￿contactor￿of￿the￿ground￿cable￿in￿the high-voltage￿battery￿is￿closed.￿In￿order￿to￿restrict￿the￿switch-on￿current,￿there￿is￿a￿current￿path￿with resistance￿in￿the￿positive￿wire￿(connected￿parallel￿to￿the￿switch￿contactor).￿This￿is￿now￿activated￿and a￿switch-on￿current￿restricted￿by￿the￿resistance￿charges￿the￿link￿capacitors.￿If￿the￿voltage￿of￿the￿link capacitors￿has￿reached￿the￿approximate￿value￿of￿the￿battery￿voltage,￿the￿last￿contact￿of￿the￿switch contactor￿at￿the￿positive￿terminal￿of￿the￿high-voltage￿battery￿unit￿is￿closed.￿The￿high-voltage￿system￿is now￿fully￿operational. If￿there￿is￿no￿fault￿in￿the￿high-voltage￿system,￿the￿entire￿starting￿of￿the￿high-voltage￿system￿is completed￿in￿about￿0.5￿seconds.￿There￿is￿thus￿no￿disadvantage￿for￿the￿customer￿in￿comparison￿to vehicles￿with￿a￿conventional￿engine. The￿SME￿control￿unit￿communicates￿successful￿starting￿via￿the￿PT-CAN2￿to￿the￿EME￿control￿unit. Fault￿statuses￿are￿also￿communicated￿in￿the￿same￿way,￿if,￿for￿example,￿a￿contact￿of￿a￿switch￿contactor was￿unable￿to￿be￿closed. 12.2.2.￿Shutting￿off￿the￿high-voltage￿system When￿it￿comes￿to￿shutting￿off￿the￿high-voltage￿system￿a￿distinction￿is￿made￿between￿regular￿shut- off￿and￿fast￿shut-off.￿The￿regular￿shutdown￿described￿here￿protects￿all￿respective￿components￿on￿the one￿hand,￿and,￿on￿the￿other￿hand,￿includes￿the￿monitoring￿of￿components￿of￿the￿high-voltage￿system which￿are￿relevant￿for￿safety. Regular￿shutdown If￿the￿following￿preconditions￿or￿criteria￿are￿present,￿the￿high-voltage￿system￿is￿shutdown￿in￿the￿regular manner: • Terminal￿15￿is￿switched￿off￿by￿the￿driver￿and￿the￿after-running￿period￿is￿expired￿(controlled￿by EME) • End￿of￿the￿functions￿"stationary￿cooling",￿"auxiliary￿heater"￿or￿"conditioning￿of￿the￿high- voltage￿battery" • End￿of￿the￿charging￿procedure￿for￿the￿high-voltage￿battery.
  • Page 181 I01￿High-voltage￿Components 12.￿Technical￿Safety￿Precautions The￿systems￿at￿the￿high-voltage￿electrical￿system￿(EME,￿REME,￿KLE,￿EKK,￿EH)￿reduce￿the currents￿in￿the￿high-voltage￿electrical￿system￿to￿zero Opening￿the￿switch￿contactors￿in￿the￿high-voltage￿battery￿unit￿(controlled￿by￿SME) Discharging￿the￿high-voltage￿circuit,￿i.e.￿active￿discharging￿of￿the￿link￿capacitors￿(EME,￿REME￿and KLE),￿short-circuit￿of￿the￿coils￿of￿the￿electrical￿machine￿(EME￿and￿REME),￿short-circuit￿of￿the￿coils of￿the￿EKK Checking￿the￿high-voltage￿system,￿e.g.￿as￿to￿whether￿the￿contacts￿of￿the￿electromechanical switch￿contactors￿were￿correctly￿opened. Both￿the￿after-running￿period￿after￿switching￿off￿terminal￿15￿and￿the￿shutdown￿itself￿can￿last￿a￿few minutes.￿The￿automatic￿monitoring￿functions￿are￿a￿reason￿for￿this,￿for￿example.￿The￿regular￿shutdown is￿interrupted￿if￿in￿the￿meantime￿either￿a￿request￿for￿a￿renewed￿start-up￿is￿made￿or￿a￿condition￿has arisen￿to￿request￿a￿quick￿shutdown. Quick￿shutdown The￿overriding￿aim￿here￿is￿to￿shut￿down￿the￿high-voltage￿system￿as￿quickly￿as￿possible.￿This￿quick shutdown￿is￿then￿always￿carried￿out￿if￿for￿safety￿reasons￿the￿voltage￿in￿the￿high-voltage￿system￿has￿to be￿reduced￿to￿a￿safe￿value￿as￿quickly￿as￿possible.￿The￿following￿list￿describes￿the￿triggering￿conditions and￿the￿functional￿chain￿leading￿to￿the￿quick￿shutdown. Accident: • ACSM￿identifies￿an￿accident.￿Depending￿on￿the￿severity￿of￿the￿accident￿the￿shutdown￿of￿the high-voltage￿system￿is￿requested￿via￿bus￿signals.￿The￿SME￿triggers￿the￿separation￿of￿the switch￿contactors￿in￿the￿high-voltage￿battery.￿In￿the￿case￿where￿communication￿via￿a￿data￿bus is￿faulty￿or￿not￿possible,￿the￿switch-off￿of￿the￿switch￿contactors￿is￿forced￿(hard￿opening).￿The switch￿contactors￿are￿supplied￿with￿voltage￿by￿terminal￿30C.￿Through￿the￿separation￿of￿the safety￿battery￿terminal￿from￿the￿positive￿terminal￿of￿the￿12 V￿battery,￿the￿voltage￿supply￿of￿the switch￿contactors￿is￿also￿interrupted￿and￿their￿contacts￿open￿automatically. The￿EME￿and￿the￿REME￿also￿receive￿bus￿signals￿for￿switching￿off￿the￿high-voltage￿system. Both￿control￿units￿immediately￿trigger￿the￿active￿short￿circuit￿of￿the￿electrical￿machines￿(short- circuit￿of￿the￿coils￿of￿the￿corresponding￿electrical￿machine￿via￿the￿power￿semiconductor￿of￿the AC/DC￿converter)￿and￿the￿active￿link￿capacitors￿are￿discharged.￿If￿communication￿via￿the￿data bus￿is￿not￿possible,￿the￿shutdown￿request￿is￿sent￿via￿the￿separate￿lines￿between￿ASCM￿and EME,￿as￿well￿as￿between￿ACSM￿and￿REME. Overload￿current￿monitoring: • With￿help￿of￿current￿sensors￿in￿the￿high-voltage￿battery￿unit￿the￿current￿level￿in￿the￿high- voltage￿electrical￿system￿is￿monitored.￿If￿too￿high￿a￿current￿level￿is￿identified,￿the￿SME￿control unit￿causes￿a￿hard￿opening￿of￿the￿electromechanical￿switch￿contactors.￿Considerable￿wear occurs￿to￿the￿contacts￿of￿the￿switch￿contactors￿as￿a￿result￿of￿this￿opening￿under￿a￿high current,￿which￿must￿be￿accepted￿to￿protect￿the￿other￿components￿from￿damage.
  • Page 182 I01￿High-voltage￿Components 12.￿Technical￿Safety￿Precautions If￿a￿cell￿supervision￿circuit￿identifies￿extreme￿under-voltage,￿over-voltage￿or￿excess temperature￿at￿a￿battery￿cell,￿this￿also￿leads￿to￿a￿hard￿opening￿of￿the￿electromechanical￿switch contactors￿-￿controlled￿by￿the￿SME￿control￿unit.￿Although￿this￿may￿lead￿again￿to￿increased wear￿at￿the￿contacts,￿this￿quick￿shutdown￿is￿necessary￿to￿prevent￿destroying￿the￿respective battery￿cells. Malfunction￿of￿the￿12 V￿voltage￿supply￿of￿the￿high-voltage￿battery￿unit: • In￿this￿case￿the￿battery￿management￿electronics￿control￿unit￿no￿longer￿works￿and￿it is￿no￿longer￿possible￿to￿monitor￿the￿battery￿cells.￿For￿this￿reason￿the￿contacts￿of￿the electromechanical￿switch￿contactors￿also￿open￿here￿automatically. 12.2.3.￿Charging￿the￿high-voltage￿battery The￿SME￿control￿unit￿also￿plays￿an￿important￿role￿in￿the￿charging￿of￿the￿high-voltage￿battery￿with energy￿supply￿from￿an￿external￿power￿network.￿Using￿the￿state￿of￿charge￿and￿the￿temperature￿of the￿battery￿cells,￿the￿SME￿control￿unit￿defines￿the￿maximum￿electrical￿power￿which￿the￿high-voltage battery￿can￿currently￿use.￿This￿value￿is￿transmitted￿in￿the￿form￿of￿a￿bus￿signal￿via￿the￿PT-CAN2￿to￿the EME￿control￿unit.￿The￿"High-voltage￿power￿management"￿function￿coordinates￿the￿individual￿power requirements￿and￿forwards￿the￿total￿value￿to￿the￿electrical￿machine￿electronics￿(and￿from￿there￿to￿the convenience￿charging￿electronics). During￿charging￿the￿SME￿control￿unit￿constantly￿identifies￿the￿state￿of￿charge￿already￿reached￿and monitors￿all￿sensor￿signals￿of￿the￿high-voltage￿battery.￿In￿order￿to￿ensure￿optimal￿progress￿of￿the charging￿procedure,￿the￿SME￿control￿unit￿constantly￿calculates￿current￿values￿for￿the￿maximum charging￿power￿based￿on￿these￿values￿and￿communicates￿these￿to￿the￿EME￿control￿unit.￿The￿heating/ cooling￿system￿of￿the￿high-voltage￿battery￿is￿also￿continuously￿controlled￿by￿the￿SME￿control￿unit during￿the￿charging￿procedure￿which￿contributes￿to￿a￿quick￿and￿efficient￿charging￿procedure. 12.3.￿Pinpointing￿isolation￿faults The￿SME￿control￿unit￿reliably￿identifies￿when￿the￿isolation￿resistance￿in￿the￿high-voltage￿electrical system￿drops￿below￿the￿specified￿values.￿A￿fault￿code￿entry,￿a￿Check￿Control￿message￿and,￿if￿required, the￿shutdown￿of￿the￿high-voltage￿system,￿are￿automatically￿effected.￿The￿isolation￿monitoring￿in￿the SME￿control￿unit￿alone￿cannot￿determine￿the￿actual￿location￿of￿the￿fault￿in￿the￿high-voltage￿electrical system.￿Instead,￿an￿isolation￿fault￿must￿be￿pinpointed￿by￿using￿a￿test￿schedule￿in￿the￿diagnosis￿system. Several￿systematic￿test￿steps￿are￿required￿in￿order￿to￿determine￿the￿components￿or￿the￿high-voltage cable￿causing￿the￿isolation￿fault. 12.4.￿Start-up￿of￿the￿high-voltage￿system If￿in￿the￿event￿of￿a￿repair￿high-voltage￿components￿are￿removed￿or￿replaced,￿it￿is￿imperative￿to￿ensure that • all￿high-voltage￿connectors •...
  • Page 183 I01￿High-voltage￿Components 12.￿Technical￿Safety￿Precautions The￿cooling￿or￿refrigerant￿system￿must￿also￿be￿filled￿with￿coolant￿or￿refrigerant. If￿the￿above-mentioned￿preconditions￿are￿not￿satisfied,￿the￿high-voltage￿system￿cannot￿be￿operated.
  • Page 184 I01￿High-voltage￿Components 13.￿Operating￿Strategy The￿operating￿strategy￿has￿the￿task￿of￿maximizing￿the￿service￿life￿of￿the￿high-voltage￿battery￿and protecting￿it￿against￿damage￿during￿operation.￿All￿customer￿requirements￿when￿driving￿and￿during charging￿should￿also￿be￿fulfilled.￿The￿behavior￿of￿the￿electric￿motor￿in￿the￿event￿of￿a￿fault￿is￿also￿an element￿of￿the￿operating￿strategy.￿The￿EDME￿is￿the￿master￿control￿unit￿for￿the￿operating￿strategy. 13.1.￿Operating￿strategy￿with￿pure￿electric￿drive The￿I01￿is￿designed￿as￿a￿vehicle￿with￿a￿pure￿electric￿drive￿for￿urban￿mobility.￿The￿high-voltage￿battery and￿the￿electrical￿machine￿deliver￿impressive￿vehicle￿performances: • Range￿>￿160 km￿(at￿20 °C)￿/￿100￿mi￿(at￿68 °F) • Maximum￿speed￿150 km/h/￿93￿mph￿(short-term,￿3￿minutes)￿or￿120 km/h/74.5￿mph (continuous) • Acceleration￿from￿0-100 km/h￿in￿7.2￿s Before￿a￿drive￿torque￿is￿applied,￿the￿EDME￿must￿check￿whether￿the￿driving￿readiness￿is￿established. The￿EDME￿also￿queries￿whether￿all￿subsystems￿of￿the￿electrical￿drive￿train￿are￿functioning￿trouble- free,￿which￿is￿also￿a￿prerequisite￿for￿the￿provision￿of￿a￿drive￿torque.￿Finally,￿the￿EDME￿still￿has￿to consider￿the￿available￿electrical￿power￿for￿the￿electric￿motor￿which￿is￿primarily￿determined￿by￿the condition￿of￿the￿high-voltage￿battery.￿The￿SME￿control￿unit￿communicates￿this￿condition￿to￿the￿EDME control￿unit￿via￿corresponding￿bus￿signals.￿As￿a￿result￿of￿these￿checks￿the￿EDME￿identifies￿whether and￿in￿what￿scope￿the￿drive￿torque￿can￿be￿provided.￿In￿the￿case￿of￿fault￿statuses￿or￿in￿the￿event￿of limited￿availability,￿the￿EDME￿issues￿an￿appropriate￿Check￿Control￿message￿via￿the￿instrument￿cluster. The￿statuses￿of￿the￿operating￿strategy￿relevant￿for￿the￿customer￿and￿the￿Service￿employee￿are￿listed below￿and￿described￿briefly.
  • Page 185 I01￿High-voltage￿Components 13.￿Operating￿Strategy Status Features Reason/ Displays Precondition Driving￿without The￿full￿power￿of State￿of￿charge￿of￿the Normal￿functional restrictions the￿electric￿motor high-voltage￿battery￿in displays￿such￿as is￿available￿for optimal￿range. state￿of￿charge￿of acceleration. Temperature￿of￿the the￿high-voltage Full￿scope￿of￿brake high-voltage￿battery￿in battery,￿drive￿power energy optimal￿range during￿acceleration￿or regeneration￿is deceleration possible. Full￿scope￿of￿all climate￿control functions￿are available. Driving￿with￿restricted The￿drive￿power￿is State￿of￿charge￿of￿the driving￿power reduced￿to￿protect high-voltage￿battery components.￿Full...
  • Page 186 I01￿High-voltage￿Components 13.￿Operating￿Strategy Diagram￿for￿the￿BEV￿operating￿strategy Index Explanation Range￿in￿which￿driving￿without￿restrictions￿is￿possible Range￿in￿which￿driving￿with￿restricted￿drive￿power￿takes￿place Range￿in￿which￿driving￿is￿not￿possible Calculated￿state￿of￿charge￿of￿the￿high-voltage￿battery￿(State￿of￿Charge￿=￿SOC) Warning￿for￿range￿of￿20 km Warning￿for￿range￿of￿10 km Warning￿for￿range￿of￿less￿than￿1 km Axis￿for￿relative￿SOC￿values Axis￿for￿absolute￿SOC￿values SOC￿of￿the￿high-voltage￿battery￿0%￿absolute SOC￿of￿the￿high-voltage￿battery￿10%￿absolute,￿or￿0%￿relative SOC￿of￿the￿high-voltage￿battery￿14.2%￿absolute,￿or￿4.9%￿relative SOC￿of￿the￿high-voltage￿battery￿100%￿relative In￿the￿diagram￿the￿relative￿and￿the￿absolute￿state￿of￿charge￿values￿(SOC￿values)￿of￿the￿high-voltage battery￿are￿shown.￿The￿absolute￿values￿correspond￿to￿the￿actual￿state￿of￿charge￿of￿the￿high-voltage battery.￿The￿relative￿SOC￿values￿are￿the￿values￿which￿are￿displayed￿to￿the￿driver￿in￿the￿instrument cluster￿or￿in￿the￿central￿information￿display.￿In￿range￿"A"￿driving￿without￿power￿restriction￿and￿full functionality￿of￿the￿convenience￿functions￿are￿available.￿If￿the￿SOC￿value￿of￿the￿high-voltage￿battery approaches￿about￿5%,￿the￿Check￿Control￿messages￿for￿ranges￿between￿20 km￿and￿10 km￿are￿issued. In￿range￿"B"￿the￿performance￿of￿the￿drive￿train￿is￿reduced￿due￿to￿the￿low￿state￿of￿charge￿of￿the￿high- voltage￿battery.￿The￿heating￿and￿air-conditioning￿system￿is￿switched￿off￿here. If￿the￿absolute￿SOC￿value￿falls￿below￿10%,￿driving￿the￿vehicle￿is￿no￿longer￿possible.￿The￿reserve￿of 10%￿is￿required￿to￿give￿the￿customer￿adequate￿time￿to￿charge￿the￿high-voltage￿battery￿and￿prevent deep￿discharge. The￿driver￿has￿the￿option￿to￿extend￿the￿range￿by￿activating￿ECO￿PRO￿or￿ECO￿PRO￿+￿mode.￿Here￿the power￿of￿some￿electrical￿consumers￿is￿reduced￿or￿the￿consumers￿are￿switched￿off￿completely.￿In￿ECO PRO￿mode￿the￿maximum￿speed￿is￿130 km/h￿(can￿be￿adjusted￿in￿ECO￿PRO￿menu￿from￿80 km/h￿to 130 km/h).￿In￿ECO￿PRO￿+￿mode￿the￿maximum￿driving￿speed￿is￿restricted￿to￿90 km/h.
  • Page 187 I01￿High-voltage￿Components 13.￿Operating￿Strategy Comfort ECO￿PRO ECO￿PRO￿+ Range￿potential up￿to￿20%￿more￿than up￿to￿30%￿more￿than in￿Comfort￿mode in￿Comfort￿mode Restriction￿of￿the none 80 km/h￿to￿130 km/h 90￿km/h maximum￿driving (adjustable) speed￿(can￿be breached) Mirror￿heating No￿reduction -￿25% -￿25%￿and￿after￿10 minutes￿off,￿if￿wiper Heated￿rear￿window No￿reduction Shorter￿heating￿and Shorter￿heating￿and cycle￿times cycle￿times Dim￿low-beam headlight Heated￿seats No￿reduction Maximum￿Stage￿2 Deactivated Cooling￿in￿passenger Balance￿comfort/ More￿economical Climate￿control compartment range program￿with￿reduced...
  • Page 188 I01￿High-voltage￿Components 13.￿Operating￿Strategy Index Explanation Range￿in￿which￿driving￿without￿restrictions￿is￿possible Range￿in￿which￿driving￿without￿restrictions￿is￿possible￿and￿automatic￿engine start-stop￿function￿is￿active Range￿in￿which￿driving￿without￿restrictions￿is￿possible￿and￿automatic￿engine start-stop￿function￿is￿not￿active￿(REX￿is￿permanently￿on) Range￿in￿which￿driving￿with￿restricted￿drive￿power￿takes￿place Range￿with￿safety￿reserve￿for￿REX￿start Range￿in￿which￿driving￿is￿not￿possible Calculated￿state￿of￿charge￿of￿the￿high-voltage￿battery￿(State￿of￿Charge￿=￿SOC) First￿automatic￿REX￿start Warning￿for￿range￿of￿less￿than￿1 km Axis￿for￿relative￿SOC￿values Axis￿for￿absolute￿SOC￿values SOC￿of￿the￿high-voltage￿battery￿0%￿absolute SOC￿of￿the￿high-voltage￿battery￿0.4%￿relative SOC￿of￿the￿high-voltage￿battery￿1.9%￿relative SOC￿of￿the￿high-voltage￿battery￿3.5%￿relative SOC￿of￿the￿high-voltage￿battery￿6.5%￿relative,￿or￿15.7%￿absolute SOC￿of￿the￿high-voltage￿battery￿75%￿relative SOC￿of￿the￿high-voltage￿battery￿100%￿relative Up￿to￿a￿state￿of￿charge￿of￿the￿high-voltage￿battery￿of￿6.5%￿relative￿(displayed￿SOC)￿a￿I01￿with￿REX behaves￿in￿exactly￿the￿same￿way￿as￿a￿I01￿with￿a￿pure￿electric￿motor. If￿the￿state￿of￿charge￿of￿the￿high-voltage￿battery￿drops￿below￿6.5%￿relative,￿the￿REX￿combustion engine￿is￿started￿automatically.￿The￿automatic￿engine￿start-stop￿function￿is￿active￿up￿to￿a￿state￿of charge￿of￿3.5%.￿Driving￿without￿restrictions￿is￿possible￿for￿the￿state￿of￿charge￿between￿3.5%￿and 1.9%,￿but￿without￿automatic￿engine￿start-stop￿function.￿Only￿when￿the￿state￿of￿charge￿of￿the￿high- voltage￿battery￿falls￿below￿1.9%,￿does￿the￿driving￿with￿restricted￿drive￿power￿takes￿effect.￿At￿a￿state￿of charge￿of￿0.4%￿a￿warning￿message￿with￿range￿of￿one￿kilometer￿is￿issued.￿Driving￿is￿no￿longer￿possible below￿this￿SOC￿value.￿In￿the￿high-voltage￿battery￿there￿is￿an￿energy￿reserve￿so￿that￿it￿is￿possible￿to restart￿the￿REX￿combustion￿engine￿or￿so￿that￿the￿high-voltage￿battery￿does￿not￿discharge￿fully￿over￿an extended￿period. After￿refueling￿the￿I01￿with￿REX￿driving￿without￿restrictions￿is￿again￿possible.
  • Page 190 Bayerische￿Motorenwerke￿Aktiengesellschaft Qualifizierung￿und￿Training Röntgenstraße￿7 85716￿Unterschleißheim,￿Germany...

Table of Contents
