User set value range
Analogue input measurement
range
-10 ~ +10 V
-5V ~ +5 V
-20 ~ +20 mA
0 ~ +10 V
0 ~ +5 V
1 ~ 5 V
0 ~ 20 mA
4 ~ 20 mA

Configuration

This section will explain hardware configuration, implementation and parameter allocation methods for the
EX600 series.
EDS and symbol file
EDS files are required to configure the EX600. A symbol file is necessary to display an icon for EX600 on
a DeviceNet Configurator. The EDS files and symbol file can be downloaded from the URL shown below.
URL : http://www.smcworld.com
EDS file : EX600_sdn1_v16  . eds
: EX600_sdn1_v16  . eds
Symbol file : EX600_1.ico
Setting with RSNetWorx for DeviceNet
The following instructions explain how to connect the EX600 to a DeviceNet network using RXNetWorx
(RSNetWorx for DeviceNet version 5.00.00 is used.)
Installing EDS files
Save the files using the EDS Wizard, in the RSNetWorx software.
Start RSNetWorx for DeviceNet.

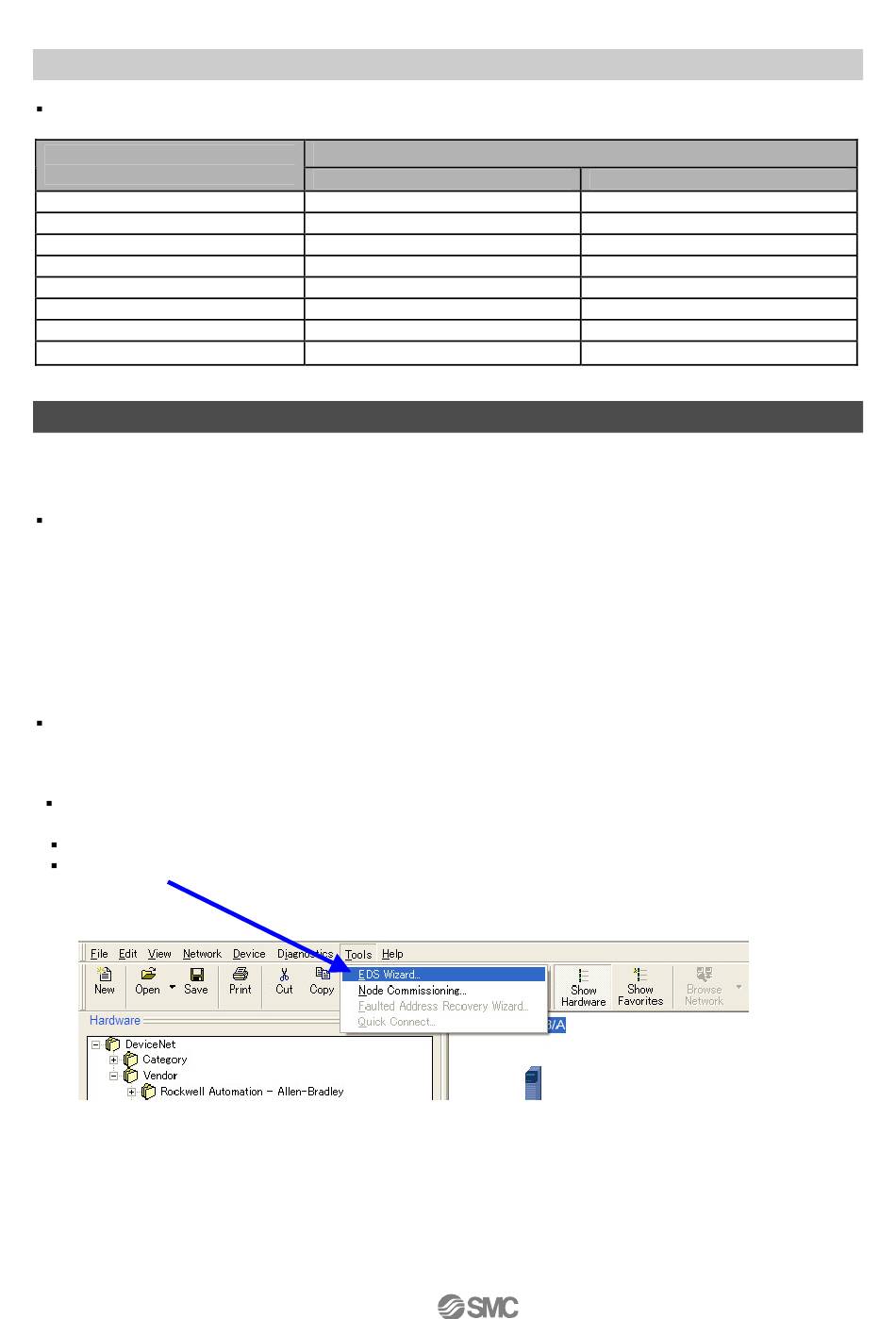

Select Tools/EDS Wizard, and save the EDS files for EX600.
User set value range
Upr_Lmt
-10.5 ~ +10.45 V
-5.25 ~ +5.22 V
-21 ~ +20.9 mA
0 ~ +10.45 V
0 ~ +5.22 V
0.75 ~ 5.22 V
0 ~ 20.9 mA
3 ~ 20.9 mA
- 58 -
Lwr_Lmt
-10.45 ~ +10.5 V
-5.22 ~ +5.25 V
-20.9 ~ +21 mA
0.05 ~ +10.5 V
0.02 ~ +5.25 V
0.77 ~ 5.25 V
0.1 ~ 21 mA
3.1 ~ 21 mA
No.EX##-OML0007
