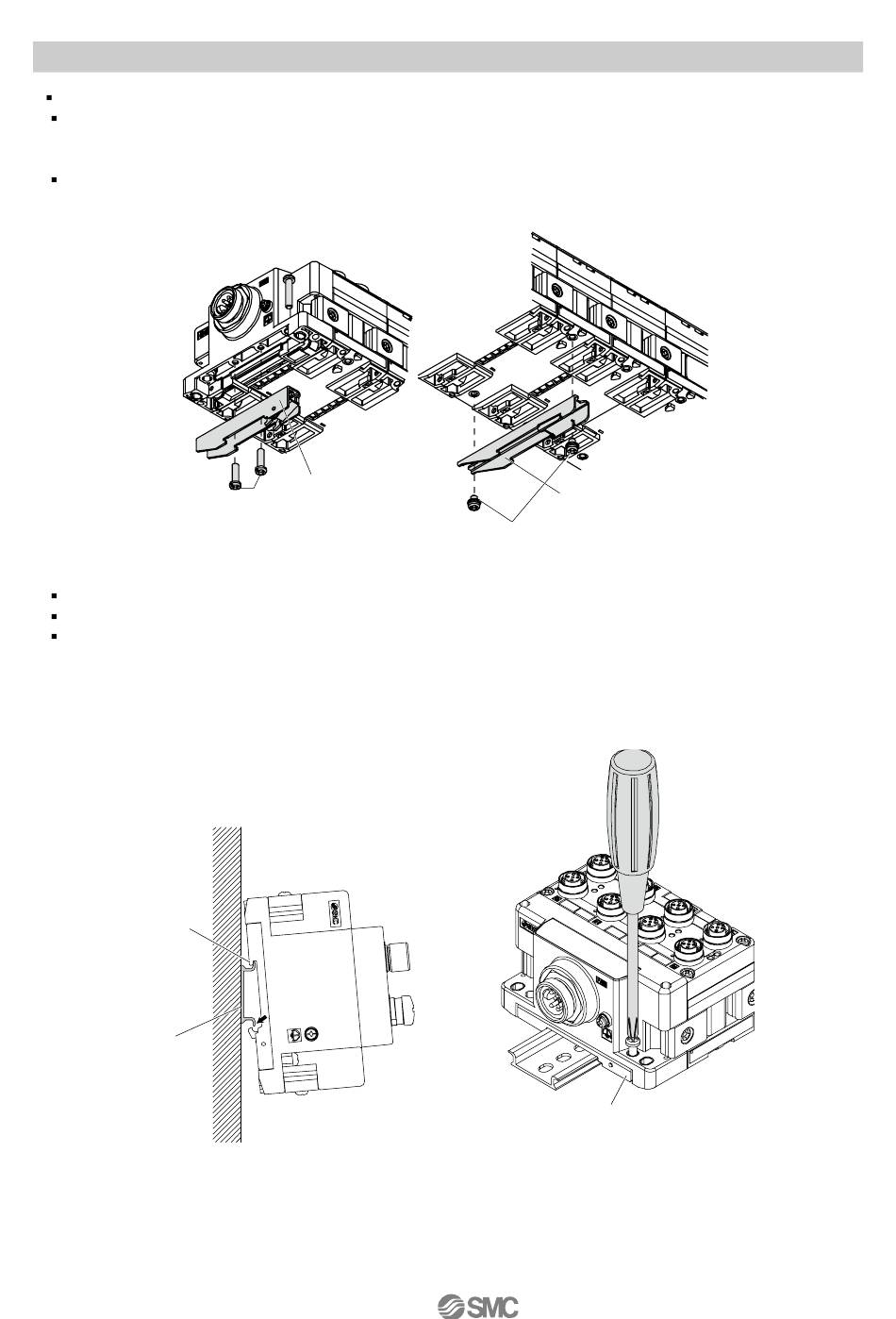

DIN rail mounting
When joining five or more units, fix the middle part of the complete EX600 unit with an intermediate
reinforcing brace (EX600-ZMB2) before mounting, using 2xM4 screws.
(Tightening torque: 0.7 to 0.8 N•m)
Mount the end plate bracket (EX600-ZMA2) to the end plate, using 2xM4 screws.
(Tightening torque: 0.7 to 0.8 N•m)
2 x M4
screws
Hook the DIN rail mounting groove onto the DIN rail. (See the figure below.)
Press the manifold using the side hooked onto the DIN rail as a fulcrum until the manifold is locked.
Fix the manifold by tightening the DIN rail fixing screws of the EX600-ZMA2.
(Tightening torque: 0.7 to 0.8 N•m)
The tightening torque at the valve side depends on the valve type.
Fulcrum
DIN rail
End plate bracket
(EX600-ZMA2)
Intermediate reinforcing
brace (EX600-ZMB2)
2 x M4
screws
End plate bracket
(EX600-ZMA2)
