Assembly

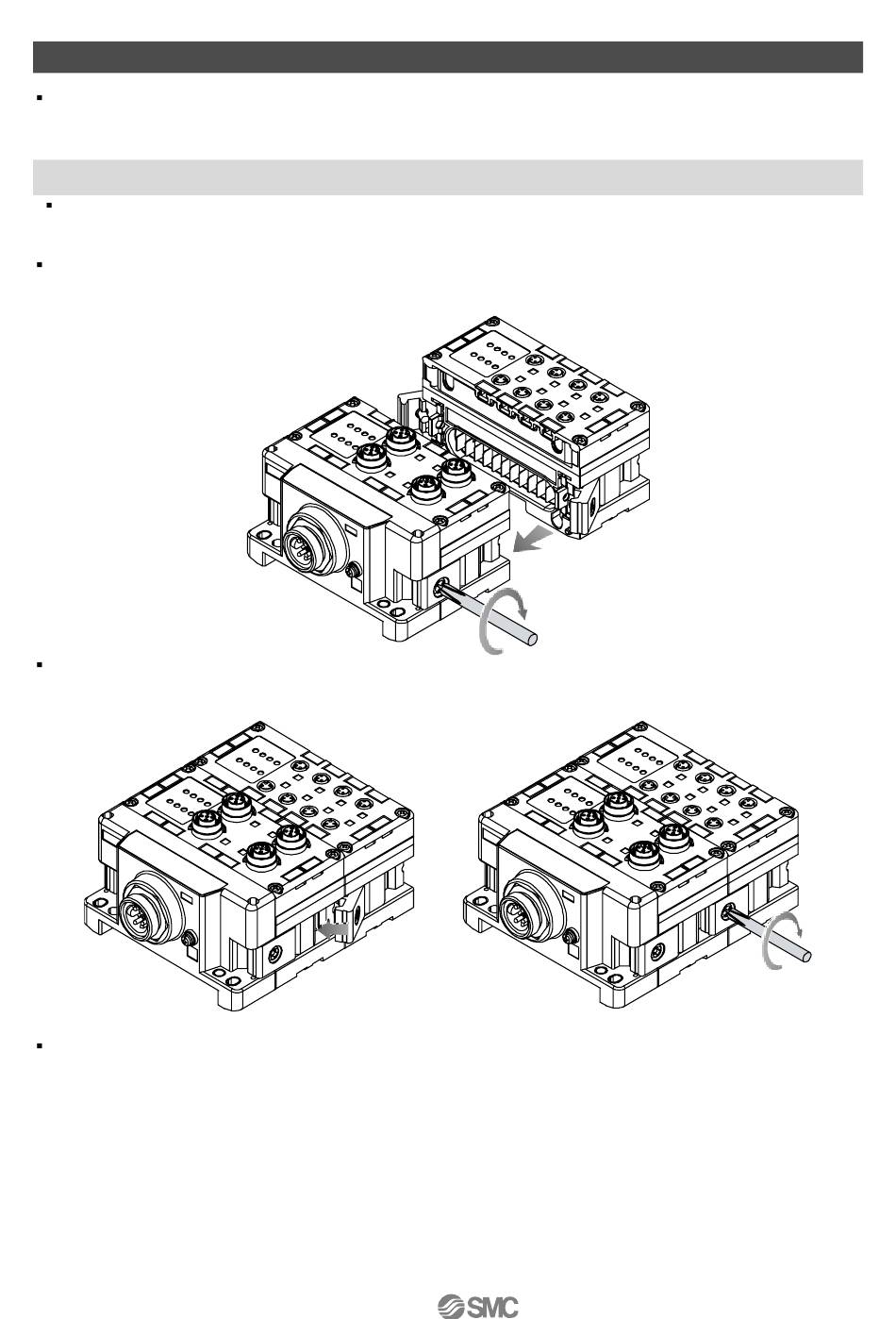

Assembling the unit as a manifold.
*: If the unit was purchased as a manifold, the work described in this section is not necessary.
Be sure to turn off the power when carrying out work to assemble the unit as a manifold.
Connect a unit to the end plate.
Digital input units, digital output units and analogue units can be connected in any order.
(Tightening torque: 1.5 to 1.6 N•m)
Add more units
Upto 10 units, including the SI unit, can be connected to one manifold.
Connection of SI unit
Connect the SI unit after connecting all of the required I/O units together. The connection procedure is the
same as above.
Note
