Mounting and Installation

Installation method
Direct mounting

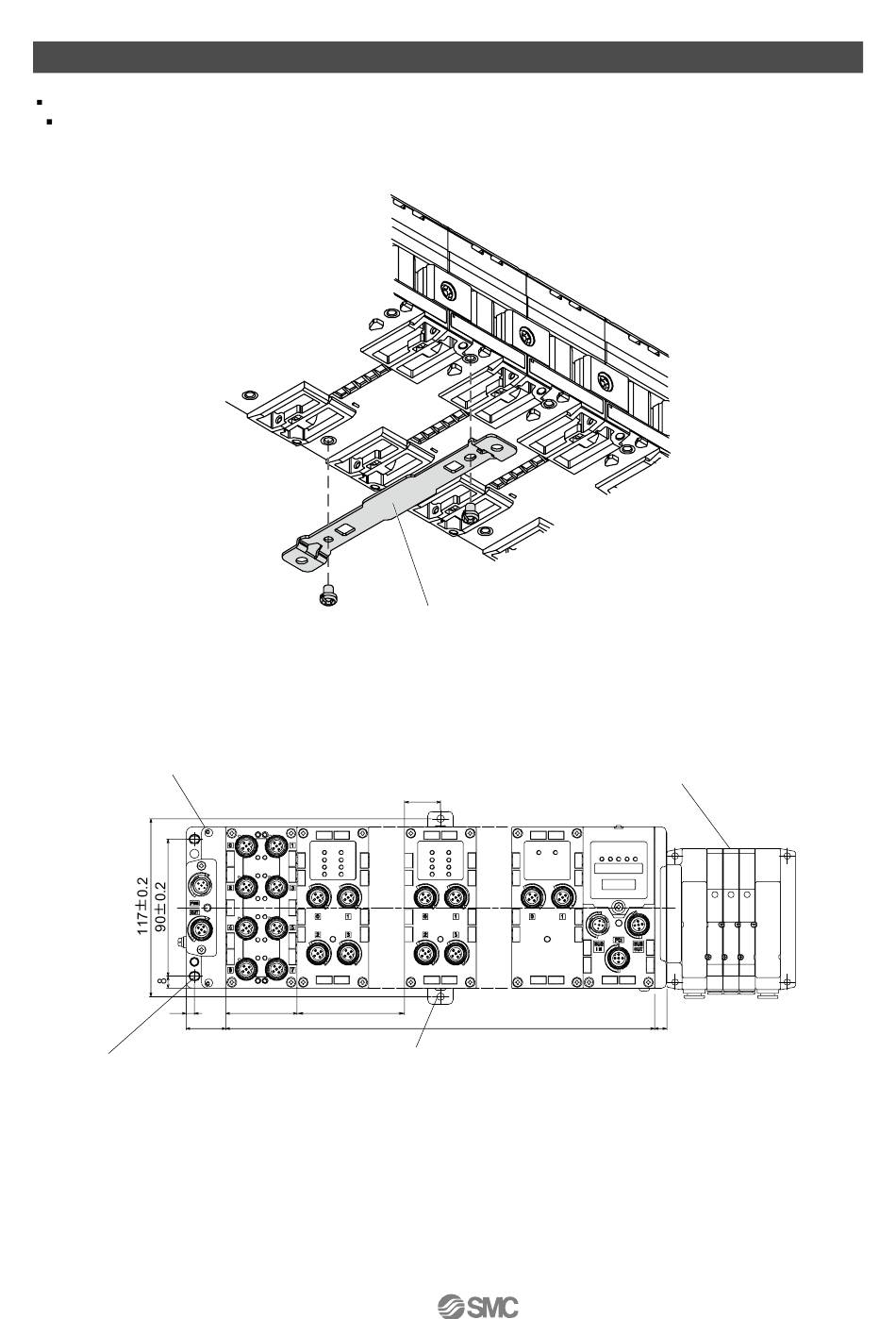

When joining six or more units, fix the middle part of the complete EX600 unit with an intermediate
reinforcing brace (EX600-ZMB1) before mounting (Refer to the figure below.) using 2xM4 screws
(Tightening torque: 0.7 to 0.8 N•m)
Fix and tighten the end plate at one end of the unit as shown in the figure below.
(Tightening torque: 0.7 to 0.8 N•m)
Fix the end plate at the valve side after referring to the manual of the corresponding manifold valve.
End plate
5.5
26
2 x M4 screws
2 M4 screws
(Tightening torque: 0.7 ~ 0.8 N•m)
(tightening torque: 0.7 to 0.8 Nm)
Intermediate reinforcing brace
(EX600-ZMB1)
23.5
47xm
47
Intermediate reinforcing brace
Intermediate reinforcing brace
2 x M4 screws 2 M4 screws
47xn
- 11 -
Manifold valve
8
(Tolerance: ±0.2 mm)
(Tolerance: 0.2 mm)
