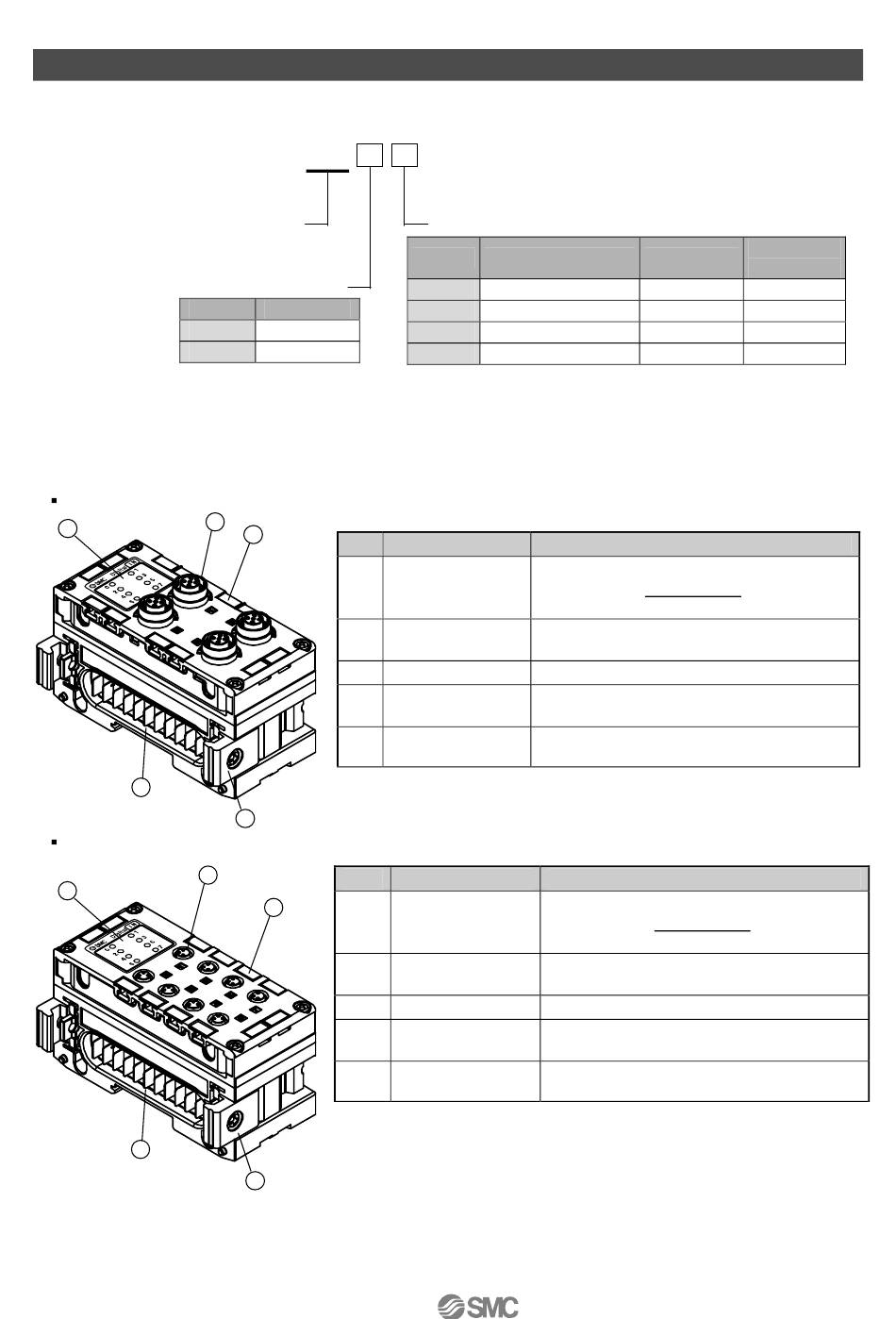

Digital Input Unit

How to order

EX600 – DX
Digital input
Symbol

Name and function of the parts

*
EX600-DX
B
1
5
*
*
EX600-DX
C
2
1
5
Input polarity
Description
P
PNP
N
NPN
2
3
No.
1
2
3
4
5
4
No.
3
1
2
3
4
5
4
Connector and input points and open circuit detection
Symbol
Connector
B
4 x M12 (5 pin)
C
8 x M8 (3 pin)
C1
8 x M8 (3 pin)
D
8 x M12 (5 pin)
Note: Input equipment with 4 pin M12 connector can also be
connected to M12 (5 pin) connector.
Name
Indicates the unit status.
Status LED
(Refer to the "Error display" section for
further details.)
Connector
Connector for digital inputs.
(input)
(M12, 5 pin, socket: SPEEDCON)
Marker groove
Groove to mount a marker.
Joint bracket to join the adjacent unit,
Joint bracket
fixed with attached screws
Connector for
Conveys the signals and power supplies
unit (plug)
to the adjacent unit.
Name
Indicates the unit status.
Status LED
(Refer to the "Error display" section for
further details.)
Connector for digital inputs.
Connector (input)
(M8, 3 pin, socket)
Marker groove
Groove to mount a marker.
Joint bracket to join the adjacent unit,
Joint bracket
fixed with attached screws
Connector for
Conveys the signals and power supplies
unit (plug)
to the adjacent unit.
- 24 -
Open circuit
Input points
detection
8 points
No
8 points
No
8 points
Yes
16 points
No
Description
Description
No.EX##-OML0007
