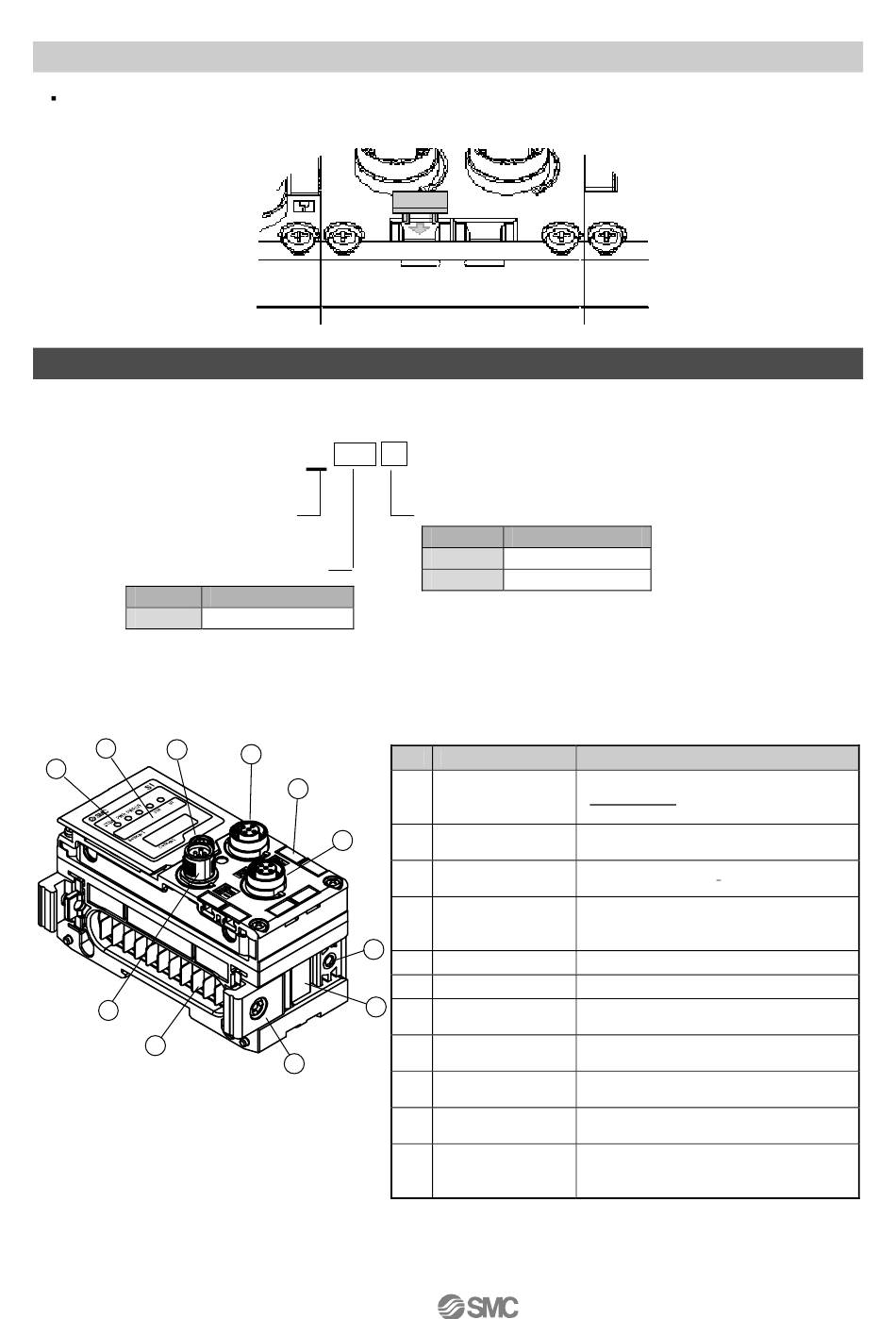

Mounting the marker
Mount the marker (EX600-ZT1) into the marker groove as required.

SI Unit

How to order

EX600 – S
Symbol
DN

Name and function of the parts

2
3
1
11
10
SI Unit
Protocol
Description
TM
DeviceNet
4
5
6
7
8
9
Output polarity
Symbol Description
1 PNP (-COM.)
2 NPN (+COM.)
No Name
1 Status LED
2 Display cover
Display cover set
3
screw
Connector (BUS
4
OUT) (socket)
5 Marker groove
6 Connector
Valve plate
7
mounting holes
Valve plate
8
mounting groove
9 Joint bracket
Connector for unit
10
(plug)
Connector
11
(BUSIN) (plug)
- 14 -
Description
Indicates the unit status. (Refer to the
"Error display" section for further
details.)
Open to gain access to the setting
switches.
Loosen to open the display cover.
Connector for fieldbus output.
BUS IN and BUS OUT are connected
inside the unit.
Groove to mount a marker.
For handheld terminal. (Socket)
Holes for fixing the valve plate.
Groove for mounting the valve plate.
Joint bracket to join the adjacent unit,
fixed with attached screws.
Conveys the signals and power
supplies to the adjacent unit.
Connector for fieldbus input.
BUS IN and BUS OUT are connected
inside the unit.
