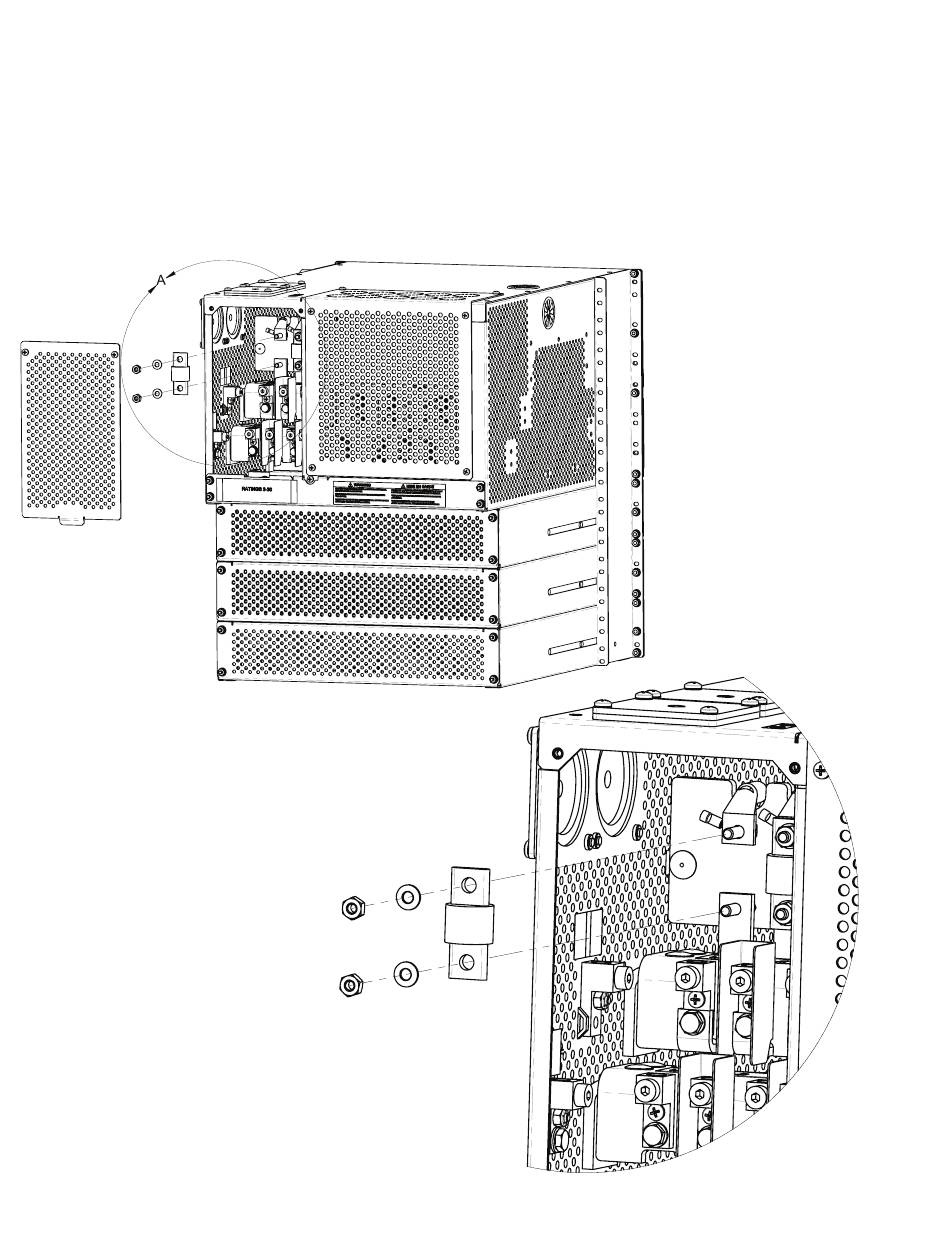

8.7 Fuse Replacement (Rack Mount)
1. Put system into external bypass and remove all AC and DC from the AMPS HP2 system, refer to 8.4.1.
2. Remove the AC cover with a Phillips head screw driver.
3. Remove the fuse using a 7/16 hex nut screwdriver.
4. Replace fuses with the same type and rating: 200A, 300V Class T fuse (Alpha part number 4600112).
5. Put critical loads on UPS, refer to 8.4.2.
0260080-J0 Rev D
80
