5.2.4 Installing Into 23" Racks
The AMPS HP2 Rack Mount system can be front mounted or mid mounted into a 23" rack using the adpater
plates as shown in the following figures.

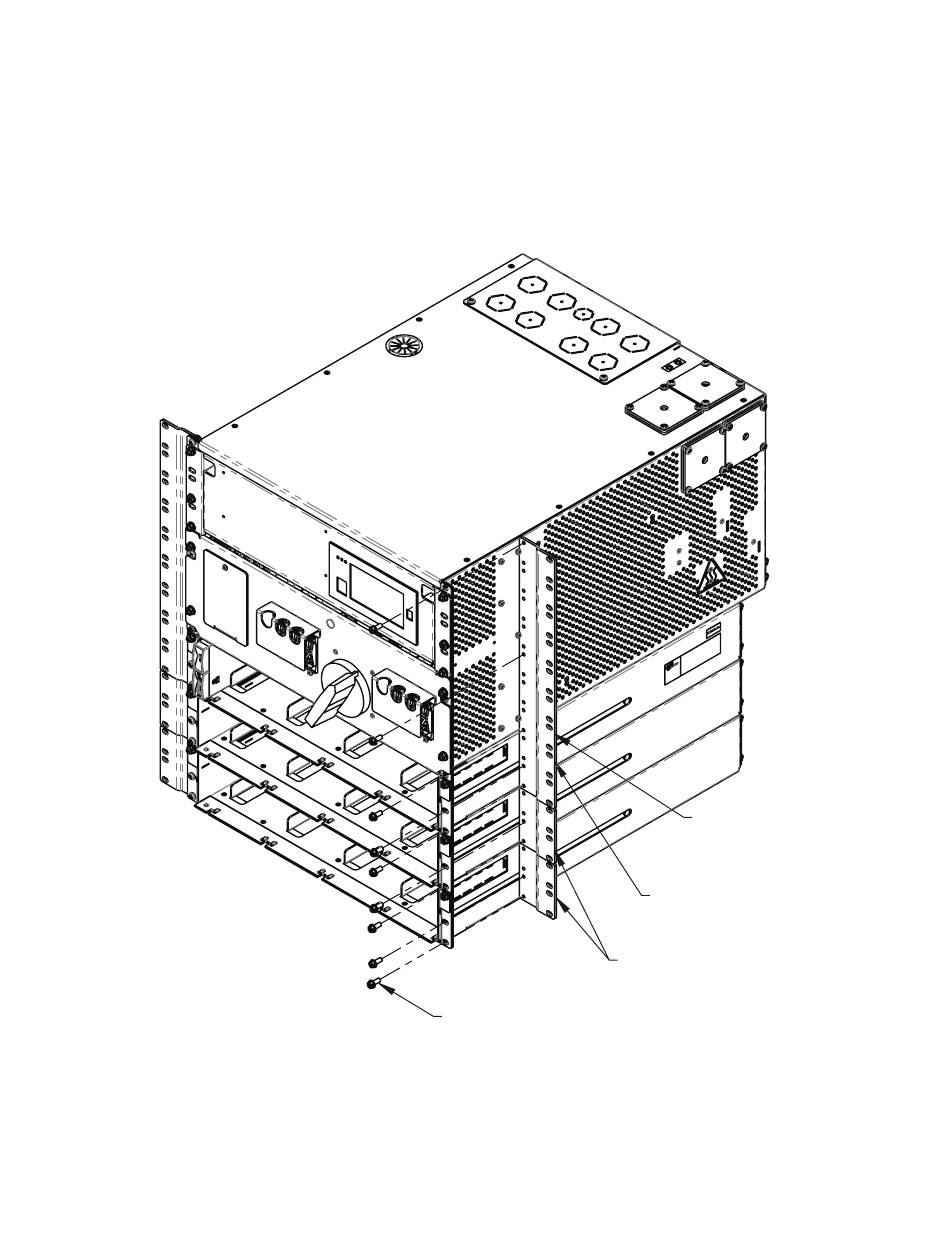

Front Mount 30 KVA with 19 - 23" Adapter Plates
46
FRONT MOUNT 30 KVA WITH ADAPTER PLATES
19"- 23"
4X 2 RU ADAPTER PLATE
5901456-002
9X 1/2" TRS SCREWS PER SIDE
9X 1/2" TRS SCREWS
FOR RACK INSTALL
PER SIDE
2X 9 RU ADAPTER PLATE
5901456-009
0260080-J0 Rev D
