4.2.3 Installation Layout AMPS HP2: Box Bay Systems
NOTE:
In the unlikely event that internal components need repair, 1 m access around the
unit is recommended.
The recommended minimum required clearances around the cabinet are as follows:
•
Rear: 12" (30 cm) minimum, 18" (46 cm) recommended
•
Sides: no clearance required.
•
Top: 12" (30 cm)
5
•
Front: 36" (100 cm)
OTHER EQUIPMENT
5
22
4
OTHER EQUIPMENT OR WALL
1ft/30cm
OR WALL
MINIMUM DISTANCE
3ft/1m
FOR SERVICE

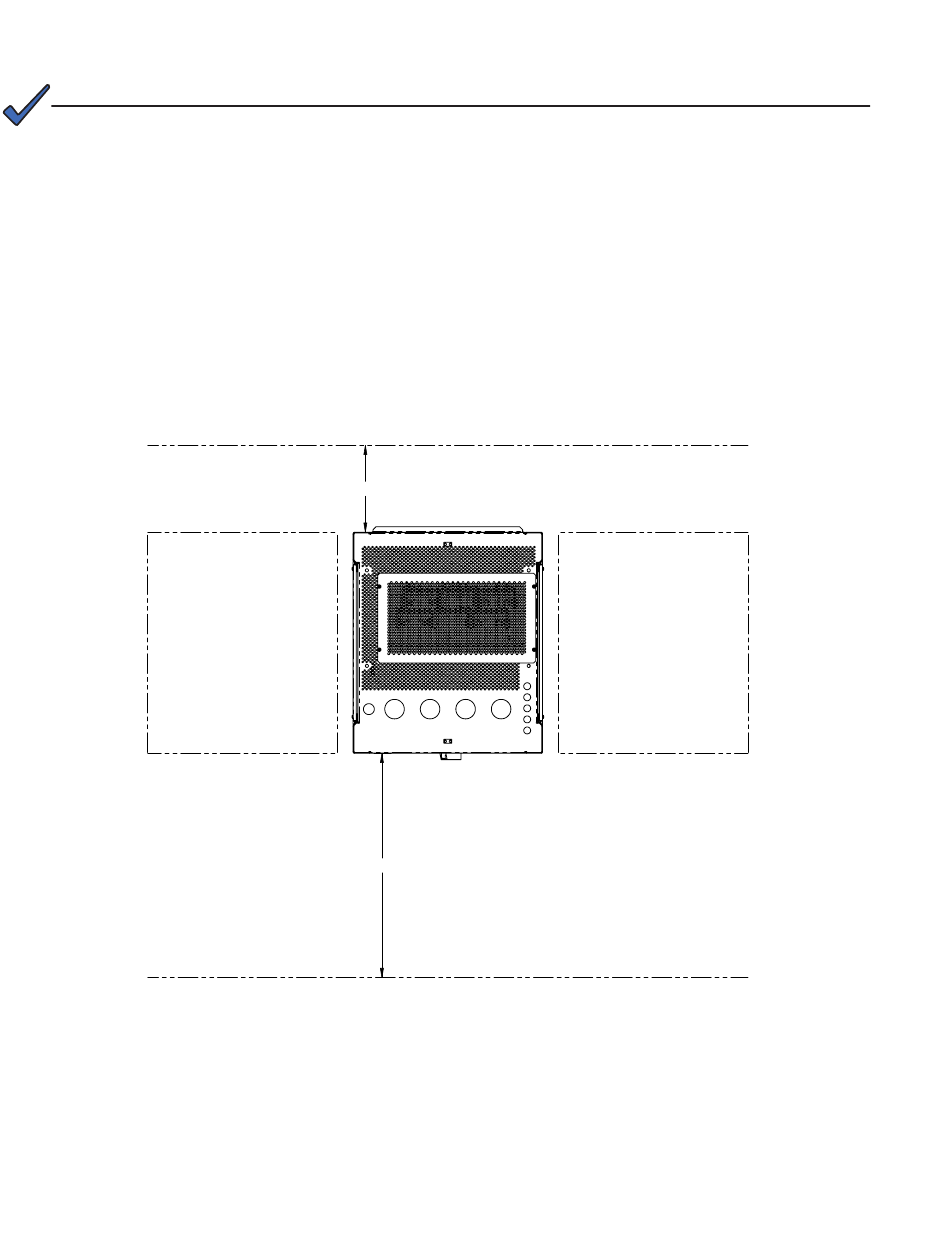

Figure 9 — Installation layout and clearances
4
3
DO NOT SCALE DRAWING
OTHER EQUIPMENT
OR WALL
3
2
UNLESS OTHERWISE SPECIFIED
THESE DESIGNS AND SPECIFICATIONS ARE
DIM ARE IN INCHES
CONFIDENTIAL, REMAIN THE PROPERTY OF
X.X
0.040
ALPHA TECHNOLOGIES LTD., AND SHALL NOT BE
X.XX
0.020
COPIED OR USED WITHOUT ITS WRITTEN CONSENT
X.XXX
0.010
APPROVALS
ANGULAR:
1
INTERPRET DIM AND TOL PER
DRAWN
ASME Y14.5-1994
CHECKED
THIRD ANGLE PROJECTION
© ALPHA TECHNOLOGIES LTD
2
0260080-J0 Rev D
DATE
TITLE:
XX
XX
SIZE DW
B
SCALE:
