4.6 AC Connections
• Access to connection points is provided from the front of the system rack.
• AC wires enter the cabinet through the top.
• AC input and AC output wires are connected to box lugs rated for 350 kcmil to #6 AWG.
• Use 90°C rated copper only.
30
AC In & Out Ground
N out

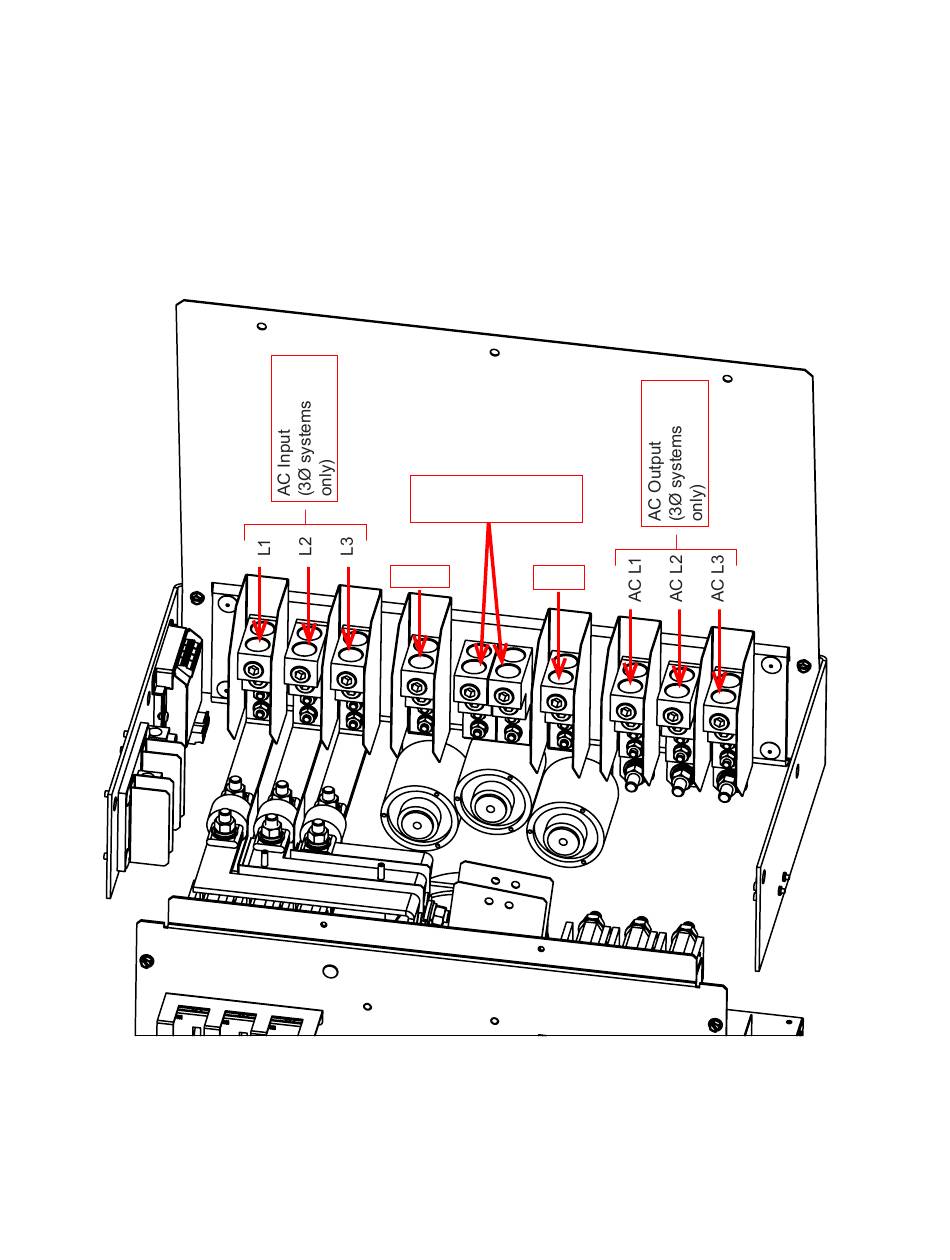

Figure 15 — AC Connections (a)
N in
