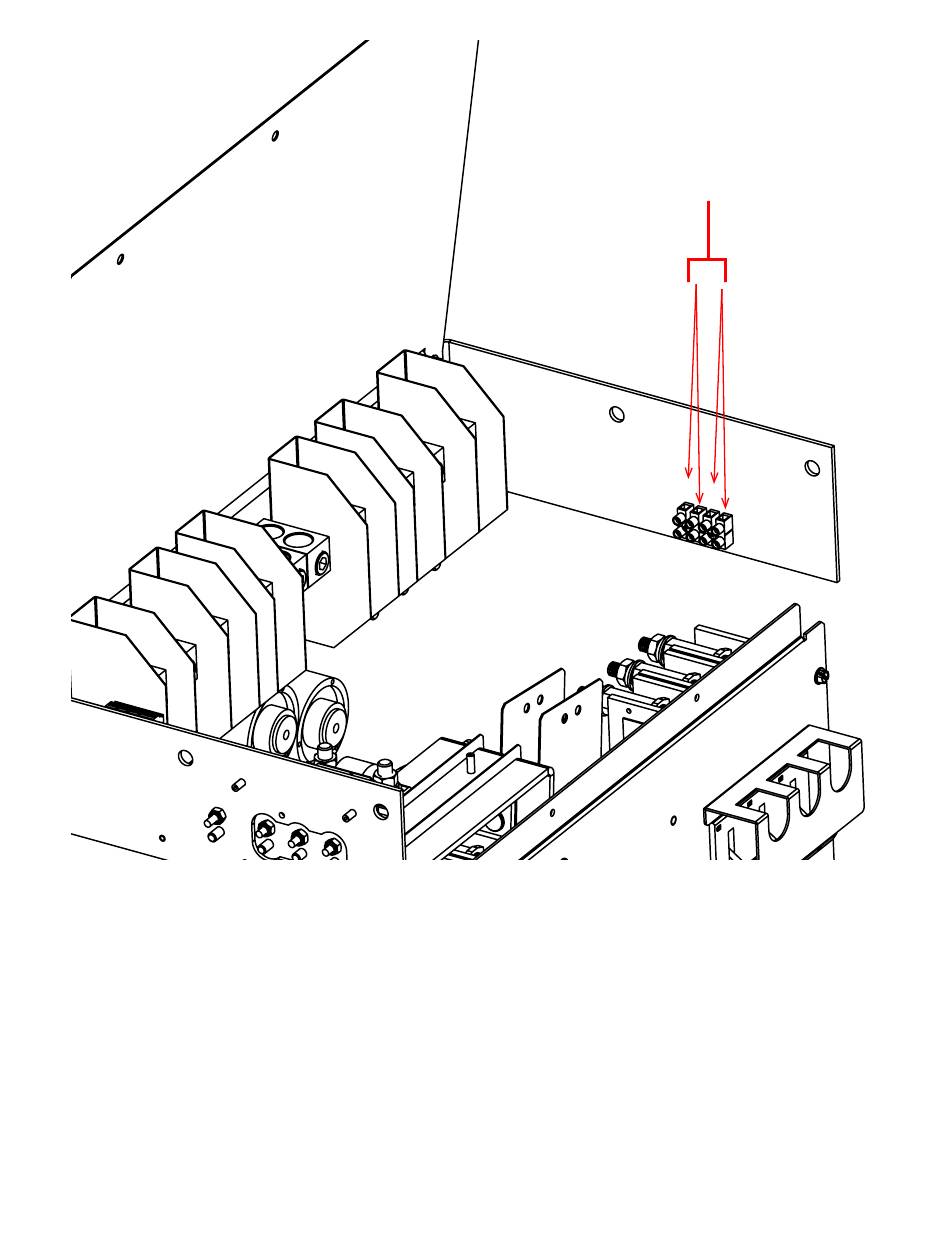

Figure 17 - Ac Connections Bypass Terminal Block - Alpha Technologies AMPS HP2 Power System Installation & Operation Manual

4.6.1 Bypass Terminal Block
• The terminal bypass block is provided for customer convenience to monitor the position of the AMPS
HP2 bypass switch.
• There are two connection points
•
•
• Ratings: 15A/250V
32
Figure 17 — AC Connections Bypass terminal Block (c)
Normally open
Normally closed
Bypass Terminal Block
Open in Closed in
Bypass Bypass
0260080-J0 Rev D
