8.3 Replacing an AIM2500 Inverter Module

8.3.1 Replacing Inverters
Follow these step to replace one or more inverters:
1. Go to Power system > Inverter System > Inventory > Inverters > Status.
2. Pull out the inverters that must be replaced. The information on the Status page will help identify inverters in
alert. An inverter that is pulled out will not have any values for its data and have a Forget button on its row.
3. Press the Remove Inverters button to launch the wizard and then follow the instructions.
4. Press the Add Inverters button to launch the wizard.
5. The wizard will prompt you to insert inverters in the first available slot starting in phase 1. If the inverter must
go into a different phase, use the Phase Done button. If the recommended slot is not correct, but the phase
is correct, use the Skip Slot button to advance to the next available slot.
CAUTION!
This system is designed for use with Alpha AIM2500 inverter modules (Alpha p/n
014-201-20). Use of alternate inverter hardware and/or unapproved firmware versions
may cause system instability and will invalidate system warranty. Consult Alpha cus-
tomer service or technical support for additional details.
CAUTION!
Improper installation or removal of modules can break latching components.
Removing a module from a working system generates an alarm, which will not clear until the module is replaced
or the number of modules in that phase is reduced by the number of modules removed.

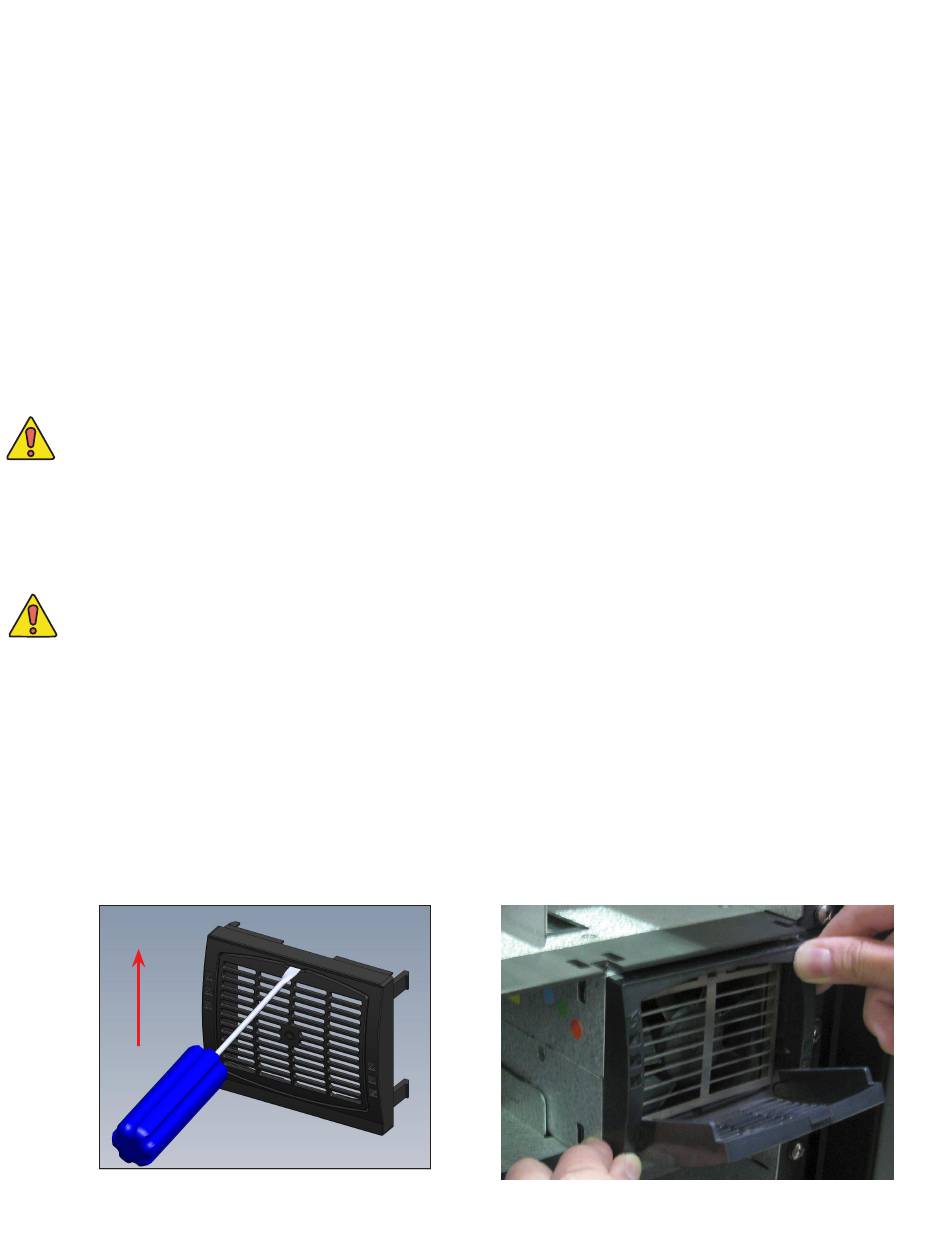

STEP1:
Insert a flat head screw driver into the center flap
notch and pry open the center flap. Then pull out
the module by pulling on the center flap with both
hands�
Unlock
0260080-J0 Rev D
STEP2:
With the module plastic front grill in the open/
unlocked position, slide the module all the way
into the slot Press the module into place and
ensure connection is engaged. Close the flap.
