6. System Components
6.1 Cordex HP Controller
The Cordex™ HP (CXC HP) controller provides centralized setup, control and monitoring of power systems. This
ranges from simple monitoring and threshold alarms for temperature, voltage and current, to advanced battery
charging and diagnostic features.
The controller supports dual Ethernet ports and a 4.3" LCD screen to allow simultaneous network, LCD and local
laptop access to the controller including both web and SNMP interfaces.
The CXC HP supports to dual CAN ports to allow up to 256 power and/or ADIO modules to be controlled and
monitored. The controller uses external analog and digital input and output (ADIO) peripherals to monitor electri-
cal signals (temperature, voltage, temperature) and generate electrical signals through relays. The most com-
monly used ADIO peripheral is the L-ADIO for low voltage systems which includes:
8 digital inputs
4 voltage sensors
4 temperature sensors
4 current sensors
12 Form C relay outputs
The CXC HP has the following features:
Front touchscreen: full color LCD touchscreen display, to access controls and menu items by using fingertip
touch or a stylus.
Home button: provides the ability to go directly back to the home screen from any menu.
Front panel reset: for emergency use only to restart the CXC HP if the unit touch screen or home button are
not responding.
Front panel LEDs: for alarms, progress and status indication.
Audio speaker: built-in audio tones during active alarms, and can be disabled if required.
Ethernet: dual ports 10/100 BaseT Ethernet connection on both the front and rear of the controller for remote
or local communication.
0260080-J0 Rev D
Status LEDs
Ethernet
(rear
USB (rear)
USB (front)
Ethernet (front)

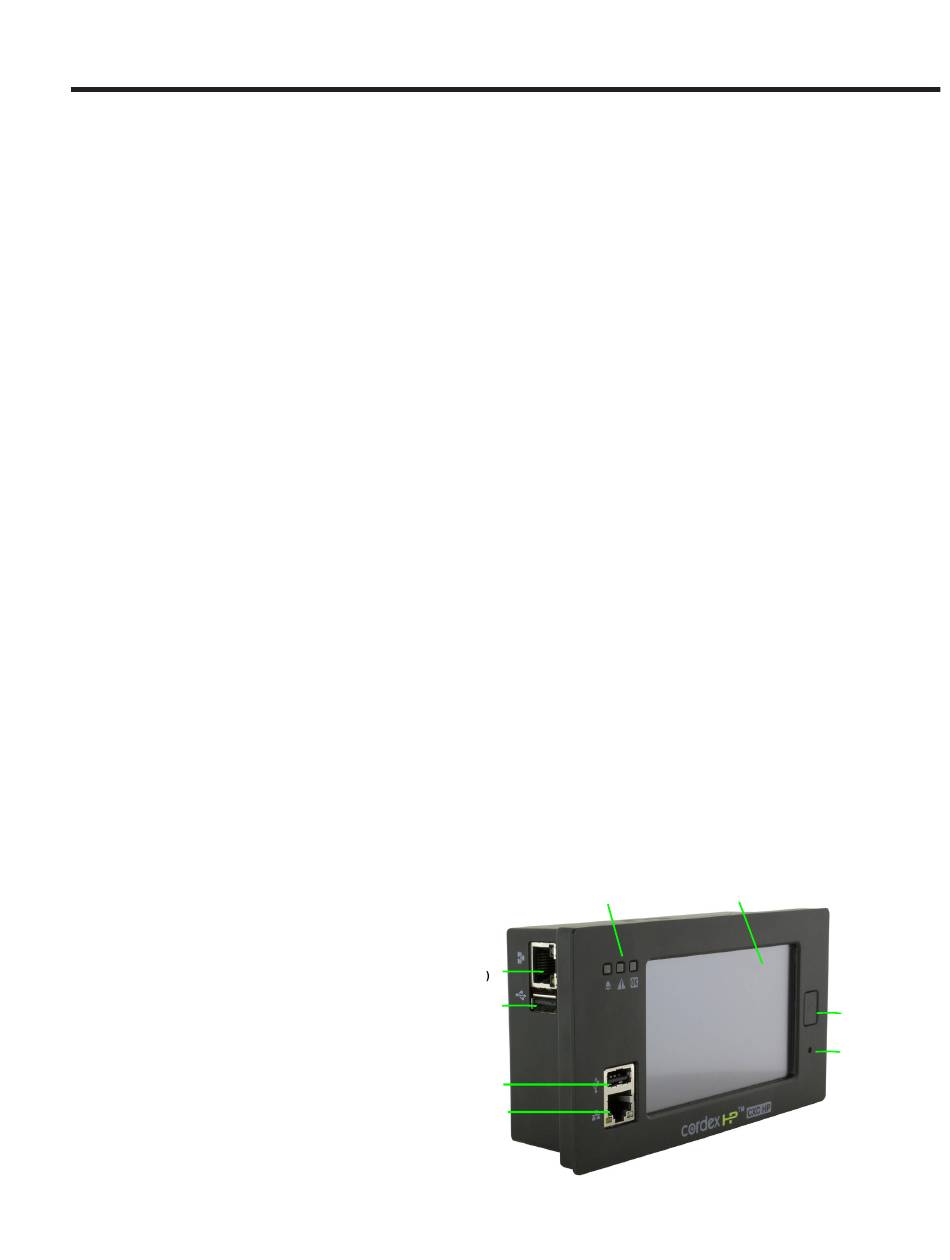

Figure 36 — Cordex CXC HP Controller (left side view)
LCD screen
Home
Reset
55
