4.4 Installation: AMPS HP2: Box Bay
Carefully review the following schematic and installation notes before proceeding with the installation.
6

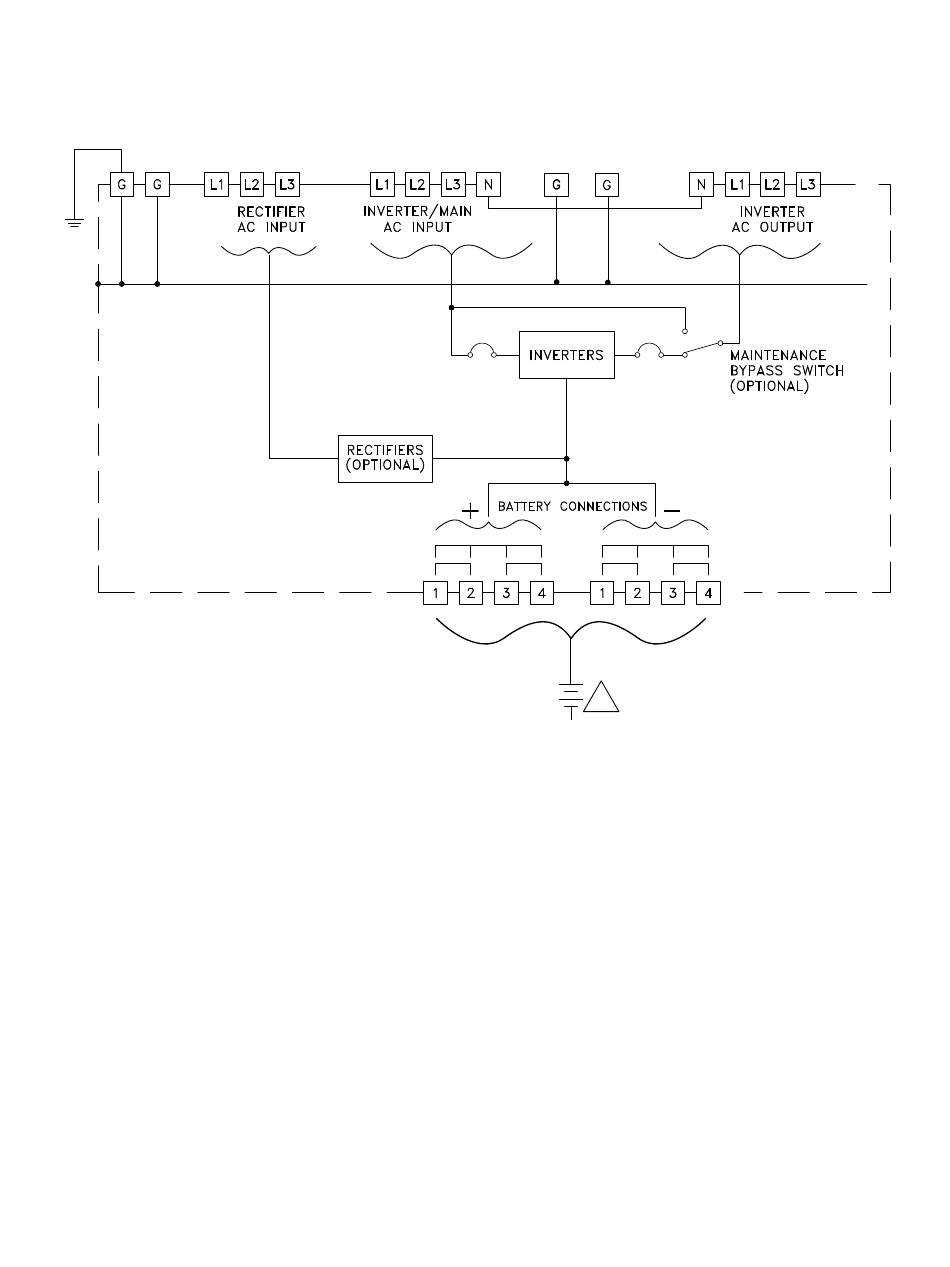

Figure 12 — Battery and power connections
Installation notes:
1. All wiring must be in accordance with applicable electrical codes.
2. All external wiring by others.
3. Inverter main input must always include a neutral connection.
4. Power and control cables must be in separate conduits.
5. L3 is only used with 3-phase systems.
6. Four independent battery strings can be connected. Tie bars are provided for single or dual DC feed.
0260080-J0 Rev D
27
