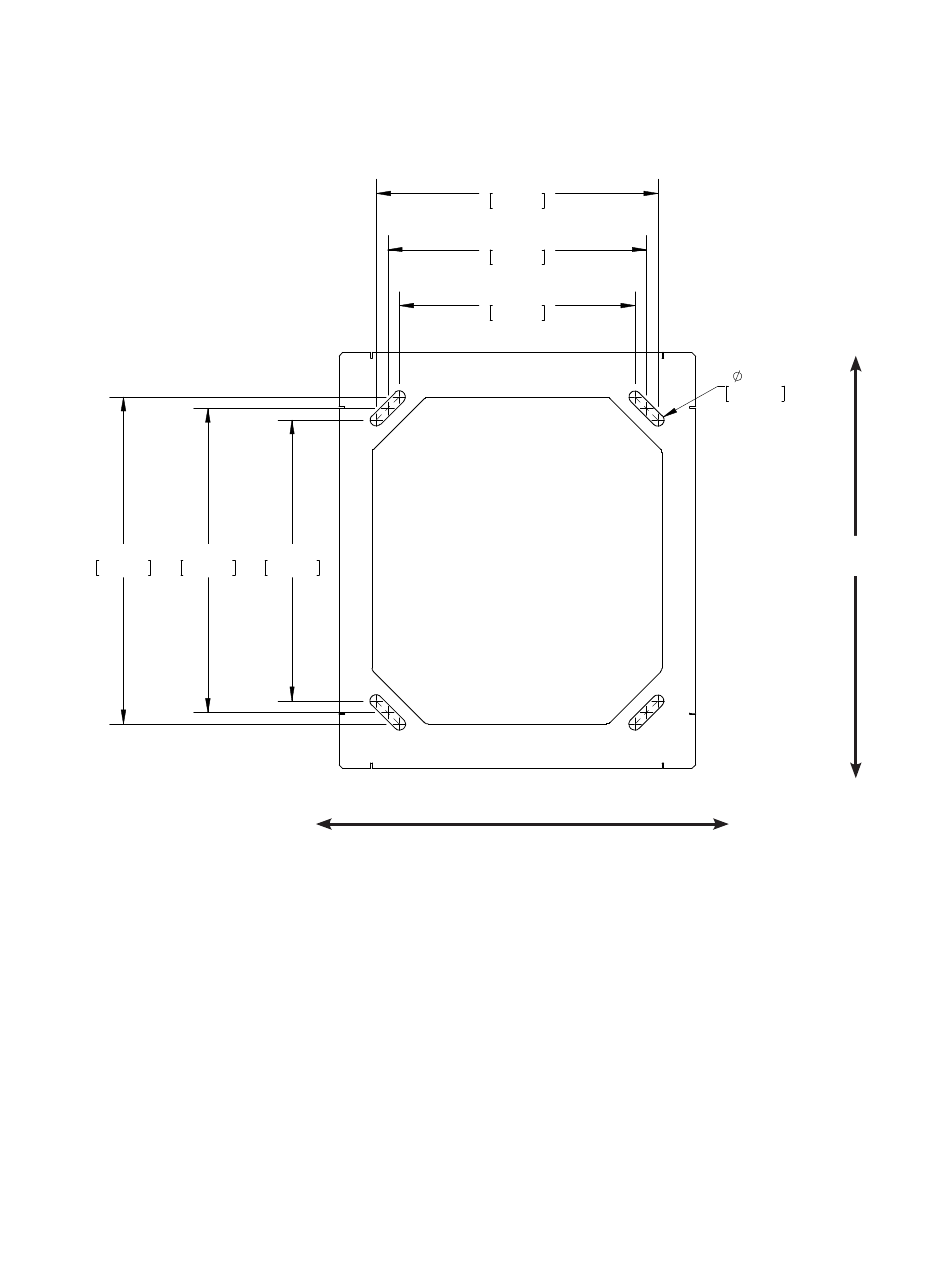

Figure 11 - Mounting Hole Pattern - Alpha Technologies AMPS HP2 Power System Installation & Operation Manual

4.2.6 Anchoring the Cabinet
The cabinet must be fixed in place by means of anchor bolts. In areas prone to seismic events, use anchors
rated for the appropriate Seismic zone.
22.00in 20.45in
559mm 520mm
0260080-J0 Rev D
18.91in
480mm
Total dimensions, 24.00 in (610 mm)
Figure 11 — Mounting hole pattern
18.94in
481mm
17.39in
442mm
15.85in
402mm
0.81in (TYP)
20.7mm
Total dimensions,
28.00 in (711 mm)
