2.2.3 Wiring for Generator and/or External MBS
Refer to Figure 4 for schematic of a system with a generator and/or external MBS.

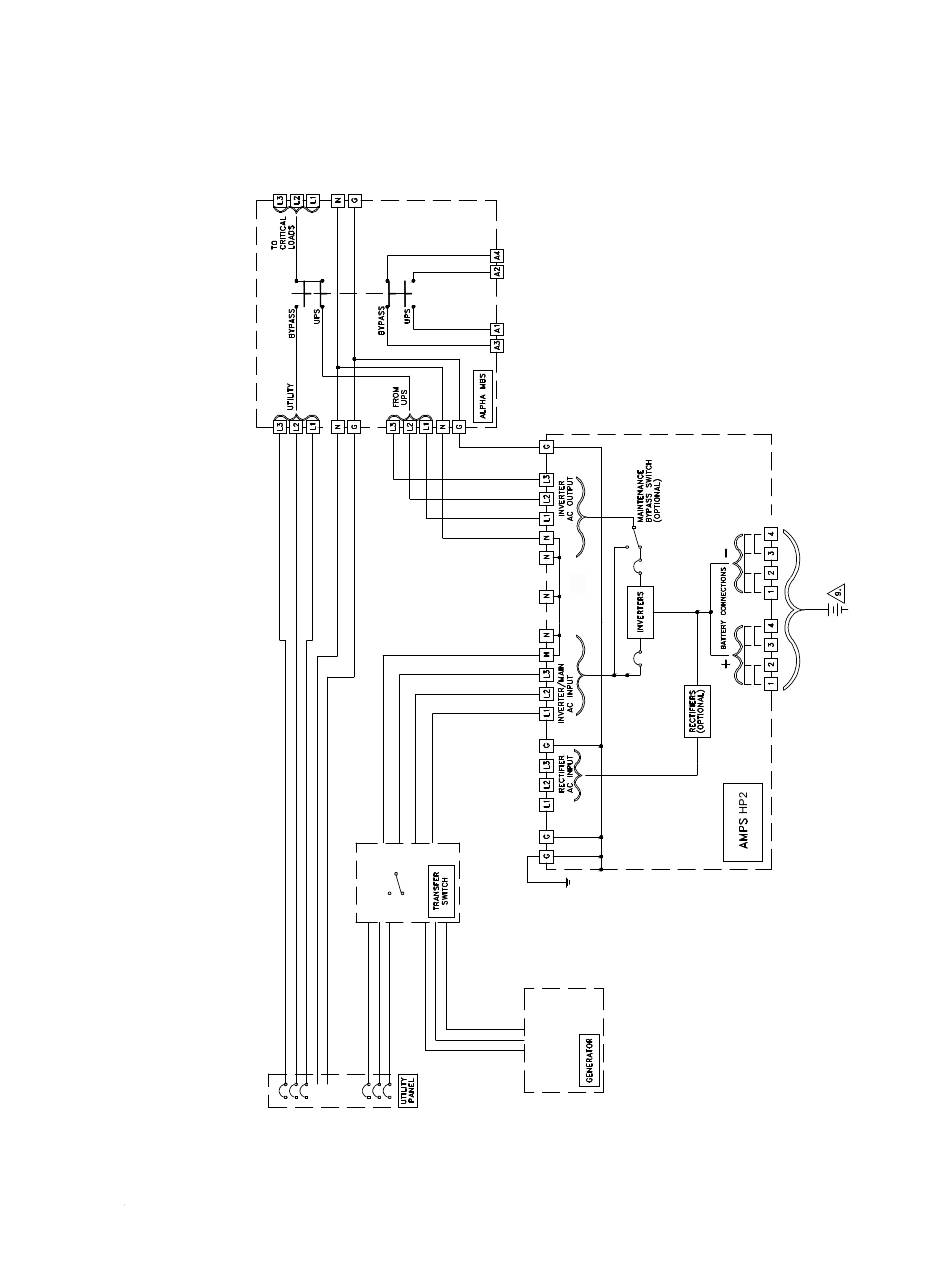

Figure 4 — System Schematic with Generator and MBS
0260080-J0 Rev D
13
