Figure 29 - Installation Layout And Clearances - Alpha Technologies AMPS HP2 Power System Installation & Operation Manual

5.2.3 Installation AMPS HP2: Rack Mount
NOTE:
In the unlikely event that internal components need repair, 1 m access in front and
back of the unit is recommended.
Recommended minimum required clearances around the relay rack are as follows:
5
• Rear: 36" (100cm)
• Sides: no clearance required.
• Top: 7" (18cm) clearance, from the back is required.
• Bottom: no clearance required.
• Front: 36" (100cm).
OTHER EQUIPMENT
5
0260080-J0 Rev D
4
OTHER EQUIPMENT OR WALL
OR WALL

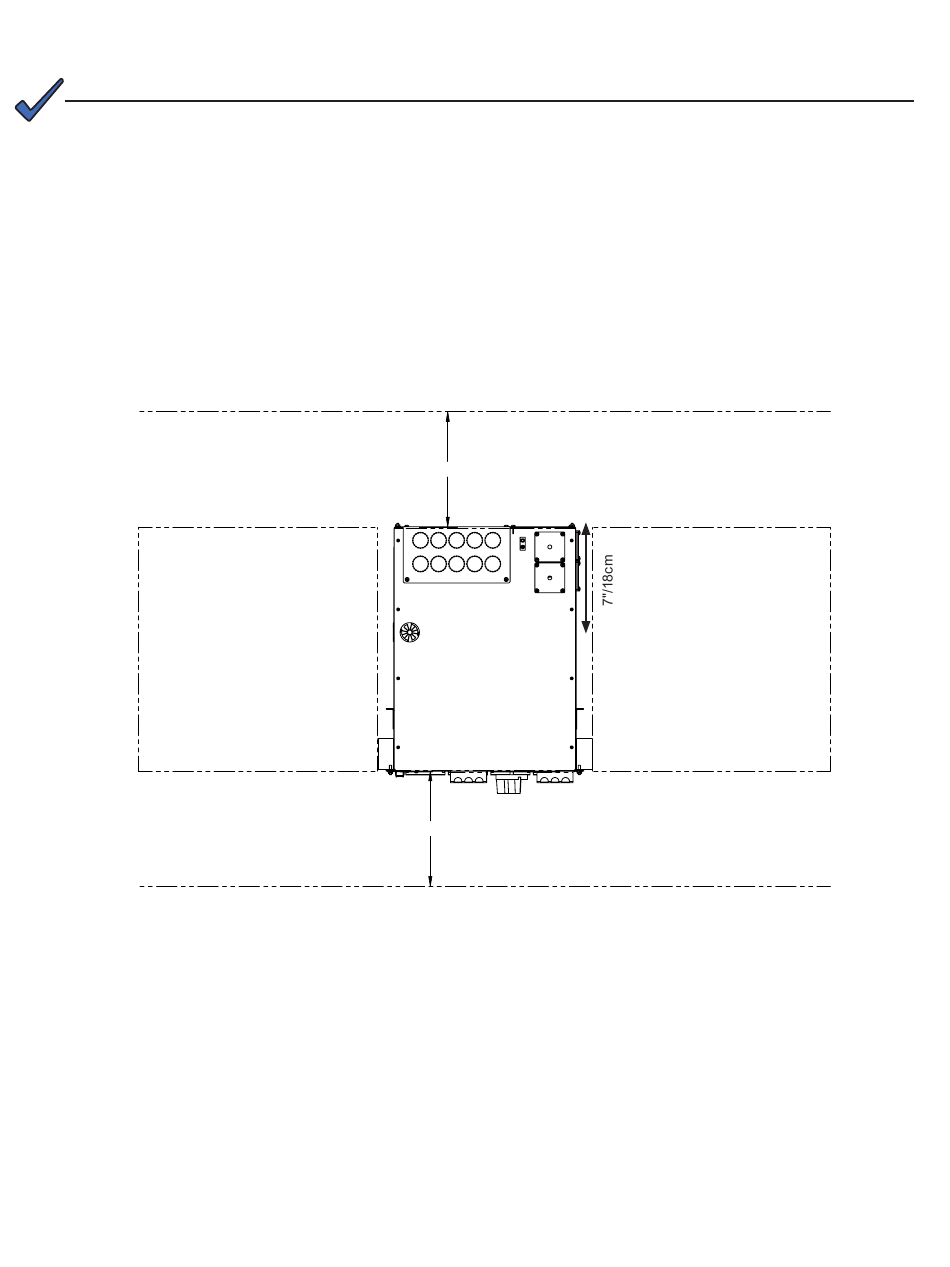

Figure 29 — Installation layout and clearances
4
3
DO NOT SCALE DRAWING
3ft./1m
3ft./1m MINIMUM DISTANCE FOR SERVICE
3
2
OTHER EQUIPMENT
OR WALL
UNLESS OTHERWISE SPECIFIED
DIM ARE IN INCHES
X.X
X.XX
X.XXX
ANGULAR:
INTERPRET DIM AND TOL PER
ASME Y14.5-1994
THIRD ANGLE PROJECTION
2
THESE DESIGNS AND SPECIFICATIONS ARE
CONFIDENTIAL, REMAIN THE PROPERTY OF
0.040
ALPHA TECHNOLOGIES LTD., AND SHALL NOT BE
0.020
COPIED OR USED WITHOUT ITS WRITTEN CONSEN
0.010
APPROVALS DATE
1
DRAWN XX
CHECKED XX
© ALPHA TECHNOLOGIES LTD
45
