A new module can take between 5 and 10 minutes
to synchronize with the T2S controller and clear any
alarms. Do not interact with the system during the
initialization process.
When the initialization sequence is complete, the
three LEDs on the left hand side of the inverter mod-
ule turn a solid green.
Use the touch display or a web connection to con-
firm that the # of modules versus actual installed are
equal. (
Inverters > AC Output Groups
interface).
If the system remains in alarm or the inverter information does not appear after five minutes please call Alpha
Technologies Technical Support at 1-888-462-7487 for assistance. A laptop with an Ethernet cable is required for
troubleshooting activities.
CAUTION!
Improper installation or removal of modules can break latching components.
Unlock
Insert a flat head screw driver into the center flap
notch and pry open the center flap. Then pull out the
module by pulling on the center flap with both hands.

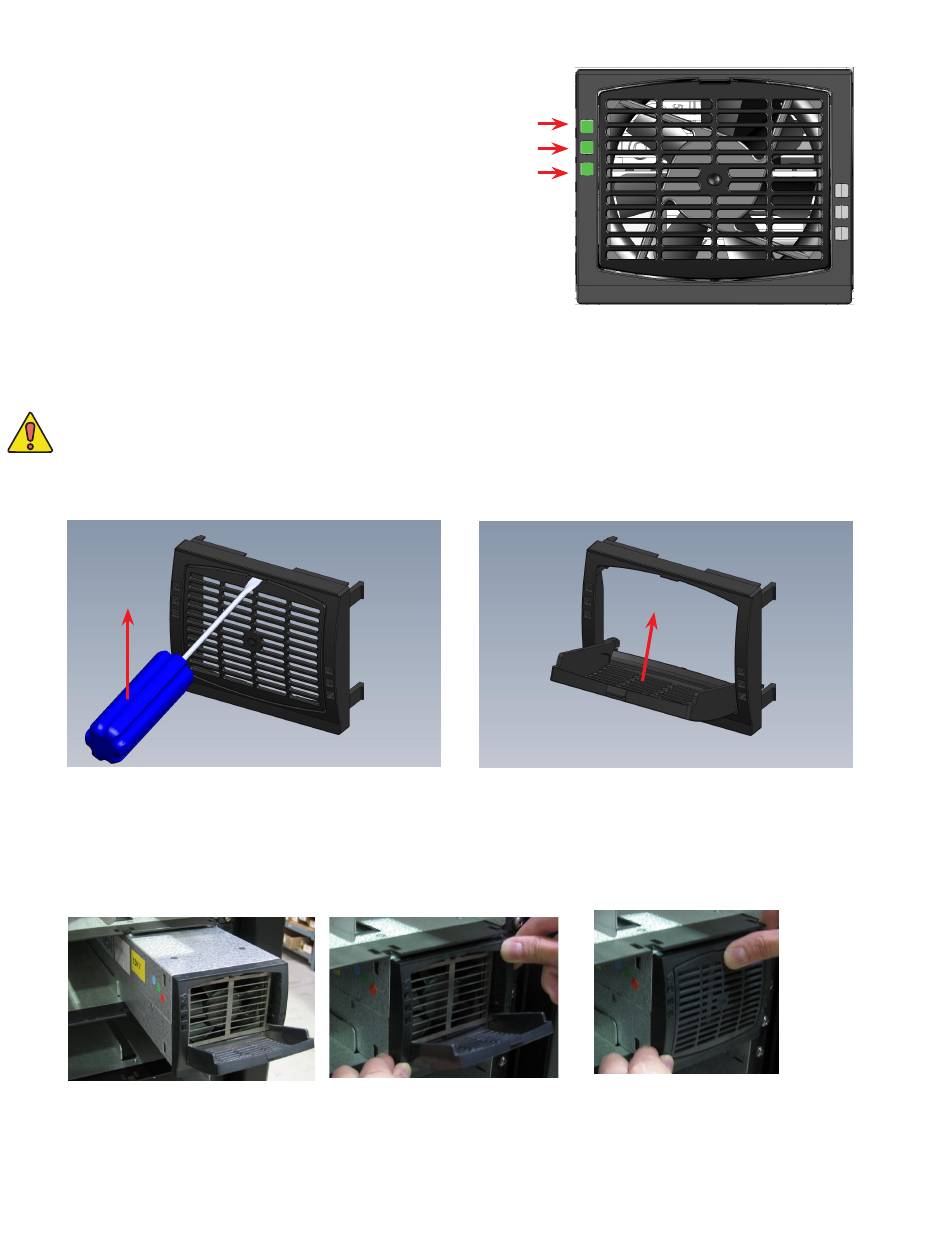

Figure 48 — Unlocking and locking an inverter module for removal or insertion
1� Place module into shelf�
76
on the web
2� Press module into place and
ensure connection is engaged�
Figure 49 — Inserting and removing an inverter module
AC output
DC input
AC input
all green
Lock
Leave the module plastic front grill in the open/un-
locked position, then slide/push the module all the
way into the module slot, and then close the flap.
3. Close cover and snap module
into place. If cover does not close
easily, repeat Step 2�
0260080-J0 Rev D
