USB: dual ports on both the front and rear of the controller for upgrades and file management via a standard
USB flash drive.
CAN: dual independent CAN bus ports for communication with the Alpha Cordex™ and AMPS family of
products, which allows for a greater number of devices.
Real-time clock with field replaceable lithium battery: allows for timestamps on alarms and events.
System fail alarm/relay: which activates when there is a major internal failure. During such a condition the
unit attempts to reset.
56

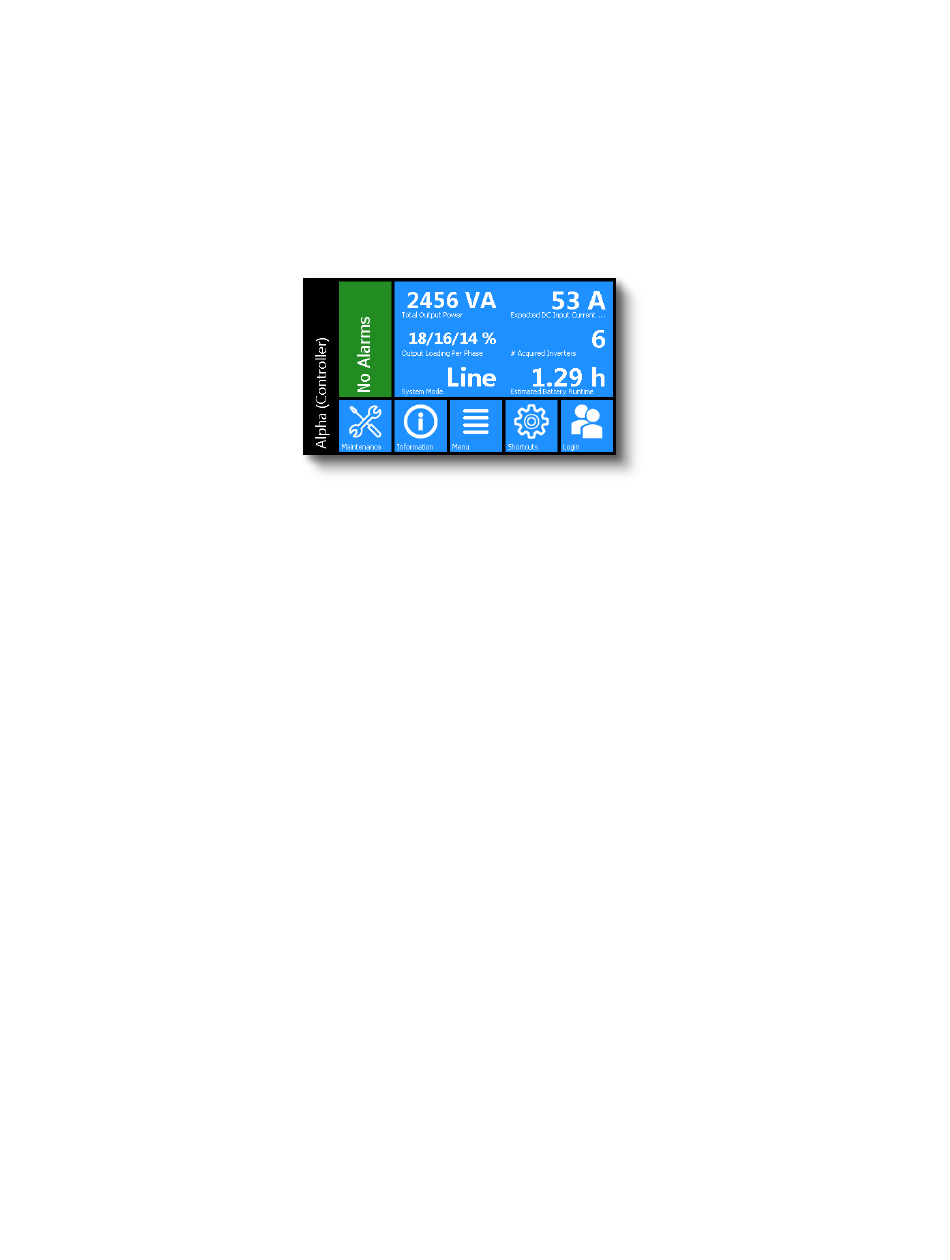

Figure 37 — LCD Color Touchscreen Display
0260080-J0 Rev D
