6.2.4 LED Indication
Each L-ADIO contains three LEDs for peripheral status indication.
LVD – Yellow = LVD Override Engaged
Power – Blue = Power present to device
Comms – Green = L-ADIO has been acquired by CXC HP
6.2.5 Front Panel Reset Button
A reset button is located on the front panel. It takes approximately 15 seconds before the unit is reacquired after
pressing the reset button.
During a reset condition, the L-ADIO will keep relays in their last known state to prevent false alarm notifications
and possible changing system LVD states.
CAUTION – Pressing the reset button will cause the L-ADIO to lose communication with the controller.
6.2.6 Communication and Control Connections

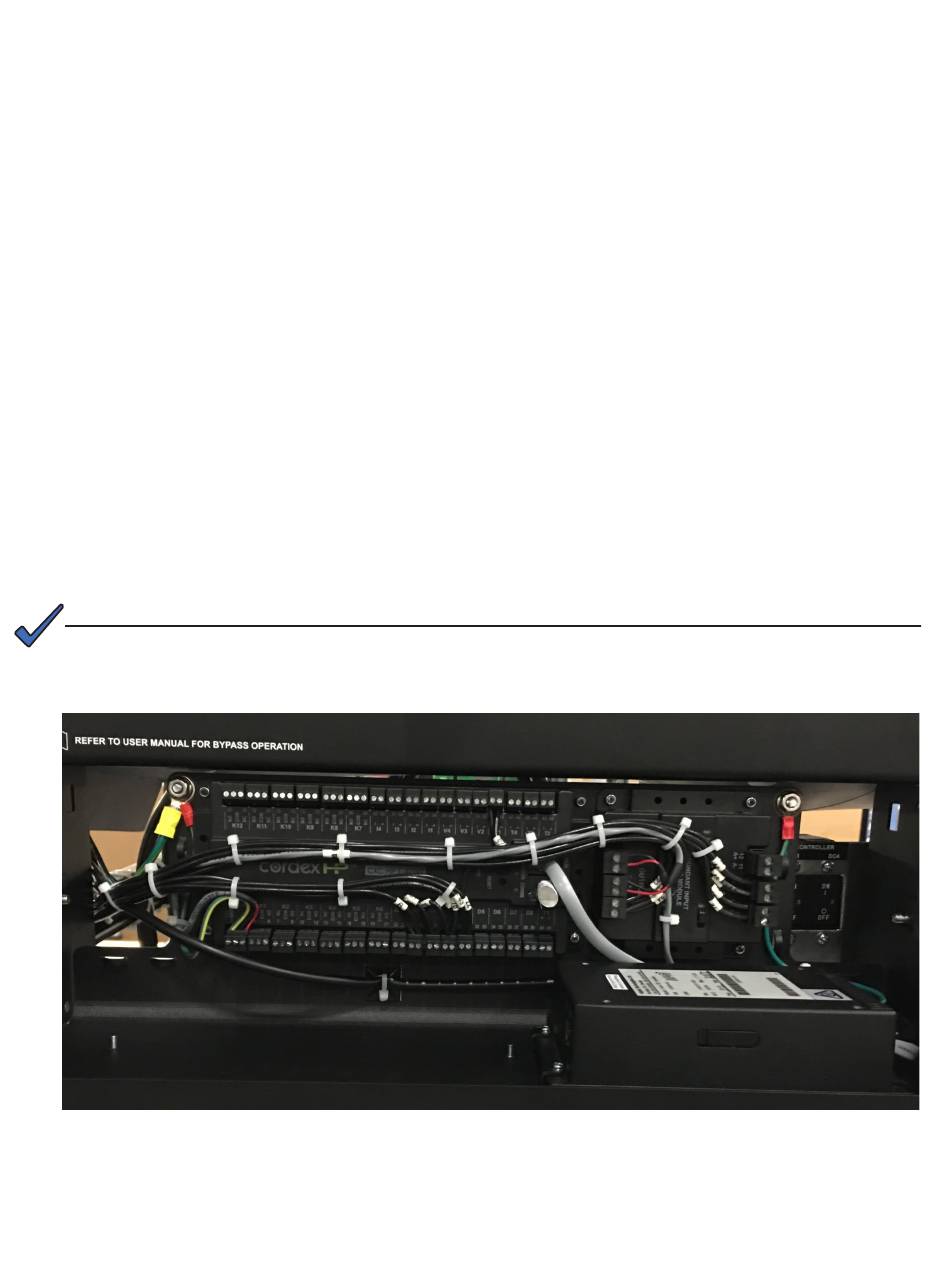

Remove two screws and fold the controller front panel down to access the communication and control connec-
tors.
NOTE:
The breakers located behind the CXC HP protect the wiring to the CXC HP and alarm
contacts.
