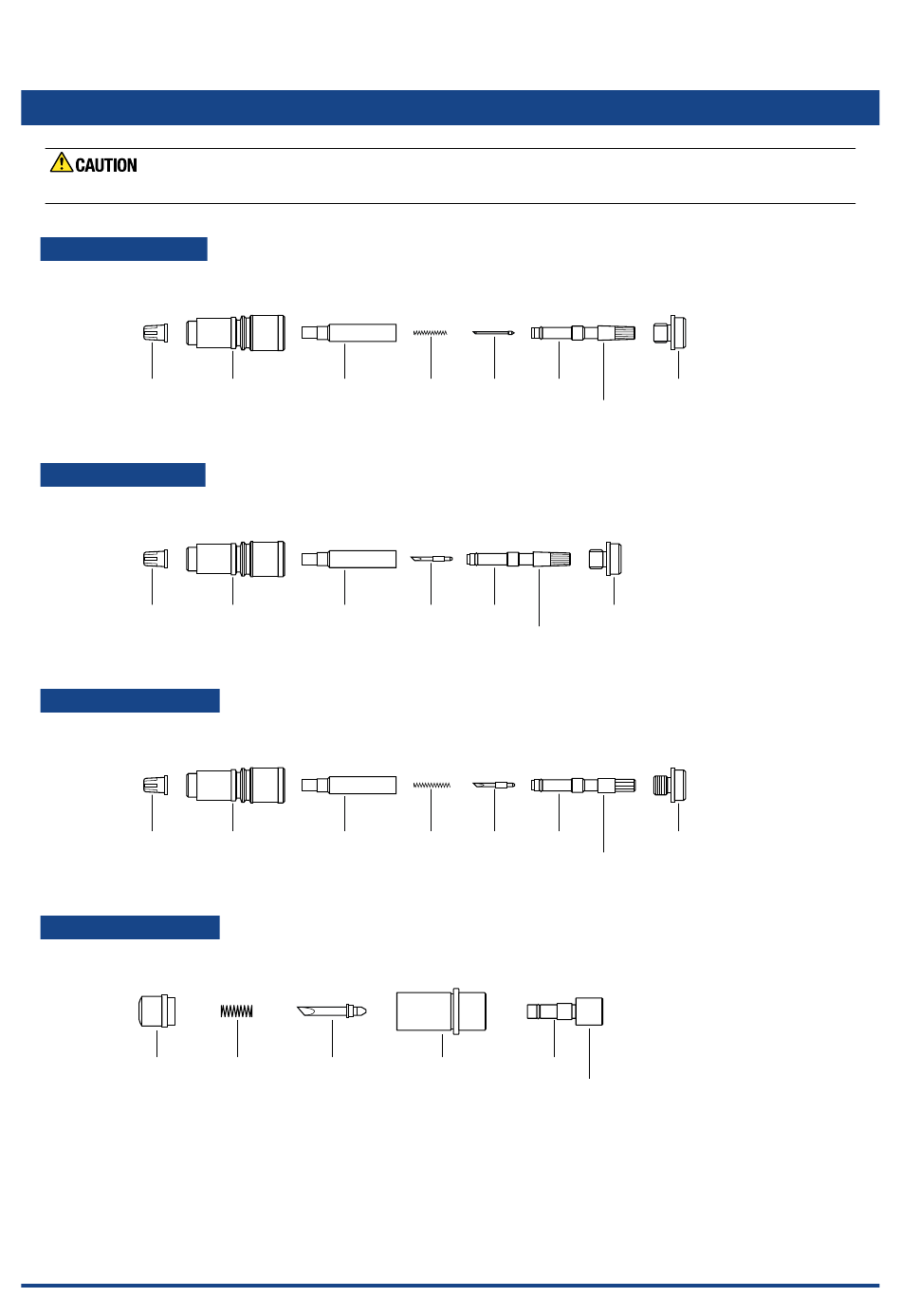

2.2 Cutter Pen Nomenclature

Handle cutter blades with care!
PHP31-CB09-HS
Cutter pen for 0.9-mm diameter blades
Protective cap
* The CB09UA supersteel blade is shown in the figure above.
PHP31-CB15-HS
Cutter pen for 1.5-mm diameter blades
Protective cap
* The CB15U supersteel blade is shown in the figure above.
PHP31-CB15B-HS
Cutter pen for 1.5-mm diameter blades fitted with a spring
Protective cap
* The CB15U-SP supersteel blade is shown in the figure above.
PHP31-CB15B-HS
Cutter pen for 3.0-mm diameter blades fitted with a spring
Protective cap
* The CB30UC supersteel blade is shown in the figure above.
Plunger Holder A
Plunger Holder A
Plunger Holder A
Spring Cutter blade*
Chapter 2 CUTTER BLADES, CUTTER PENS AND PENS
Spring Cutter blade* Holder B
Blade length adjustment knob (blue)
Cutter blade* Holder B
Blade length adjustment knob (red)
Spring Cutter blade* Holder B
Blade length adjustment knob (green)
Plunger Holder
Blade length adjustment knob (silver)
Plunger cap
Plunger cap
Plunger cap
