Chapter 3 PREPARATIONS FOR CUTTING/PLOTTING

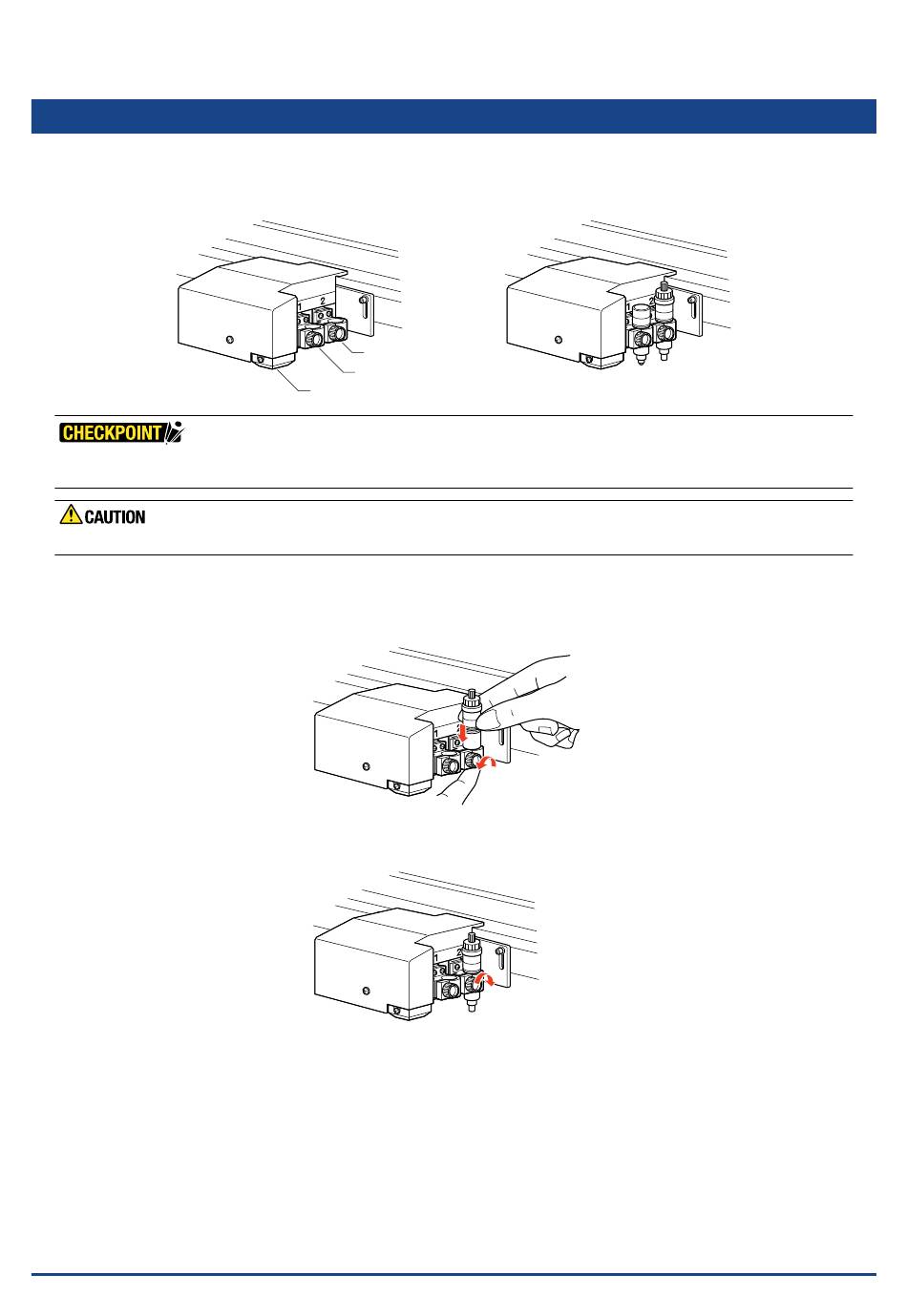

3.3 Mounting the Tools

When you are facing the pen carriage, the holder at the left is tool holder 1 and the holder at the right tool
holder 2.
Always mount the cutter pen in tool holder 2.
Even when mounting a cutter pen together with a different type of pen, always mount the cutter pen in tool holder 2.
Take care not to touch the cutter blade during the mounting operation.
(1) Loosen the tool holder screw and mount the pen.
At this time, fully insert the pen until it reaches the pen stopper.
(2) After mounting the pen, tighten the screw.
3-4
Tool holder 2
Tool holder 1
Registration mark sensor Example showing tools mounted
