3.4 Adjusting the Pen Carriage Height

Adjust the height of the pen carriage to suit the thickness of the medium.
•
Always make sure that the writing panel is in the horizontal position before making this adjustment.
•
When cutting a thick medium, place the medium on the writing panel before making this adjustment.

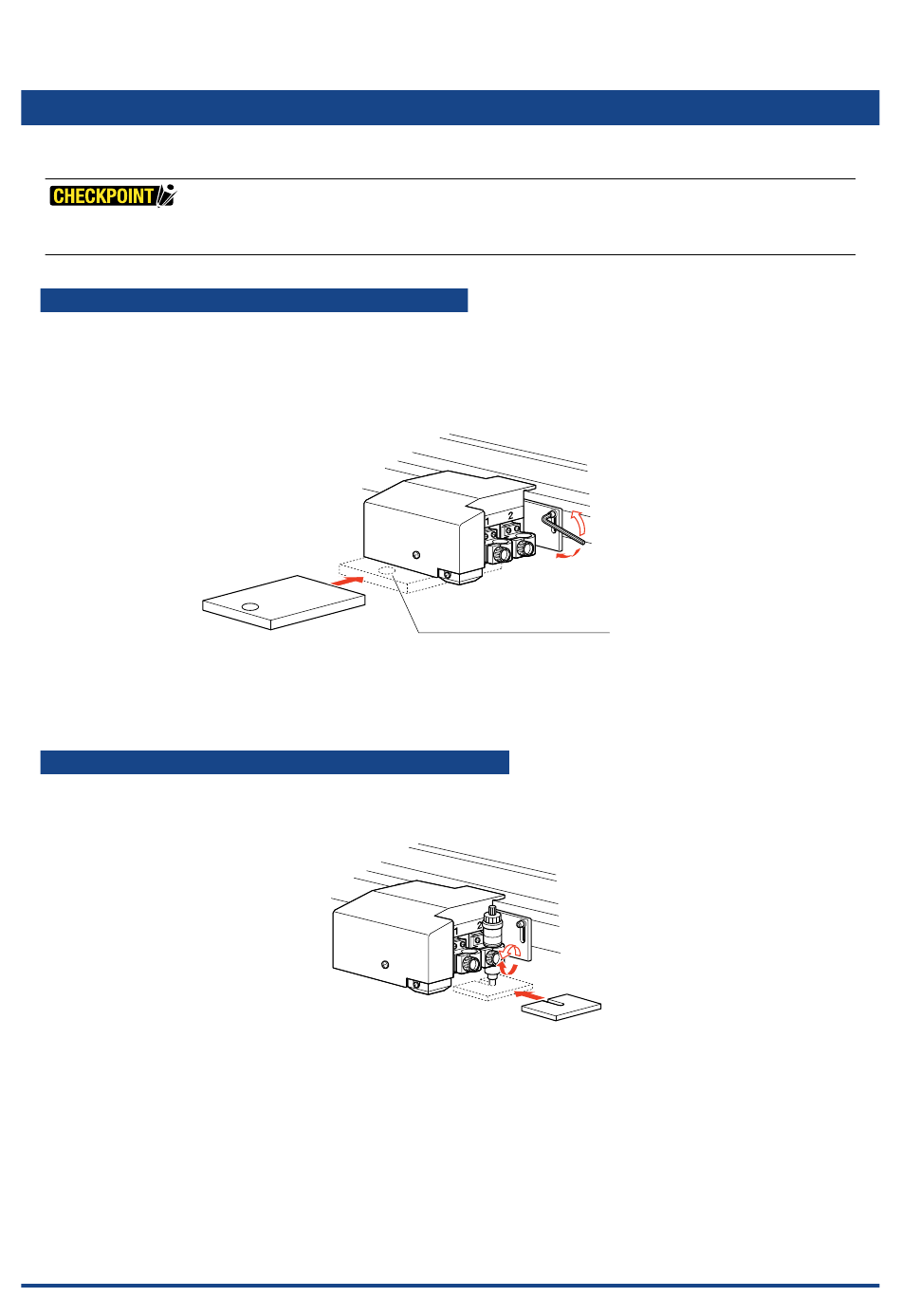

Initial adjustment of the pen carriage height
(1) Use the hexagon wrench to loosen the height adjustment bolt.
(2) When the pen carriage can be moved freely up and down, insert the height adjustment plate (thick) under the pen
carriage. Adjust the height of the pen carriage so that the pen carriage rests on top of the plate.
Insert the height adjustment plate up to the position where the position adjustment hole can still be seen.
(3) Use the hexagon wrench to tighten the height adjustment bolt. Make sure that the pen carriage is parallel to the
writing panel.
(4) When the adjustment is complete, remove the height adjustment plate (thick) from under the pen carriage.
Height adjustment during cutter pen installation
(1) Loosen the tool holder section screw and mount the pen.
(2) Insert the height adjustment plate (thin) under the pen and adjust the height.
(3) After mounting the pen, tighten the screw.
(4) When the adjustment is complete, remove the adjustment plate (thin) from under the pen.
Chapter 3 PREPARATIONS FOR CUTTING/PLOTTING
Insert the plate up to the position
where this hole can still be seen
3-5
