7.2 Installation Location

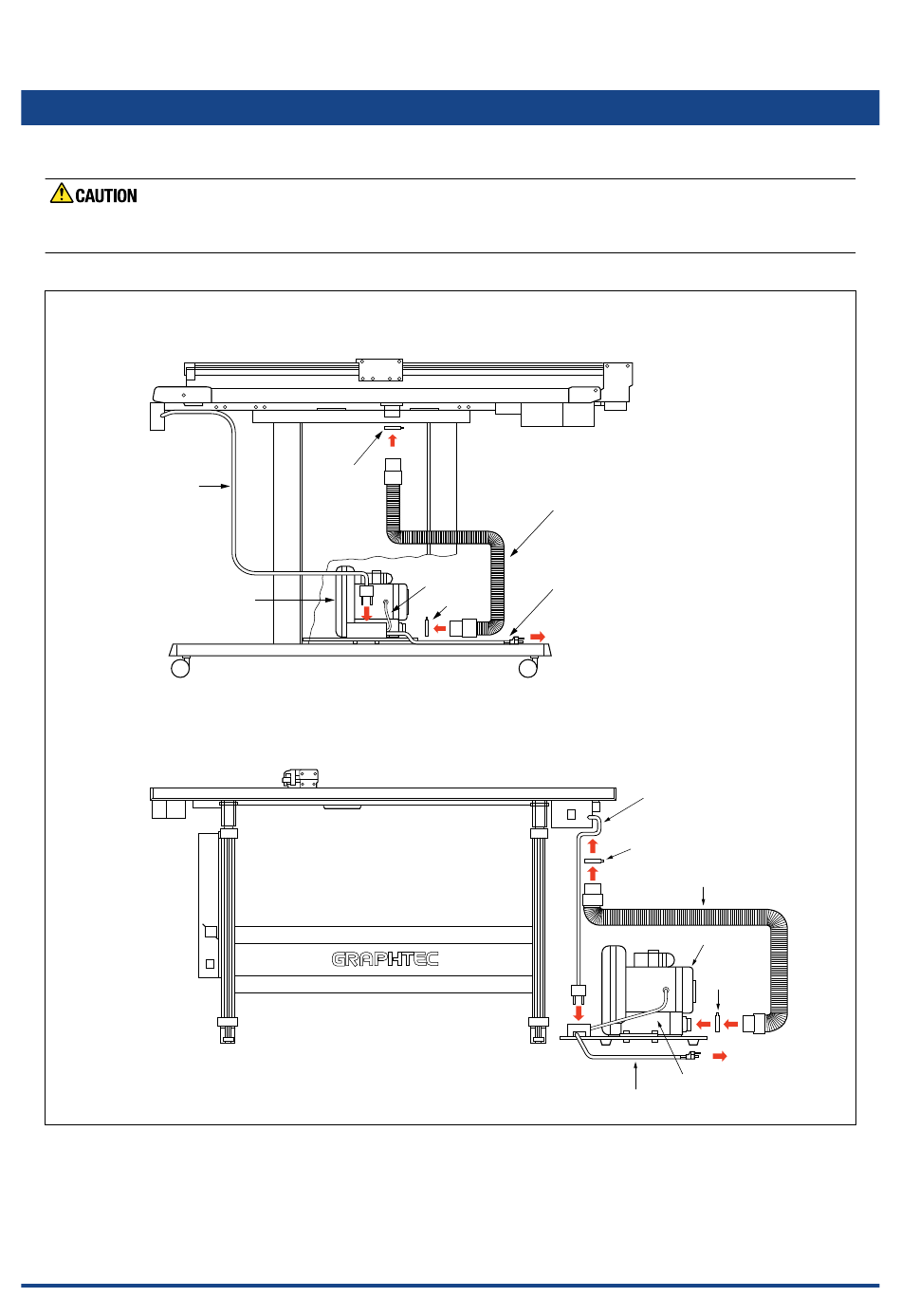

When connecting the vacuum pump to your plotter, please refer to the following diagram.
The exhaust from the vacuum pump is hot, and so do not place anything flammable near the exhaust outlet. Failure to
observe this precaution could cause a fire.
FC2250-60VC
CA2294-01
Vacuum pump
FC2250-120VC
FC2250-180VC
Hose band
CA2294-03
Hose band
Chapter 7 VACUUM SUCTION
Durable flexible hose
CA2294-02
Connect to the power outlet
CA2294-01
Hose band
Durable flexible hose
Vacuum pump
Hose band
CA2294-03
CA2294-02
Connect to the
power outlet
7-3
