4.2 Setting the Registration Mark Mode

This mode is used to specify the angle and distance adjustment methods, as well as to specify the distance
between registration marks for skipping by the sensor during registration mark detection.

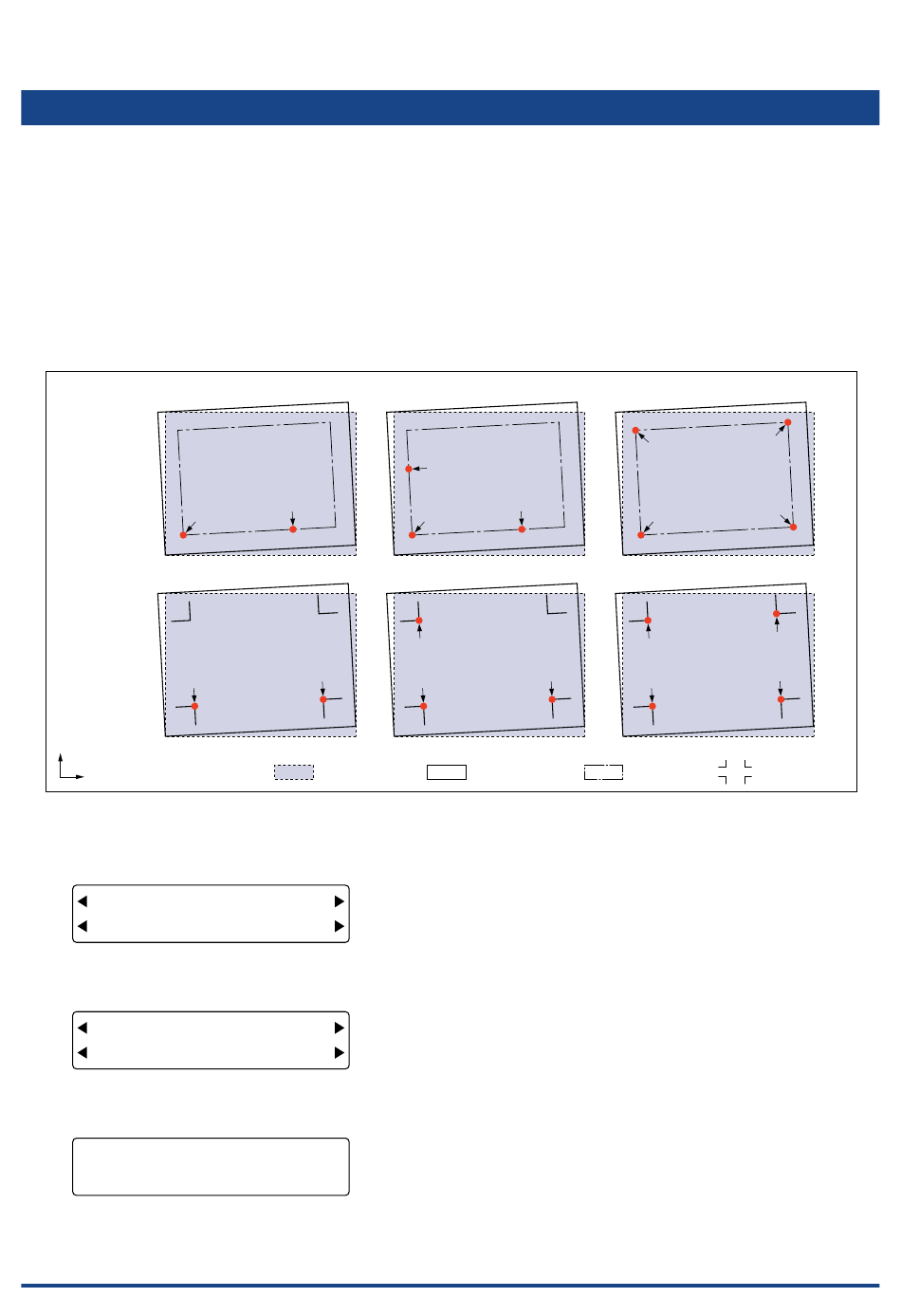

2-point reading: The plotter performs adjustment between points 1-2 and of a single axis (angle adjustment).
3-point reading: The plotter performs adjustment between points 1-2 and points 1-3, adjusts the angle of both
coordinate axes and then performs distance adjustment. If the same point was specified for both
points 2 and 3, only coordinate axis angle adjustment is performed.
4-point reading: The plotter performs adjustment between points 1-2 and points 1-3, adjusts the angle of both
coordinate axes and then performs distance adjustment. The addition of the coordinate values of point
4 enables even more precise coordinate axis angle and distance adjustment.
•
2-point reading
Axis adjustment
Registration-mark
detection
Point 1
Y
X
(1) With the plotter in Ready status, press the [PAUSE] key to select PAUSE mode.
(2) Press the [NEXT] key repeatedly until the following menu is displayed.
FORCE
MARK
BUFFER CLR.
SPEED
(3) Press the [F1] key (MARK) to display the registration mark functions selection menu.
FORCE
MODE
TYPE OTHER SETUPS
SPEED
(4) Press the [F1] key (MODE) to display the menu for setting the registration mark mode.
FORCE
MARK SENSING
AXIS
SPEED
The currently selected setting is indicated by a black dot [
If you do not wish to perform axis adjustment, press the [F3] key (OFF).
Point 2
Point 1
Point 2
Plotter's effective
cutting/plotting area
OFFSET
TOOL U/D
VIEW
QUALITY
OFFSET
DIST ADJ
QUALITY
OFFSET
OFF
MARKS•
QUALITY
Chapter 4 REGISTRATION MARK SETTINGS AND DETECTION
•
3-point reading
Point 3
Point 2
Point 1
Point 3
Point 2
Point 1
Edges of the medium
•
].
•
4-point reading
Point 4
Point 3
Point 2
Point 1
Point 4
Point 3
Point 2
Point 1
Medium loaded
Registration marks
at an angle
4-3
