MDrive17Plus with Planetary Gearbox

The MDrive17Plus is available with a Planetary Gearbox option developed to increase torque at lower speeds, en-
able better inertia matching and produce finer positional resolutions. These efficient, low maintenance Planetary
Gearbox come fully assembled with the MDrive and are offered in a large number of reduction ratios in 1-, 2- and
3-stage configurations.
An optional NEMA Flange allows mounting the Planetary Gearbox to the load using a standard NEMA bolt circle.
Planetary Gearbox may be combined with other MDrive17Plus options, however are unavailable on Linear Actua-
tor versions.
Parameters
Permitted Output Torque (oz-in/Nm)......................... 425/3.0 .......................1062/7.5 .......................... 2124/15.0
Gearbox Efficiency ......................................................... 0.80............................. 0.75................................... 0.70
Maximum Backlash (degree) ......................................... 0.80° ............................0.85°................................. 0.90°
Output Side with Ball Bearing
Maximum Load, Radial (lb-force/N)............................ 36/160......................... 52/230 ............................ 67.5/300
Maximum Load, Axial (lb-force/N)............................... 11/50........................... 18/80 ............................... 25/110
Weight - Gearbox Only (oz/g).................................... 14.3/406 ......................17.9/508 ........................... 21.5/609
Weight - Gearbox & NEMA Flange (oz/g)................. 14.8/420 ......................18.5/525 ........................... 22.2/630
Planetary Gearbox
Dimensions in Inches (mm)
Gearbox Ratios (Rounded)
1-Stage 2-Stage 3-Stage
3.71:1 13.73:1 50.89:1
5.18:1 15.88:1 58.86:1
6.75:1 18.37:1 68.07:1
19.20:1 71.16:1
22.21:1 78.72:1
25.01:1 92.70:1
26.85:1 95.18:1
28.93:1 99.51:1
34.98:1 107.21:1
45.56:1 115.08:1
123.98:1
129.62:1
139.14:1
149.90:1
168.85:1
181.25:1
195.27:1
236.10:1
307.55:1
Planetary Gearbox with Optional NEMA Output Flange
���������������������
����
������
���������
����������
Appendices
1-Stage
����������������������
����������������������
������
������������������
��������
�����������������������
�������
��������
Gearbox Lengths
Inches (mm)
1-Stage
2.736
k1 Gearbox
(69.5)
k2 Gearbox w/ 2.858
NEMA Flange (72.6)
�����
������
��������������������
�����������������������

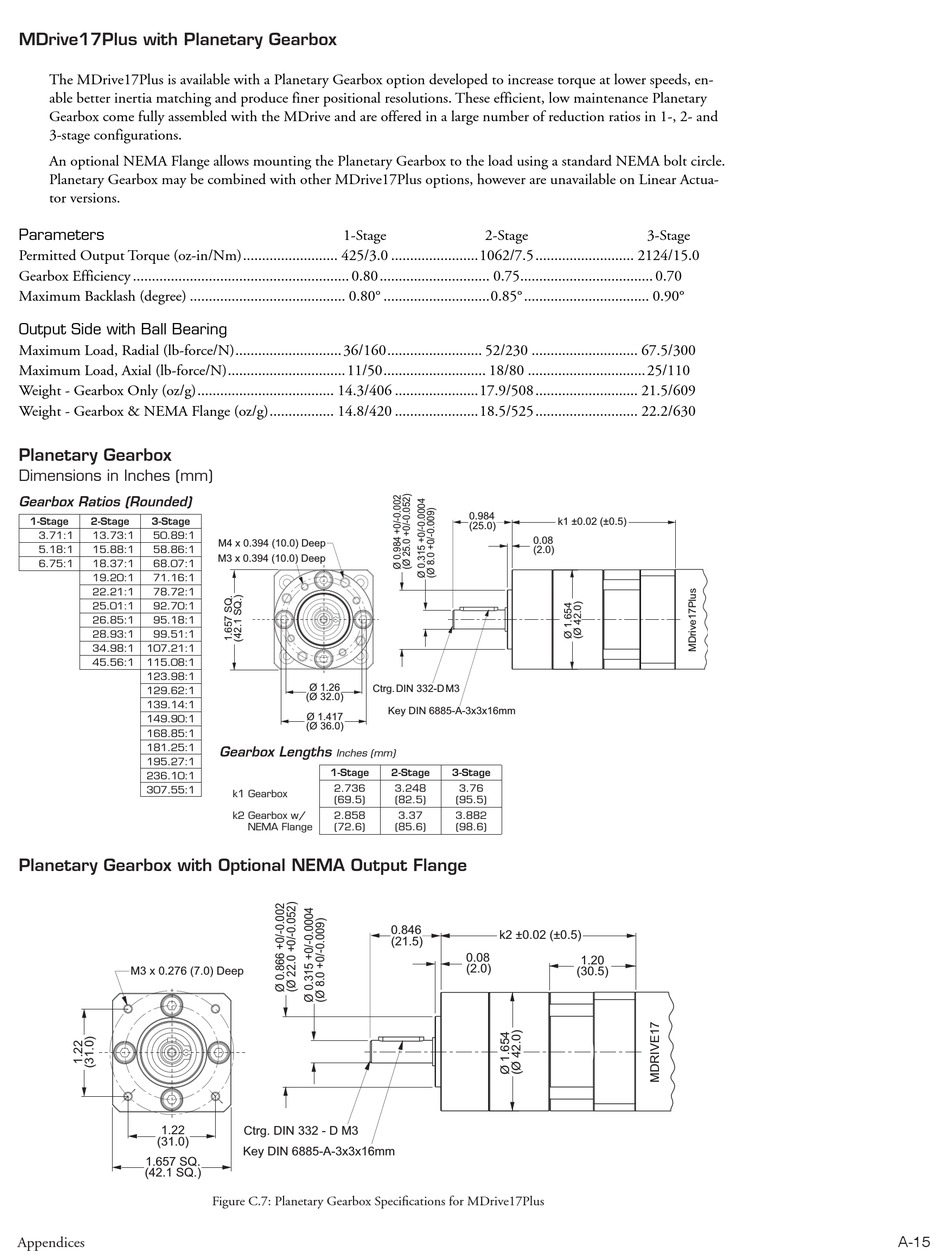

Figure C.7: Planetary Gearbox Specifications for MDrive17Plus

2-Stage
�����
���������������
������
����
�����
2-Stage 3-Stage
3.248 3.76
(82.5) (95.5)
3.37 3.882
(85.6) (98.6)
���������������
����
�����
3-Stage
����
������
A-15
