A-16

MDrive23Plus with Planetary Gearbox

The MDrive23Plus is available with a Planetary Gearbox option developed to increase torque at lower speeds, en-
able better inertia matching and produce finer positional resolutions. These efficient, low maintenance Planetary
Gearbox come fully assembled with the MDrive and are offered in a large number of reduction ratios in 1-, 2- and
3-stage configurations.
An optional NEMA Flange allows mounting the Planetary Gearbox to the load using a standard NEMA bolt
circle. Planetary Gearbox may be combined with other MDrive17Plus options, however are unavailable on Linear
Actuator versions.
Parameters
Permitted Output Torque (oz-in/Nm)....................... 566/4.0 ........................1699/12.0 ......................... 3540/25.0
Gearbox Efficiency .......................................................0.80 ............................... 0.75................................... 0.70
Maximum Backlash (degree) ....................................... 0.70° ..............................0.75°................................. 0.80°
Output Side with Ball Bearing
Maximum Load, Radial (lb-force/N)..........................45/200 ........................... 72/320 ............................. 101/450
Maximum Load, Axial (lb-force/N).............................13/60 ............................ 22/100 .............................. 34/150
Weight - Gearbox Only (oz/g).................................. 25.0/711 ........................32.2/914 .......................... 39.4/1117
Weight - Gearbox & NEMA Flange (oz/g)............... 25.9/735 ........................33.3/945 .......................... 40.7/1155
Planetary Gearbox
Dimensions in Inches (mm)
����������������������
�������
��������
Gearbox Lengths
Inches (mm)
1-Stage
2.976
k1 Gearbox
(75.6)
k2 Gearbox w/ 3.035
NEMA Flange (77.1)
Planetary Gearbox with Optional NEMA Output Flange
���������������������
�����
������
��������
����������
1-Stage
�����
������
�����
�����
���������������������
�����������������������
2-Stage 3-Stage
3.537 4.087
(89.7) (103.8)
3.59 4.146
(91.2) (105.3)
���������������������
�����������������������

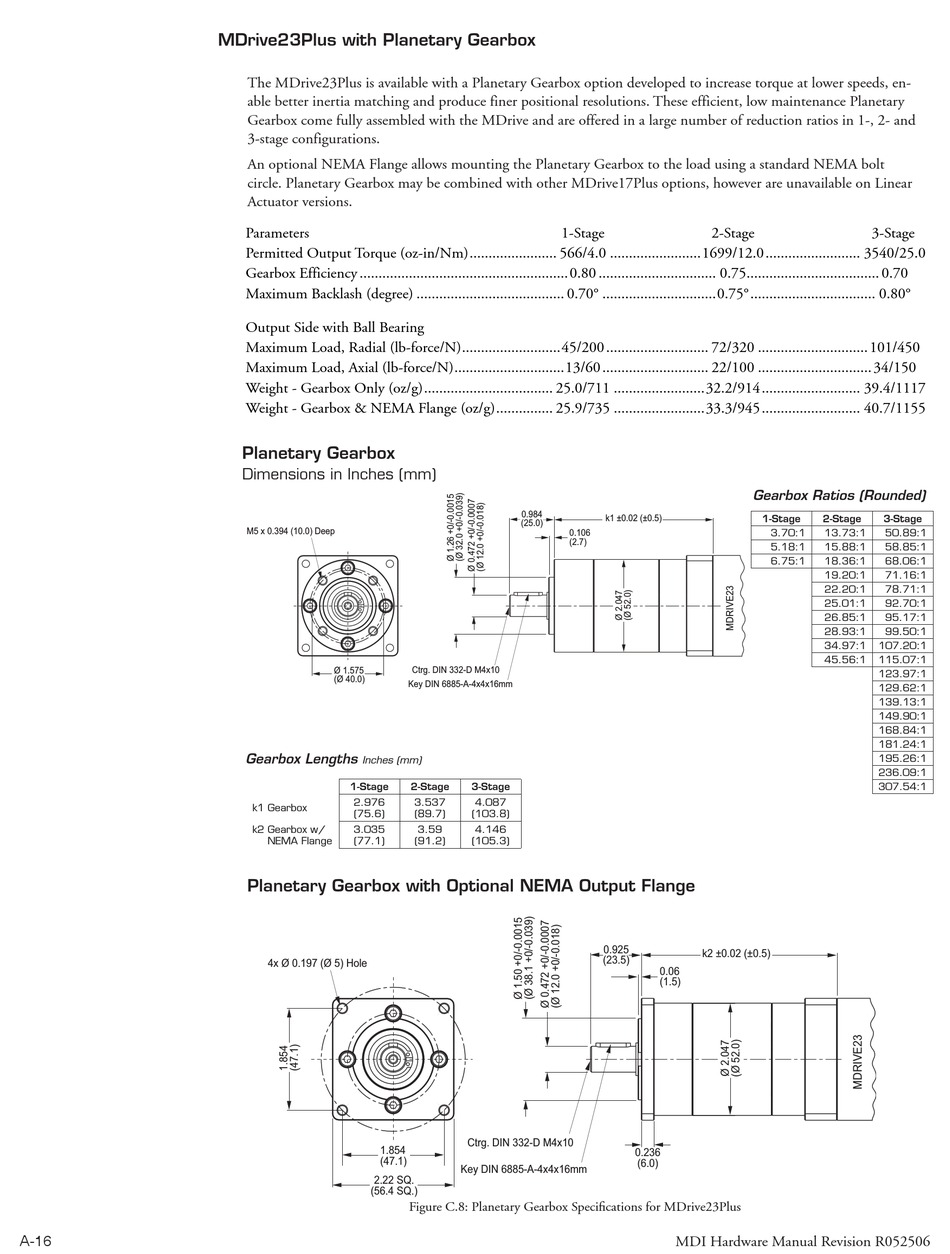

Figure C.8: Planetary Gearbox Specifications for MDrive23Plus

2-Stage
Gearbox Ratios (Rounded)
1-Stage
���������������
3.70:1
5.18:1
6.75:1
�����
���������������
������
����
�����
�����
�����
MDI Hardware Manual Revision R052506
3-Stage
2-Stage 3-Stage
13.73:1 50.89:1
15.88:1 58.85:1
18.36:1 68.06:1
19.20:1 71.16:1
22.20:1 78.71:1
25.01:1 92.70:1
26.85:1 95.17:1
28.93:1 99.50:1
34.97:1 107.20:1
45.56:1 115.07:1
123.97:1
129.62:1
139.13:1
149.90:1
168.84:1
181.24:1
195.26:1
236.09:1
307.54:1
