Figure F.10: Windows Logo Compatibility Testing; Figure F.11: Hardware Update Wizard Finish Installation - Intelligent Motion Systems MDrive17Plus Hardware Reference Manual

A-28

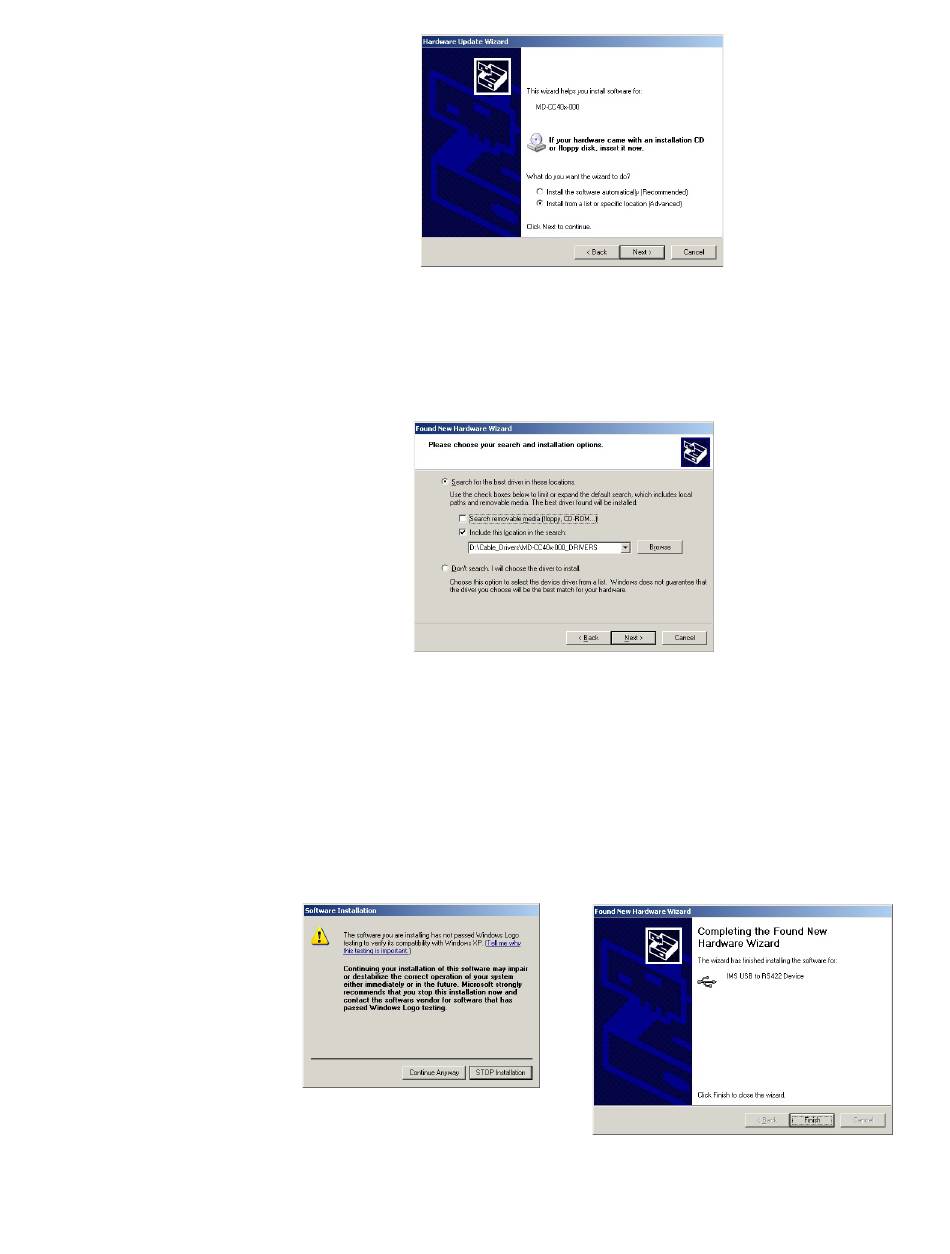

Figure F.8: Hardware Update Wizard Screen 2
6) Select "Search for the best driver in these locations."
(a) Check "Include this location in the search."
(b) Browse to the MDrive CD [Drive Letter]:\ Cable_
Drivers\MD CC40x000_DRIVERS.
(c) Click Next (Figure F.9).
Figure F.9: Hardware Update Wizard Screen 3
7) The drivers will begin to copy.
8) On the Dialog for Windows Logo Compatibility Testing, click "Continue Anyway" (Figure F.10).
9) The Driver Installation will proceed. When the Completing the Found New Hardware Wizard
dialog appears, Click "Finish" (Figure F.11).
10) Upon finish, the Welcome to the Hardware Update Wizard will reappear to guide you through the
second part of the install process. Repeat steps 1 through 9 above to complete the cable installation.
11) Your IMS MD-CC40x-000 is now ready to use.
Figure F.10: Windows Logo Compatibility
Testing

Figure F.11: Hardware Update Wizard Finish Installation
