A-26
MD-CC400-000 Power Jack
The 2.5mm power jack lo-
cated on top of the converter
housing can be used to main-
tain logic power for MDrives
that have an Aux-Power-Sup-
ply connection.
Center Pin+12 to 24 VDC
unregulated Outer Contact
Ground
Option– 10 Pin Locking
Wire Crimp Adapter
An optional pin adapter is
available to convert the 10
pin IDC connector on the
Communications Converter
Cable to a 10 pin friction
lock wire crimp interface.
10 Pin IDC to Wire Crimp
Adapter .................................................................MD-ADP-H

USB to 5-Pin M12 (MD-CC401-000) (Sealed Version)

The MD-CC401-000
is an in-line USB to
RS-422 converter with
integrated cable. This
product is used to com-
municate to a single
MDrivePlus Motion
Control device. The
included compo-
nents will allow you
to connect the USB
port of a PC directly to
sealed versions of the
MDrivePlus Motion Control.
The MD-CC401-000 communications converter cable is designed to be used with all MDrivePlus 2- 65 utilizing
an M12 5-pin connector interface.
Supplied Components: MD-CC401-000 Communications Converter Cable, USB Cable, USB Drivers, IMS
Terminal Interface Software.
Electrical Specifications
BAUD Rate
Connectors:
RS-422 Side
Cable Length
Power Requirement

Table F.2: MD-CC401-000 Electrical Specifications

Host
2.5 mm
Power Jack
USB Cable

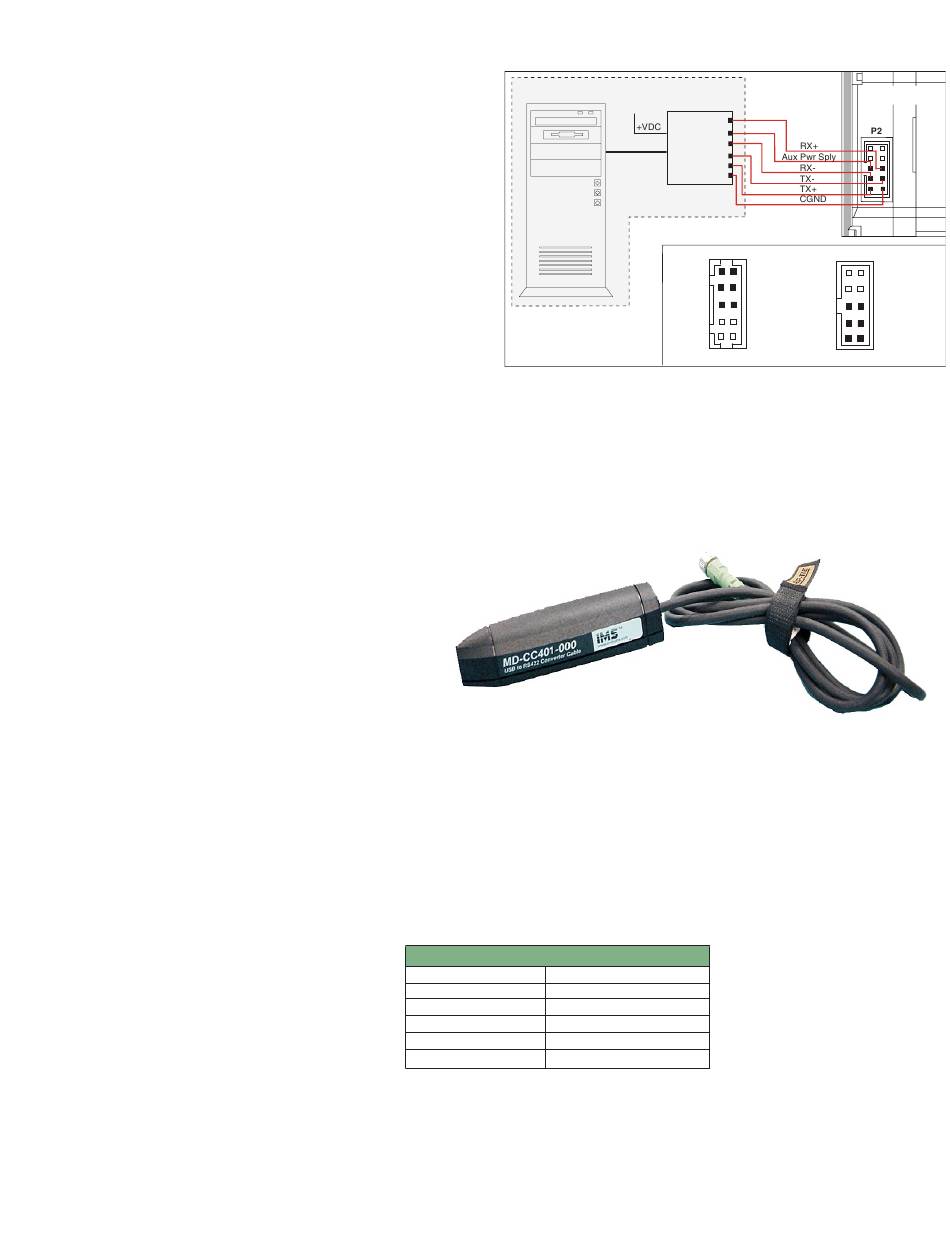

Figure F.3: Typical Communications Interface

Figure F.4: MD-CC401-000
MD-CC401-000 Specifications
Up to 115 kbps
USB
5 Pin M12
6 feet (1.8 meters)
Power from USB
TX+
Aux Pwr Sply
TX-
RX-
RX+
CGND
USB to RS-422
Converter
P2
9 10
1
1
2
9
10-Pin Friction Lock Wire Crimp 10-Pin IDC
MDI Hardware Manual Revision R052506
MDrive
P2
2
10
