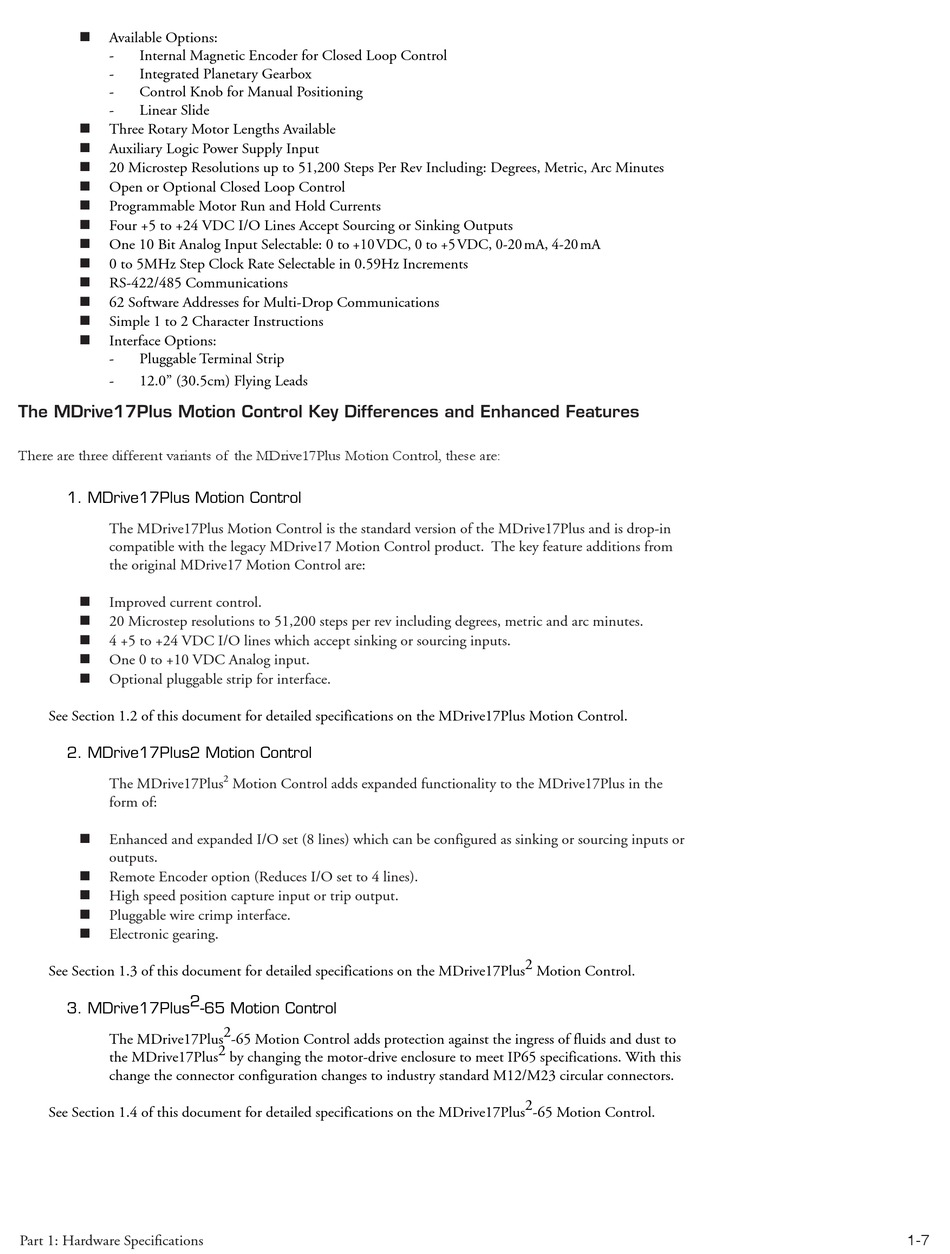

Available Options:
- Internal Magnetic Encoder for Closed Loop Control
- Integrated Planetary Gearbox
- Control Knob for Manual Positioning
- Linear Slide
n
Three Rotary Motor Lengths Available
n
Auxiliary Logic Power Supply Input
n
20 Microstep Resolutions up to 51,200 Steps Per Rev Including: Degrees, Metric, Arc Minutes
n
Open or Optional Closed Loop Control
n
Programmable Motor Run and Hold Currents
n
Four +5 to +24 VDC I/O Lines Accept Sourcing or Sinking Outputs
n
One 10 Bit Analog Input Selectable: 0 to +10 VDC, 0 to +5 VDC, 0-20 mA, 4-20 mA
n
0 to 5MHz Step Clock Rate Selectable in 0.59Hz Increments
n
RS-422/485 Communications
n
62 Software Addresses for Multi-Drop Communications
n
Simple 1 to 2 Character Instructions
n
Interface Options:
- Pluggable Terminal Strip
- 12.0" (30.5cm) Flying Leads

The MDrive17Plus Motion Control Key Differences and Enhanced Features

There are three different variants of the MDrive17Plus Motion Control, these are:
1. MDrive17Plus Motion Control
The MDrive17Plus Motion Control is the standard version of the MDrive17Plus and is drop-in
compatible with the legacy MDrive17 Motion Control product. The key feature additions from
the original MDrive17 Motion Control are:
n
Improved current control.
n
20 Microstep resolutions to 51,200 steps per rev including degrees, metric and arc minutes.
n
4 +5 to +24 VDC I/O lines which accept sinking or sourcing inputs.
n
One 0 to +10 VDC Analog input.
n
Optional pluggable strip for interface.
See Section 1.2 of this document for detailed specifications on the MDrive17Plus Motion Control.
2. MDrive17Plus2 Motion Control
The MDrive17Plus
form of:
n
Enhanced and expanded I/O set (8 lines) which can be configured as sinking or sourcing inputs or
outputs.
n
Remote Encoder option (Reduces I/O set to 4 lines).
n
High speed position capture input or trip output.
n
Pluggable wire crimp interface.
n
Electronic gearing.
See Section 1.3 of this document for detailed specifications on the MDrive17Plus 2 Motion Control.
3. MDrive17Plus 2 -65 Motion Control
The MDrive17Plus 2 -65 Motion Control adds protection against the ingress of fluids and dust to
the MDrive17Plus 2 by changing the motor-drive enclosure to meet IP65 specifications. With this
change the connector configuration changes to industry standard M12/M23 circular connectors.
See Section 1.4 of this document for detailed specifications on the MDrive17Plus 2 -65 Motion Control.
Part 1: Hardware Specifications
2
Motion Control adds expanded functionality to the MDrive17Plus in the
1-7
