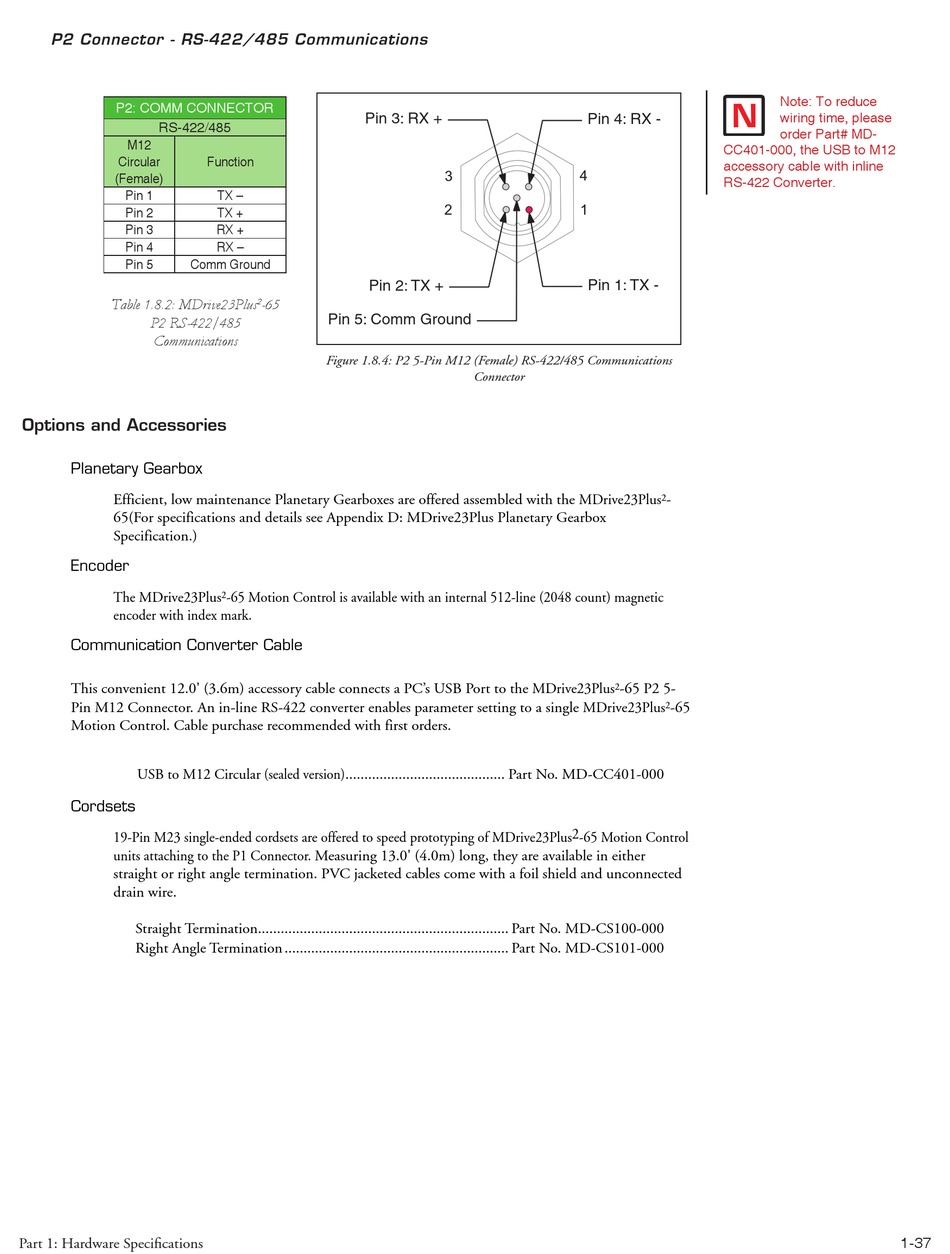

P2 Connector - RS-422/485 Communications
P2: COMM CONNECTOR
RS-422/485
M12
Circular
(Female)
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5 Comm Ground
Table 1.8.2: MDrive23Plus
P2 RS-422/485
Communications
Options and Accessories
Planetary Gearbox
Efficient, low maintenance Planetary Gearboxes are offered assembled with the MDrive23Plus
65(For specifications and details see Appendix D: MDrive23Plus Planetary Gearbox
Specification.)
Encoder
The MDrive23Plus
encoder with index mark.
Communication Converter Cable
This convenient 12.0' (3.6m) accessory cable connects a PC's USB Port to the MDrive23Plus
Pin M12 Connector. An in-line RS-422 converter enables parameter setting to a single MDrive23Plus
Motion Control. Cable purchase recommended with first orders.
USB to M12 Circular (sealed version).......................................... Part No. MD-CC401-000
Cordsets
19-Pin M23 single-ended cordsets are offered to speed prototyping of MDrive23Plus 2 -65 Motion Control
units attaching to the P1 Connector. Measuring 13.0' (4.0m) long, they are available in either
straight or right angle termination. PVC jacketed cables come with a foil shield and unconnected
drain wire.
Straight Termination.................................................................. Part No. MD-CS100-000
Right Angle Termination ........................................................... Part No. MD-CS101-000
Part 1: Hardware Specifications
�����������
Function
TX –
TX +
RX +
RX –
�����������
-65
2
������������������
Figure 1.8.4: P2 5-Pin M12 (Female) RS-422/485 Communications
-65 Motion Control is available with an internal 512-line (2048 count) magnetic
2
�����������
� �
� �
�����������
Connector
-65 P2 5-
2
Note: To reduce
wiring time, please
order Part# MD-
CC401-000, the USB to M12
accessory cable with inline
RS-422 Converter.
-
2
-65
2
1-37
