Exterior and Terminal Dimen...
VLT
HVAC Drive FC 102
8.4.2 F2 Terminal Dimensions
Power cables are heavy and hard to bend. To ensure easy installation of the cables, consider the optimum placement of the
drive. Each terminal allows up to 4 cables with cable lugs or a standard box lug. Ground is connected to a relevant
termination point in the drive.
CH22
8
8
1
2
1
Mains terminals
2
Ground bar

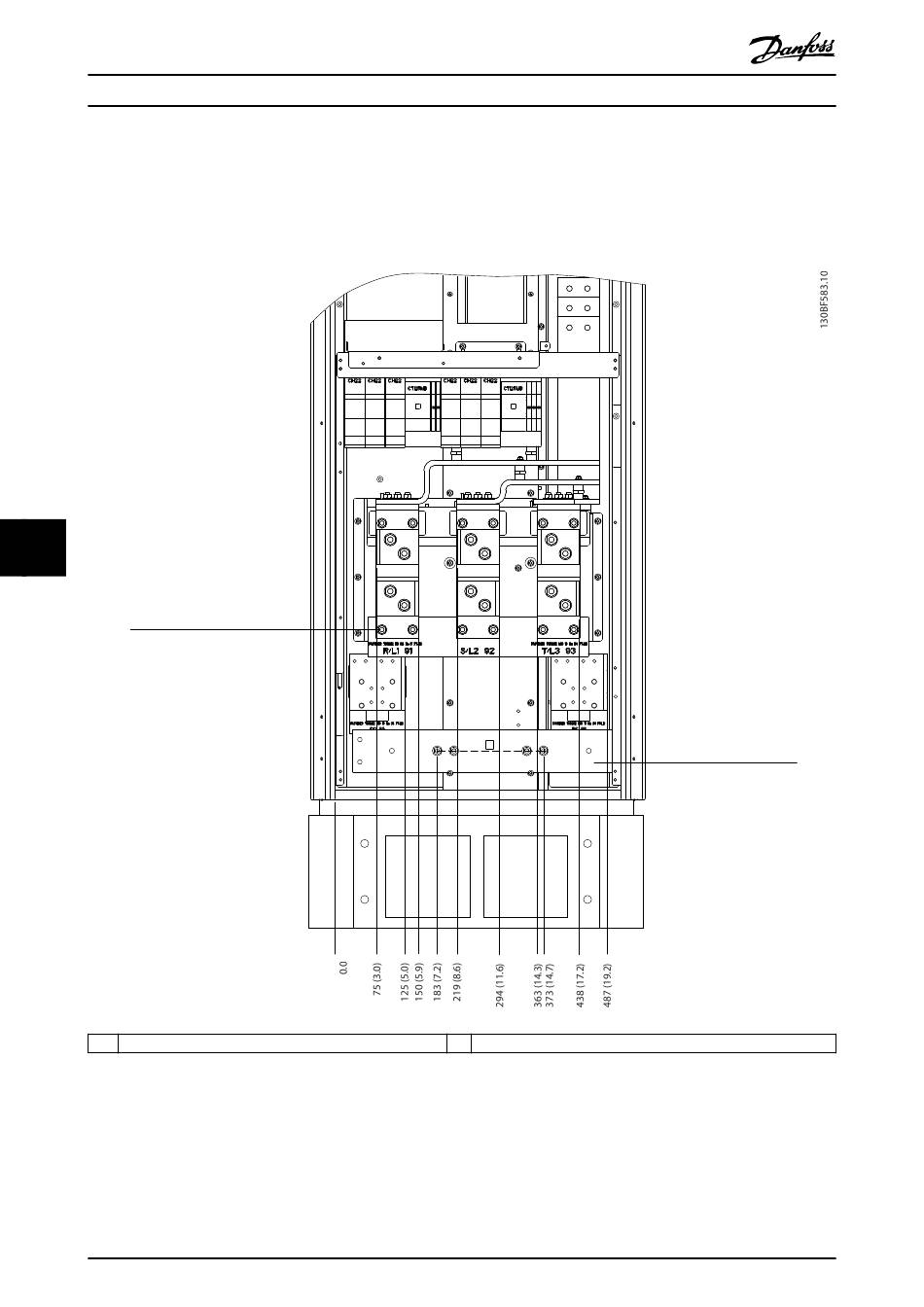

Illustration 8.28 Terminal Dimensions for F1–F4 Rectifier Cabinet, Front View
92
Danfoss A/S © 11/2017 All rights reserved.
MG16C302
