8.9.2 F10 Terminal Dimensions
Power cables are heavy and hard to bend. To ensure easy installation of the cables, consider the optimum placement of the
drive. Each terminal allows up to 4 cables with cable lugs or a standard box lug. Ground is connected to a relevant
termination point in the drive.
8
8
1
1
Mains terminals

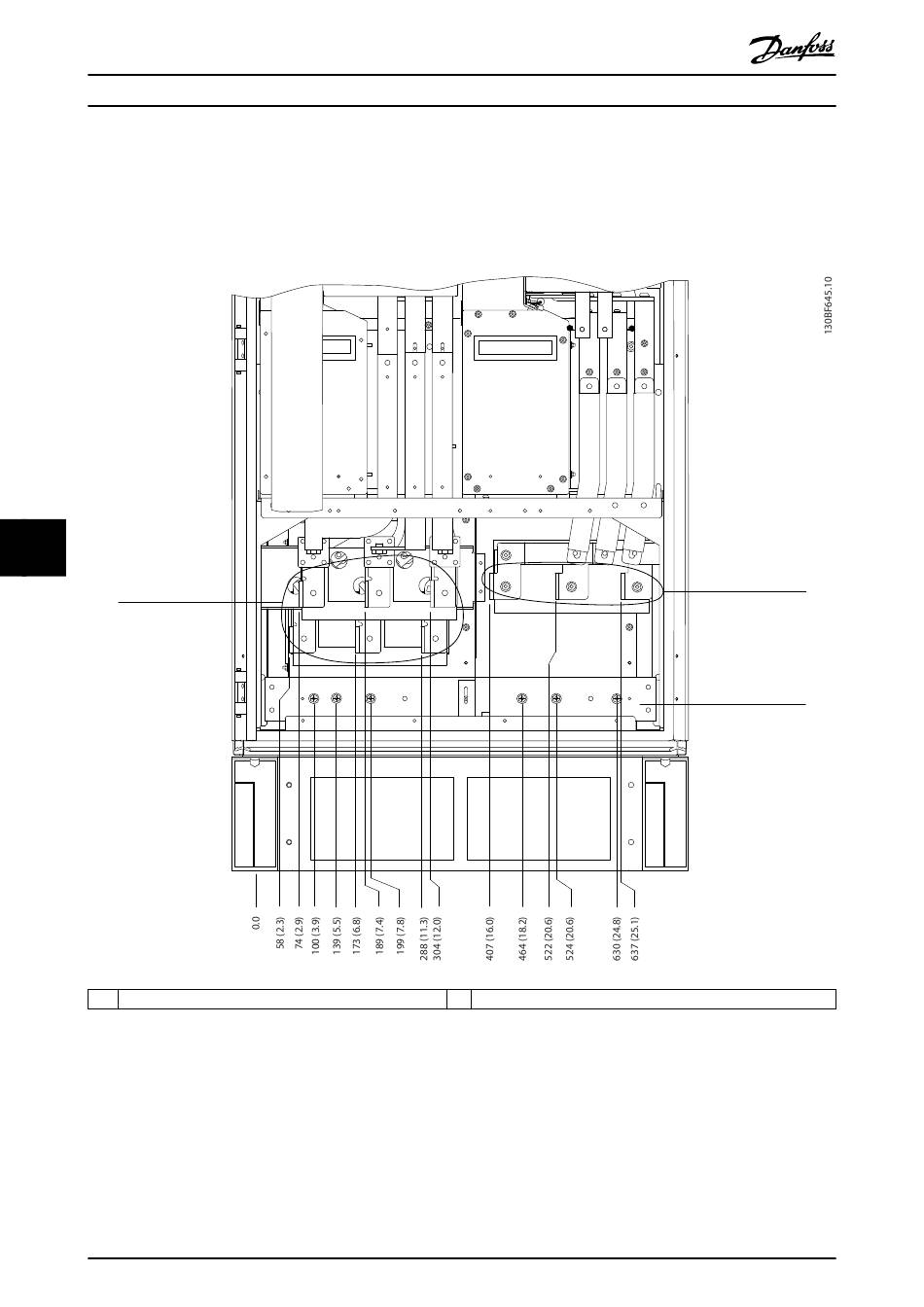

Illustration 8.68 Terminal Dimensions for F10–F13 Rectifier Cabinet, Front View
132
®
VLT
HVAC Drive FC 102
R2/L12
91-1
S2/L22
92-1
T2/L32
93-1
R1/L11
91
S1/L21
92
T1/L31 93
2
Danfoss A/S © 11/2017 All rights reserved.
U/T1 96
V/T2 97
W/T3 98
Ground bar
2
3
MG16C302
