8.2 E2 Exterior and Terminal Dimensions

8.2.1 E2 Exterior Dimensions
538
(21.2)
1547
(60.9)
8
8
585 (23.0)
498 (19.5)

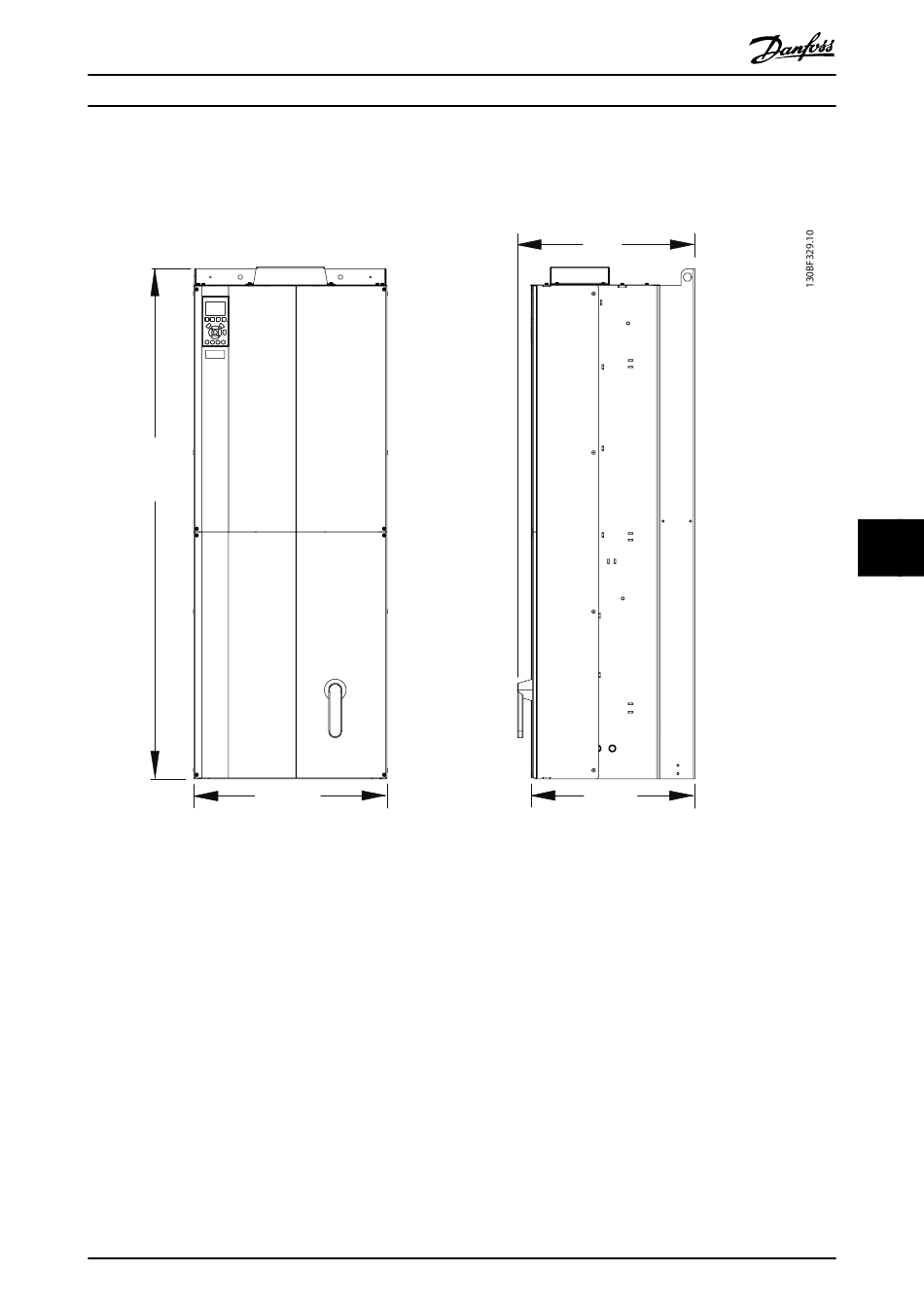

Illustration 8.10 Front, Side, and Door Clearance Dimensions for E2
MG16C302
Danfoss A/S © 11/2017 All rights reserved.
75
