Danfoss VLT HVAC Drive FC 102 Design Manual page 71

355–1400 kw
Hide thumbs Also See for VLT HVAC Drive FC 102:
Table of Contents

Advertisement

Exterior and Terminal Dimen...
1
492 (19.4)
2
453 (17.8)
3
323 (12.7)
0.0
195 (7.7)
1
Mains terminals
2
Brake terminals

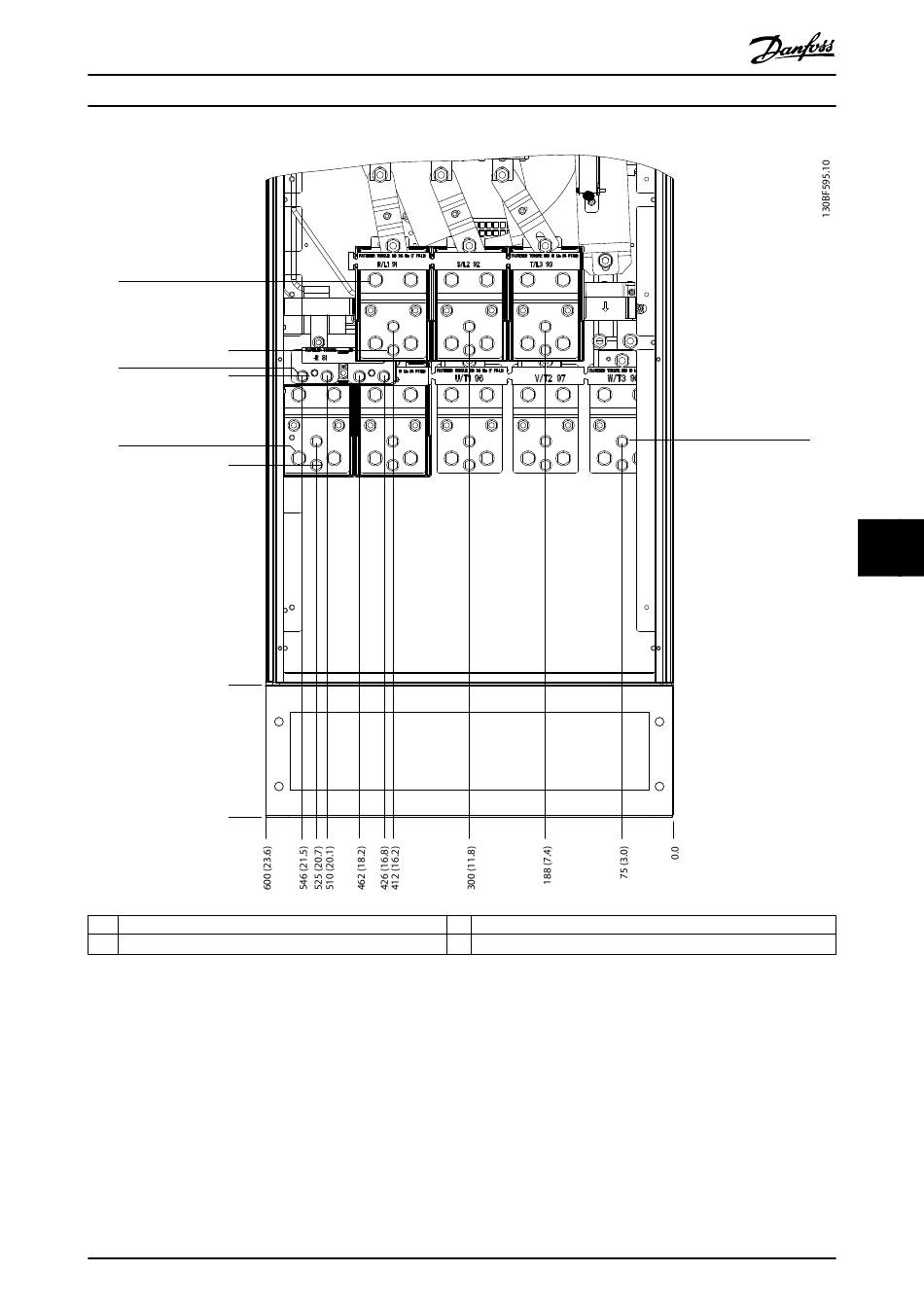

Illustration 8.4 Terminal Dimensions for E1, Front View
MG16C302
Design Guide
3
Regen/load share terminals
4
Motor terminals
Danfoss A/S © 11/2017 All rights reserved.
4
8
8
69
