3 Components and Power Supply
Note
Some devices leave the factory with customized settings. This personalization means your router's de-
fault configuration (and that of the embedded access point, where applicable) may be different from the
one shown above.

3.6 Data connections

The Teldat M2 router family has the following data connections.

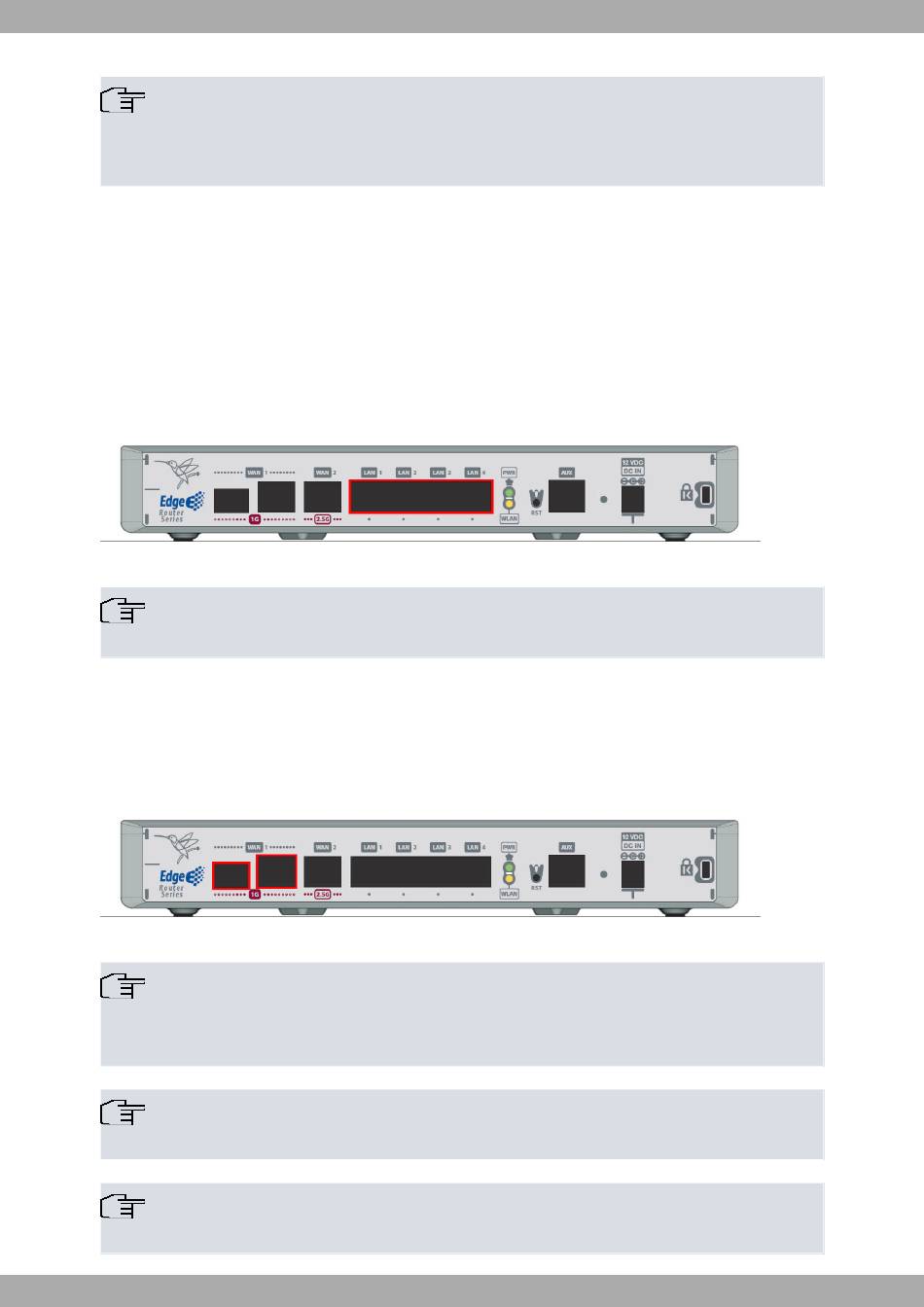

3.6.1 4-port Ethernet switch connections

The Teldat M2 router family incorporates a 4-port 10/100/1000 Base-T switch with automatic MDI/MDIX to connect
to a local area network (LAN).
Please pay careful attention to the labeling to avoid mistaking this switch for other types of ports:
LAN ports
Fig. 15:
Note
Only the LAN 1 connector is available during booting and in BIOS mode.

3.6.2 WAN Combo connection

The Teldat M2 router family has one combo Gigabit Ethernet interface for WAN connection. This port has 2 connect-
ors - SFP for an optical link and RJ45 for a 10/100/1000 Base-T link - but they cannot work simultaneously.
Please pay careful attention to the labeling to avoid mistaking these ports for other types of ports:
WAN Combo connector
Fig. 16:
Note
This WAN interface has a UTP/Fiber Media Auto Detection feature.
Only one of the connectors must be used for proper operability.
Note
WAN-1 connector does not work during booting and in BIOS mode.
Note
An appropriate software license may be required for the combo WAN (WAN-1) interface to work.
