• So that the device boots with the default configuration, you need to release the RST button while the Alert LED is
blinking, i.e. before the 10 second period expires.
The router's default configuration sets the following IP address and mask:
• IP address: 192.168.1.1
• IP mask: 255.255.255.0
Note
Some devices leave the factory with customized settings for a client. This personalization means that
the device may have a different default configuration from the one shown above.

3.5.3 Cargalan Mode

Setting the cargalan mode enables you to send the router files such as BIOS, a distribution or a configuration file.
For the router to enter this mode, you need to follow these steps:
• With the device switched off, keep the RST button pressed and switch on the router through the ON/OFF switch
(1).
• The PSU LED (green) will light up and the Alert LED will begin to blink (amber). This blinking will continue for 10
seconds.
• Once the Alter LED stops blinking, it will light up in steady green. At that point the USB LED will begin to blink
(amber). This blinking will continue for 3 seconds.
• The router will enter in the cargalan mode if you release the RST button while the USB LED is blinking.
Once the device is in this mode, you can start downloading files up to a maximum of 5. The loading procedure is as
follows:
• Send a file while the LED is blinking in amber.
• When the whole file has arrived, it is then recorded while the LED blinks in red and green.
• If the file has recorded correctly, the LED will light up in steady green and the next LED will begin to blink in amber
indicating that you can send another file. This occurs up to a maximum of five times, when the Cell LED, which is
the last one, will then light up in steady green.

3.6 Connecting the data

The Teldat K router family has the following data connections.

3.6.1 4-port Ethernet Switch

The Teldat K router family incorporates a 4-port 10/100/1000 BaseT Switch with automatic MDI/MDIX to connect to
a local area network (LAN).
Please pay careful attention to the labeling so you do not confuse this switch with other types of ports:

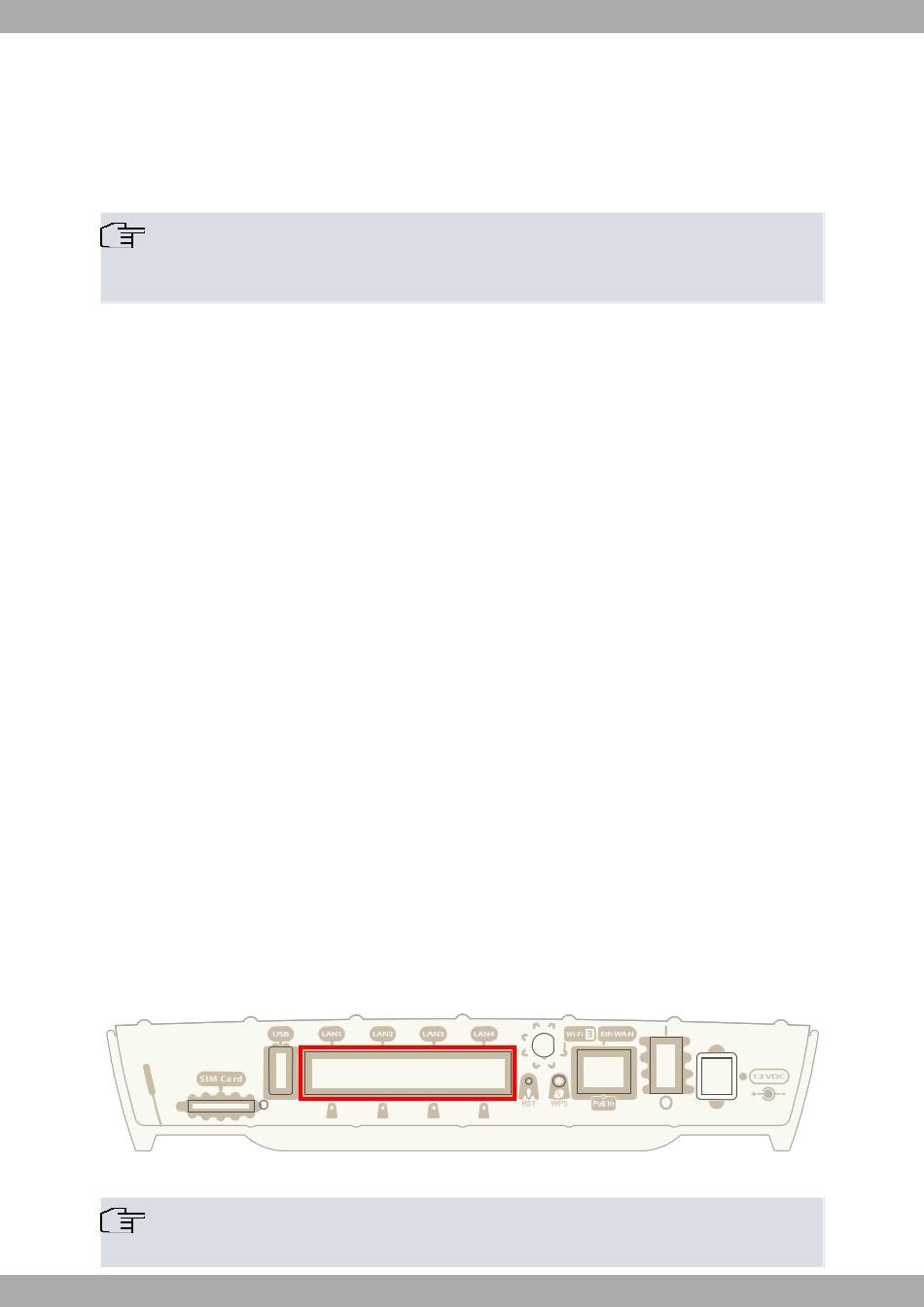

LAN switch PORTs
Fig. 10:
Note
During booting and in BIOS mode, only the LAN 1 connector is available.
