3 Components and Power Supply

3.4 Plug-in Modules

Currently, only a 3G USB modem can be inserted in the device. To view the list of supported 3G modems, please go
to the following website: http://www.teldat.com.

3.4.1 Installation

Simply insert the USB in the appropriate slot on the rear panel, as shown in the following figure:

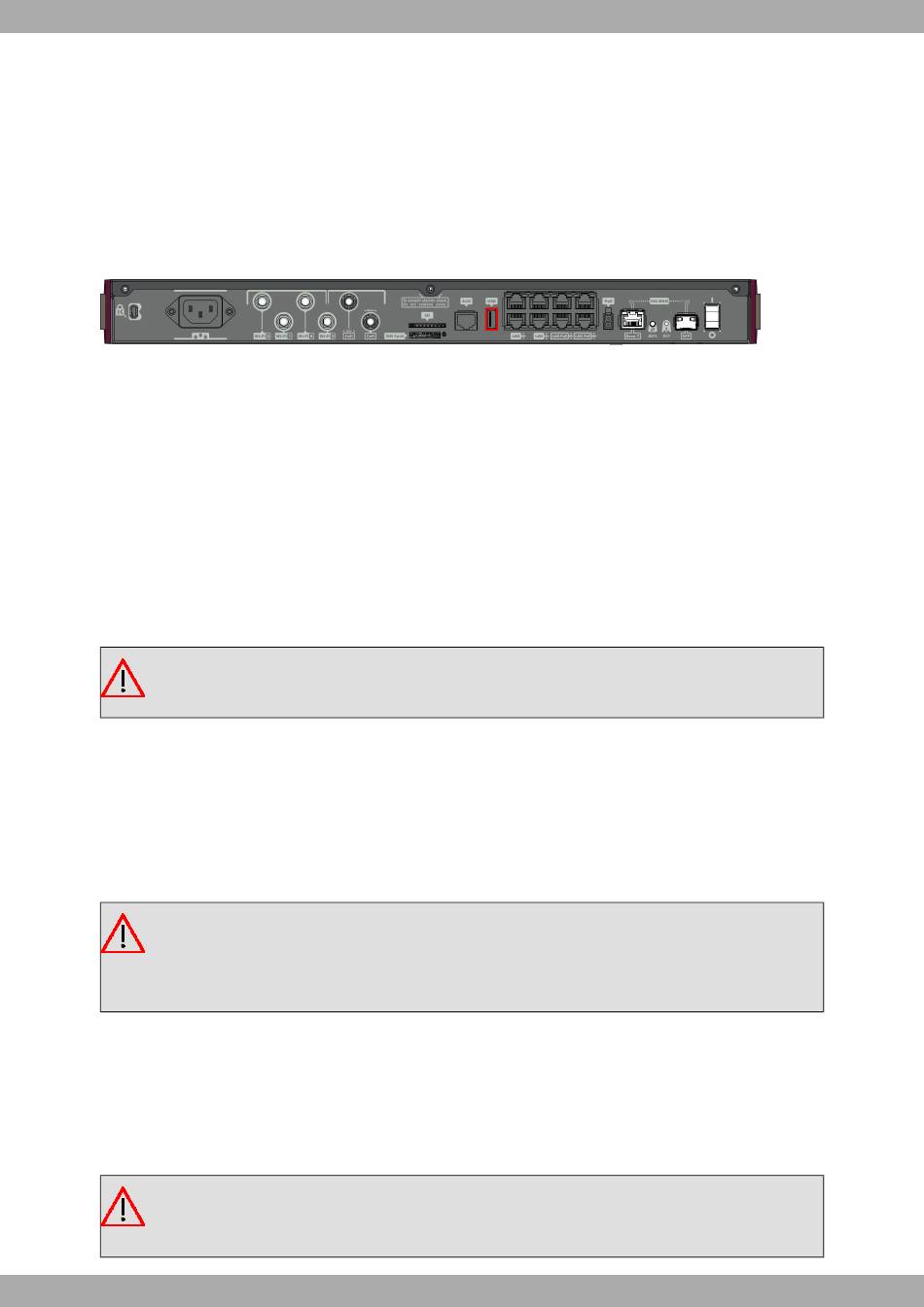

USB modem insertion slot
Fig. 11:

3.4.2 Uninstall

To remove the device, simply pull it out from the slot where it was inserted. We recommend switching off the equip-
ment before removing the USB device.

3.5 Power Source

The Teldat Atlas-i70 router is powered through an internal AC/DC source.
The Teldat Atlas-i70 may also incorporate a card to inject PoE through the 4 ports of the 8-port Switch. In this case,
an external adapter is needed to provide power to PoE module.
Warning
The equipment must be used with the power supply provided by the manufacturer.
Workplace Conditions. Main Characteristics
• Avoid humid and/or dusty locations.
• Direct exposure to sunlight and other heat sources should be avoided. The device should not be placed amongst
papers, magazines or other elements that could hinder natural air circulation.
• The device should not be placed very close to strong electromagnetic fields such as speakers, engines, etc.
• Knocks and/or strong vibrations should be avoided during transport, operation and storage.
Warning
The electric current in power cables, telephone lines and communication cables is dangerous. To pre-
vent electric shocks, before installing, handling or opening the equipment covers, connect and discon-
nect the cables following the steps set forth in

3.5.1 Internal Power Source

To connect the power supply to the device, please follow the steps under section
To avoid electric shocks, residual current circulation and other unwanted effects that affect communications, the fol-
lowing is recommended:
Warning
All interconnected communication devices should be plugged to THE SAME GROUNDED POWER
OUTLET, which should at the same time be of good quality (lower than 10 ohms).
10
Connecting on page 11 and Disconnecting
Connecting
Teldat S.A.
on page 11.
on page 11.
Teldat Router Atlas-i70
