3 Components and Power Supply
(2) Place the router on the wall and attach it using the screws (3.5x30). The figure shows how to install it correctly,
so that it can be used safely.

3.4 Plug-in Modules

The 3G USB modem is the only module that can be inserted in the device. To view the list of supported 3G modems,
please visit the following website: http://www.teldat.com.

3.4.1 Installation

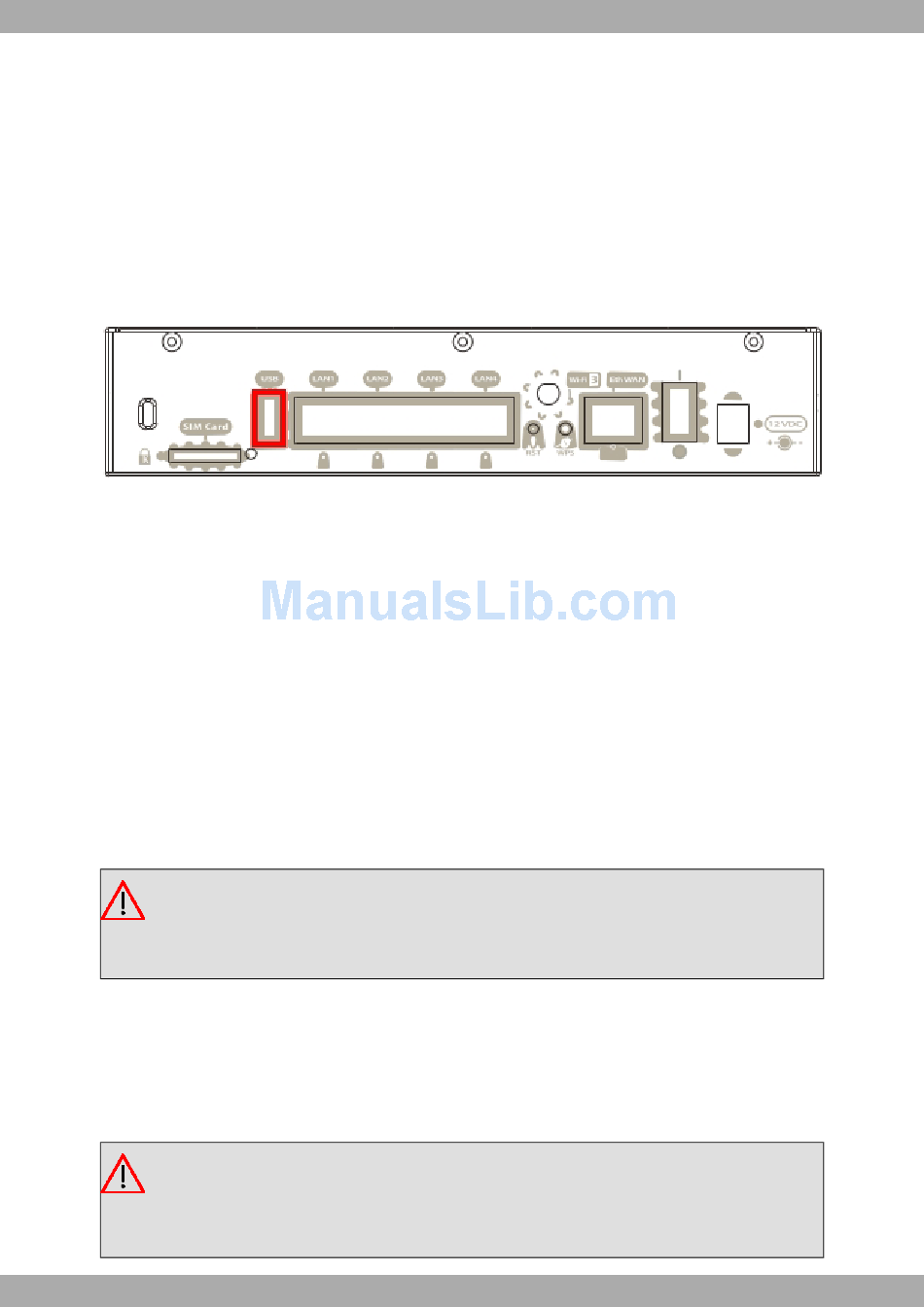

To install the USB modem, simply insert it in the USB slot on the rear panel as shown in the following figure:
USB modem insertion slot
Fig. 13:

3.4.2 Uninstall

To remove the device, simply remove it from the slot where it was inserted. See

3.5 Power Source

The Teldat M1 router family is powered though an external AC/DC source.
Workplace conditions. Main characteristics
• Avoid humid and or dusty locations.
• Direct exposure to sunlight, as well as other heat sources, should be avoided. The device should not be placed
amongst papers, magazines or other elements that could hinder natural air circulation.
• The device should not be placed very close to strong electromagnetic fields (such as speakers, engines, etc.).
• Knocks and/or strong vibrations should be avoided during transport, operation and storage.
Warning
The electric current in power cables, telephone lines and communication cables is dangerous. To pre-
vent electric shocks, before installing, handling or opening the equipment covers, connect and discon-
nect the cables following the steps set forth in

3.5.1 Connecting to the power source

To connect the power supply to the device, please follow the steps set forth in section
To avoid electric shocks, residual current circulation and other unwanted effects, also affecting communications, the
following is recommended:
Warning
All interconnected communication devices should be plugged to THE SAME GROUNDED POWER
OUTLET, which should at the same time be of good quality (lower than 10 ohms).
Whether the workplace is provided with an uninterrupted power supply system (UPS), regulated supply
12
Fig. 13
Connecting on page 13 andDisconnecting
on page 12.
on page 13.
Connecting on page 13.
