Warning

If you install the screws in drywall, use hollow-wall anchors (8 mm – 5/16 inch) to secure the screws. If

the screws are not properly anchored, the strain of the cables connected to the router back panel could

pull the router from the wall.

Step 2 Hang the router on the screws. This is the appropriate orientation for safe use (see

Note

• The accessories for wall mounting the device are not provided in the package, and have to be ac-

quired separately.

• The accessories must be properly adapted to the kind of wall and must be chosen to ensure that they

can support the weight of the device.

3.3 Plug-in Modules

The only module that can be inserted in the device is the USB 3G modem. To view the list of supported 3G modems,

please visit the Teldat website: http://www.teldat.com .

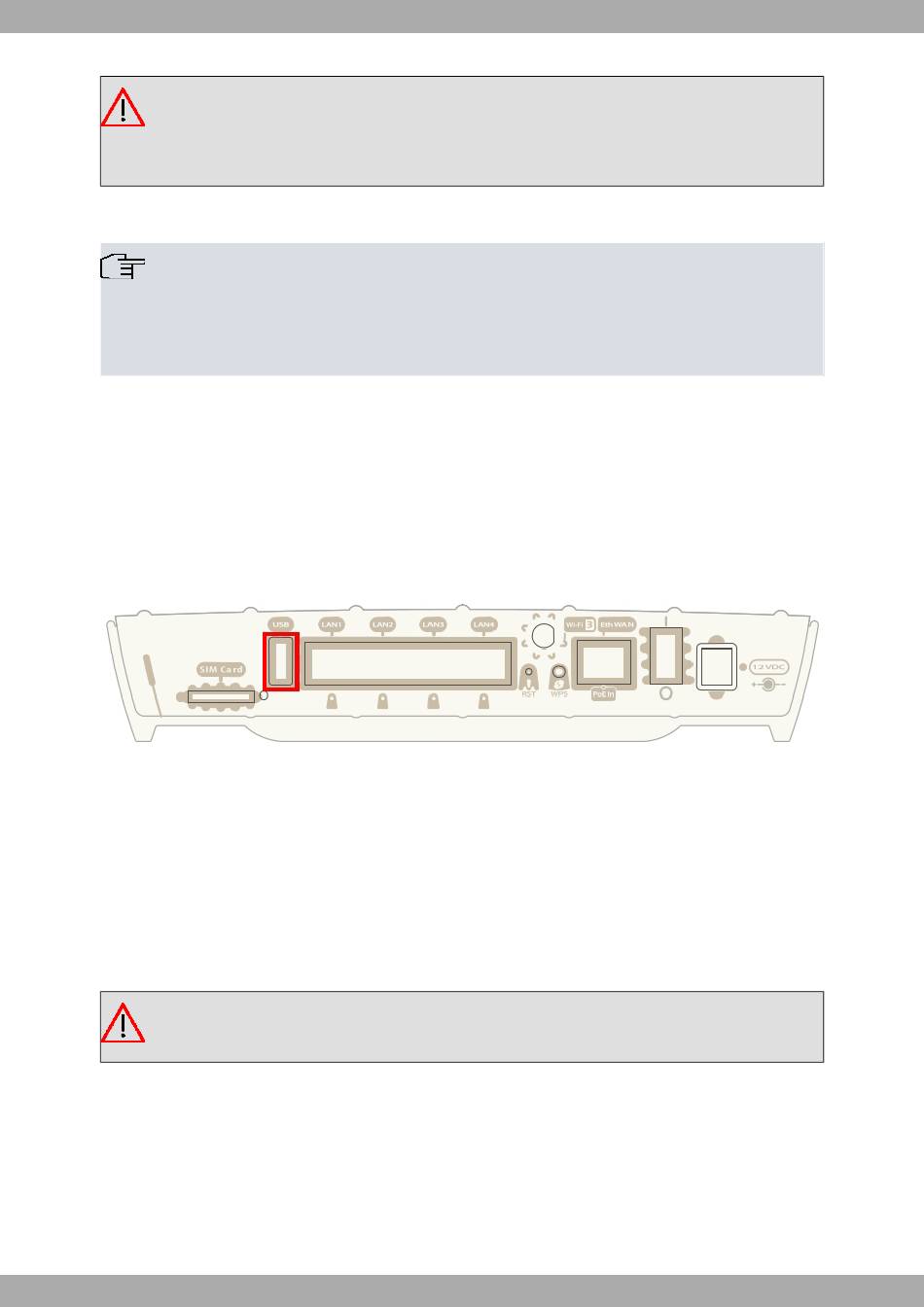

In order to install the USB modem, simply insert it in the USB slot on the rear panel as shown in the following figure:

USB modem insertion slot

Fig. 8:

To remove the device, simply remove it from the slot where it was inserted. See

The Teldat K router family is powered though an external AC/DC source or through an Ethernet cable (if it complies

with the POE 802.3at standard).

Warning

The equipment must be used with the power supply provided by the manufacturer, or equivalent.

Workplace Conditions. Main Characteristics

• Avoid humid and or dusty locations.

• Direct exposure to sunlight should be avoided as well as other heat sources. The device should not be placed

amongst papers, magazines or other elements that could hinder natural air circulation.

• The device should not be placed very close to strong electromagnetic fields such as speakers, engines, etc.

• Knocks and/or strong vibrations should be avoided during transport, operation and storage.

Teldat K/KF router

3 Components and Power Supply

Fig. 7

on page 10).

Fig. 8

on page 11.
