Powerware Plus 80 Operation page 98

The method you use to join two cabinets depends on which
cabinets they are. For the purpose of discussion, this chapter uses the
term UPS to refer to the UPS cabinet, and the term optional
other cabinet (such as a PDM cabinet or a battery cabinet). There are two different
procedures for joining the cabinets in your UPS system:
Method A - Joining an optional cabinet to the UPS
l
Method B - Joining two optional cabinets to each other
l

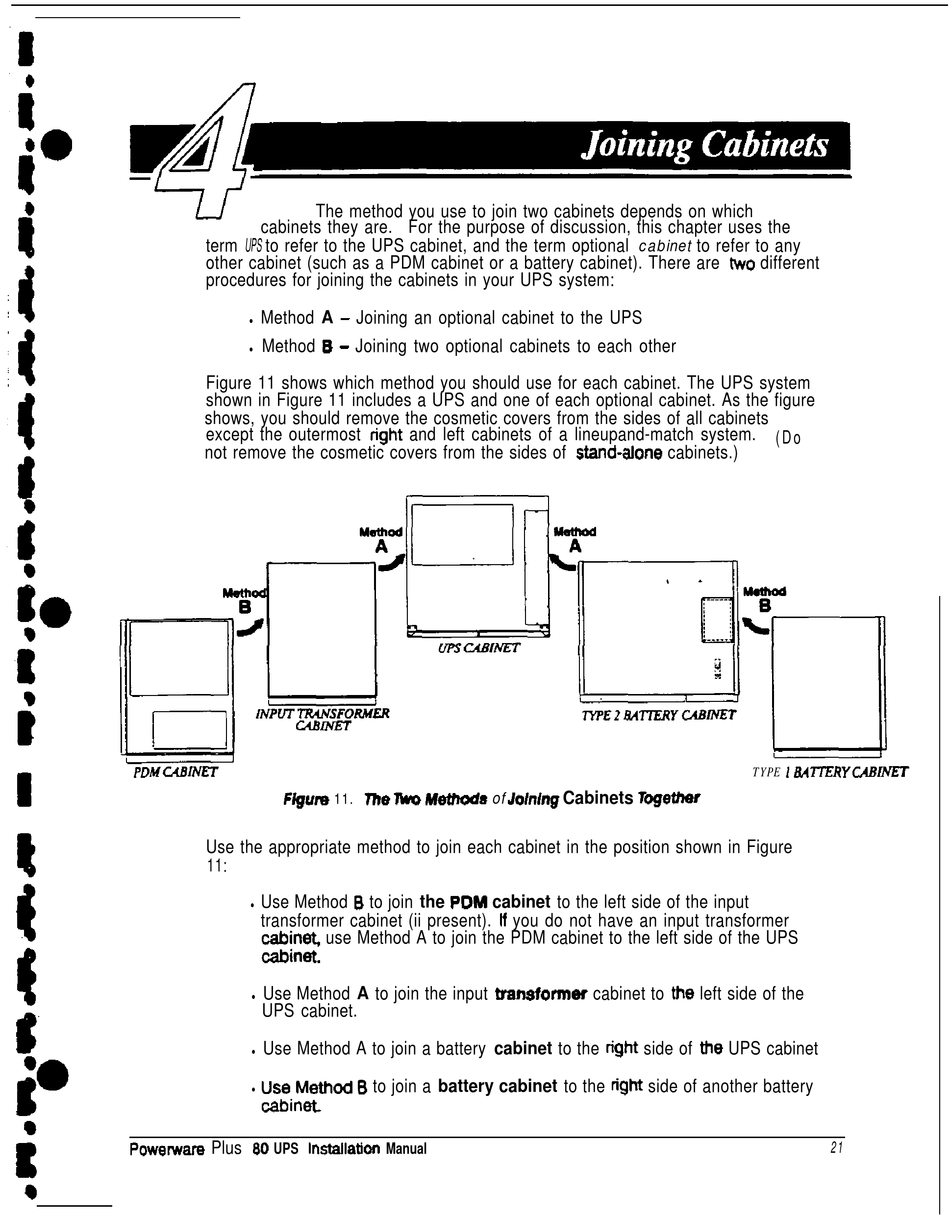

Figure 11 shows which method you should use for each cabinet. The UPS system
shown in Figure 11 includes a UPS and one of each optional cabinet. As the figure
shows, you should remove the cosmetic covers from the sides of all cabinets
except the outermost right and left cabinets of a lineupand-match system.
not remove the cosmetic covers from the sides of stand-afone cabinets.)
11. The lka Mefhods
Use the appropriate method to join each cabinet in the position shown in Figure
11:
Use Method B to join the PDM cabinet to the left side of the input
l
transformer cabinet (ii present). If you do not have an input transformer
Use Method A to join the input baneformer cabinet to the left side of the
l
UPS cabinet.
Use Method A to join a battery cabinet to the right side of the UPS cabinet
l
l
cabinet
of Jofnfng
Cabinets
to refer to any
( D o
TYPE 16Al-t.EiZYCABINET
21
